Description
KEY FEATURES
- 650W continuous output at 30°C/86°F operating environment.
- 80 PLUS 230V EU certified, deliver great efficiency under real world condition.
- Low-profile flat cables.

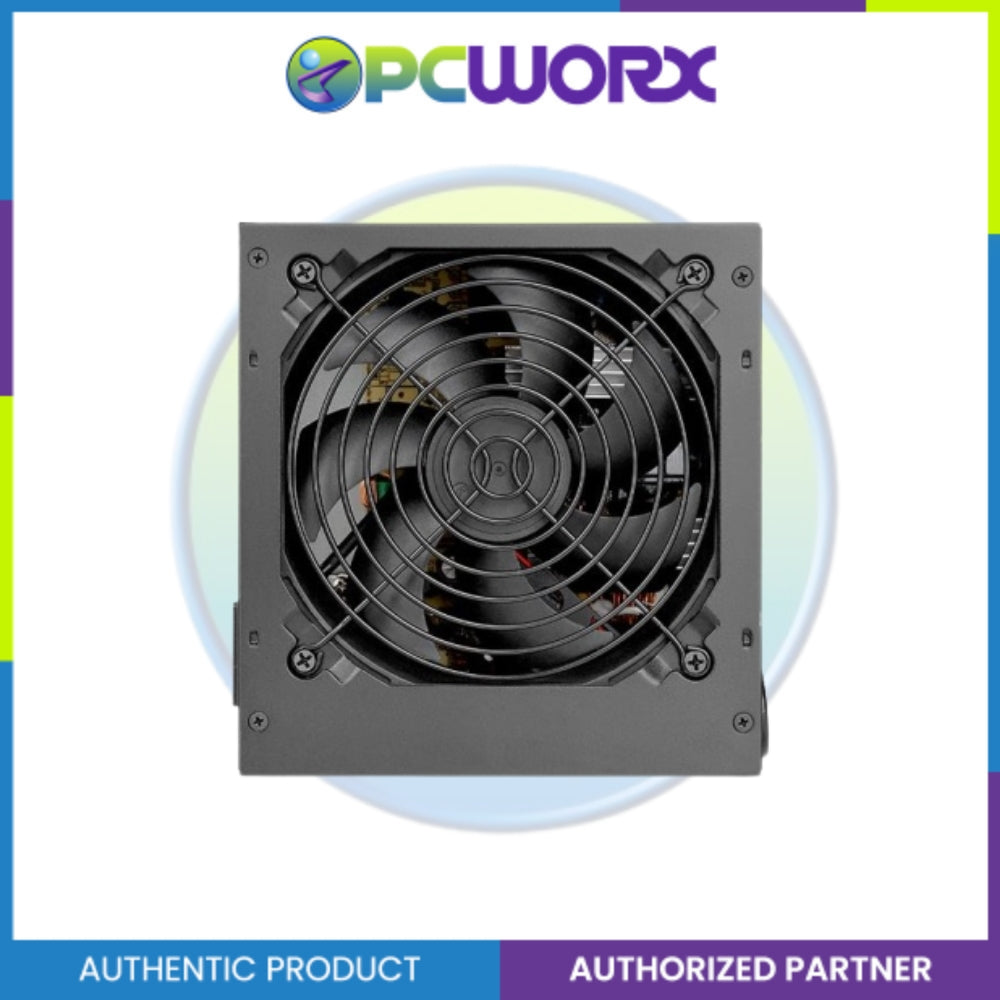

- Ultra Quiet 120mm fluid bearing fan delivers excellent airflow.
- High amperage single +12V rail design.
- DC-DC design for more precise electrical output.
- Intel C6/C7 states & ErP ready.
- Built-in industry grade protections: OVP, OPP, SCP
- Compact Sizing: 150mm(W)x86mm(H)x140mm(D).

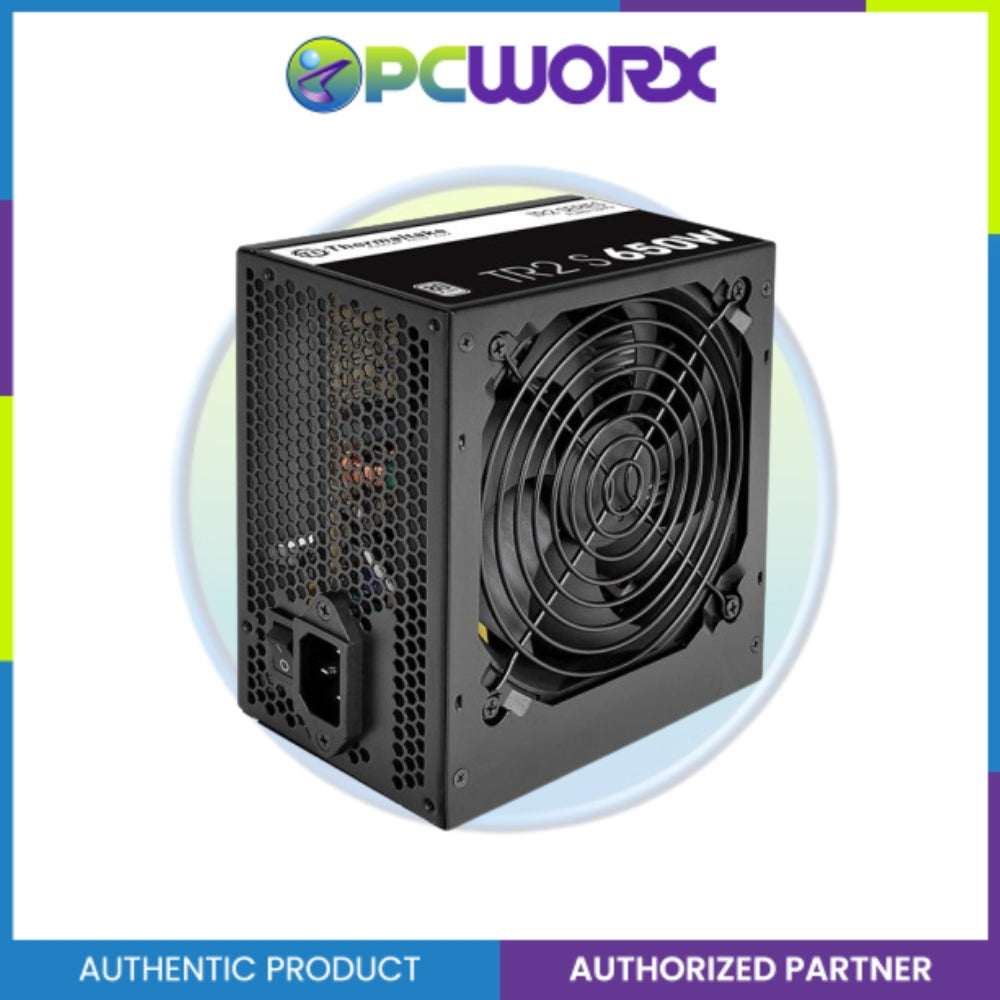

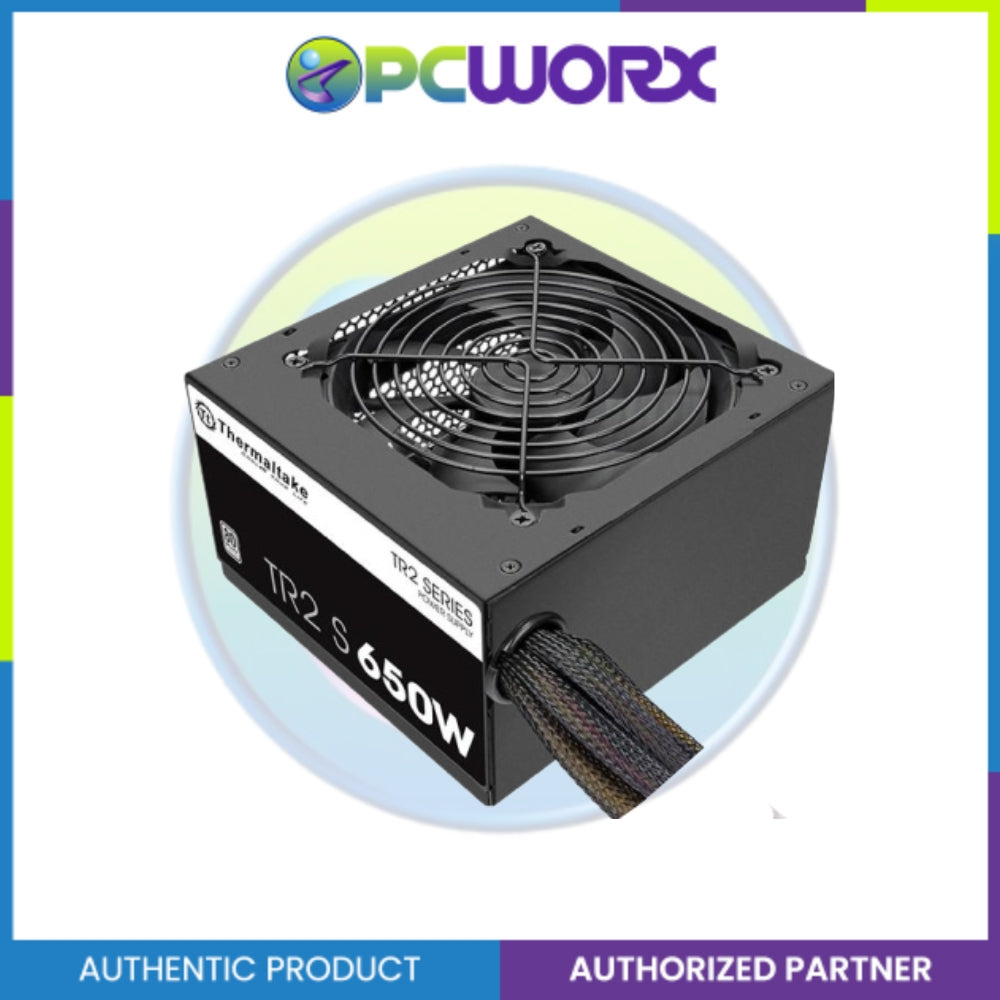

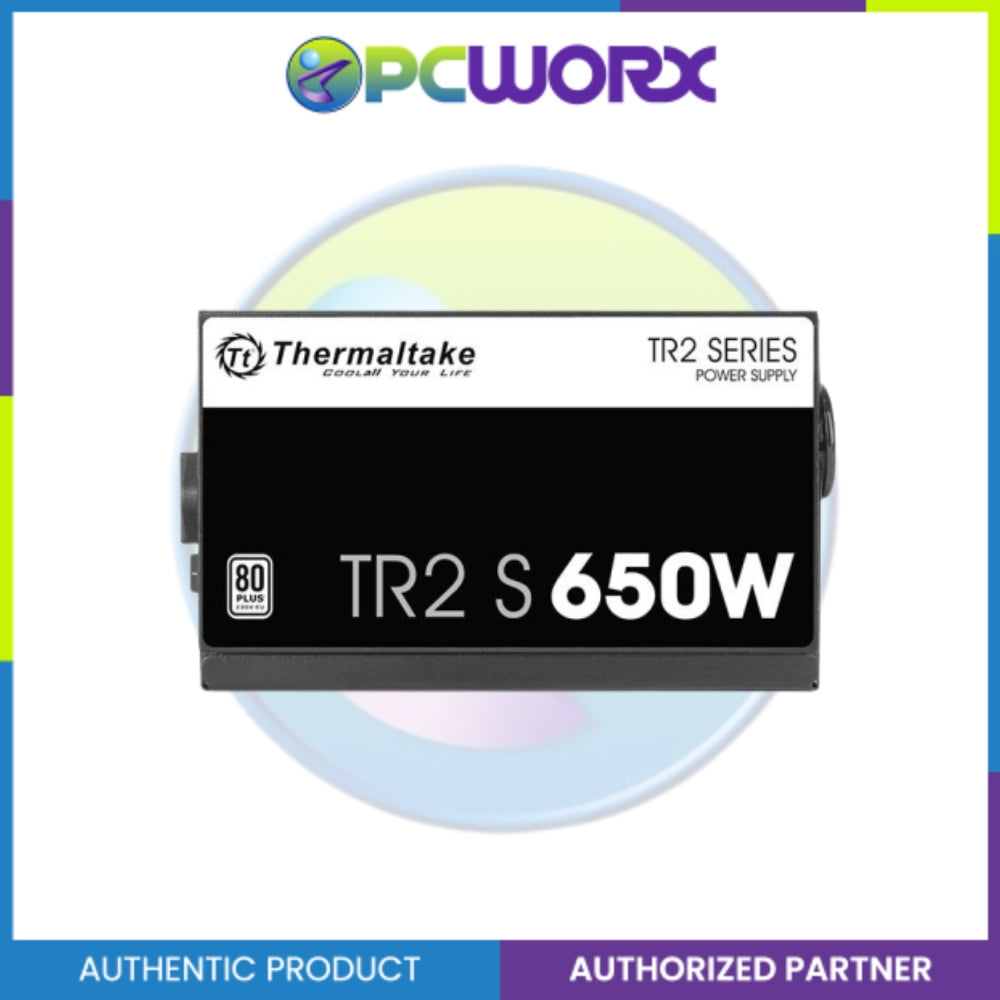

Thermaltake TR2 S 650W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Product details of PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply
PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply Thermaltake TR2 S 650WIncorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. Ultra Quiet FanTR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation. Multiple Connectors The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
SPECIFICATIONS
|
AC Input
|
Input Voltage: 200 - 240V~
|
|
Input Current: 6.3A
|
|
Frequency: 50Hz/60Hz
|
|
DC Output
|
|
|
+3.3V
|
Max Output Current: 18A
|
|
Max Output Power: 110W
|
|
+5V
|
Max Output Current: 18A
|
|
Max Output Power: 110W
|
|
+12V
|
Max Output Current: 54.2A
|
|
Max Output Power: 650W
|
|
-12V
|
Max Output Current: 0.3A
|
|
Max Output Power: 3.6W
|
|
+5VSB
|
Max Output Current: 3A
|
|
Max Output Power: 15W
|
|
Total Power
|
650W
|
|
General Info
|
|
|
P/N
|
PS-TRS-0650NNSAWU-P
|
|
Model
|
TRS-650AH2NLW-T
|
|
PFC
|
Active PFC
|
|
Power Good Signal
|
100-250 msec
|
|
Hold-Up Time
|
> 17 msec within 80% load
|
|
Cooling System
|
12cm FDB Fan
|
|
Dimension
|
150mm(W)x86mm(H)x140mm(D)
|
|
Environment
|
|
|
Operating Temperature
|
+5°C to +30°C
|
|
Operating Humidity
|
20% to 85%, non-condensing
|
|
Storage Temperature
|
-40°C to +55°C
|
|
Storage Humidity
|
10% to 95%, non-condensing
|
|
Miscellaneous
|
|
|
Efficiency
|
Meet 80 PLUS® 230V EU
|
|
MTBF
|
100,000 hrs minimum
|
|
Safety Approval
|
CE/LVD/CB/TUV
|
|
PCIe 6+2pin
|
2
|
|
Protections
|
|
|
Voltage Source
|
+3.3V, +5V, +12V
|
|
Over Voltage Protection
|
+3.3V: 3.764.3V, +5V: 5.747.0V, +12V: 13.4~15.6V
|
|
Over Power Protection
|
120%~160% over peak load
|
|
Short Circuit Protection
|
Short circuit on +5V, +12V, +3.3V, -12V will latch off, +5VSB auto-recovery
|
