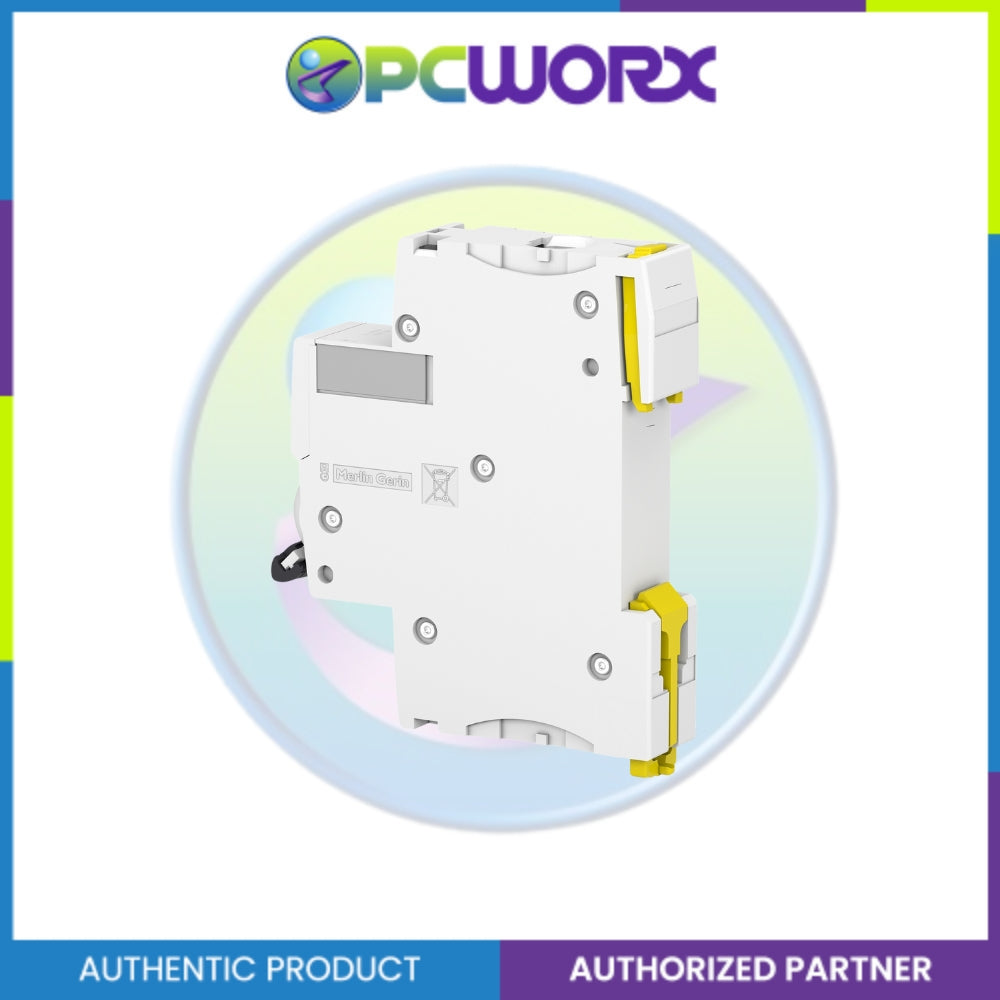

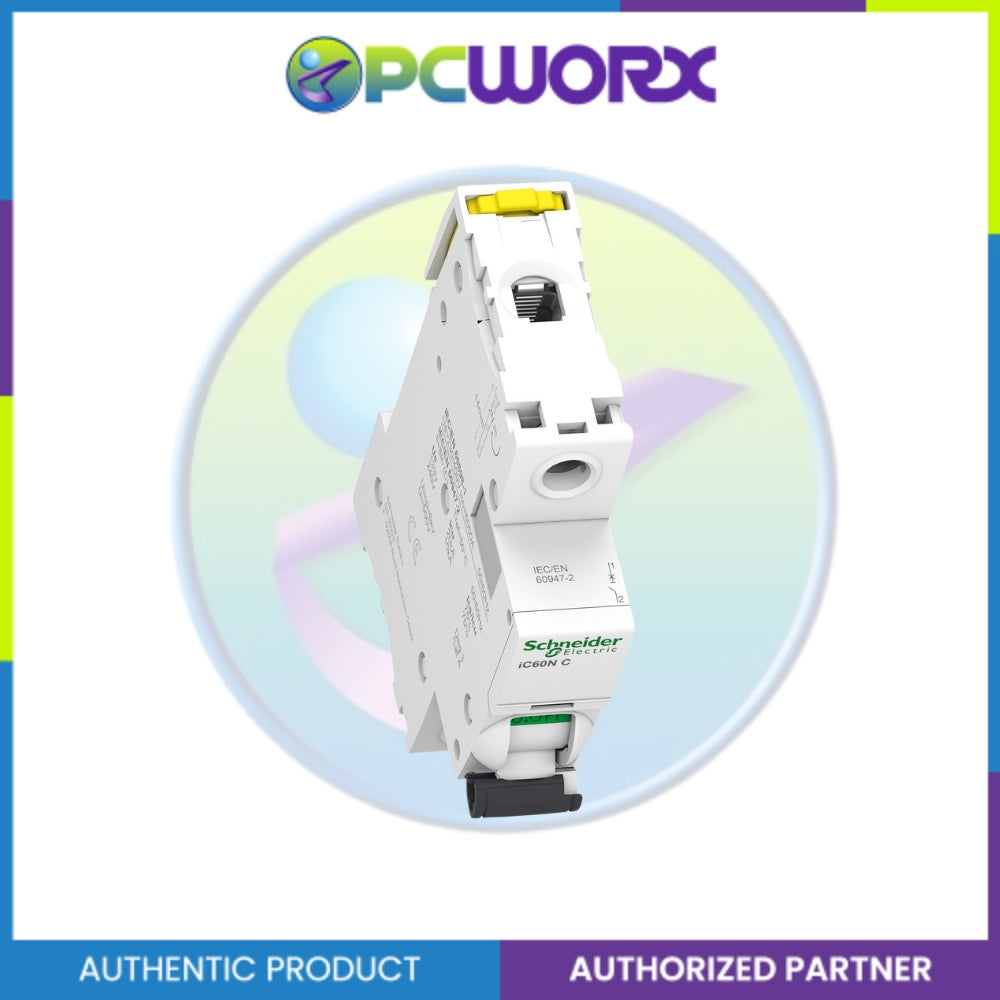

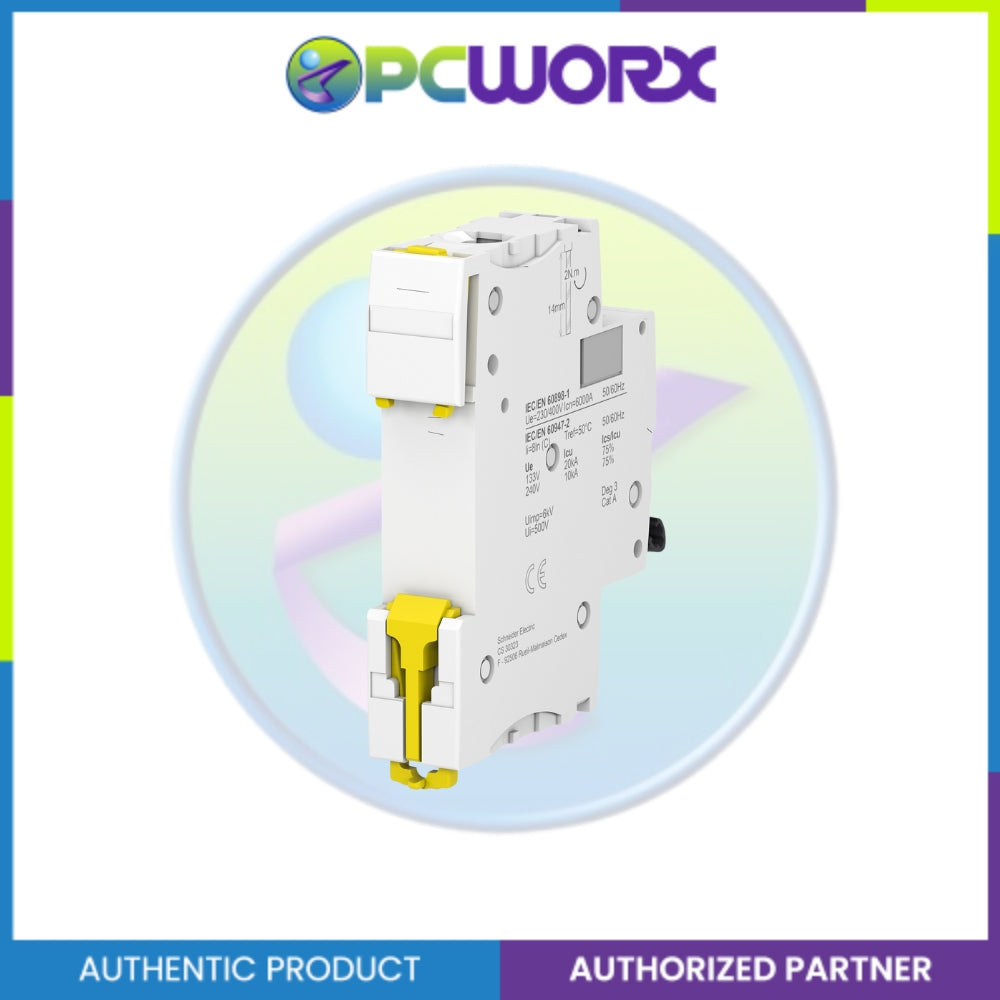

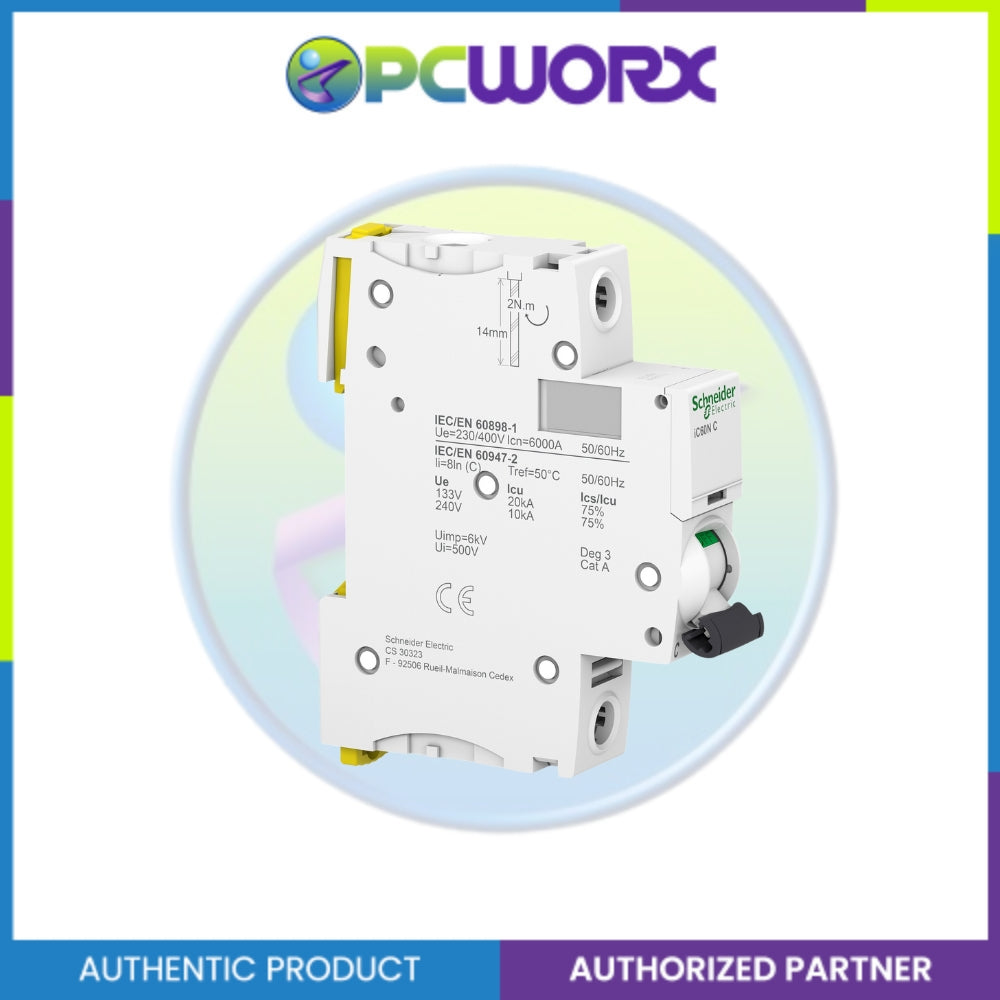

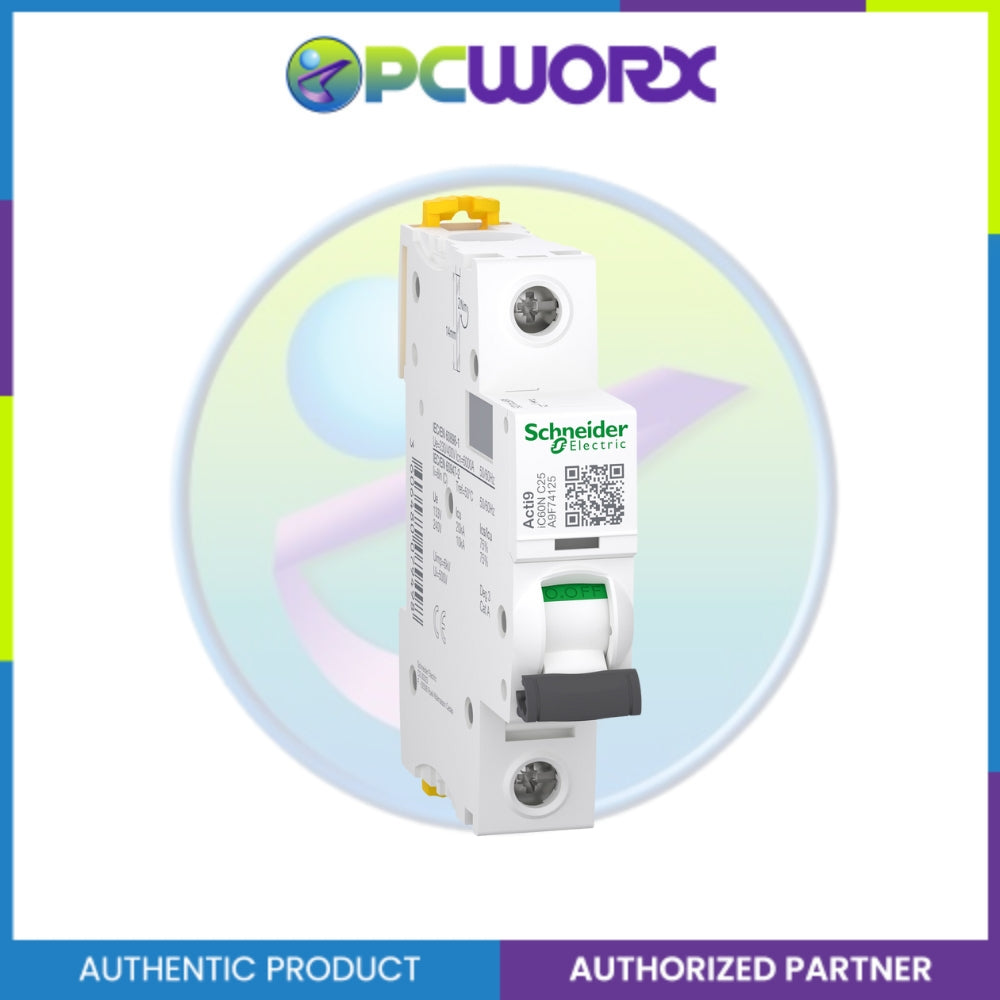

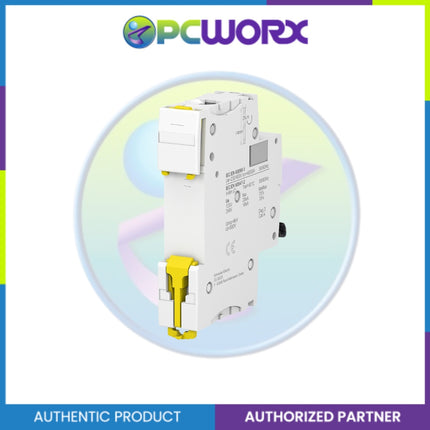

Schneider A9F74125 Mini Circuit Breaker Acti9 iC60N 1P C 25A MCB

Description

Description

Description

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

SPECIFICATION

Device application: Distribution
Range: Acti9
product name: Acti9 iC60
Product or component type: Miniature circuit-breaker
Device short name: IC60N
Poles description: 1P
Number of protected poles: 1
[In] rated current: 25 A
network type: AC
DC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2
15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category: Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation: Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards: EN 60898-1
EN 60947-2
IEC 60898-1
IEC 60947-2
Complementary
Network frequency: 50/60 Hz
Magnetic tripping limit: 8 x in +/- 20 %
[Ics] rated service breaking capacity: 27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz
10 kA 100 % conforming to EN 60947-2 - 72 V DC
10 kA 100 % conforming to IEC 60947-2 - 72 V DC
15 kA 100 % conforming to EN 60947-2 - 12...60 V DC
15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Limitation class: 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: Trip indicator
Mounting mode: Fixed
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: YES
9 mm pitches: 2
Height: 85 mm
Width: 18 mm
Depth: 78.5 mm
Product weight: 0.215 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Connections - terminals: Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 2 N.m top or bottom
Earth-leakage protection: Without
Environment:
IP degree of protection: IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Pollution degree: 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage category: IV
Tropicalisation: 2 conforming to IEC 60068-1
Relative humidity: 95 % at 55 °C
Operating altitude: 0...2000 m
Ambient air temperature for operation: -35…70 °C
Ambient air temperature for storage: -40…85 °C
Packing Units:
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.800 cm
Package 1 Width: 7.200 cm
Package 1 Length: 9.100 cm
Package 1 Weight: 116.000 g

Unit Type of Package 2

 BB1
Number of Units in Package 2: 12
Package 2 Height: 8.000 cm
Package 2 Width: 9.500 cm
Package 2 Length: 22.500 cm
Package 2 Weight: 1.500 kg
Unit Type of Package 3: S03
Number of Units in Package 3: 132
Package 3 Height: 30.000 cm
Package 3 Width: 30.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 16.936 kg
