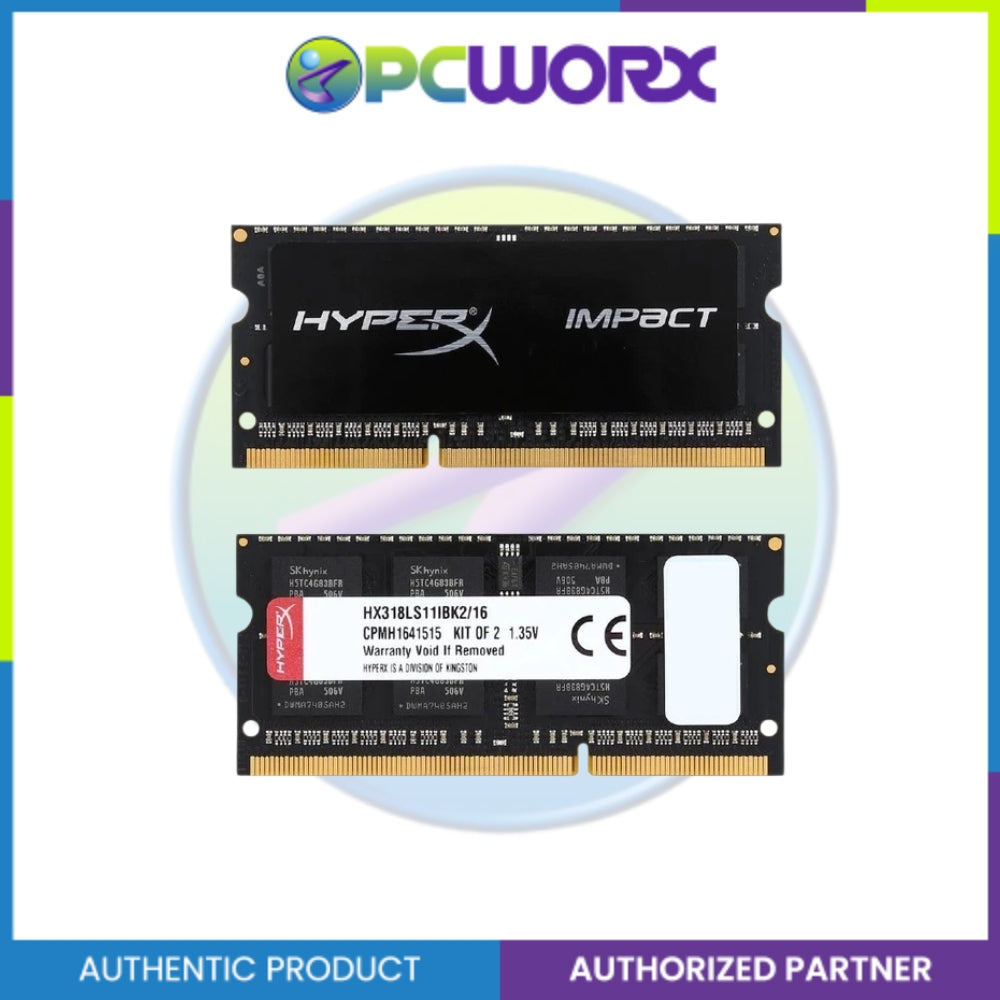

Description
FEATURES
•JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
•VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
•933MHz fCK for 1866Mb/sec/pin
•8 independent internal bank •Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6, 5
•Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
•8-bit pre-fetch
•Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
•Bi-directional Differential Data Strobe
•Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
•On Die Termination using ODT pin •Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
•Asynchronous Reset
•PCB : Height 1.180” (30.00mm), double sided component
