Product Collection
|

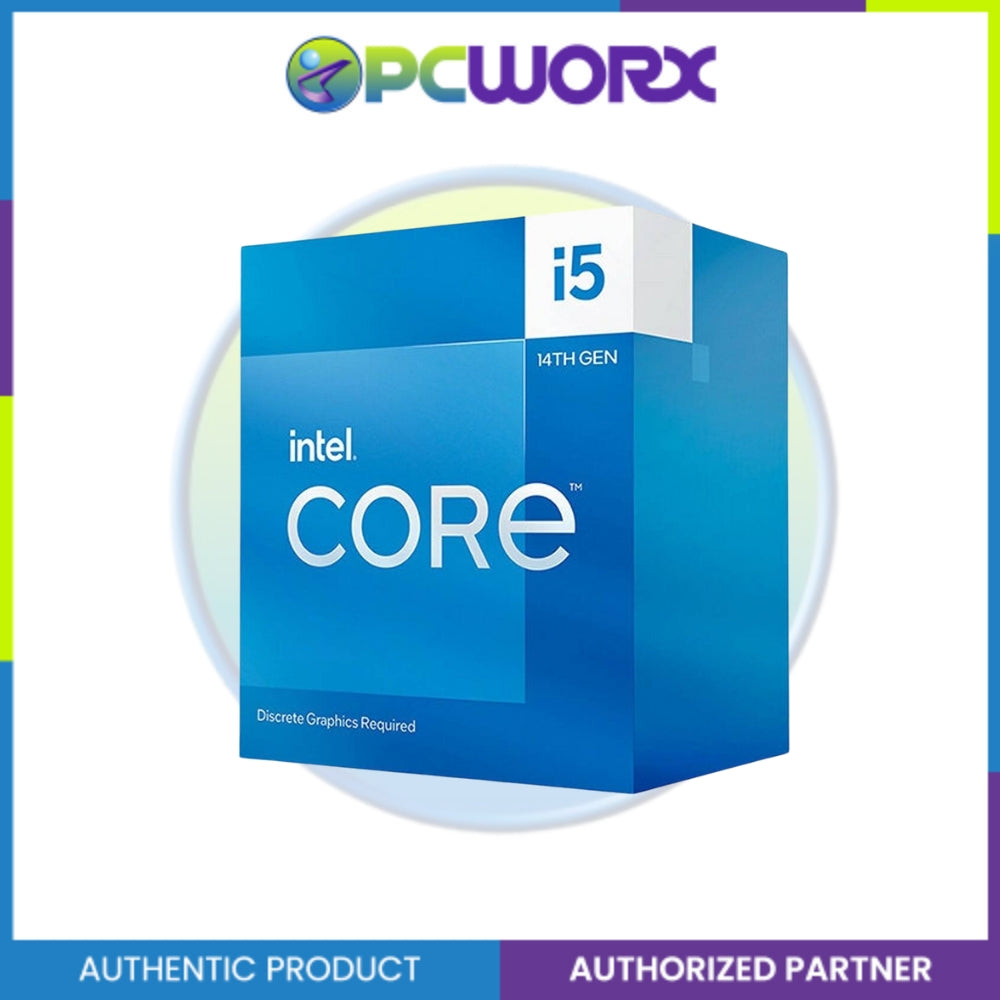

Intel® Core™ i5 Processors (14th gen)
|
|
Code Name
|
Raptor Lake
|
|
Vertical Segment
|
Desktop
|
|
Processor Number
|
i5-14400
|
|
Lithography
|
Intel 7
|
|
Use Conditions
|
PC/Client/Tablet
|
|
CPU Specifications
|
|
|
Total Cores
|
10
|
|
# of Performance-cores
|
6
|
|
# of Efficient cores
|
4
|
|
Total Threads
|
16
|
|
Max Turbo Frequency
|
4.7 GHz
|
|
Performance-core Max Turbo Frequency
|
4.7 GHz
|
|
Efficient-core Max Turbo Frequency
|
3.5 GHz
|
|
Performance-core Base Frequency
|
2.5 GHz
|
|
Efficient-core Base Frequency
|
1.8 GHz
|
|
Cache
|
20 MB Intel® Smart Cache
|
|
Total L2 Cache
|
9.5 MB
|
|
Processor Base Power
|
65 W
|
|
Maximum Turbo Power
|
148 W
|
|
Supplemental Information
|
|
|
Marketing Status
|
Launched
|
|
Launch Date
|
Q1'24
|
|
Embedded Options Available
|
Yes
|
|
Memory Specifications
|
|
|
Max Memory Size (dependent on memory type)
|
192 GB
|
|
Memory Types
|
Up to DDR5 4800 MT/s
|
|
Up to DDR4 3200 MT/s
|
|
Max # of Memory Channels
|
2
|
|
Max Memory Bandwidth
|
76.8 GB/s
|
|
GPU Specifications
|
|
|
GPU Name
|
Intel® UHD Graphics 730
|
|
Graphics Max Dynamic Frequency
|
1.55 GHz
|
|
Graphics Output
|
eDP 1.4b, DP 1.4a, HDMI 2.1
|
|
Execution Units
|
24
|
|
Max Resolution (HDMI/DP/eDP)
|
4096 x 2160 @ 60Hz, 7680 x 4320 @ 60Hz, 5120 x 3200 @ 120Hz
|
|
DirectX Support
|
12
|
|
OpenGL Support
|
4.5
|
|
OpenCL Support
|
3.0
|
|
Multi-Format Codec Engines
|
1
|
|
Intel® Quick Sync Video
|
Yes
|
|
Intel® Clear Video HD Technology
|
Yes
|
|
# of Displays Supported
|
4
|
|
Device ID
|
0x4682/0xA782
|
|
Expansion Options
|
|
|
Direct Media Interface (DMI) Revision
|
4.0
|
|
Max # of DMI Lanes
|
8
|
|
Scalability
|
1S Only
|
|
PCI Express Revision
|
5.0 and 4.0
|
|
PCI Express Configurations
|
Up to 1x16+4, 2x8+4
|
|
Max # of PCI Express Lanes
|
20
|
|
Package Specifications
|
|
|
Sockets Supported
|
FCLGA1700
|
|
Max CPU Configuration
|
1
|
|
Thermal Solution Specification
|
PCG 2020C
|
|
TJUNCTION
|
100°C
|
|
Package Size
|
45.0 mm x 37.5 mm
|
|
|
|
Advanced Technologies
|
|
|
Intel® Gaussian & Neural Accelerator
|
3.0
|
|
Intel® Thread Director
|
Yes
|
|
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
|
Yes
|
|
Intel® Speed Shift Technology
|
Yes
|
|
Intel® Turbo Boost Technology
|
2.0
|
|
Intel® Hyper-Threading Technology
|
Yes
|
|
Intel® 64
|
Yes
|
|
Instruction Set
|
64-bit
|
|
Instruction Set Extensions
|
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
|
|
Idle States
|
Yes
|
|
Enhanced Intel SpeedStep® Technology
|
Yes
|
|
Thermal Monitoring Technologies
|
Yes
|
|
Intel® Volume Management Device (VMD)
|
Yes
|
|
Security & Reliability
|
|
|
Intel® Standard Manageability (ISM)
|
Yes
|
|
Intel® Control-Flow Enforcement Technology
|
Yes
|
|
Intel® AES New Instructions
|
Yes
|
|
Secure Key
|
Yes
|
|
Intel® OS Guard
|
Yes
|
|
Execute Disable Bit
|
Yes
|
|
Intel® Boot Guard
|
Yes
|
|
Mode-based Execute Control (MBEC)
|
Yes
|
|
Intel® Virtualization Technology (VT-x)
|
Yes
|
|
Intel® Virtualization Technology for Directed I/O (VT-d)
|
Yes
|
|
Intel® VT-x with Extended Page Tables (EPT)
|
Yes
|
