Description
KEY FEATURE
- Ultra Durable
-
Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
-
OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

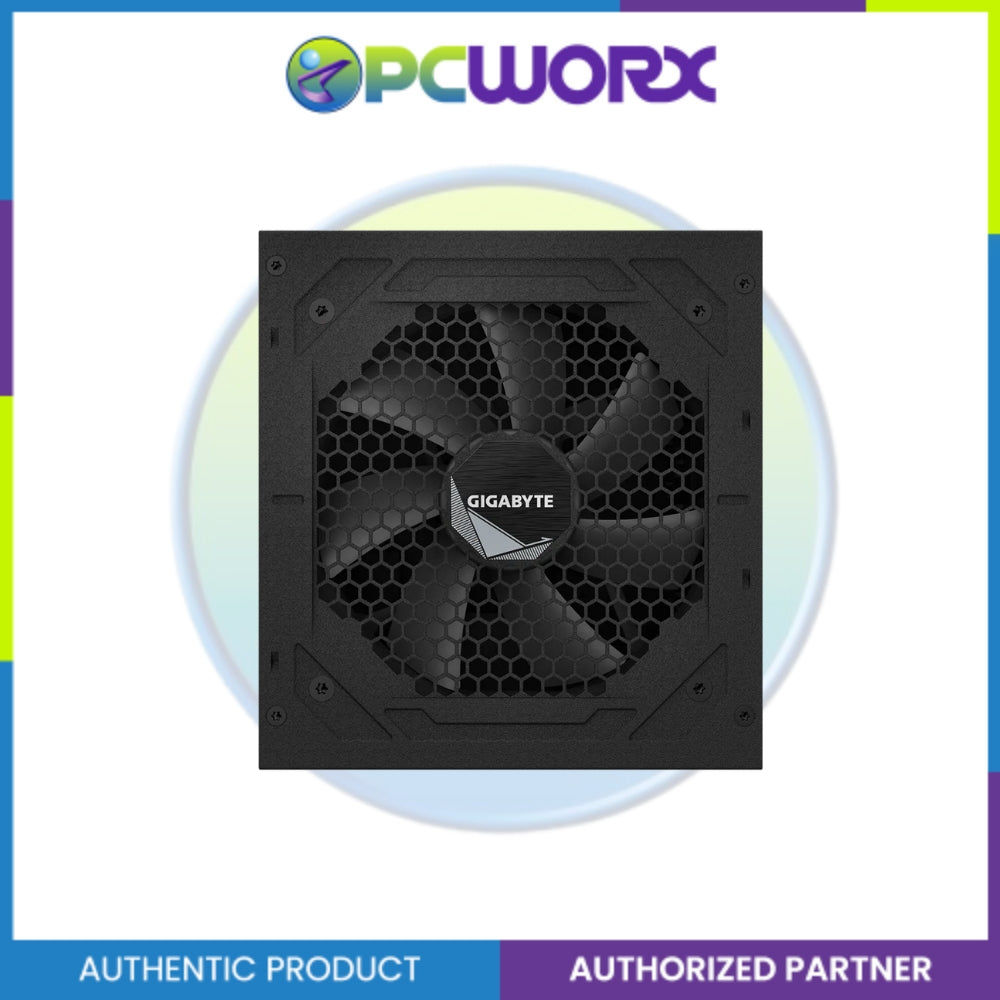

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
SPECIFICATIONS
| Model |
GP-UD750GM |
| Type |
Intel Form Factor ATX 12V v2.31 |
| PFC |
Active PFC (>0.9 typical) |
| Input Voltage |
100-240 Vac(full range) |
| Input Current |
12-6A |
| Input Frequency |
60-50 Hz |
| Output Capacity
|
750W |
| Dimension |
150 x 140 x 86 mm |
| Fan Type |
120 mm Hydraulic Bearing (HYB) Fan |
| Efficiency
|
90% at typical load |
| MTBF |
>100,000 hours |
| Protection
|
OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal |
100-150ms |
| Hold Up Time |
>16ms |
| Cable Type |
Flat, All black
|

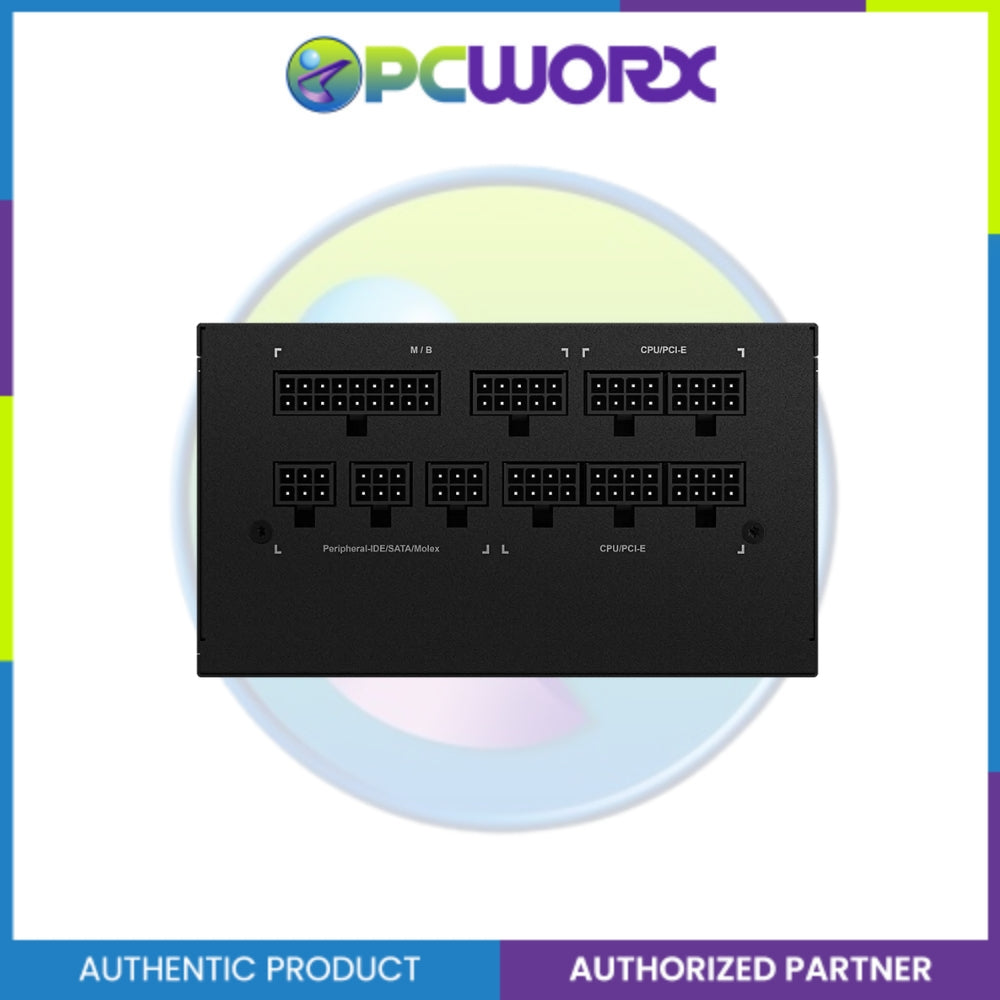

| Connectors |
ATX/MB 20+4 Pin x 1: 610mm*1
|
|
CPU/EPS 4+4 Pin x 2: 600mm*2 |
|
PCI-e 6+2 Pin x 4: 600mm+150mm*2 |
|
SATA X 8: |
|
600mm+150mm+150mm+150mm*2 |
|
4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+150mm*1 |
