- Complies with ATX 12V v2.4 & EPS 12V v2.92
- Meets 85% Efficiency
- Active PFC, Power Factor ≧ 99%
- +12V Single Rail Design
- PCI-Express 6+2 Pin Graphic Card Connectors
- SATA Array Cable
- 120mm Quiet Fan
- Complete Protections: OCP, OVP, SCP
- Meet ErP/EuP 2013 Standard
- Latest Intel Platform Ready
- Multiple Safety Approvals

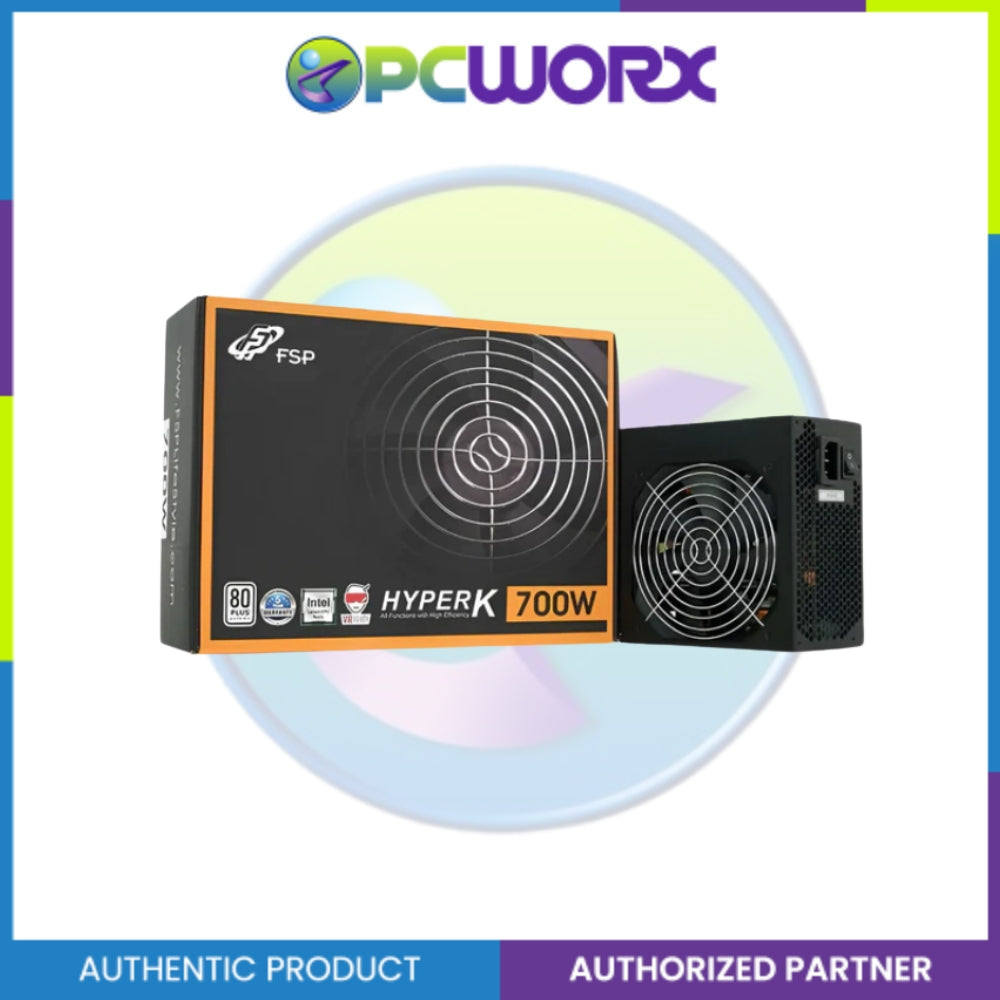

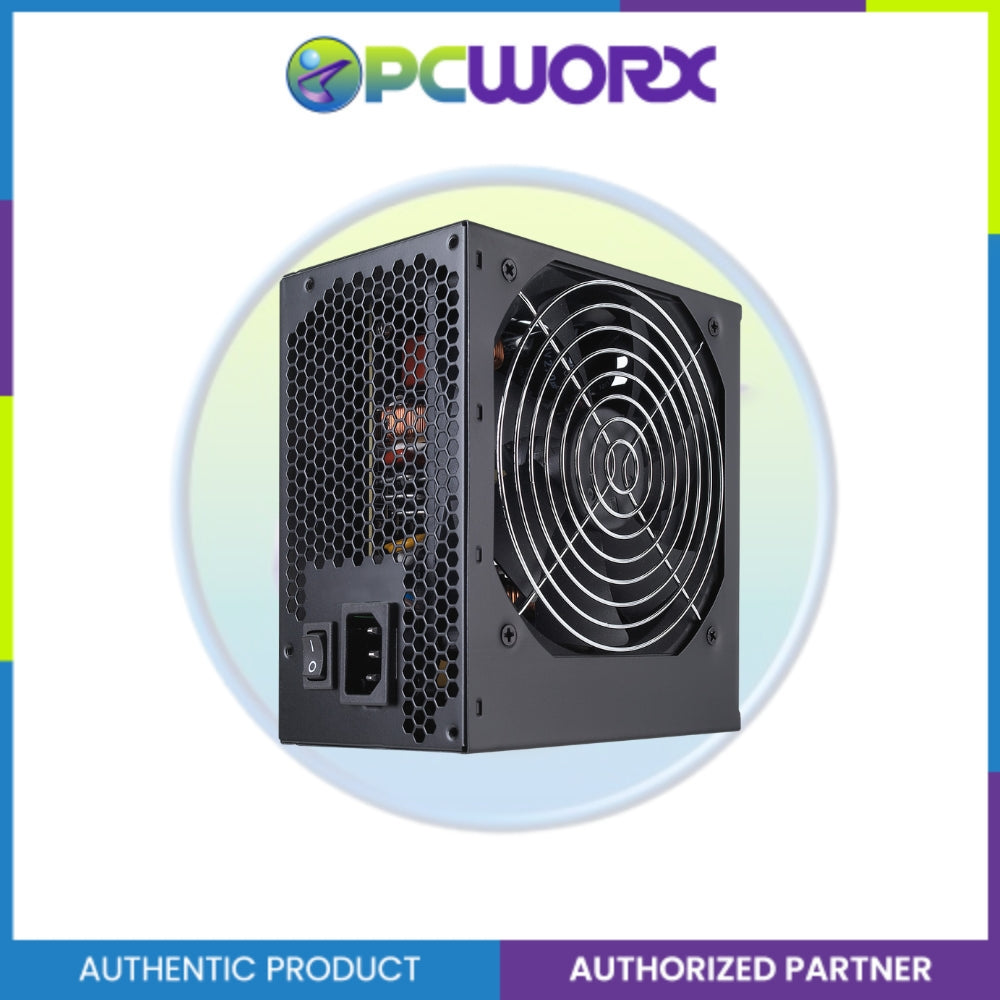

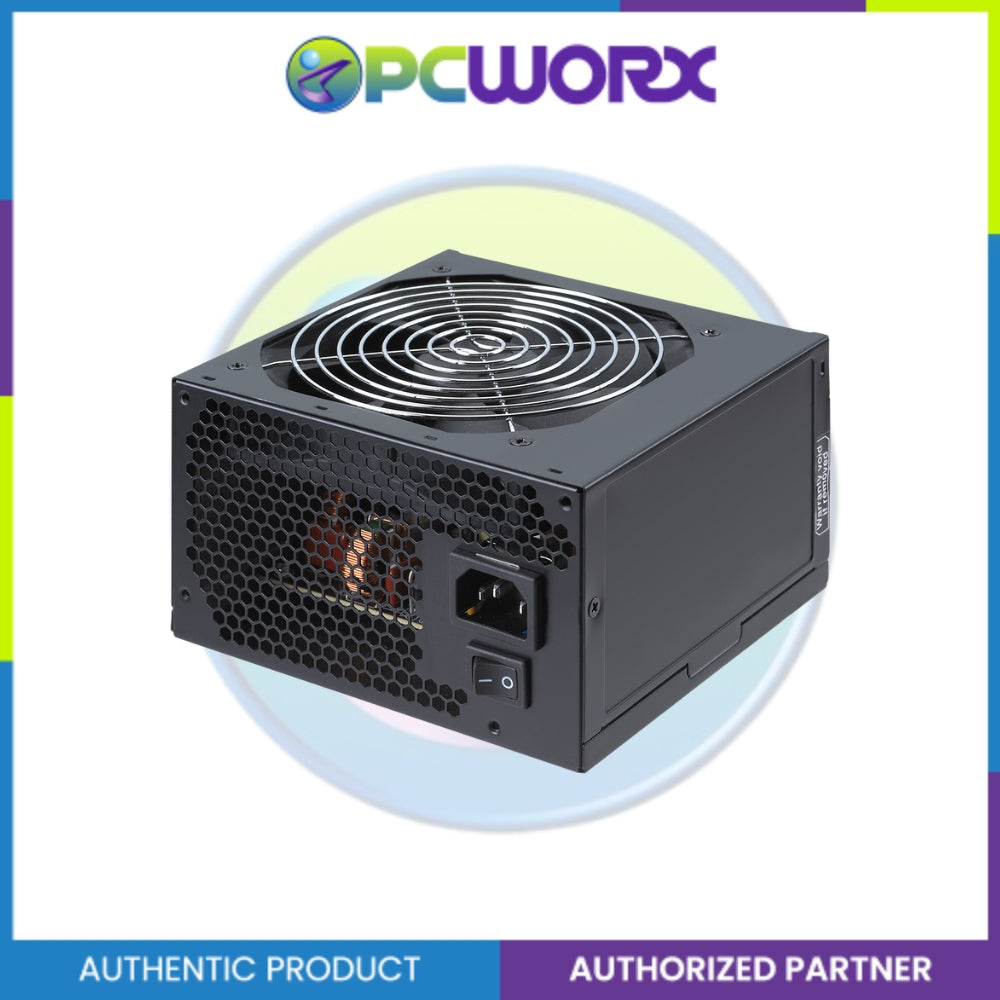

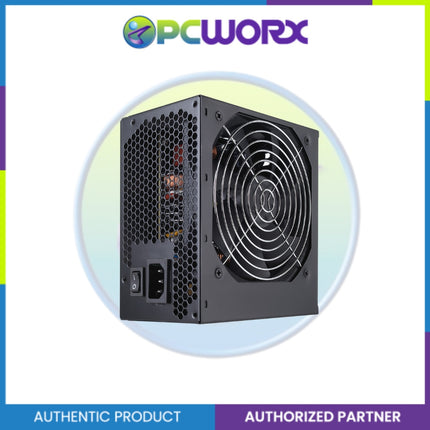

HYPER K series comes ranging from 500W, 600W to 700W for your choice. Enthusiasts of Gamer and hardware, you won't miss HYPER series this time, the high stable performance but affordable price will be your BEST choice.

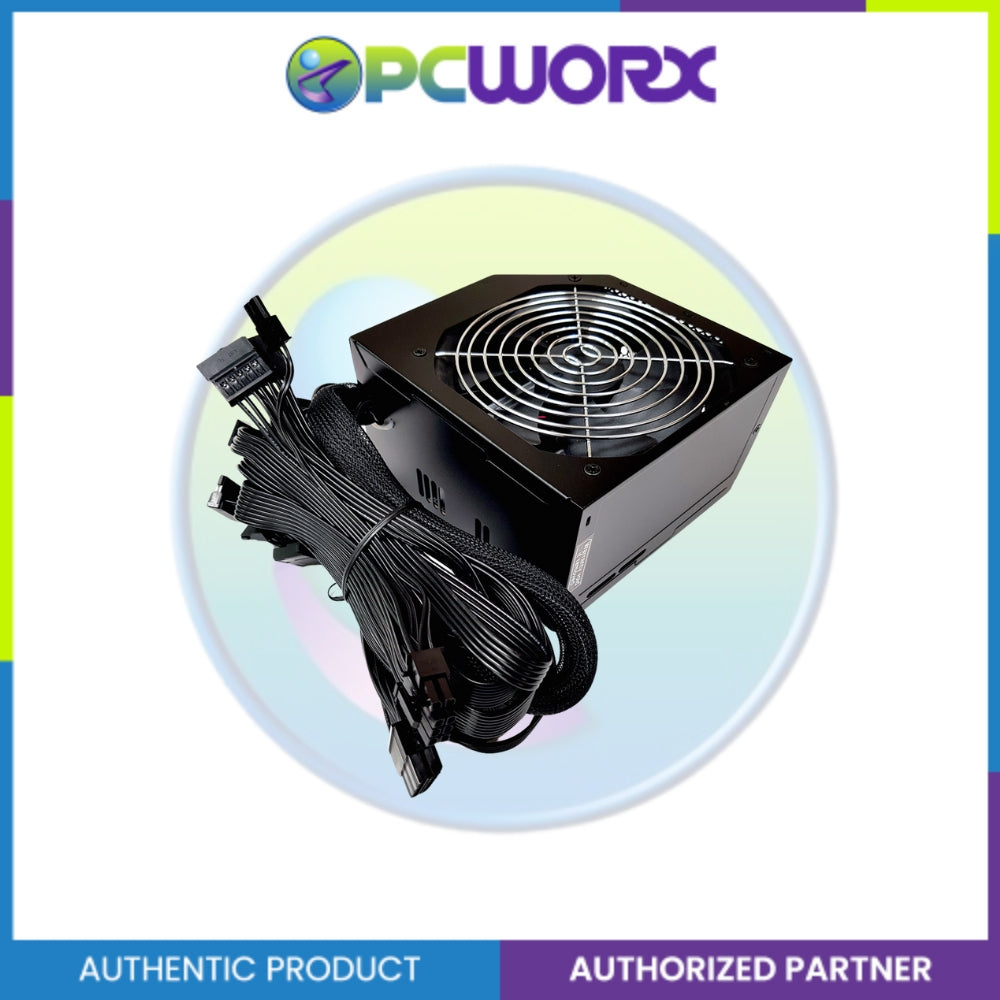

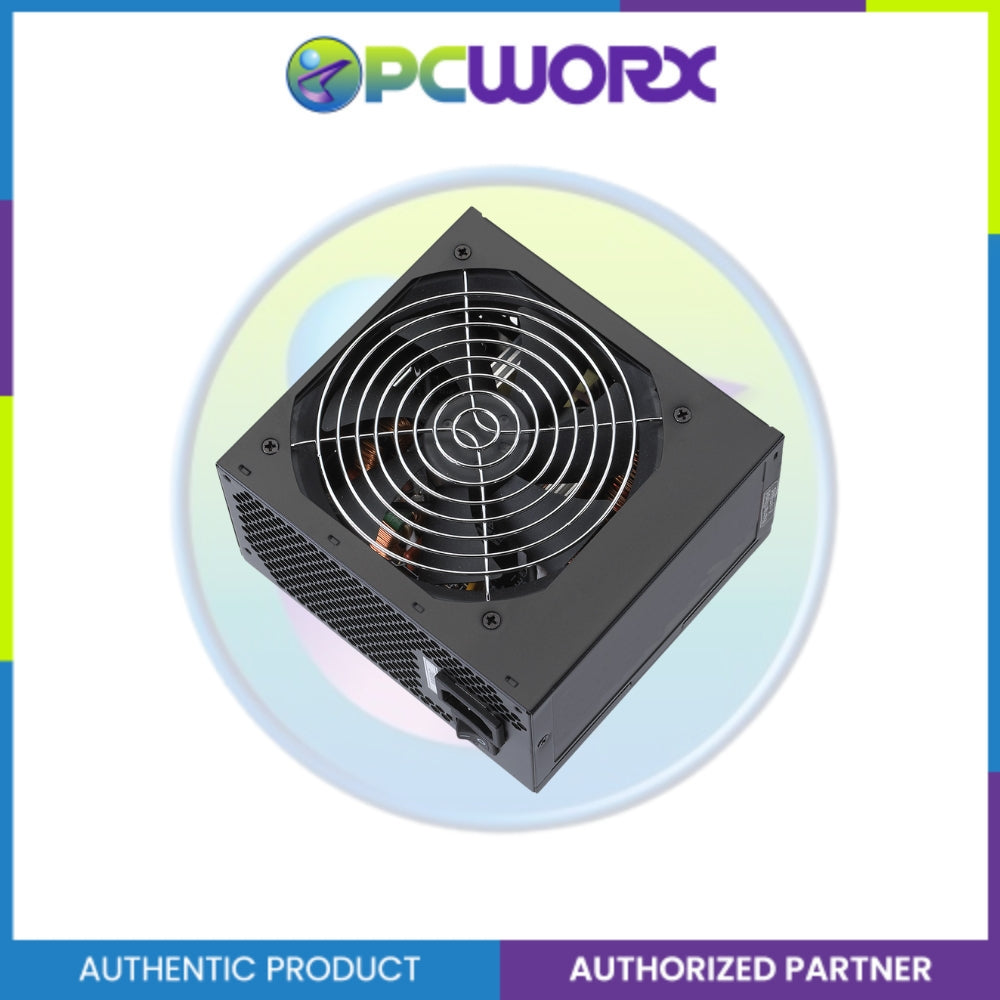

HYPER K series comes with the +12 single rail design and the SATA array cable, optimized the airflow in case, no-hassle with case side panel. Also, 120mm long lasting fan provides superior cooling, noise <19dBA at 50% loading. Multiple PCI-Express 6+2 pin connectors equipped also 8 units of SATA cable provided.
| Model No. |
HP700S |
| AC Input |
200-240Vac ~ 5A 50-60Hz |
| DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Max Output Current |
20A |
20A |
53A |
0.3A |
3.0A |
| Max Combined Power |
150W |
636W |
18.6W |
| Total Power |
700W |
Specifications
| Model |
HP700S |
| Rated Output Power |
700W |
| Form Factor |
ATX 12V V2.4 & EPS 12V V2.92 |
| Input Voltage |
200-240Vac |
| Input Current |
5A |
| Input Frequency |
50-60Hz |
| PFC |
Active PFC (>0.9 typical) |
| Efficiency |
≥85% at typical load |
| Fan Type |
120mm Sleeved Fan |
| Noise |
< 19dBA |
| Dimensions (Lx W x H) |
150 x 140 x 86 mm |
| Weight |
1752g |
| Operation Temp. |
0~40°C / 32°F~104°F |
| Protection |
OVP/OCP/SCP |
| Safety Approval |
CE/TUV/KC/RCM/EAC |
