Description
REFINED MINIMALISM
• Keeping the best details of the MACUBE line and condensed for a smaller form factor makes for a nice and tidy build.
MACUBE 110

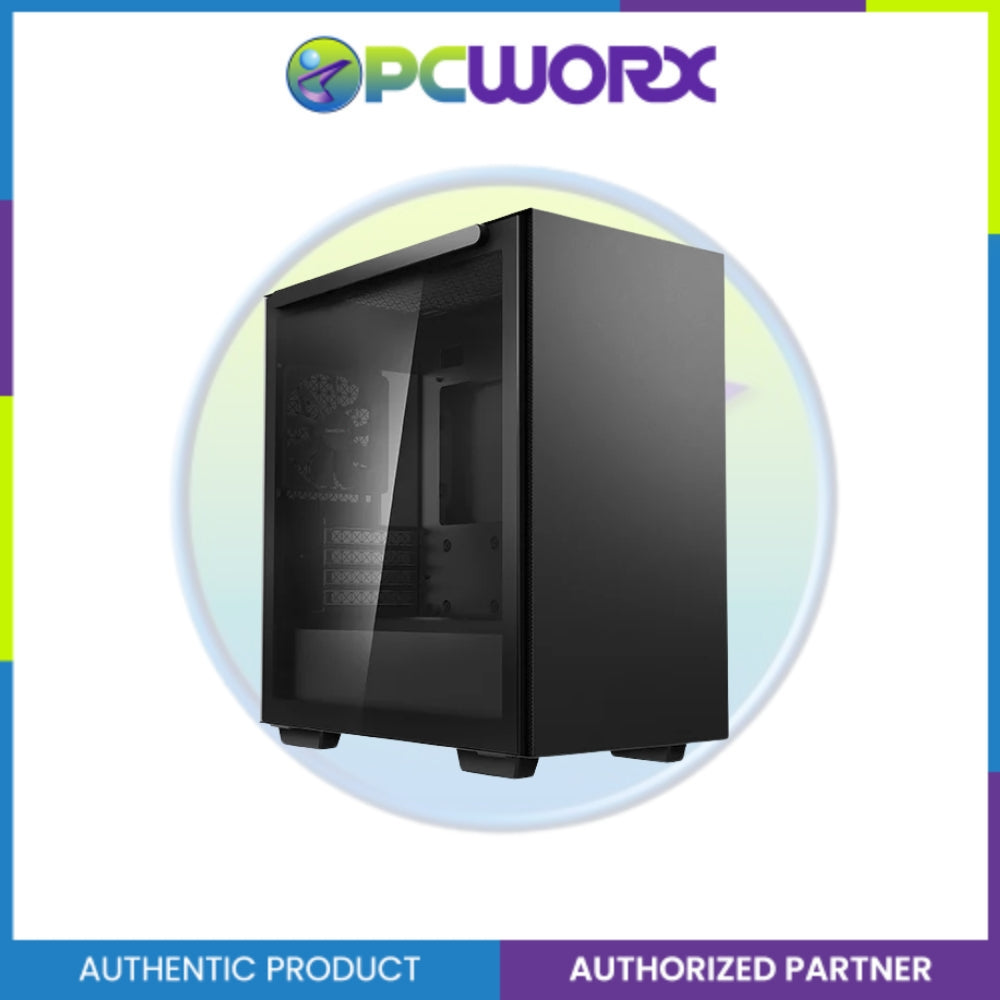

The MACUBE 110 is a sleek micro-ATX case built with simplicity in mind featuring a refined magnetic tempered glass panel to show off your system.
MAXIMUM COOLING, TINY FOOTPRINT
• Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.
REMOVABLE DRIVE CAGE
• Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.
CLEARLY SENSIBLE

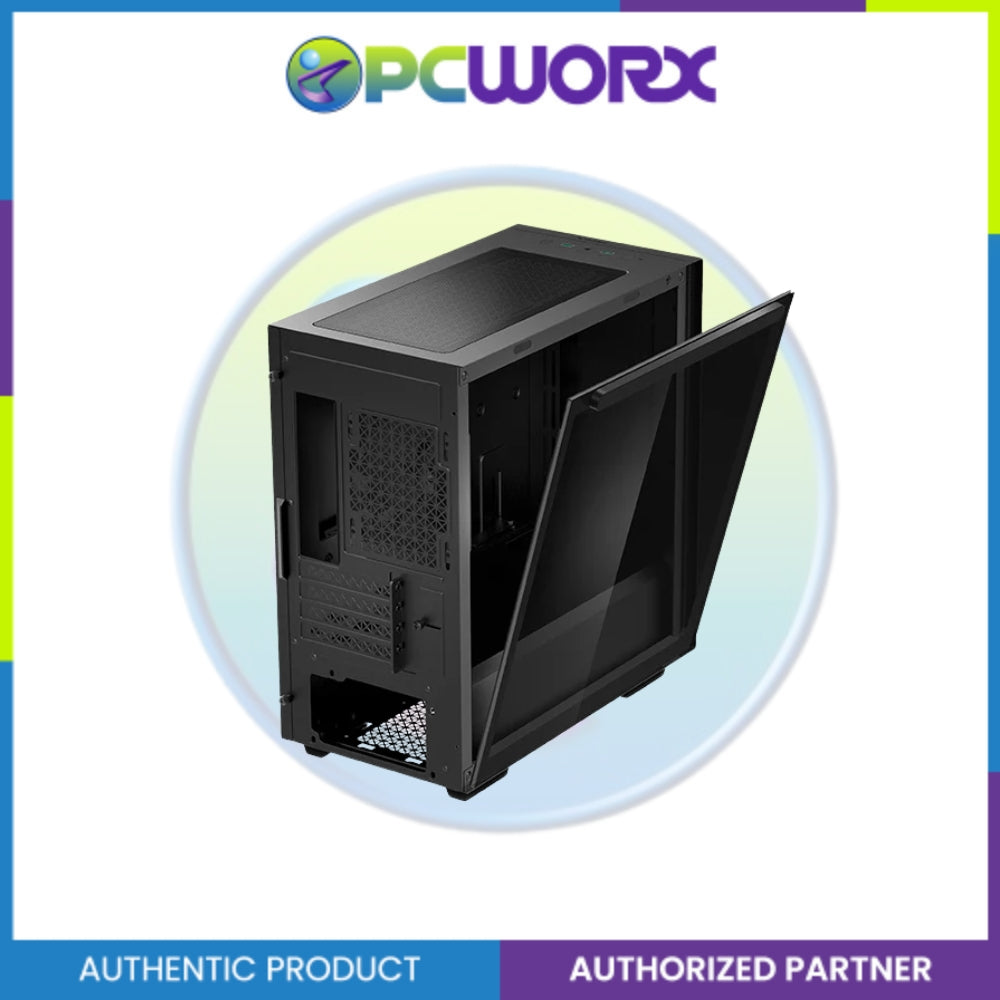

• Featuring our popular magnetic tempered glass side panel, an adjustable GPU holder and a push-pin SSD holder for tool-less accessibility makes this case a clear choice for convenience.
VENTILATED THROUGHOUT
• Direct fresh airflow to reach all your components with ventilation channels in front and on top.
FEATURES
• Refined minimalism design
• Magnetic tempered glass side panel
• Mesh top panel
• Support up to six 120mm or four 140mm cooling fans
• Support radiators up to 280mm on top and in front
• Removable drive cage
• Adjustable GPU holder included
APPLICATION FOR:
• Mini-ITX / Micro-ATX
SPECIFICATIONS
• Product Dimensions: 400mm×225mm×431mm(L×W×H)
• Carton Dimensions: 470mm×288mm×470mm(L×W×H)
• Net Weight: 6.2KG
• Gross weight: 7.3KG
• Colors: White
• Materials: ABS+SPCC+Tempered Glass
• 3.5" Drive Bays: 2
• 2.5" Drive Bays: 2
• External 3.5'' Drive Bays: 0
• 5.25" Drive Bays: 0
• Power Supply Type: ATX PS2 (maximum length: 160mm）
• I/O Ports: USB3.0×2, Audio×1
• Expansion Slots: 4 Slots
• Cooling Fans Compatibility
- Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 120mm×3/140mm×2, Top: 120mm×2/140mm×2
• Liquid Cooler Compatibility:
- Front: 120/140/240/280; TOP: 120/140/240/280 Rear: 120；
• CPU Cooler Height Limit: 165mm
• VGA Length Limit: 320mm
• Cable Management: 20mm clearance
