Description
System Overview

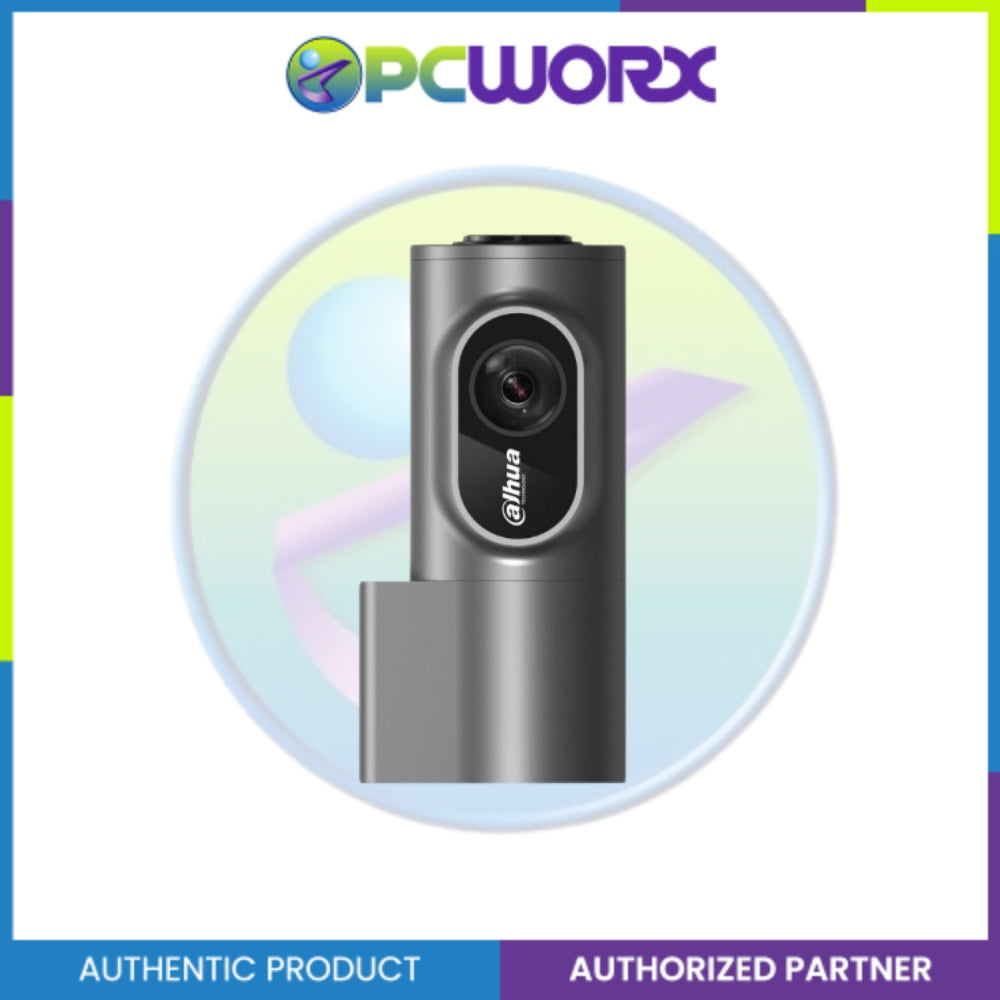

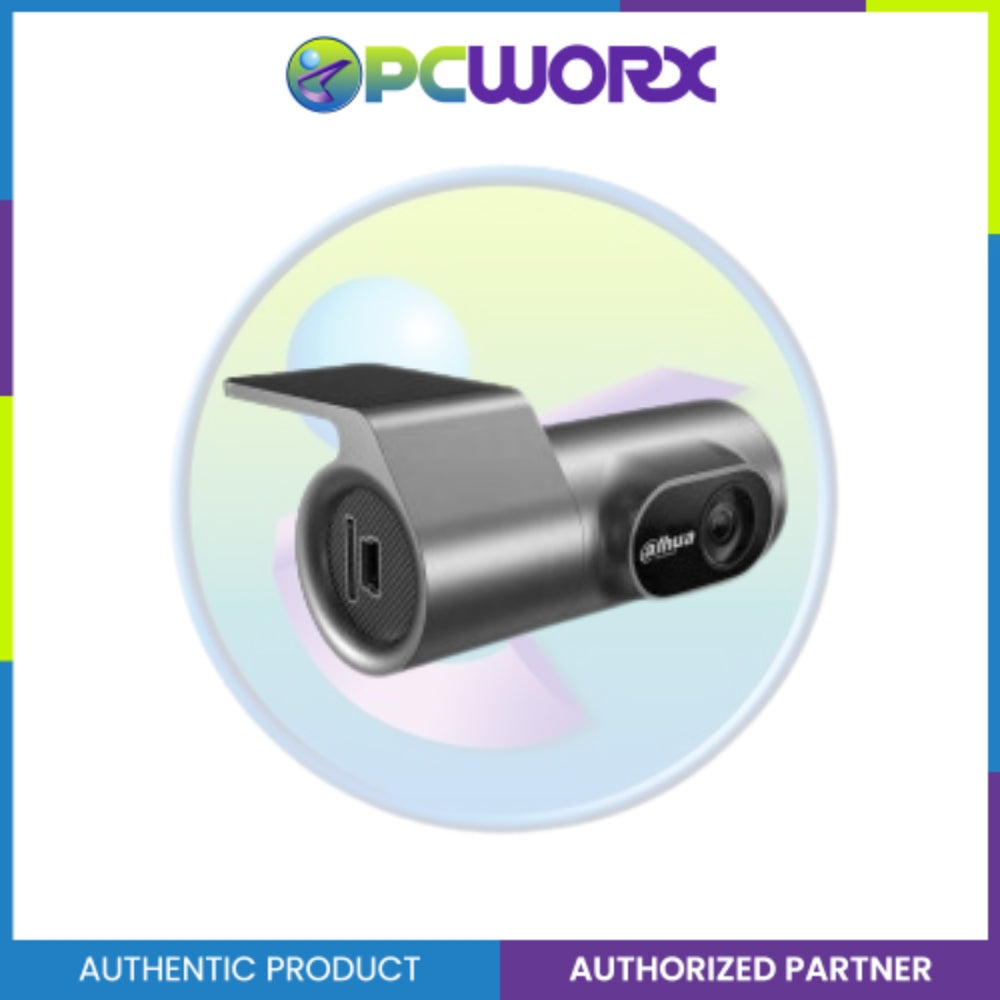

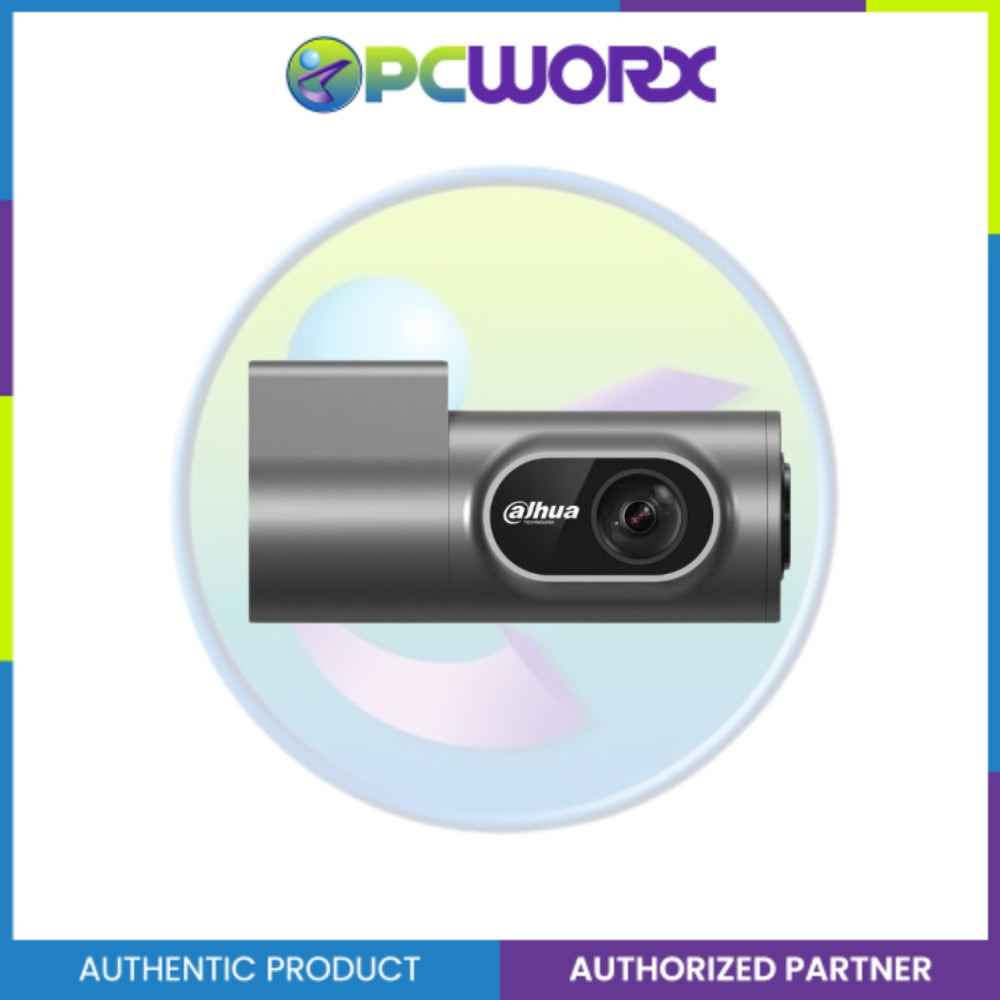

The Dahua DHI-DAE-HC1301W-M1pro Dash Camera is a high-resolution automotive dash camera that features easy installation and operation. The device can be communicated with its DH Dashcam app through built-in Wi-Fi. The built-in G-Sensor can automatically lock the currently recording video when it senses a crash or strong vibration to prevent the video from being overwritten. MicroSD cards up to 128 GB are supported. The built-in mic and speaker can be used to record and play back.
Highlight
1080P ultra high-resolution image F2.0 iris offers crisp night imaging Built-in Wi-Fi AP module G-Sensor module supports collision detection and video lock Supports MicroSD card up to 128 GB Compatible with mobile client for setup, live view, recording search and backup HD night vision.
Scene
Suitable for consumer driving records.
|
Camera
|
|
Image CMOS
|
|
Sensor 1/3.0''
|
|
Resolution 1920×1080P@30FPS
|
|
Field of View D: 121°, H: 101°, V: 53
|
|
Iris F2.0 Video
|
|
° Compression H.265
|
|
OSD Display time, date, etc.
|
|
Image format JPEG
|
|
Storage 1 TF card (up to 128GB)
|
|
Communication Module WiFi AP
|
|
G-sensor G-Sensor
|
|
|
Interface
|
|
Power Supply Mini USB
|
|
Audio Input Build-in microphone
|
|
Audio Output Build-in speaker
|
|
|
General
|
|
Operating Temperature -20°C to 70°C(-4°F to 158°F)
|
|
Operating Humidity <95%(No condensation)
|
|
Power Supply 5V DC/1.5A
|
|
Power Consumption ≤1.5W
|
|
Dimensions 80mm×48mm×28.8mm(3.15′′×1.89′′×1.13′′)
|
|
Weight Approx. 42 g (0.093 lb.)
|
