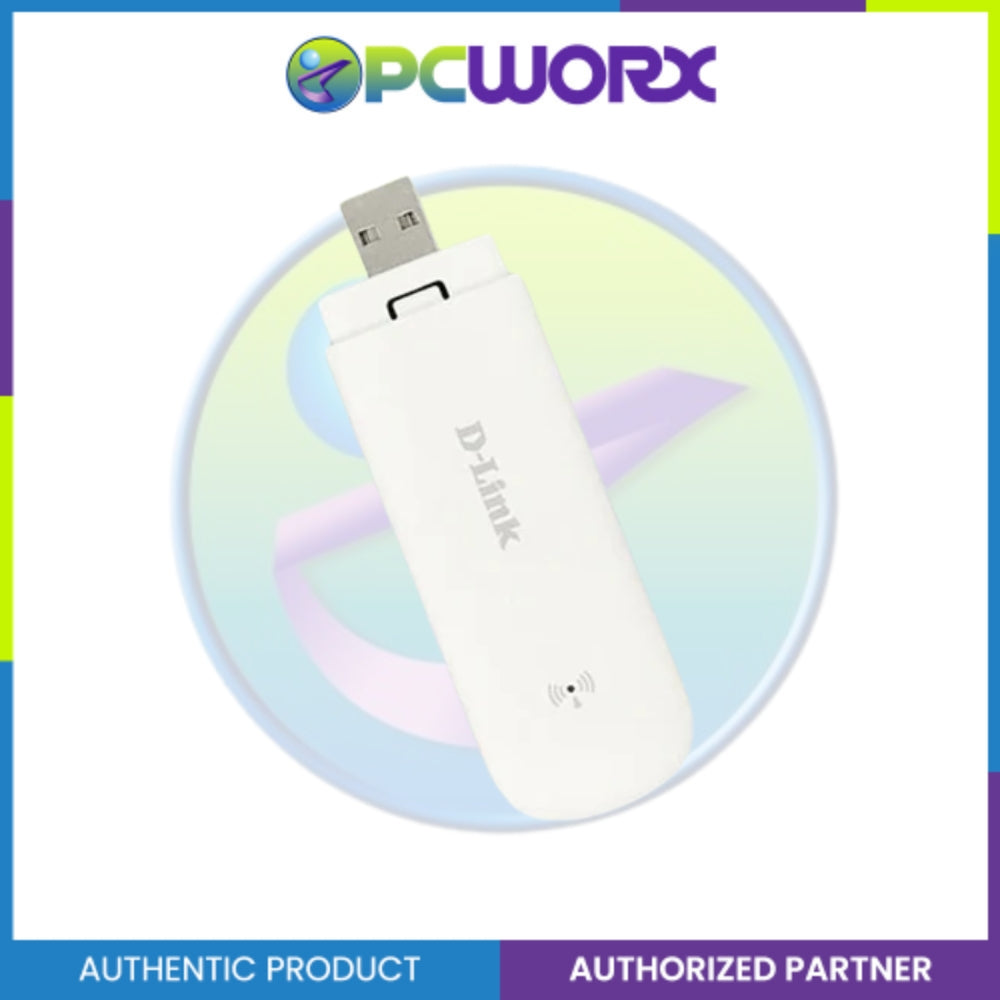

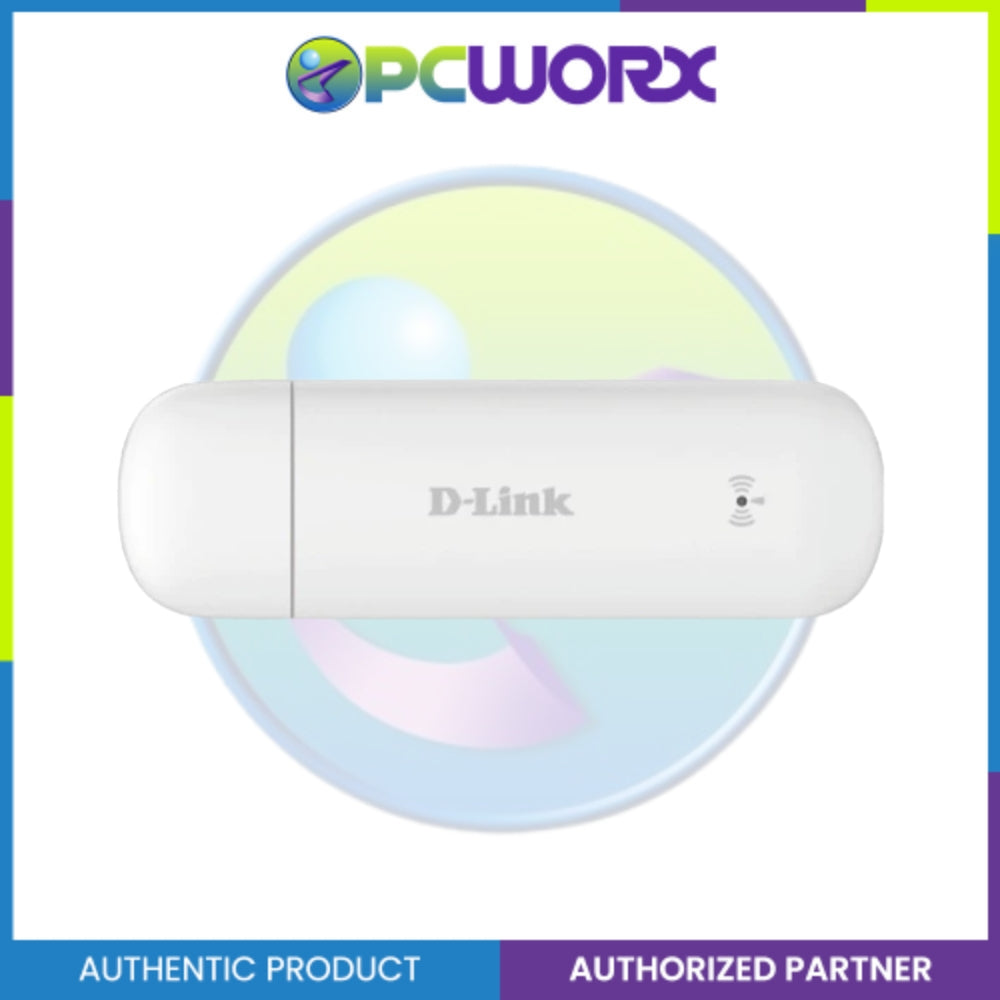

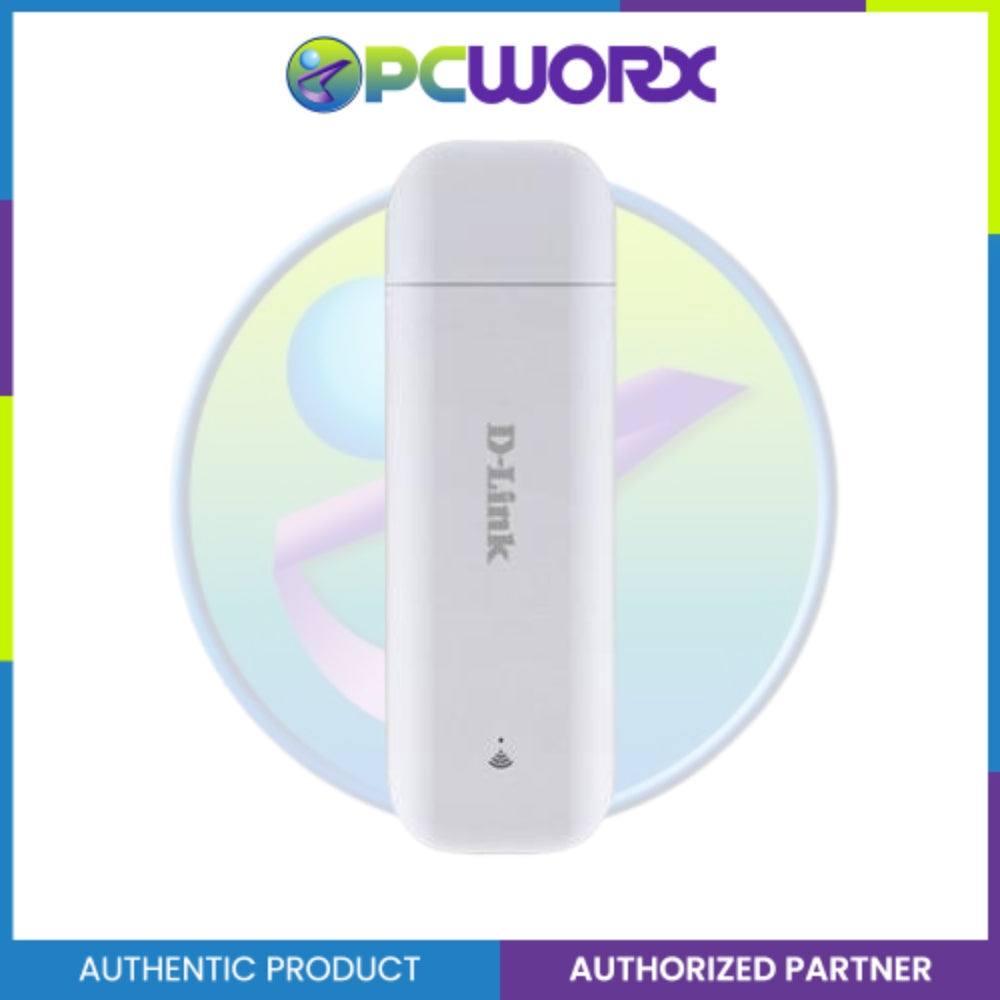

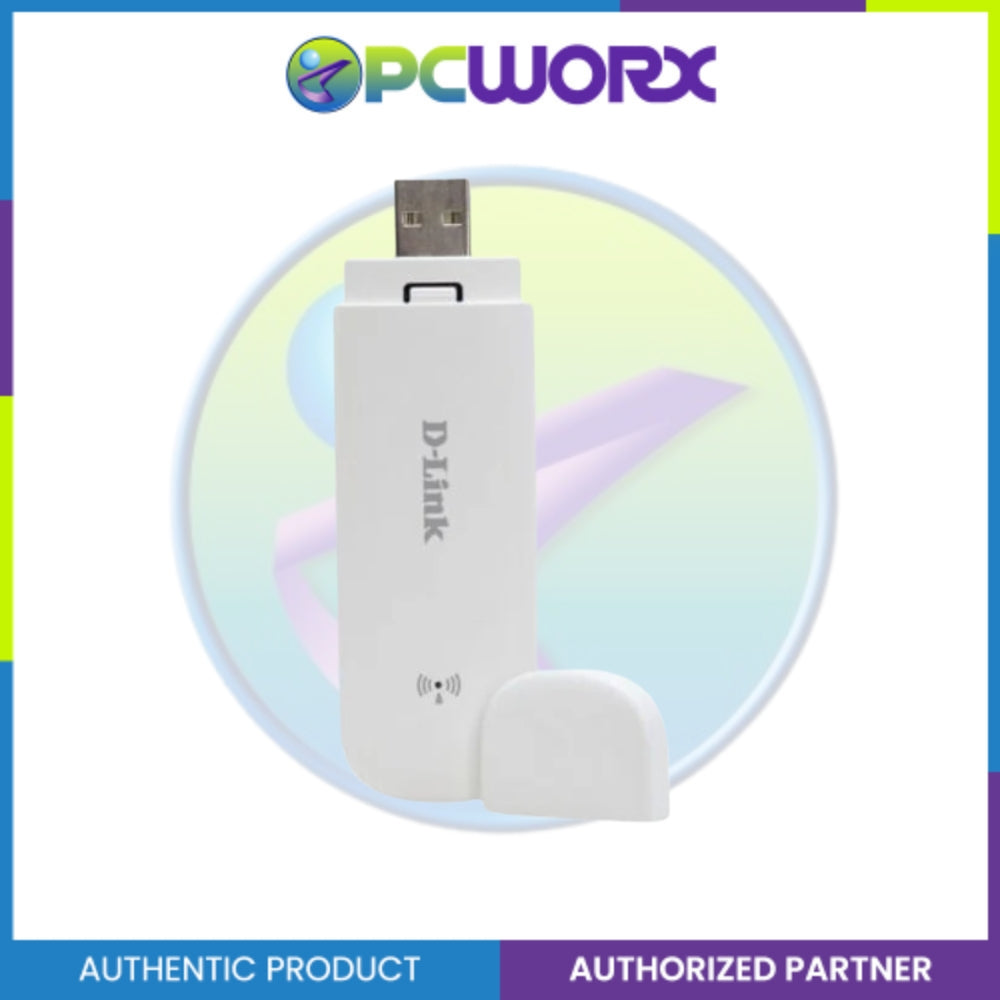

4G LTE Wi-Fi Modem/Router
Designed for True Portability
The DWR-910M 4G LTE Wi-Fi Modem/Router is small and slim enough to carry around in your purse or pocket so that you can take advantage of your fast 4G LTE connection wherever you are. Furthermore, the 4G LTE USB Wingle directly plugs in to your
desktop or laptop computer’s USB port, eliminating the need for cables so you can reduce clutter.
Breakthrough Speeds with 4G LTETechnology
The DWR-910M 4G LTE Wi-Fi Modem/Router gives you fast access to the Internet wherever you are and lets you share it on-the-go. Using powerful new 4G LTE technology, you can achieve download speeds of up to 150Mbps and upload speeds of up to 50Mbps1.You’ll get a blazing fast Internet connection with two internal LTE antennas that give you a more reliable connection with faster speeds. You can connect and share the Internet with speeds fast enough to allow demanding tasks that were once difficult when using a mobile connection, such as streaming HD video to multiple devices.
Mobile Internet for All of your Devices
The 4G LTE Wi-Fi Modem/Router lets you share your fast mobile connection over Wi-Fi from a device small enough to t in your pocket. With the DWR-910M, you can get online with your notebook, smartphone, tablet, and any other wireless device by sharing a single 4G LTE connection. The DWR-910M will provide high-speed Wireless N Internet access for everybody – whether you are with colleagues on a business trip, or when you are travelling with friends and family.
Built-in Software for Instant Access Anywhere
The DWR-910M is truly plug-and-play with drivers built right into the routers you can connect without the need to install anything. Open a browser, connect the router, and you can set up your network right from a web interface. Notebooks and netbooks without a CD-ROM drive can connect and get up and running in no time. You can even plug the DWR-910M into any powered USB port and provide wireless connectivity to your mobile devices without a PC
Features
Connectivity
• USB 2.0 plug connects to any PC or laptop computer
• SIM slot allows you to access the Internet using your mobile service
• Wireless 802.11b/g/n to create high-speed wireless networks
Mobile Connections
• Data rates of up to 150 Mbps download and 50 Mbps upload
• LTE/DC-HSPA+/HSPA/WCDMA support for the latest in mobile network technology
• GSM/GPRS/EDGE support for legacy mobile plans and fallback in the absence of 4G LTE
Portability
• Small enough to slip right in your pocket
• Internal Wi-Fi and LTE antennas keep it compact Easy to Set Up, Easy to Use
• Access your SIM card’s phonebook and SMS messaging right from your web browser
• Built-in drivers and software mean that no CD-ROM drive is required
• LED indicators let you know the status of your connection instantly
Technical Specifications:
| General |
|
| Device Interfaces: |
USB 2.0
|
|
SIM slot |
| Radio Frequency Bands: |
LTE-FDD B1/B3/B7/B8/B20 |
|
LTE-TDD B38/B40/B41 |
|
UMTS / HSDPA / HSUPA / HSPA+ B1 / B8
|
|
GSM B3/B8 |
|
(900 / 2100 MHz) |
| Cellular Access: |
LTE: 3GPP Rel-9 FDD-LTE Cat.4 |
|
Downlink: 150 Mbps |
|
Uplink: 50 Mbps |
|
DC-HSPA+: |
|
Downlink: 42 Mbps |
|
Uplink: 11 Mbps |
| Wi-Fi Access Point: |
802.11n (75 Mbps) |
|
802.11g (54 Mbps) |
|
802.11b (11 Mbps) |
| Wireless Security: |
WPA2-PSK Auto (TKIP / AES) |
|
WPA-PSK Auto (TKIP / AES) |
|
WEP (64 / 128-bit) |
|
MAC filter |
| Connection Manager Software Requirements: |
Windows 8 / 7 /Vista / XP, Mac OS X 10.5 or higher, |
|
or Ubuntu Linux 10.04 or higher. |
|
128 MB RAM or greater |
|
50 MB available disk space |
| Functionality |
|
| Antenna: |
Internal LTE main antenna |
|
Internal TDS antenna |
|
Internal Wi-Fi antenna
|
| LED Indicators: |
3 in 1 LED indicator
|
|
Power LED
|
|
Wi-Fi LED |
|
Netwrok LED |
| Plug and Play: |
Built in drivers and software, no CD-ROM reuired
|
| Connection Software Features: |
Web GUI
|
|
Phonebook |
|
SMS |
|
Wizard
|
|
APN |
|
Traffic display and statistics
|
| Wi-Fi Features: |
Auto channel election |
|
Up to 8 connected clients
|
| Advanced Features: |
3G fallback |
|
Supports IP6v6 |
| Physical |
|
| Dimensions (L x W x D): |
71mm x 22mm x 4.2mm |
| Weight: |
Less than 30g |
| Operating Temperature: |
Working Temperature: -10°C ~ 40°C |
|
Storage Temperature: -40°C ~ 70°C |
| Power: |
SV DC |
