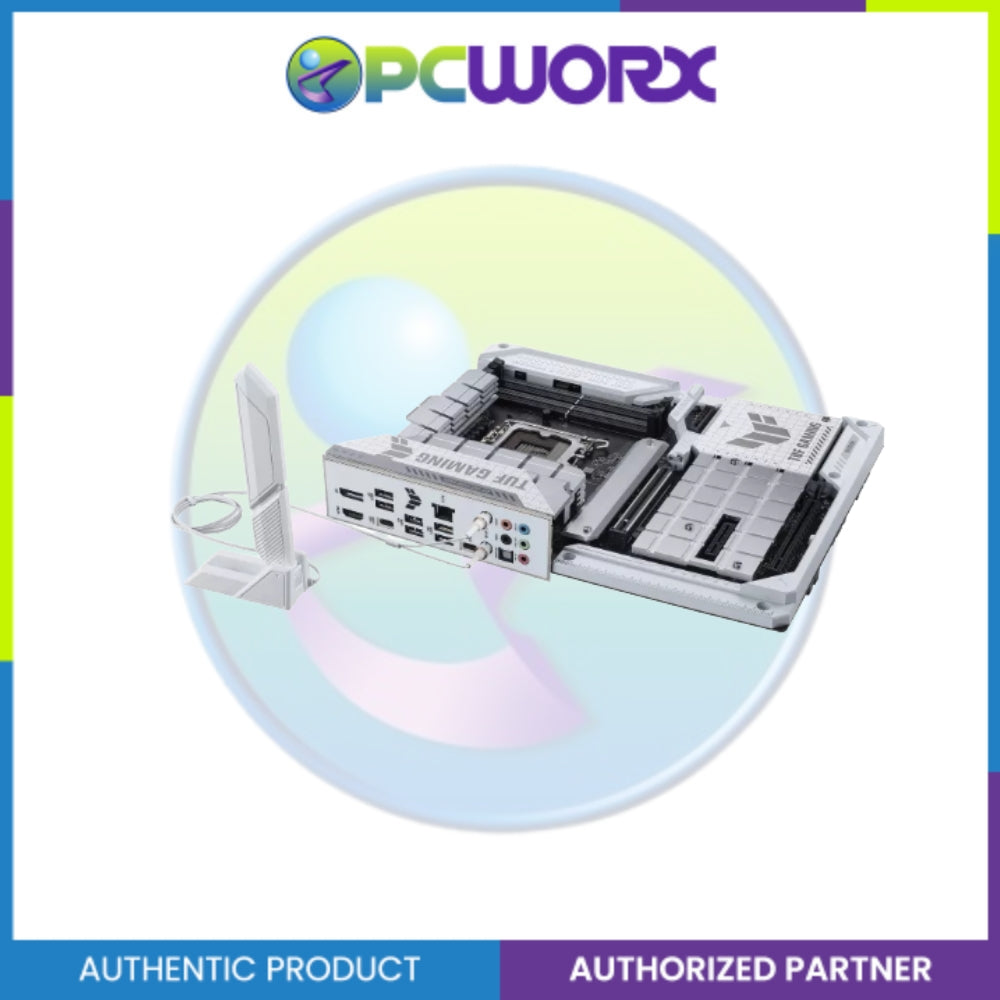

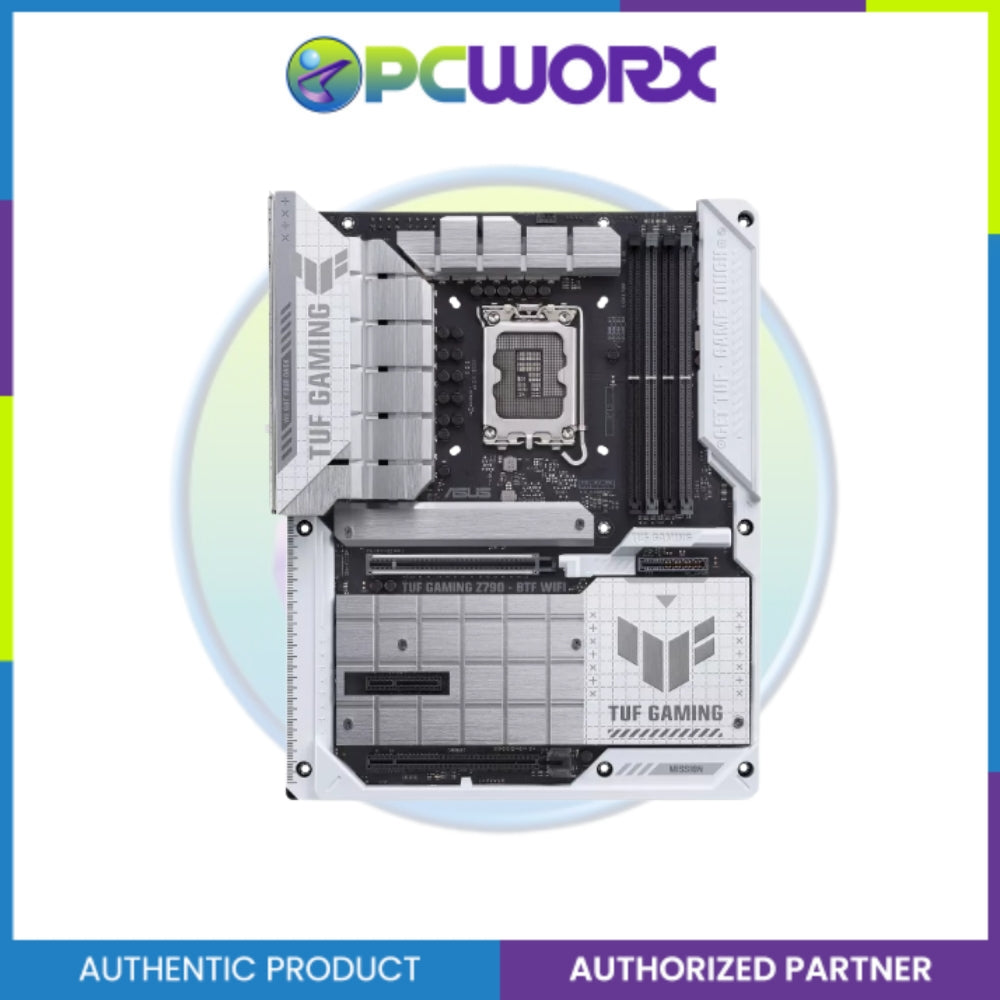

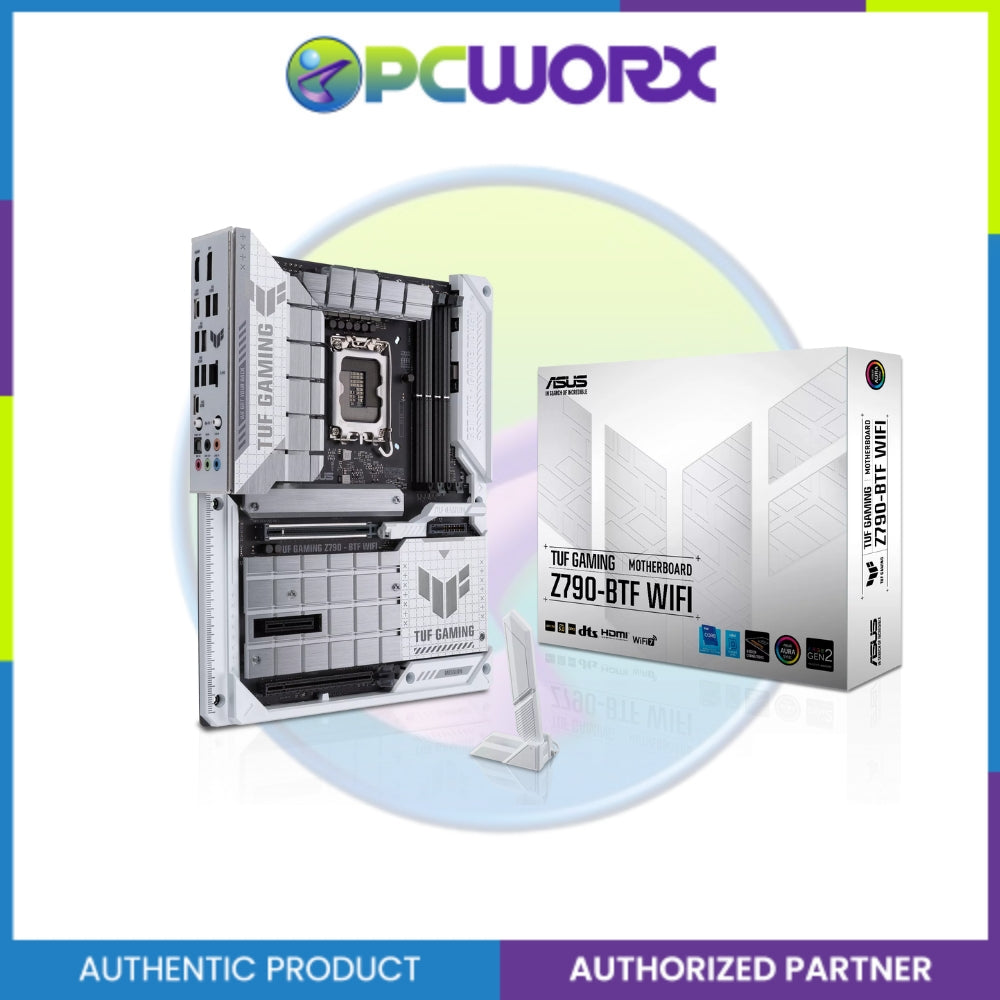

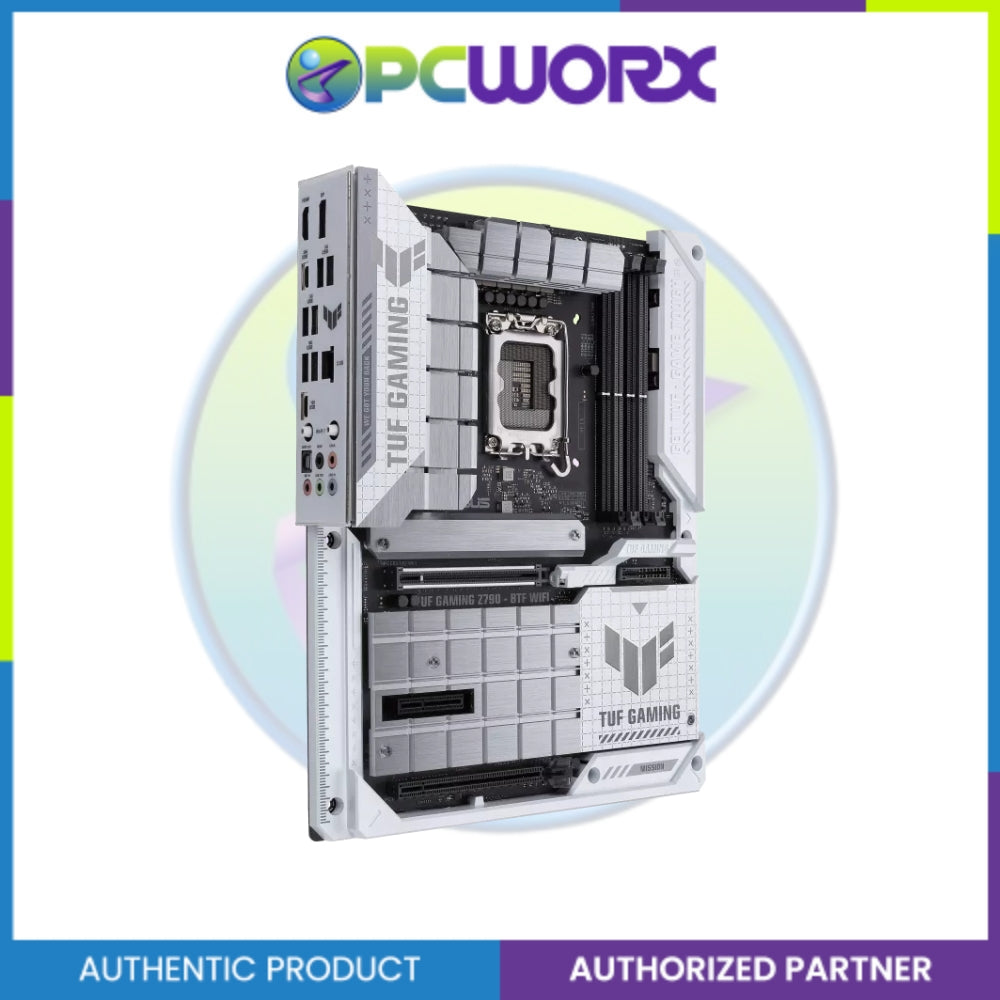

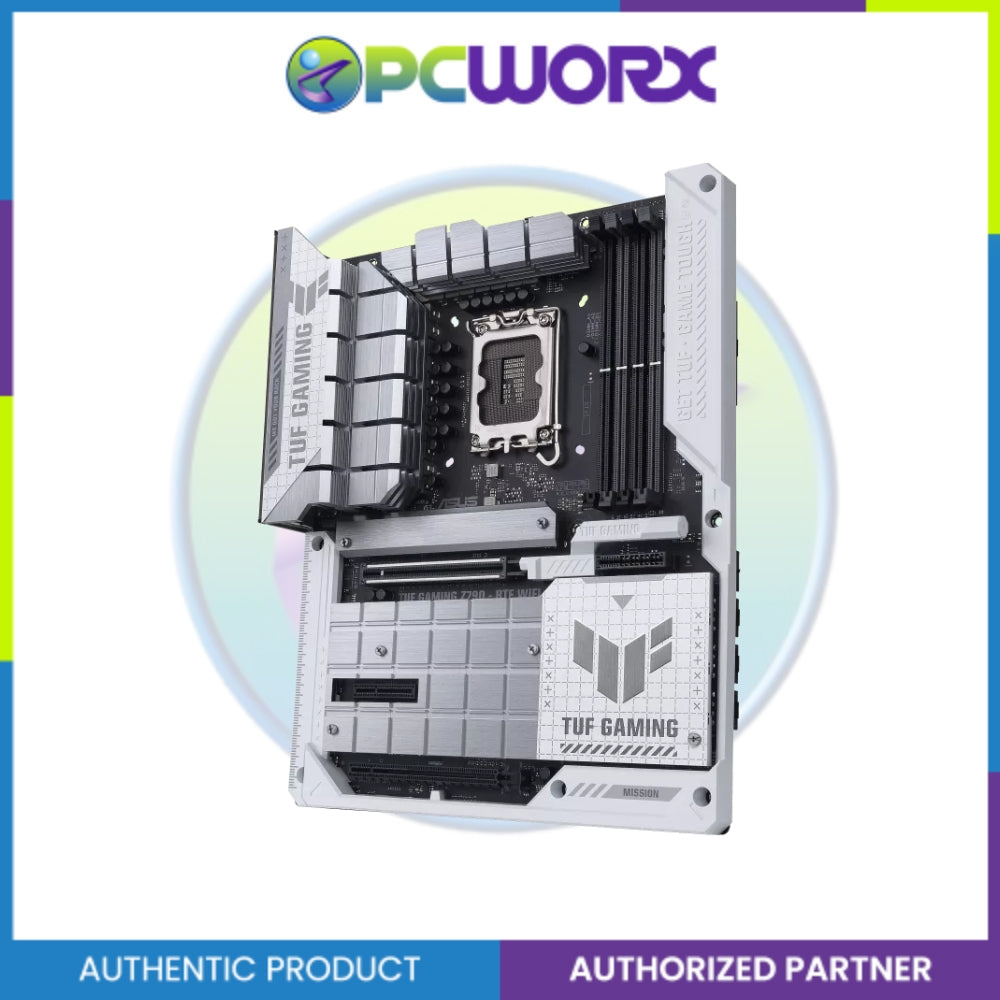

Asus TUF GAMING Z790-BTF WIFI DDR5 LGA1700 ATX Mobo

Description

Description

Intel® Z790 (LGA1700) ATX Gaming motherboard, 16+1+1 power stages, PCIe® 5.0, DDR5 memory, four M.2 slots, WiFi 7 and Intel 2.5 Gb Ethernet, HDMI™, DisplayPort™, front USB 10Gbps, SATA 6 Gbps, Thunderbolt™ 4 header and Aura Sync RGB lighting
  • Intel® LGA 1700 Socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Premium Power Solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver

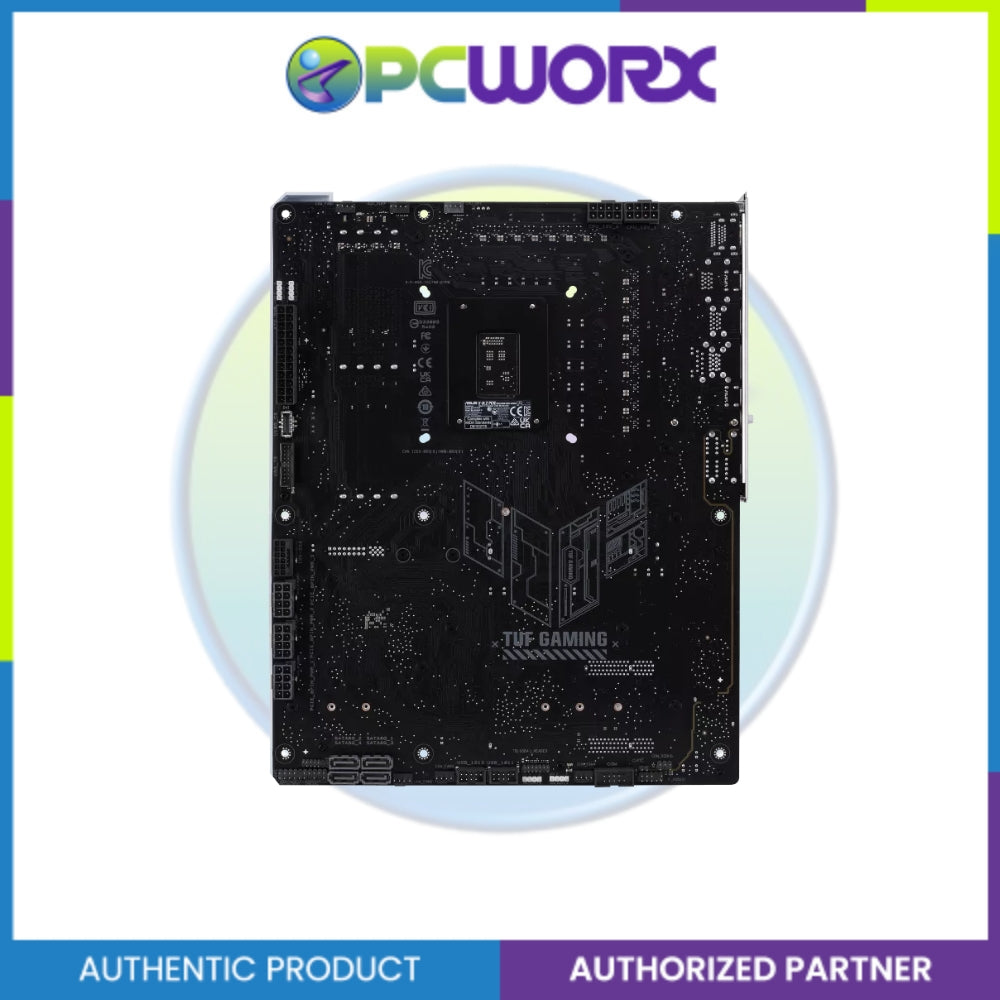

  • Hidden Connector Design: Delivers an unprecedented level of cable management to PC DIY enthusiasts
  • Graphics Card High-Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
  • Exclusive AI & Memory Technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
  • PC DIY Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna and SafeSlot
  • Next-Gen Connectivity: PCIe® 5.0, USB 20Gbps, front USB 10Gbps and Thunderbolt™ 4 header
  • Made for Online Gaming: WiFi 7 with white ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive Cooling: Enlarged M.2 and VRM heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate
  • Aura Sync RGB Effects: Addressable RGB headers and RGB strip header support.

TUF GAMING Z790-BTF WIFI

TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.

SPECIFICATIONS


Model TUF GAMING Z790-BTF WIFI
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z790 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Graphics 1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet VGA resolution support depends on processors' or graphic cards' resolution.
TUF LANGuard
Wireless & Bluetooth Intel® Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth® v5.4
Compatible with Windows 11 or later.
Wi-Fi 7 MLO (Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
 The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
 Impedance sense for front and rear headphone outputs
Internal audio Amplifier To enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking
 High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback*
Audio Features  audio Shielding
rear optical S/PDIF out port
Dedicated audio PCB layers
audio Cover
Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

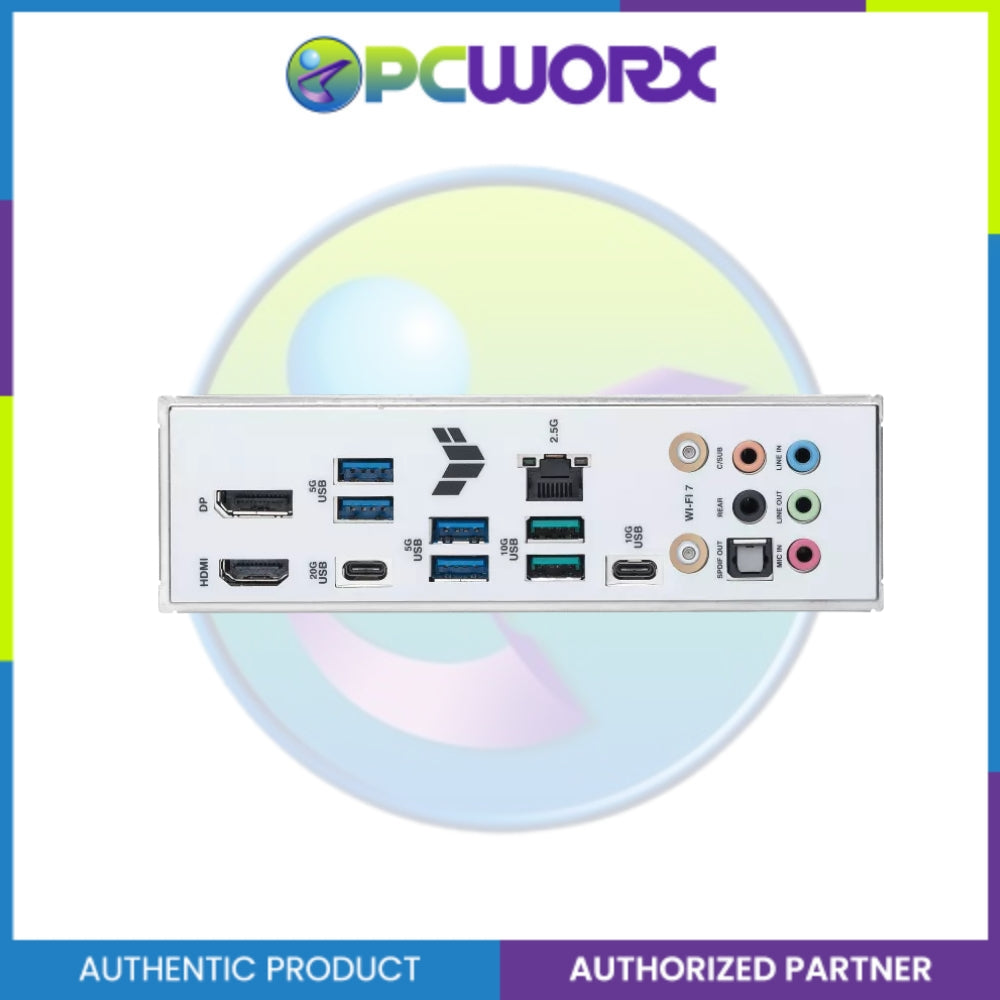

Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
1 x Graphics Card High-Power slot
1 x 12V-2X6 Auxiliary Power connector
3 x 8-pin PCIe Power connectors
Storage Related 4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB 1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous 3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 20-3 pin System Panel header with chassis intrusion function
1 x Thunderbolt™ (USB4®) header
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage protection
SafeSlot

Asus TUF GAMING Z790-BTF WIFI DDR5 LGA1700 ATX Mobo

Product form

Intel® Z790 (LGA1700) ATX Gaming motherboard, 16+1+1 power stages, PCIe® 5.0, DDR5 memory, four M.2 slots, WiFi 7 and Intel 2.5 Gb... Read more

Free pickup in our shop(s)

SKU: 0000068770

2 in stock

₱14,400.00
