ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pads
A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.
Build on a Solid Foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Little Things Make a Big Difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference
Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths
Premium Audio Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

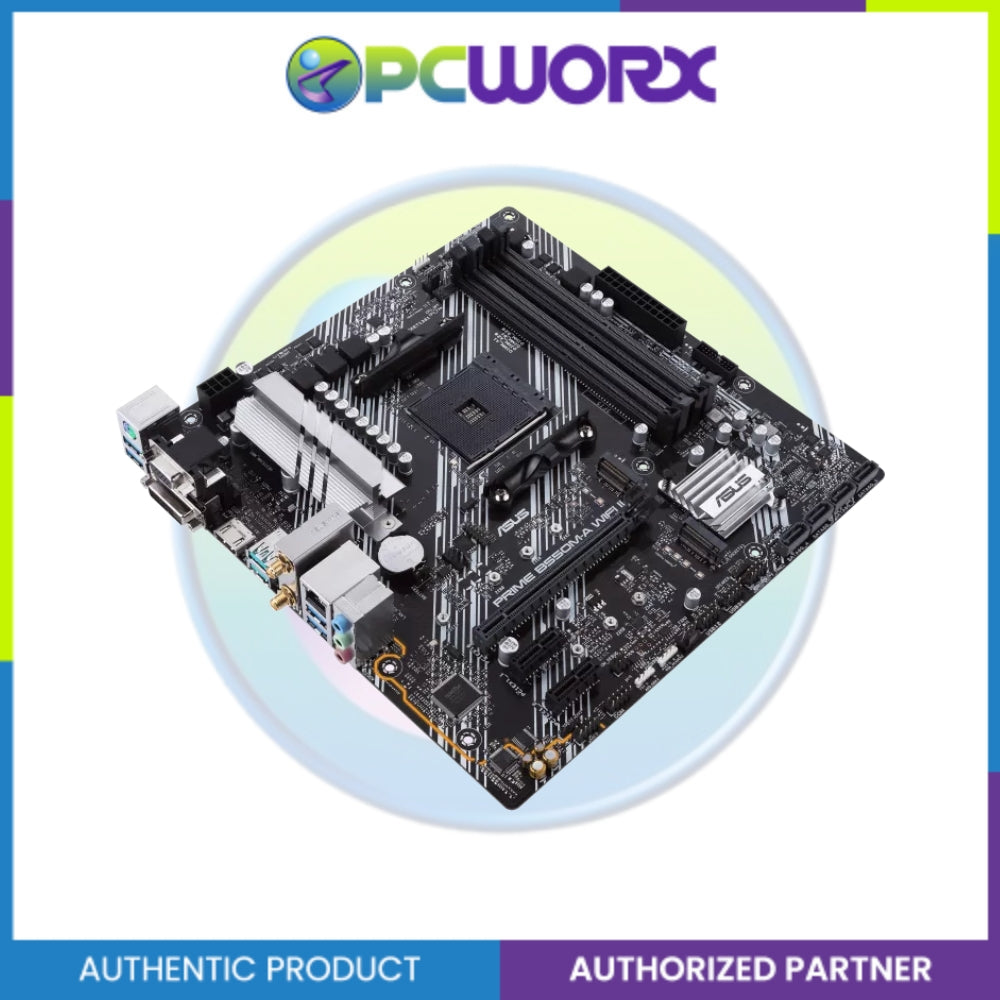

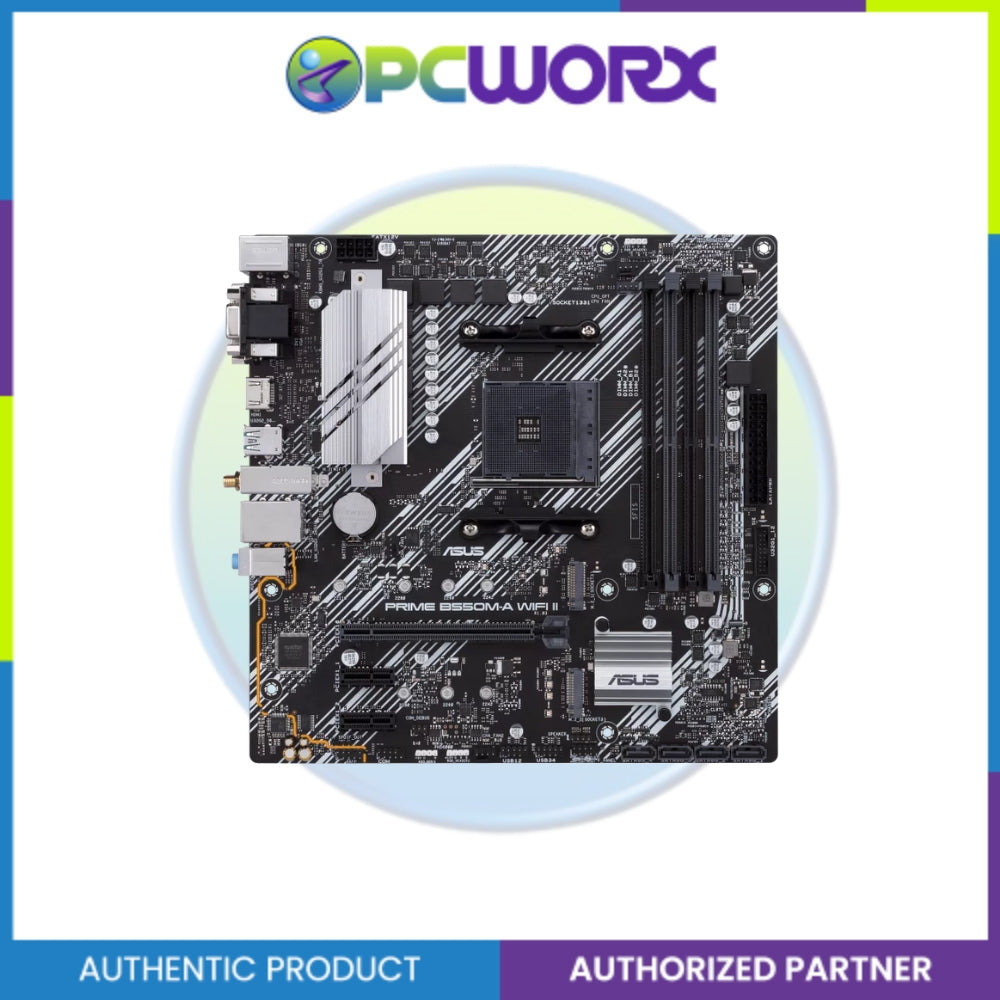

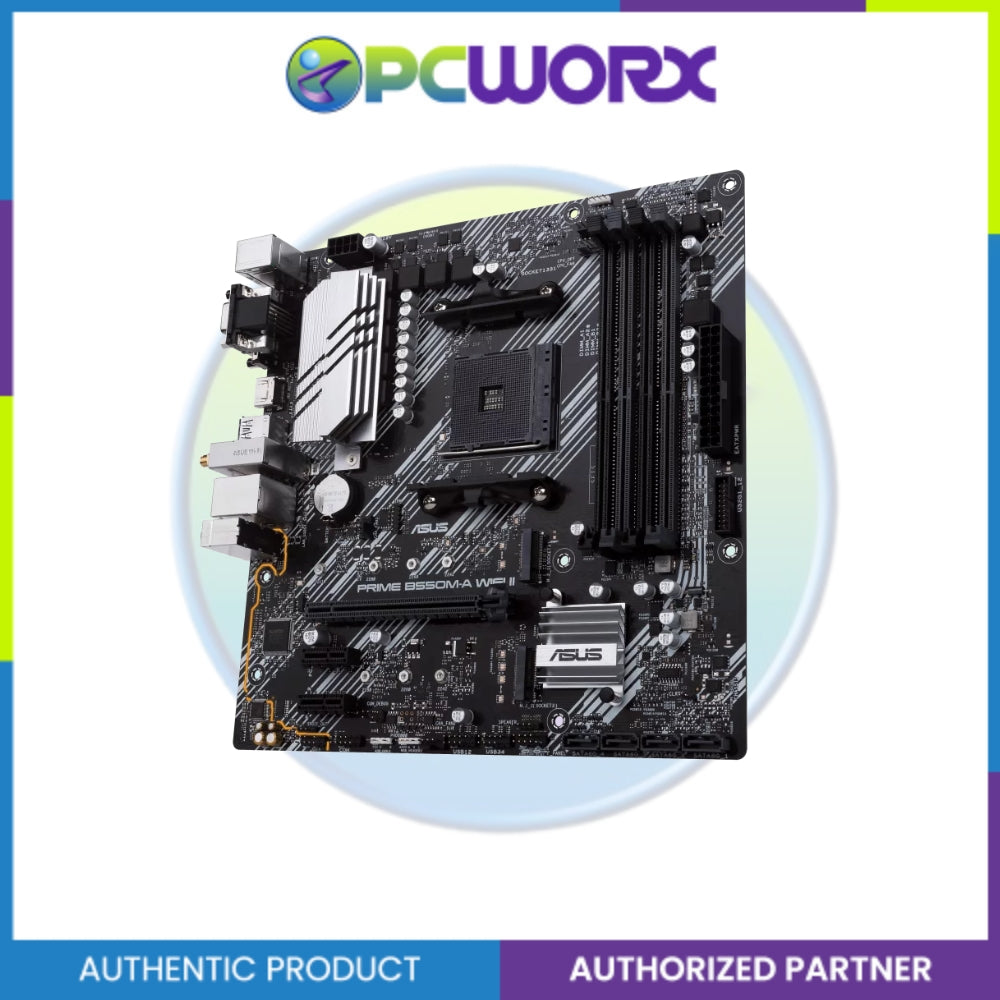

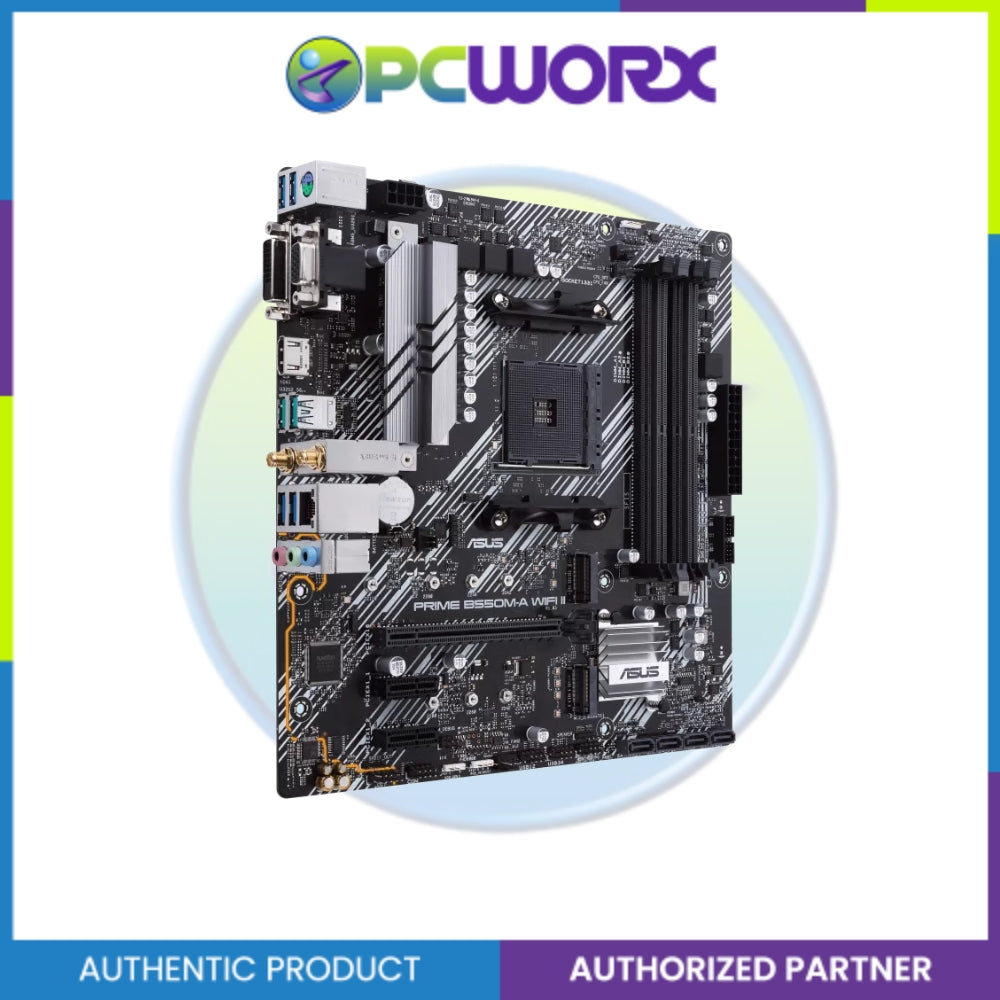

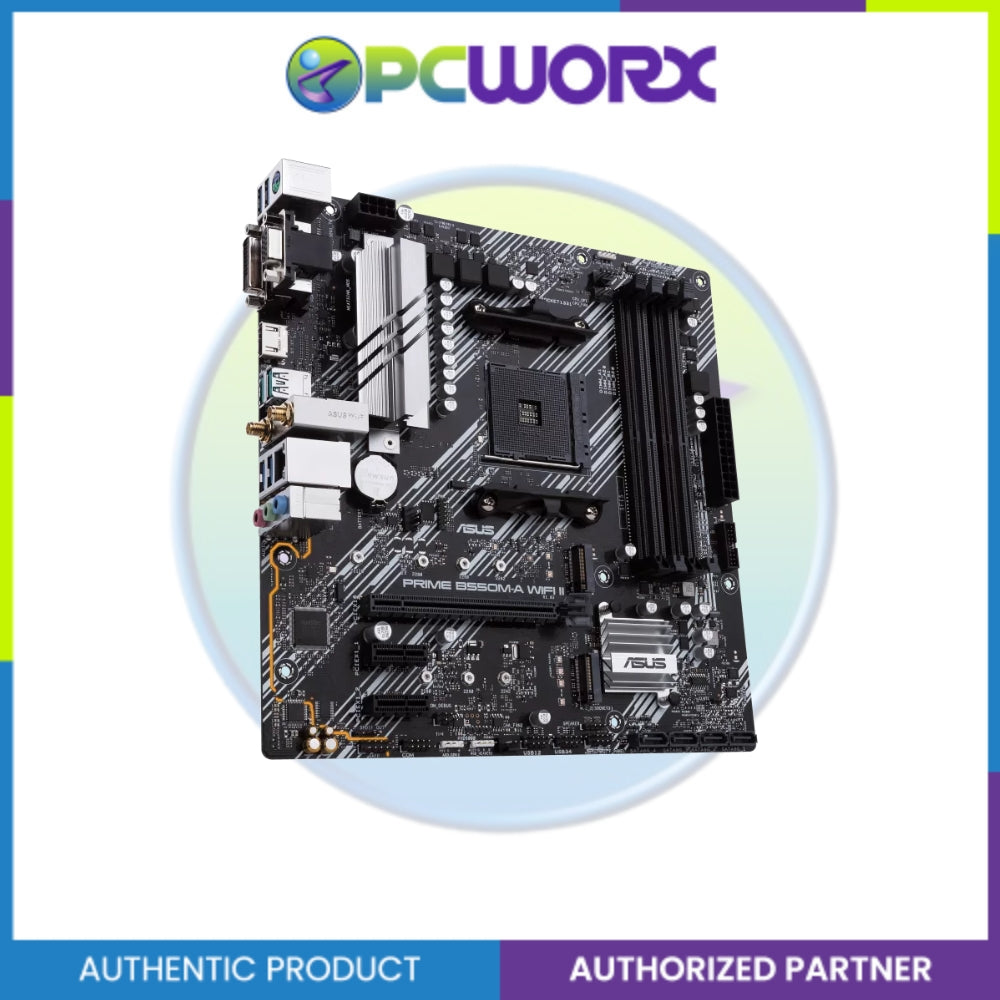

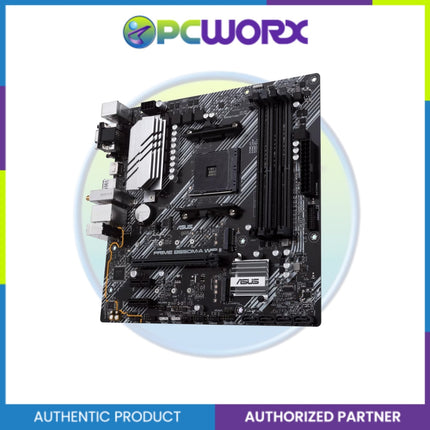

| Model |
PRIME B550M-A WIFI II |
| CPU |
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
|
Refer to www.asus.com for CPU support list. |
| Memory |
4 x DIMM, Max. 128GB, DDR4
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
Dual Channel Memory Architecture
* ECC memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
|
| Graphics |
1 x D-Sub port
1 x DVI-D port
1 x HDMI® port**
Graphics specifications may vary between CPU types.
Supports 4K@60Hz as specified in HDMI 2.1.
|
| Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 slots
|
| Storage
|
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
|
| Ethernet
|
1 x Realtek 1Gb Ethernet
ASUS LANGuard
|
| Wireless and Bluetooth
|
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
|
| USB |
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
| Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- LED-illuminated audio trace path design
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|

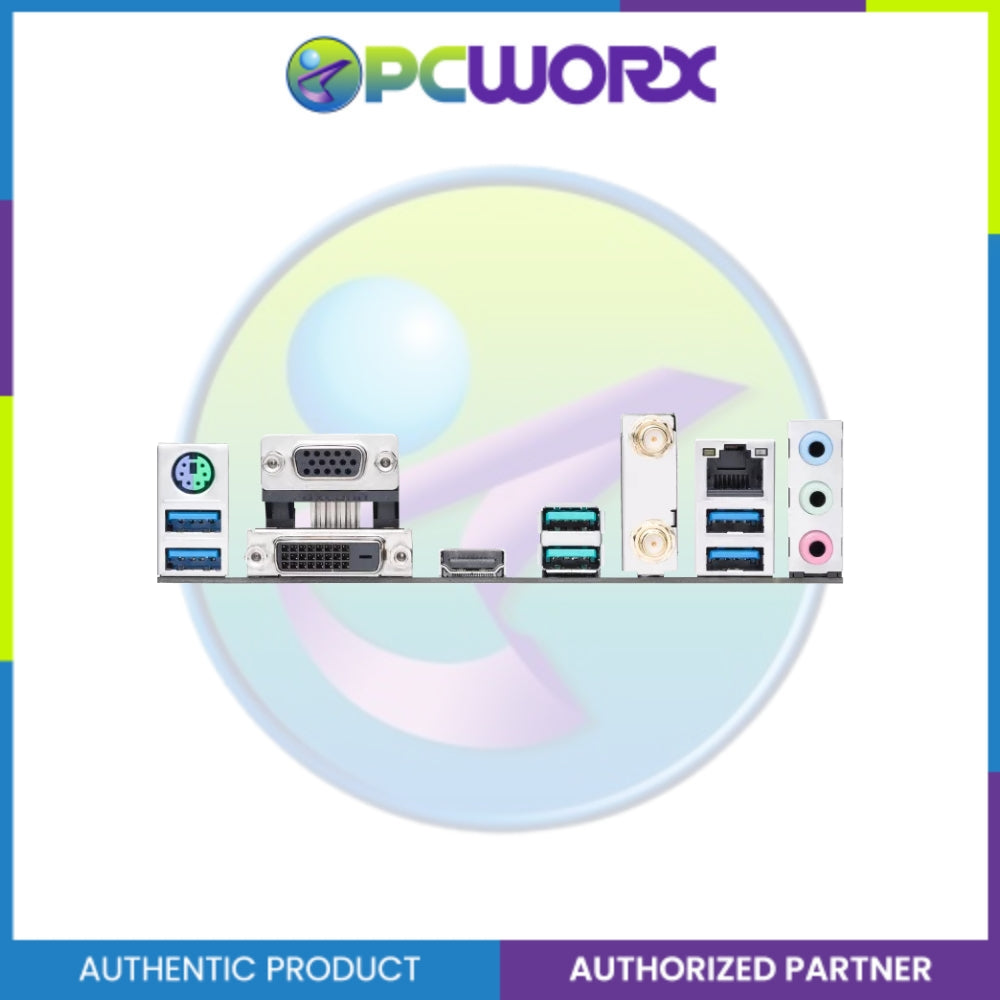

| Back Panel I/O Connectors |
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
|
| Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 header
|
| Software Features |
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- Lighting Control
ASUS CPU-Z
AI Charger
DAEMON Tools
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories
|
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
|
