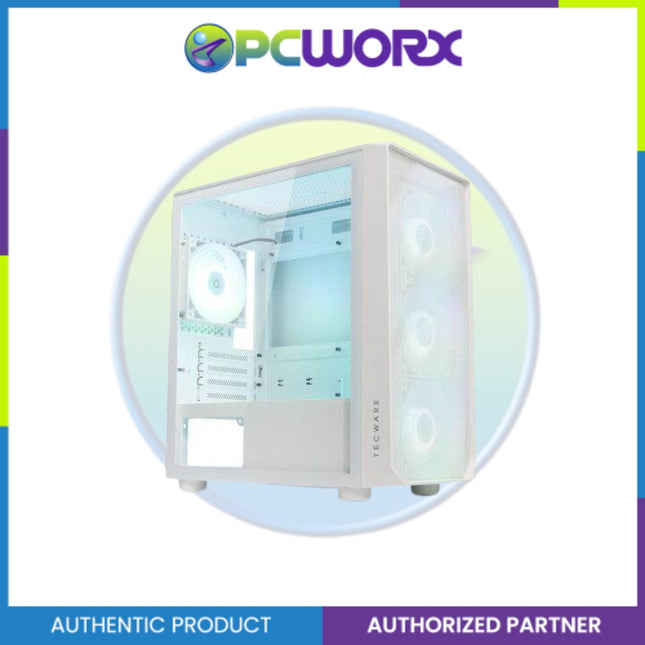

High Airflow, Polygonal Mesh
Full mesh front panel with 3 front fans for maximum air intake, combined with ventilation on the top, bottom, and rear for optimized airflow throughout the case. Polygonal mesh design for added flair to your build.
Hinged Tempered Glass
A hinged tempered glass side panel door for easy accessibility to your case interior.
No more bothersome thumbscrews.
Stunning RGB Illumination
Forge M comes with 4 x ARGB Fans and a Controller Hub.Sync with RGB capable motherboards (3-pin 5V ARGB Header).
SPECIFICATIONS:
I/O
Super Speed USB 3.0 x 2
HD Audio
BAYS
1 x 3.5” + 1 x 3.5”/2.5” (Removable Cage)
2 x 2.5" (Mounted)
7 x PCIe Expansion Slots
FANS
Front: 3 x 120mm (included)
Rear: 1 x 120mm (included)
Top: 2 x 120mm (not included)
SUPPORT AND CLEARANCE
315mm Max GPU Length
160mm Max CPU Cooler Height
180 Max PSU Length (*w HDD Cage)
mATX, ITX motherboard
RADIATOR CLEARANCE
Front: 120 / 240mm
Rear: 120mm
Top: 120 / 240mm
OTHERS
Black Case Wires
Top Magnetic Filter and Bottom PSU Filter
Hinged Tempered Glass Side Panel (Detachable)
22mm Cable Management Space
SIZE
Dimensions: L379*W205*H429mm
I/OSuper Speed USB 3.0 x 1USB 2.0 x 1HD Audio + Microphone Jack BAYS2 x 3.5” HDD4 x 2.5” SSD4 x PCI Expansion SlotsFANSRear: 1 x 120mm (included)Top: 3 x 120mmBottom: 3 x 120mmSide: 2 x 120mm (included)SUPPORT AND CLEARANCE400mm Max GPU Length157mm Max CPU Cooler Height200mm Max PSU LengthmATX, ITX RADIATOR CLEARANCETop: 120 / 240 / 360mmSide: 120 / 240mmRear: 120mmSIZEDimensions: L415*W280*H377mm

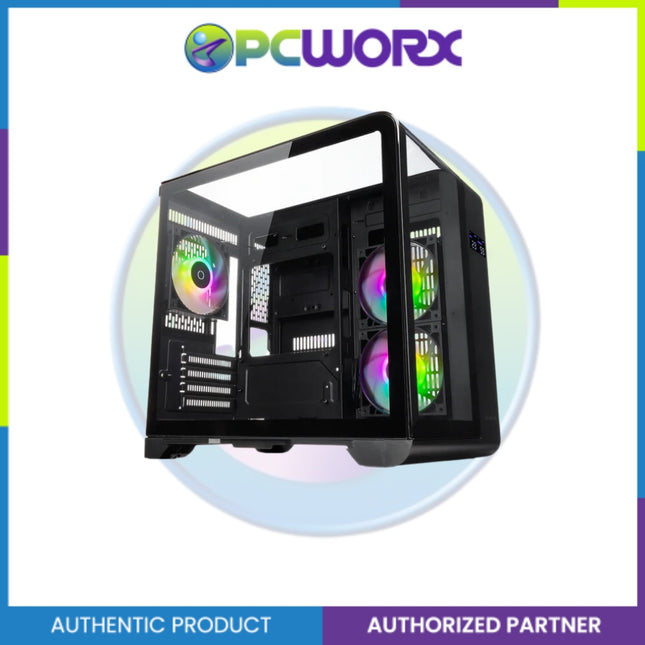

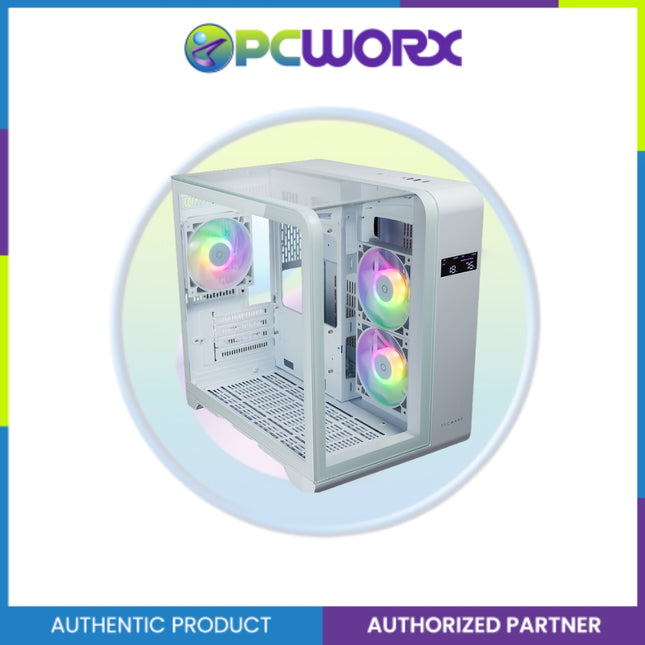

Optimized Airflow
Perforated 'skirt' panels that allow air intake from the bottom while retaining a dual glass display.
Panel Locking Mechanism
Easily pop the panels in place for a seamless glass display. Thumbscrews only at the rear.
I/O
USB 3.0 x 1
USB 2.0 x 1
HD Audio
BAYS
1 x 3.5” HDD
1 x 2.5” SSD
4 x PCI Expansion Slots
FANS
Rear: 1 x 120mm (included)
Top: 3 x 120mm
Side: 2 x 120mm (included)
Bottom: 3 x 120mm
SUPPORT AND CLEARANCE
420mm Max GPU Length
165mm Max CPU Cooler Height
200mm Max PSU Length
mATX, ITX
I/OSuper speed USB 3.0 x2HD Audio + USB 2.0BAYS2x 3.5”3x 2.5”4x PCI Expansion SlotsFANSFront: 3x 120mm PWM fans (included) or 2x 140mm (optional)Rear: 120mm PWM fan (Included)Top: 2x 120mm / 140mmSUPPORT AND CLEARANCE340mm Max GPU Card160mm Max CPU Cooler200mm Max PSU lengthCable Management SupportmATX, ITXDimensionsL 380 W 210 H 403mm

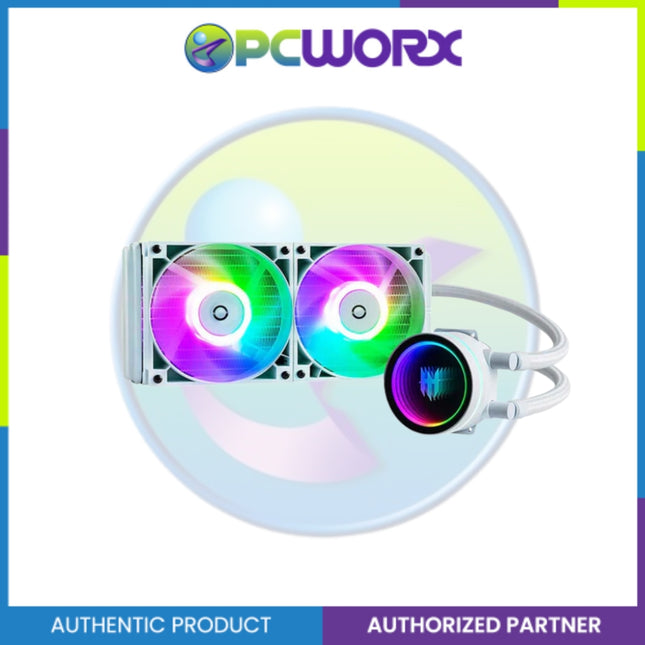

MIRAGE RGB LIQUID COOLER
The MIRAGE AIO delivers optimal cooling performance paired with a beautiful aesthetic.
Immersive Aesthetics
Enhance your system with this mesmerizing Infinity mirror LED ring effect. Re-orientate the logo with the adjustable 4-position cap.
Low-resistance Radiator
Pure aluminum, high-density fins increase heat dissipation, effectively reducing CPU temperature quicker.
Pure Copper Base
Maximized contact surface area and improved heat exchange rate accelerates the overall CPU cooling efficiency.
Sleeved FEP Tubing
Flexible, corrosion resistant and reduced coolant evaporation rate.
SPECIFICATIONS
FAN
Rated Voltage:
12V DC
Fan Size:
120 x 120 x 25 mm
Speed:
800~1800RPM±10%
Max Airflow:
60.3CFM Max
Max Static Pressure:
2.05 mmH20
Max Noise Level:
≤35.2dB(A)
Fan Connector:
4-pin (PWM)
PUMP
Speed:
2300RPM±10%
Pump Size:
ø 70x32mm
Max Noise:
≤26.9dB(A)
Power Consumption:
2.1W
Pump Connector:
3-pin (5V ARGB)
CPU SOCKET COMPATIBILITY
Rated Voltage:
12V DC
AMD:
AM4 / AM5
PACKAGE CONTENTS
Mounting Brackets for CPU Sockets
OMNI P1 PWM 120mm Fan x 1 / 2 / 3
Fan & Radiator Mounting Screws
Thermal Compound (0.5g tube, 8.5 w/mk)
6-Port Controller (PWM + ARGB)

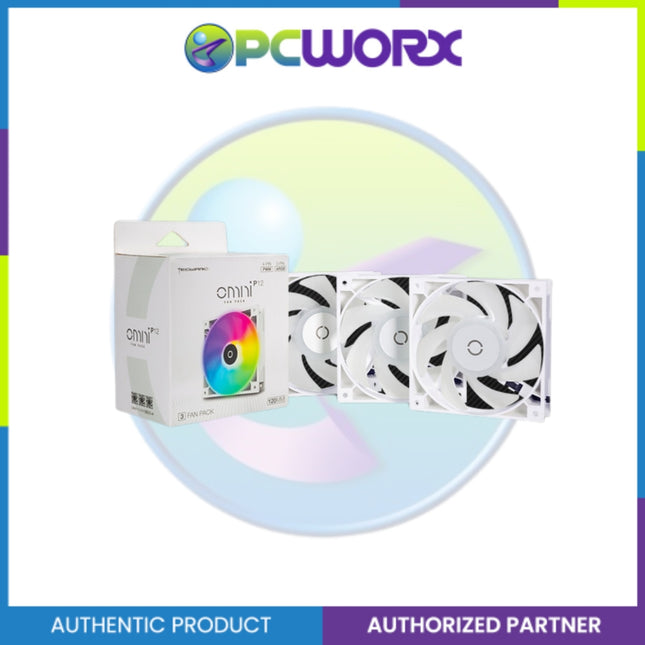

PRODUCT DETAILS AND SPECIFICATIONS
High static pressure fans designed to maximize thermal dissipation within your case.
PWM controlled fans with 800- 1800 RPM airflow.
FANS SPECIFICATIONS
Model:
Omni P12 Fan Pack
Dimensions:
120 x 120 x 25mm
Fan Blades:
7
Fan LEDs:
9 Inner LEDs
Rated Voltage/Current:
12V Fan (0.2A), 5V LED (0.3A)
Start-up Voltage:
7-13.8V (Fan), 5V (LED)
Bearing Type:
Hydro Bearing
Fan Speed:
800-1800±10% RPM
Air Flow:
60.3 CFM Max
Air Pressure:
2.05mm H2O
Max Noise Level:
≤35.2dB(A)
Connector:
4-pin (PWM) + 3-pin (ARGB)

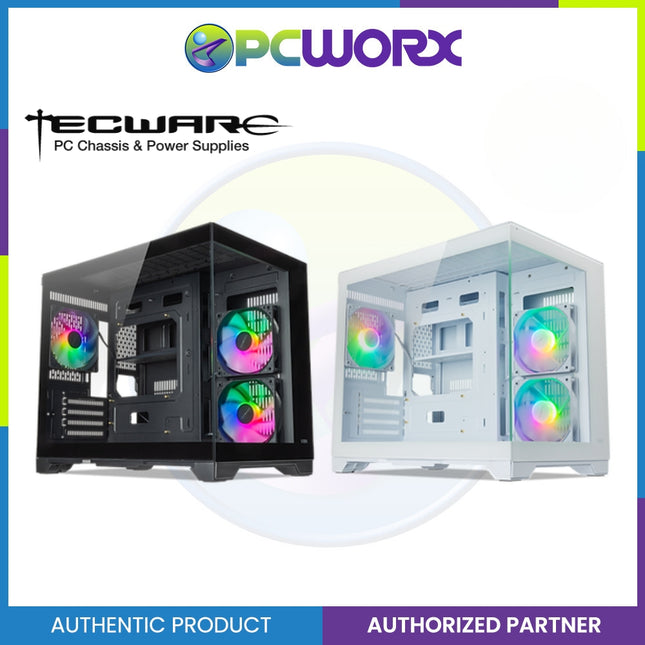

Product Specification of Tecware Arc M White - 3x 120 (Rev) + 120mm Omni link aRGB fans m-ATX Case
I/O
Super Speed USB 3.0 x 1
USB 2.0 x 2
HD Audio + Mic
BAYS
1 x 3.5” HDD
2 x 2.5” SSD
4 x PCI Expansion Slots
FANS
Rear: 1 x 120mm (included)
Bottom: 2 x 120mm
Side: 2 x 120mm (included)
SUPPORT AND CLEARANCE
330mm Max GPU Length
157mm Max CPU Cooler Height
160mm Max PSU Length
mATX, ITX Motherboard
RADIATOR CLEARANCE
Side: 120 / 240mm
Dimensions:
L385*W280*H377mm
DESCRIPTIONS:
I/O
Super Speed USB 3.0 x 1
USB 2.0 x 2
HD Audio + Mic
BAYS
1 x 3.5” HDD
2 x 2.5” SSD
4 x PCI Expansion Slots
FANS
Rear: 1 x 120mm (included)
Bottom: 2 x 120mm
Side: 2 x 120mm (included)
SUPPORT AND CLEARANCE
330mm Max GPU Length
157mm Max CPU Cooler Height
160mm Max PSU Length
mATX, ITX Motherboard

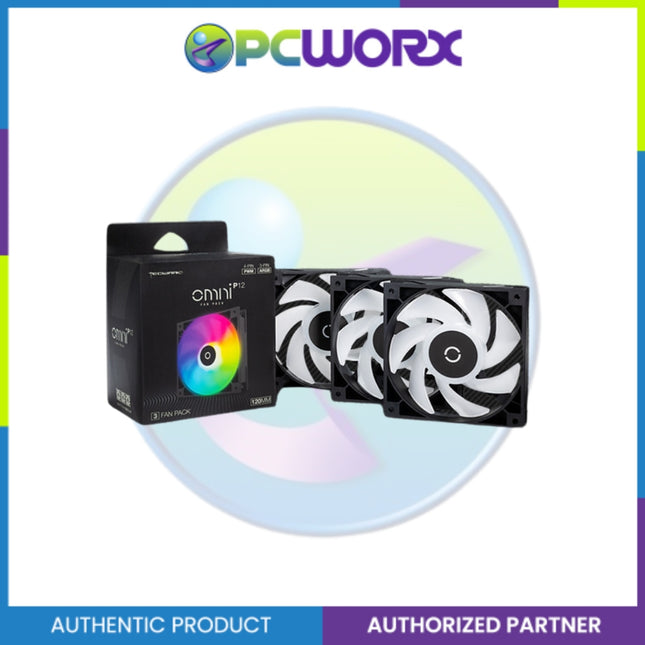

PRODUCT DETAILS AND SPECIFICATIONS
High static pressure fans designed to maximize thermal dissipation within your case.
PWM controlled fans with 800- 1800 RPM airflow.
FANS SPECIFICATIONS
Model:
Omni P12 Fan Pack
Dimensions:
120 x 120 x 25mm
Fan Blades:
7
Fan LEDs:
9 Inner LEDs
Rated Voltage/Current:
12V Fan (0.2A), 5V LED (0.3A)
Start-up Voltage:
7-13.8V (Fan), 5V (LED)
Bearing Type:
Hydro Bearing
Fan Speed:
800-1800±10% RPM
Air Flow:
60.3 CFM Max
Air Pressure:
2.05mm H2O
Max Noise Level:
≤35.2dB(A)
Connector:
4-pin (PWM) + 3-pin (ARGB)

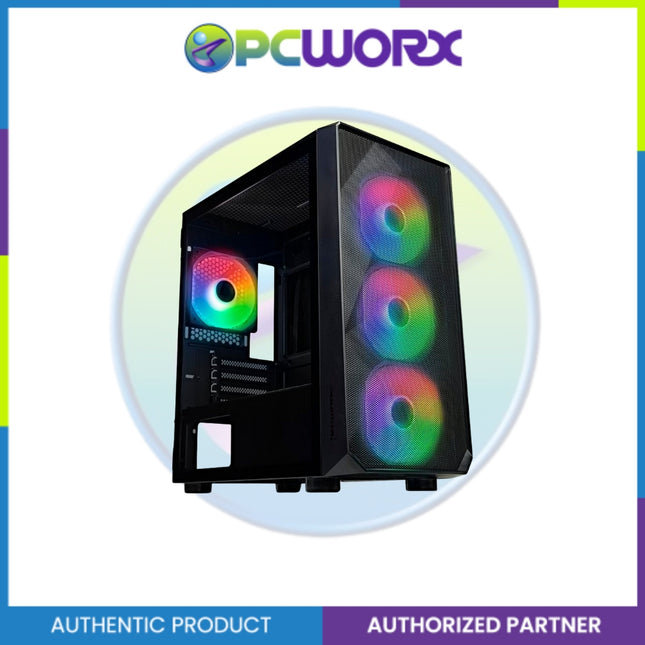

High Airflow, Polygonal Mesh
Full mesh front panel with 3 front fans for maximum air intake, combined with ventilation on the top, bottom, and rear for optimized airflow throughout the case. Polygonal mesh design for added flair to your build.
Hinged Tempered Glass
A hinged tempered glass side panel door for easy accessibility to your case interior.
No more bothersome thumbscrews.
Stunning RGB Illumination
Forge M comes with 4 x ARGB Fans and a Controller Hub.Sync with RGB capable motherboards (3-pin 5V ARGB Header).
SPECIFICATIONS:
I/O
Super Speed USB 3.0 x 2
HD Audio
BAYS
1 x 3.5” + 1 x 3.5”/2.5” (Removable Cage)
2 x 2.5" (Mounted)
7 x PCIe Expansion Slots
FANS
Front: 3 x 120mm (included)
Rear: 1 x 120mm (included)
Top: 2 x 120mm (not included)
SUPPORT AND CLEARANCE
315mm Max GPU Length
160mm Max CPU Cooler Height
180 Max PSU Length (*w HDD Cage)
mATX, ITX motherboard
RADIATOR CLEARANCE
Front: 120 / 240mm
Rear: 120mm
Top: 120 / 240mm
OTHERS
Black Case Wires
Top Magnetic Filter and Bottom PSU Filter
Hinged Tempered Glass Side Panel (Detachable)
22mm Cable Management Space
SIZE
Dimensions: L379*W205*H429mm

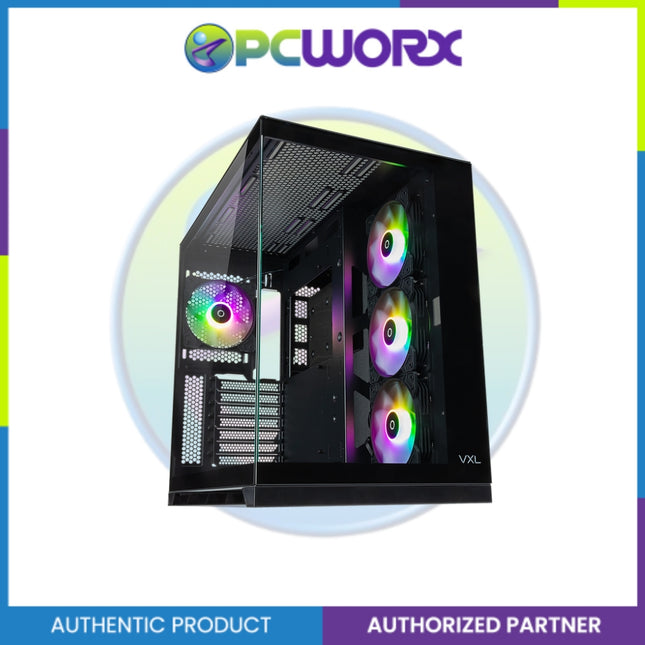

VXL EVO ATX DUAL TEMPERED GLASS CASE
Panel Locking Mechanism
Easily pop in the panels for a seamless tempered glass display.
Remove thumbscrews before removing panels.
SPECIFICATIONS:
I/O:
Super Speed USB 3.0 x 2
HD Audio
BAYS:
2 x 3.5” HDD
3 x 2.5” SSD
7 x PCI Expansion Slots
FANS:
Rear: 1 x 120mm (included)
Top: 3 x 120 / 2 x 140mm
Bottom: 3 x 120mm
Side: 3 x 120mm (included)
SUPPORT AND CLEARANCE:
390mm Max GPU Length
160mm Max CPU Cooler Height
200mm Max PSU Length
ATX, mATX, ITX
RADIATOR CLEARANCE:
Top: 120 / 240 / 360mm
Side: 120 / 240 / 360mm
SIZE:
Dimensions: L445*W285*H430mm
