CAMERA - C500
Image Sensor
1/3''
Lens
Focal Length: 3.89 mmAperture: F2.0Field of View: 85.5°(Diagonal), 73.5°(Horizontal), 41°(Vertical)
Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night Vision
850 nm IR LED up to 98 ft/30m
Interface & Button
1× RESET Button1× MicroSD Card Slot
View Range
360° horizontal and 130° vertical
Resolution
1080p Full HD(1920 x 1080 px)
VIDEO & AUDIO
Maximum Resolution
1920 × 1080 px
Frame Rate
15 fps
Video Compression
H.264
Live View
Yes
Image Enhancement
3D DNRWDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
90 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
VIDEO
Frame Rate
15 fps
Video Streaming
1080p
Video Compression
H.264
DETECTION AND NOTIFICATIONS
AI Detection
Motion detectionPerson detectionTamper detection
Activity Zones
Yes
Output Notification
System NotificationSystem Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication
2-way audio
Audio Input & Output
Built-in microphone and speaker
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Wireless Security
WPA/WPA2-PSK
RTSP
Yes
ONVIF
Yes
Standards and Protocols
IEEE 802.11b/g/n, 2.4 GHz
Security
128 bit AES encryption with SSL/TLS
Frequency
2.4 GHz
SECURITY
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
POWER
Power Source
12V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
12V, 1 A (DC Power)
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP65
System Requirements
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options
Ceiling-MountedWall-MountedPole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature
-30℃~60℃
Storage Temperature
-40℃~60℃
Operating Humidity
10%~90% RH, Non-condensing
Storage Humidity
0~90% RH, Non-condensing
Dimensions
4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Package Contents
Tapo C500 CameraPower AdapterMounting AnchorsMounting ScrewsBracket ScrewsMounting TemplateMounting BracketWaterproof SealQuick Start Guide
Certifications
CE, FCC, RoHS, RCM
ACTIVITY NOTIFICATIONS
Input Trigger
Motion detection, Person detection
Output Notification
Notification,Snapshot(Tapo care),Clips(Tapo care).
ENVIRONMENT
Operating Temperature
-30℃~60℃(-22°F ~140 °F )
Storage Temperature
-40℃~60℃ (-40°F~140°F)
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
5%~90%RH, Non-condensing
PACKAGE CONTENTS
Package Contents
Tapo C500 CameraDC Power AdapterAnchors and ScrewsMounting TemplateWaterproof SealQuick Start Guide
HARDWARE
Button
RESET button
Indicator LED
System LED
Adapter Input
100-240V, 50/60Hz
Adapter Output
12.0V/1.0A
Dimensions (W x D x H)
4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
OTHERS
Certification
CE, FCC, RoHS, RCM
HWI-B121H
Camera
Appearance
Bullet
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens
Focal Length
2.8 mm, 4 mm
Aperture
F2.0
Focus
Fixed
Angle of view
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest
1 fixed region for main stream
Resolution
2MP
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plugPoE (802.3af, class 3)
Power Consumption
12 VDC, 0.3 A, Max: 3.5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Ingress Protection level
IP67
Material
Front cover: metal, camera body: plastic, bracket: plastic
Dimensions
Ø 70 mm × 181.6 mm (Ø 2.8" × 7.1")
Weight
Camera: Approx. 270 g (0.6 lb.)With package: Approx. 510 g (1.1 lb.)

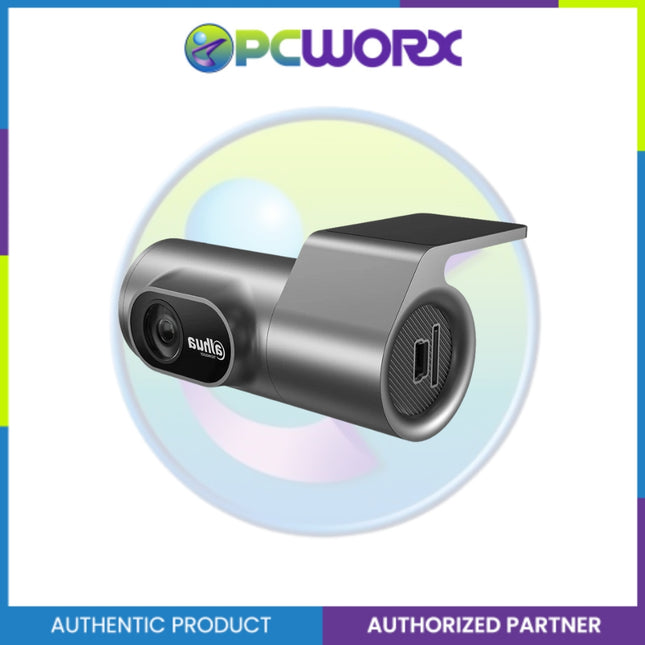

M1pro
Dash Camera
> 1080P ultra high resolution image> F2.0 iris offers crisp night imaging> Built-in Wi-Fi AP module> G-Sensor module supports collision detection and video lock> Supports MicroSD card up to 128 GB> Compatible with mobile client for setup, live view, recording search and backup> HD night vision
Camera
Image Sensor
1/3.0'' CMOS
Resolution
1920×1080P@30FPS
Field of View
D: 121°, H: 101°, V: 53°
Iris
F2.0
Video Compression
H.265
OSD
Display time, date, etc.
Image format
JPEG
Storage
1 TF card (up to 128GB)
Communication Module
WiFi AP
G-sensor
G-Sensor
Interface
Power Supply
Mini USB
Audio Input
Build-in microphone
Audio Output
Build-in speaker
General
Operating Temperature
-20°C to 70°C(-4°F to 158°F)
Operating Humidity
<95%(No condensation)
Power Supply
5V DC/1.5A
Power Consumption
≤1.5W
Dimensions
80mm×48mm×28.8mm(3.15′′×1.89′′×1.13′′)
Weight
Approx. 42 g (0.093 lb.)
HWI-D121H
Camera
Appearance
Dome
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Lens
Focal Length
2.8 mm, 4 mm
Aperture
F2.0
Focus
Fixed
Angle of view
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest
1 fixed region for main stream
Resolution
2MP
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plugPoE (802.3af, class 3)
Power Consumption
12 VDC, 0.4 A, Max: 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection level
IP67
Impact Protection
IK10
Material
Bubble: plastic, front cover: plastic, bottom base: metal
Dimensions
Camera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight
Camera: Approx. 400 g (0.9 lb.)With package: Approx. 600 g (1.3 lb.)
CAMERA - C320WS
Image Sensor
1/3" Progressive Scan CMOS Starlight Sensor
Lens
Focal Length: 3.18 mmAperture: F1.61Field of View: 113°(Diagonal), 97°(Horizontal), 54°(Vertical)
Night Vision
850 nm IR LED (98 ft / 29.9 m)Full-Color Night Vision
Lighting
2× Built-in Spotlights
Interface & Button
1× Ethernet Port1× RESET Button1× MicroSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Maximum Resolution
2560 × 1440 px
Frame Rate
15 fps
Digital Zoom
12×
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNRWDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
91 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
AI Detection
Motion DetectionPerson DetectionIntrusion DetectionVehicle DetectionLine-Crossing DetectionTamper Detection
Activity Zones
Yes
Output Notification
System NotificationSystem Notification with Snapshot (Tapo Care Services)
NETWORK
Network Connectivity
Connect via Wi-Fi or Ethernet
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Ethernet Port
1× 10/100 Mbps RJ45 Port on Camera
RTSP
Yes
ONVIF
Yes
SECURITY
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
POWER
Power Source
9V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
9 V, 0.6 A (DC Power)
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP66
System Requirements
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options
Wall-Mounted
Operating Temperature
-20℃~45℃
Storage Temperature
-20℃~60℃
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
0~90%RH, Non-condensing
Dimensions
5.6 × 4.07 × 2.53 in (142.3 × 103.4 × 64.3mm)
Package Contents
Tapo C320WS CameraPower AdapterMounting TemplateAnchors and ScrewsWaterproof SealWaterproof Cable AttachmentsQuick Start Guide
Certifications
CE, FCC, RoHS, RCM
Seamless Privacy Control - Use the button on the product shell or Tapo app to easily open or close the privacy shield, giving you complete control over your private moments.
2K QHD - When it comes to home security, details matter. With 2K QHD resolution, the Tapo C225 transcends beyond traditional FullHD 1080p quality to display finer details and incredibly clear videos.
Apple Homekit Supported - Along with Amazon Alexa and Google Assistant compatibility,Tapo C225 can also fully integrate into your Apple Home ecosystem for convenient hands-free operation.
Smart Motion Tracking - With pan/tilt functionality and smart motion tracking technology with up to 120°/s rotating speed, precisely track and follow subjects, continuously keeping them within the camera’s field of view.
Color Night Vision - The highly sensitive starlight sensor captures higher-quality images even in low-light conditions up to 30 ft.
Invisible Infrared Mode - If the red IR LEDs prove to be a distraction while monitoring at night, switch to invisible IR mode to continue monitoring in low-light conditions without the disrupting red light, making it ideal for sleeping children and pets.
Local and Cloud Storage - Save recorded videos on a microSD Card (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).
Sharing Capabilities - Seamlessly forward videos you want to share to your social platforms.
2K QHD Live View-Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p.
Starlight Color Night Vision-Adopting an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor.
360° Visual Coverage- Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots.
Free Person/Pet/Vehicle Detection-Smart AI identifies people, pets, and vehicles, notifying users as needed.
Customizable Sound and Light Alarm-Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.
Secure Local & Cloud Storage-Save recorded videos to a microSD card† or by using Tapo Care** cloud services.
IP66 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
Wired/Wireless Networking-Connect your camera to the network through WiFi or Ethernet for more flexible installation.
Featuring a compact, minimalist design, Transcend's DrivePro 10 dashcam comes equipped with a high-sensitivity image sensor to capture high-resolution images with extremely fine tonal gradation even in low light; a 140° wide angle lens offering the best coverage of the road; up to 1440P 2K QHD recording at 30fps to capture every crucial detail; Wi-Fi connectivity for live monitoring on your smart gadgets; and emergency recording for optimum protection.
ColorPro Night Vision-Provides professional protection by revealing bright-color images without any spotlights even in ultra-low light conditions. Feel its superiority and experience daylight clarity during pitch-black nights.
F1.0 Super-Aperture Lens & 1/1.79''Large Sensor-An F1.0 super-aperture lens captures 4× more the amount of light than F2.0 while the 1/1.79'' sensor has a larger target surface and higher sensitivity than normal 1/2.7'' sensors. Both are key to rendering colors under ultra-low light conditions.
2K QHD Live View-Tapo C325WB adopts a 2688×1520 resolution, capturing sharper images with 2× more pixels than 1080p.
Person/Animal/Vehicle Detection-Smart AI identifies people, animals, and vehicles, notifying users as needed‡. All are provided for free.
Customizable Motion Detection-Set up activity zones or boundaries and receive instant notifications anytime when motion is detected in your customized zones.
Secure Local and Cloud Storage-Save recorded video to a microSD card(up to 512 GB)†or by using Tapo Care cloud storage services**.
IP66 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
Wireless/Wired Networking-Connect the camera to your network through Ethernet or Wi-Fi for more flexible installation.
Wide Field of View-A wide FOV up to 127° provides a larger detection range covering more space, enabling you to focus on more vital areas.

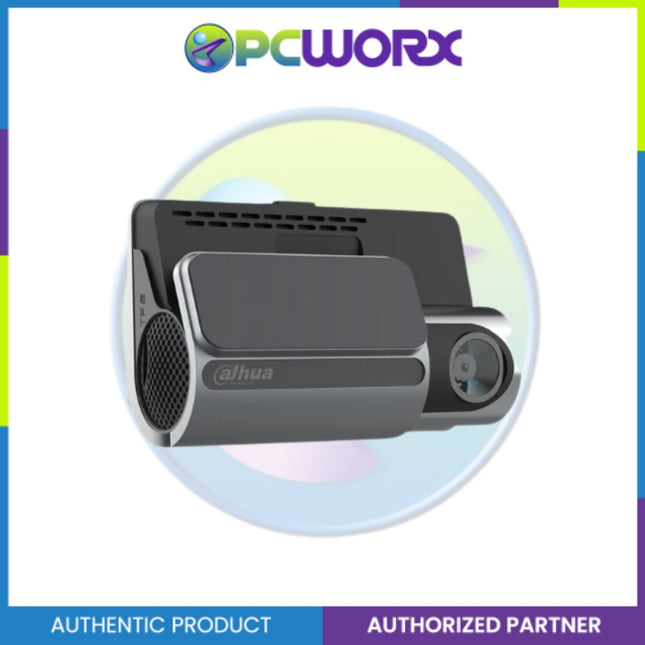

Technical Details
Brand
DAHUA
Manufacturer
DAHUA
Flash memory type
MicroSD
Special Features
G Sensor, Built In GPS
Mounting Hardware
Dash Cam
Number of items
1
Standing screen display size
3 Inches
Display Type
LCD
Batteries Included
No
Batteries Required
No
Connector Type
Wi-Fi
Product dimensions
4 x 6 x 9 cm; 600 Grams
Item Weight
600 g
