Model: iGame GeForce RTX 5080 Ultra W OC 16GB-VChip Series: GeForce® RTX 5080Product Series: iGame SeriesCUDA Cores: 10752Core Clock: Base：2295Mhz；Boost: 2617Mhz One-Key OC Base：2295Mhz；Boost: 2655MhzMemory Clock3: 0GbpsMemory Size: 16GBMemory Bus Width: 256bitMemory TypeGDDR7Memory Bandwidth: 960GB/sPower Connector: 16pinTDP380WDisplay Ports: 3*DP2.1b+HDMI2.1bFans Type: FANAuto Stop Technology: YPower Suggest: 850WDirectXDirectX 12 Ultimate/OpenGL 4.6NV technology Support: DLSS 4/Reflex/StudioProduct Size: 331*139.3*59.7mm

Read more less

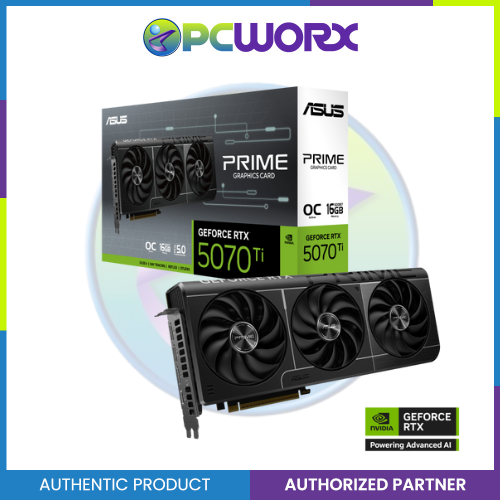

Model PRIME-RTX5070TI-O16G Graphic Engine NVIDIA® GeForce RTX™ 5070 Ti AI Performance 1432 TOPs Bus Standard PCI Express 5.0 OpenGL OpenGL®4.6 Video Memory 16GB GDDR7 Engine Clock OC mode: 2527MHzDefault mode: 2497MHz (Boost Clock)OC mode: 2527MHzDefault mode: 2497MHz (Boost Clock) CUDA Core 8960 Memory Speed 28 Gbps Memory Interface 256-bit Resolution Digital Max Resolution 7680 x 4320 Interface Yes x 1 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3) Maximum Display Support 4 NVlink/ Crossfire Support No Accessories 1 x Speedsetup Manual1 x ASUS Velcro Hook & Loop1 x Thank You Card1 x Adapter Cable (1 to 3)​ Software ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. Dimensions 304 x 126 x 50 mm12 x 5 x 2 inch304 x 126 x 50 mm12 x 5 x 2 inch Recommended PSU 750W Power Connectors 1 x 16-pin Slot 2.5 Slot SFF Ready Compatible

Read more less

Graphics Processing GeForce RTX™ 5070 Ti Core Clock TBD CUDA® Cores 8960 Memory Clock 28 Gbps Memory Size 16GB Memory Type GDDR7 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680 x 4320 Multi-view 4 Card size L=304 W=126 H=50 mm PCB Form ATX DirectX DirectX 12 API OpenGL OpenGL 4.6 Recommended PSU 750W Power Connectors 16 pin*1 Output DisplayPort 2.1b x3HDMI 2.1b x1 Accessories 1. VGA manual2. 1x 12V-2x6 to 3x PCIe 8pin adapter3. Versatile VGA holder4. Versatile VGA holder manual

Read more less

Specifications Memory Amount 16 GB Memory Interface 256 bits DRAM Type GDDR7 Graphics Clock 2295 MHz Boost Clock 2617 MHz Memory Clock 30 Gbps CUDA Cores 10752 Memory Bandwidth (GB/sec) 960 Microsoft DirectX Microsoft DirectX® 12 Ultimate OpenGL 4.6 Bus Support PCI-E 5.0 HDMI HDMI 2.1b DisplayPort DP2.1b x 3 Maximum Digital Resolution 4K at 480Hz or 8K at 120Hz with DSC Height 3.5 slot Board Size 331.9 x 150 x 70.4 mm Graphics Card Power 360 W Recommended System Power 850 W Supplementary Power Connectors 16-pin x1 Accessory Power Cable, ARGB Cable, VGA Holder, Holder Extender

Read more less

Primed for Power Experience Primal performance with the Prime GeForce RTX 5080, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow and vapor chamber design for supreme cooling. Unmatched Reliability Engineering   SPECIFICATION     Model PRIME-RTX5080-O16G Graphic Engine NVIDIA® GeForce RTX™ 5080 AI Performance 1827 TOPs Bus Standard PCI Express 5.0 OpenGL OpenGL®4.6 Video Memory 16GB GDDR7 Engine Clock OC mode: 2685 MHzDefault mode: 2655 MHz (Boost Clock) CUDA Core 10752 Memory Speed 30 Gbps Memory Interface 256-bit Resolution Digital Max Resolution 7680 x 4320 Interface Yes x 1 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3) Maximum Display Support 4 NVlink/ Crossfire Support No Accessories 1 x Speedsetup Manual1 x ASUS Velcro Hook & Loop1 x Thank You Card1 x Adapter Cable (1 to 3) Software ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. Dimensions 304 x 126 x 50 mm12 x 5 x 2 inch Recommended PSU 850W Power Connectors 1 x 16-pin Slot 2.5 Slot SFF Ready Compatible

Read more less

SPECIFICATION Marketing NameModel NameGraphics Processing UnitInterfaceCore ClocksCUDA® CORESMemory SpeedMemoryMemory BusOutputHDCP SupportPower consumptionPower connectorsRecommended PSUCard Dimension (mm)Weight (Card / Package)DirectX Version SupportOpenGL Version SupportMaximum DisplaysG-SYNC® technologyDigital Maximum ResolutionGeForce RTX™ 5080 16G SHADOW 3X OCG5080-16S3CNVIDIA® GeForce RTX™ 5080PCI Express® Gen 5Extreme Performance: 2655 MHz (MSI Center)Boost: 2640 MHz10752 Units30 Gbps16GB GDDR7256-bitDisplayPort x 3 (v2.1b)HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)Y360 W16-pin x 1850 W303 x 121 x 49 mm1046 g / 1546 g12 Ultimate4.64Y7680 x 4320

Read more less

GeForce RTX™ 5080 AERO OC SFF 16G NVIDIA Blackwell Architecture The Ultimate Platform forGamers and Creators Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry WINDFORCECOOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.   ASTONISHING EXTERIOR DESIGN Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details. SPECIFICATION Graphics Processing GeForce RTX™ 5080 Core Clock 2730 MHz (Reference: 2617 MHz) CUDA® Cores 10752 Memory Clock 30 Gbps Memory Size 16GB Memory Type GDDR7 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680 x 4320 Multi-view 4 Card size L=304 W=126 H=50 mm PCB Form ATX DirectX DirectX 12 API OpenGL OpenGL 4.6 Recommended PSU 850W Power Connectors 16 pin*1 Output DisplayPort 2.1b x3HDMI 2.1b x1 Accessories 1. VGA manual2. Warranty notice3. 1x 12V-2x6 to 3x PCIe 8pin adapter4. Versatile VGA holder5. Versatile VGA holder manual

Read more less

ROG Astral LC GeForce RTX™ 5090 Fluid Force The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler, full-coverage copper plate and integrated fan. Meanwhile, powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation. Model ROG Astral LC GeForce RTX™ 5090 32GB GDDR7 OC Edition Graphic EngineNVIDIA® GeForce RTX™ 5090AI Performance3593 TOPsBus StandardPCI Express 5.0OpenGLOpenGL®4.6Video Memory32GB GDDR7Engine ClockOC mode: 2610 MHzDefault mode: 2580 MHz(Boost clock)CUDA Core21760Memory Speed28 GbpsMemory Interface512-bitResolutionDigital Max Resolution 7680 x 4320InterfaceYes x 2 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3)Maximum Display Support4NVlink/ Crossfire SupportNoAccessories1 x Speedsetup Manual1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x ROG Magnet1 x ROG PCB Ruler1 x Thank You Card1 x Adapter Cable (1 to 4)SoftwareASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.DimensionsCard 288.46 x 153.7 x 48 mmRadiator: 400 x 120 x 65mmRecommended PSU1000WPower Connectors1 x 16-pinSlot2.5 SlotAURA SYNCARGB

Read more less

FEATURES Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX™ 5080 Integrated with 16GB GDDR7 256bit memory interface WINDFORCE cooling system Hawk fan Server-grade thermal conductive gel Dual BIOS (Performance / Silent) NVIDIA SFF-ready Reinforced structure Versatile VGA holder CORE CLOCK 2670 MHz (Reference: 2617 MHz) WINDFORCECOOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.   Graphics Processing GeForce RTX™ 5080 Core Clock 2670 MHz (Reference: 2617 MHz) CUDA® Cores 10752 Memory Clock 30 Gbps Memory Size 16GB Memory Type GDDR7 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680 x 4320 Multi-view 4 Card size L=304 W=126 H=50 mm PCB Form ATX DirectX DirectX 12 API OpenGL OpenGL 4.6 Recommended PSU 850W Power Connectors 16 pin*1 Output DisplayPort 2.1b x3HDMI 2.1b x1 Accessories 1. VGA manual2. 1x 12V-2x6 to 3x PCIe 8pin adapter3. Versatile VGA holder4. Versatile VGA holder manual

Read more less

ROG Astral GeForce RTX™ 5090 The Final Frontier The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios. ModelNewROG Astral GeForce RTX™ 5090 32GB GDDR7 OC Edition Graphic EngineNVIDIA® GeForce RTX™ 5090AI Performance3593 TOPsBus StandardPCI Express 5.0OpenGLOpenGL®4.6Video Memory32GB GDDR7Engine ClockOC mode: 2610 MHzDefault mode: 2580 MHz(Boost clock)CUDA Core21760Memory Speed28 GbpsMemory Interface512-bitResolutionDigital Max Resolution 7680 x 4320InterfaceYes x 2 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3)Maximum Display Support4NVlink/ Crossfire SupportNoAccessories1 x Speedsetup Manual1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x ROG Magnet1 x ROG Graphics Card Keycap1 x ROG PCB Ruler1 x Thank You Card1 x Adapter Cable (1 to 4)SoftwareASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.Dimensions357.6 x 149.3 x 76 mm14.1 x 5.9 x 3 inchRecommended PSU1000WPower Connectors1 x 16-pinSlot3.8 SlotAURA SYNCARGB

Read more less

ROG Astral GeForce RTX™ 5080 The Final Frontier The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios. Engineered for Excellence Driven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe’s wonders, it blends art and technology, achieving stellar cooling and unmated performance.   Cooling Expertise Quad-Fan Force A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds Graphic Engine NVIDIA® GeForce RTX™ 5080 AI Performance 1899 TOPs Bus Standard PCI Express 5.0 OpenGL OpenGL®4.6 Video Memory 16GB GDDR7 Engine Clock OC mode: 2790 MHzDefault mode: 2760 MHz (Boost Clock) CUDA Core 10752 Memory Speed 30 Gbps Memory Interface 256-bit Resolution Digital Max Resolution 7680 x 4320 Interface Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) Maximum Display Support 4 NVlink/ Crossfire Support No Accessories 1 x Speedsetup Manual1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x ROG Magnet1 x ROG Graphics Card Keycap1 x ROG PCB Ruler1 x Thank You Card1 x Adapter Cable (1 to 3) Software ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. Dimensions 357.6 x 149.3 x 76 mm14.1 x 5.9 x 3 inch Recommended PSU 850W Power Connectors 1 x 16-pin Slot 3.8 Slot AURA SYNC ARGB
