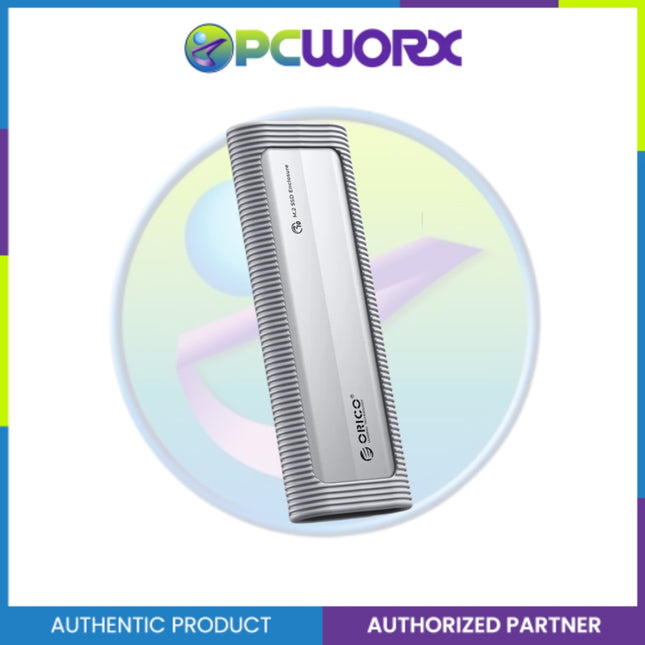

NVMe M.2 SSD external hard drive enclosure 10Gbps
Do you have the latest technology in the field of data storage but you do not yet have the right housing? Then you can consider the latest Orico NVMe M.2 SSD housing. In combination with a unique transparent design and the latest technology, this is exactly the product you need. This housing is suitable for NVMe M.2 drives up to 2TB.
Extremely fast data transfer
The Orico NVMe M.2 SSD external hard drive enclosure features the latest 10Gbps USB 3.1 Gen2 Type-C interface. This results in very fast data exchange like never seen before. This way, high-quality images, VR technology and other large files can be exchanged quickly and easily.
M.2 interface VS MSATA interface
The M.2 interface is another alternative to the MSATA interface developed by Intel. The read and measure speed of the M.2 interface can reach up to 992 MB / s. The size of the M.2 interface is also different from that of the MSATA interface. The M.2 interface is only 2.75 mm thick and therefore a lot smaller than the MSATA.
Versatile in use
Thanks to the different screw holes, the NVMe M.2 housing can be used for different types of NVMe M.2 drives. It is possible to install the following disks: 22x30, 22x42, 22x60 and 22x80. Check in advance whether your NVMe M.2 disk fits in this Orico NVMe M.2 housing.
Compatible with PCIe NVMe M.2 M Key SSD with 2280, 2260, 2242, 2230 form factor: Samsung 950 Pro, PM951, PM981, SM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro, WD Black, ADATA XPG, Corsair Force, Crucial, Intel Optane memory 600P, 760P, 900P, Toshiba OCZ RC100, Patriot, SK Hynix, Kingston, Mushkin Pilot, DREVO D1 XTREME Z370. Note: not suitable for SATA M.2 SSD.
Note: This enclosure is only suitable for NVME M.2 drives, including:
ADATA SPECTRIX S40G
ADATA SX6000 Lite and PRO
ADATA SX8200 PRO
ADATA XPG GAMMIX S5 / S11 PRO
ADATA XPG SPECTRIX S40G
KINGSTON S-A1000-M8 NVME 240/480/960 GB.
ORICO TROODON V500 SSD Series
LEXAR NM610
LEXAR NM520
VGEN HYPER NVME M.2 Series NV256VHY
SAMSUNG 950 PRO / SM961 (OEM)
SAMSUNG 960 PRO
SAMSUNG 970 EVO and EVO PLUS
WD BLACK PCI-e NVME SSD
WD BLUE SN500 NVME SSD
The NVMe M.2 hard drive enclosure is therefore NOT compatible with M.2 SATA drives.
Between the images you can find which disks are not compatible with this housing.
Installation:
1: Press and slide the back cover open.
2: Align the slot and insert the hard disk (not supplied).
3: Lock the screw on the back and fix the disk.
4: Place this in the housing and close the back cover.
Easy to connect to your phone / laptop
Connect the NVMe M.2 SSD housing to phones that have a Type-C interface such as the Huawei and the Meizu to easily increase the writing space. A number of smartphones from the Samsung brand also have the Type-C interface. Examples include the Samsung Galaxy S8 series, S9 series, S10 series and the Galaxy Note8 / Note9, the Huawei Mate 10 series, Mate 20 series and P20 series.
The NVMe M.2 SSD enclosure can also be use

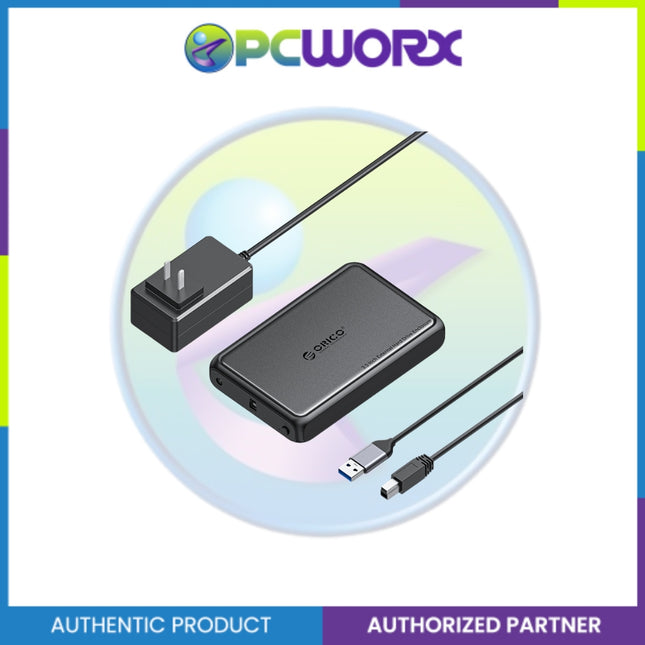

10Gbps Hard Drive Docking Station
Type-C 3.1
Fast Cooling Metal Body
Fast Speed 10Gbps
20TB*1 Max Large Capacity
2-in-1 Cable PD60W
High Reading Efficiency
The dock supports reading multiple bays simultaneously
Upgrade Speed
Support USB 3.2 Gen.2 protocol, UASP protocol, and TRIM function, with transmission speed reaching up to 550MB/s/
Strong Core & Strong Performance
UASP
TRIM
SMART
High heat Dissipation Efficiency
The open design and metal body provide a better heat dissipation effect.
Offline Clone Function
The offline clone function can easily copy the data between two disks without a computer
Strong Power Stable Connection
The 12V/3A power adapter can drive large hard drives easily
2-in-1 Data Cable
The enclosed 2-in-1 multi-USB cable meets your diversified demands and supports PD 60W output
Store what you want
Strong power and chip create a 40TB large storage capacity for you
Intelligent and Durable
The 10-minutes auto sleep mode effectively extends the hard drive's lifespan and avoids data loss and corruption
SPECIFICATIONS
Product Name:
2-Bay Hard Drive Dock
Chassis Material:
+ABS/Aluminum Alloy+ABS
Dimension:
144 x 116 x 70 mm
Power Supply:
12v-3A / Power Adapter
Supported Disk:
3.5 HDD, 2.5 HDD&SSD / 3.5" HDD, compatible with 2.5" HDD&SSD
Output:
Type-C
Transmission Rate:
5Gbps
Support Capacity:
40TB
Supported System:
Windows, Mac OS, Linux
DESCRIPTIONS:

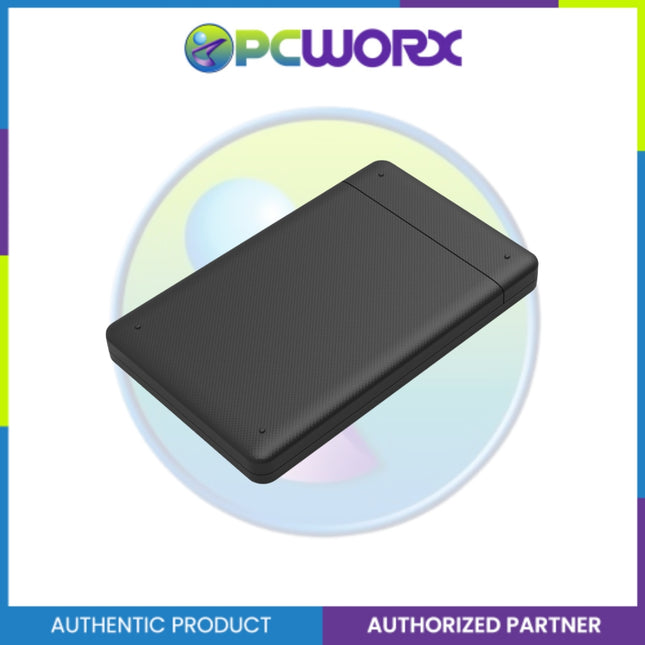

Grid texture design
Excellent hand feeling
Adopts non-toxic environmental ABS material, good heat dissipation, grid texture surface processing, anti-skid and fingerprint-free.
More ways to storage
Massive data storage
USB3.0 fast transmission
Low consumption, low heat Good efficiency, better experience
Tool-free installation, more convenient
Snap installation, no need to use screwdriver.
Slide disassembly design, no screws installation
Three steps to finish
Wide compatibility
Supports 9.5mm and below 2.5 inch HDD and SSD, compatible with Windows/Mac 9.1/10.2 and above systems.
2TB capacity
2TB large capacity can store massive videos, songs and pictures.
High quality cable, better performance
High-quality USB3.0 cable with oxygen-free copper wire core makes perfect sync performance, operating speed and stability, more durable.
Multi-safety protection
Built-in over current / voltage, electrical leakage, short-circuit and clutter protection keep data transfer safer.
More Ports, More Expand
PC Connect Flash Drive and Mouse
4 Ports Expand
Can connect with devices like flash drive, keyboard and mobile hard drive, solve the issue of lack of ports
Sensitive Connection
Built-in high performance control chip, the response of devices is sensitive when connection, no delay and lag
Easy Document Exchange
Allow portable storage devices like flash drive to easily exchange files and data
OTG Expand Function
Mobile phone and tablet are required to support OTG function
Universal Compatibility
Applicable to USB port devices like tablet, notebook and desktop
Ultra-Portable
Mini size, compact and portable, perfectly meet your needs of outdoor office
SPECIFICATIONS
Name:
USB2.0 HUB
Material:
ABS
Cable Length:
30cm
Transmission Speed:
480Mbps
Color:
Black
Expansion interface:
USB2.0 / USB2.0 Interface
Input Interface:
USB2.0

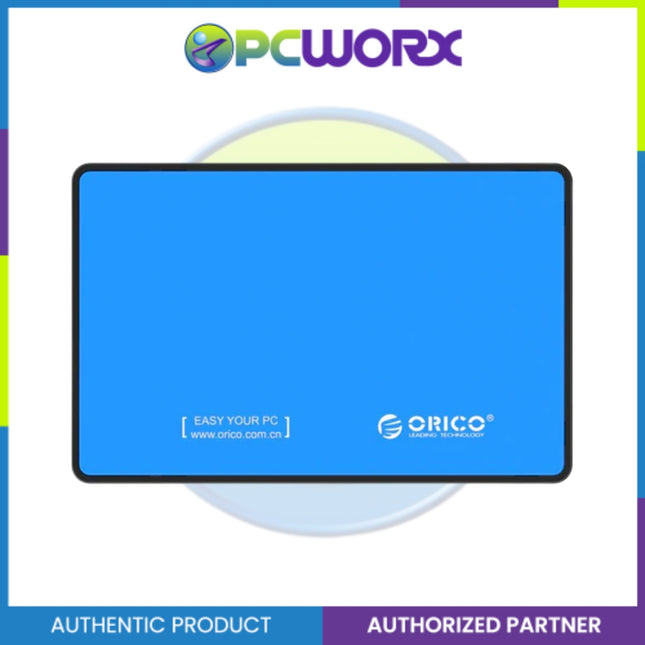

Turn the SATA disk into External Hard Drive
Reuse the idle hard drive
Quality PC + Transparent material
Adopts High-quality PC material, good elasticity, more transparent, not only provides better protection against shock, but also more durable.
Internal accurate connection
Strict workmanship, Tight connection, Data reading without hindrance, better protection of data.
Suitable for 2.5-inch SATA hard drive
Compatible with 2.5inch HHD or SSD below 9.5mm enabled SATA serial port, no need of any drivers.
Support 4Tb large capacity
Photos/Songs/Movies/Files
SPECIFICATIONS
Model:
ORICO-2139U3
Compatible HDD Type:
2.5-inch HDD / SSD
Output:
USB3.0 Micro B
Capacity:
4TB
Dimension:
124.5 x 79 x 13mm
Driver:
Driver Not Required
Supported System:
Windows 2000 / XP / 7 / 8 / 10, Linux, Mac OS 9.1 or above
Safety Approval:
CE / FCC / RoHS
Version:
Black / Red Capacitor
Transparent Series
Crystal clear and High Speed
Sliding closure tool-free
M.2 Interface
8Tb large capacity
High Speed transmission
Transparent aluminum alloy design
Brand New- Design Fully Transparent + Polychrome Aluminum Alloy
Technological aesthetics and heat dissipation uniformly present.
High Speed Inner core-JMS583 High-level control scheme
USB 3.1 GEN 2 transmission scheme supports UASP + Trim protocol, fast and furious.
High Speed Transmission - 1G in seconds
Real 10Gbps transmission rate, the measured reading and writing speed can reach up to 992MB/S
Triple heat dissipation, outstanding operation
Quick cooling, less damage to hard drive.
Double-sided copper bar porous heat dissipation remains steady running
Aluminum alloy + fin line design
Built in silicone heat dissipating fast
Considerate design, Care your thought
PC transparent craft visible high quality
10 mins intelligently sleep promoted heat dissipation prolong SSD lifespan
Built in LED indicator monitor working status clearly
SPECIFICATIONS
Product Model:
ORICO-TCM2-C3
Material:
Transparent PC+ Aluminum Alloy
Color:
Blue/Silver/Black (Aluminum alloy plate)
Output Interface:
USB3.1 Type-C
Speed:
USB3.1 GEN2 10Gbps
Supported Capacity:
8TB Max
Dimension:
108*34*11.5mm
Supported System:
Windows/Mac/Linux
DESCRIPTIONS:
Product Model: ORICO-2588US3-V1
Compatible HDD Type: 2.5 inch HDD / SSD (7mm & 9.5mm)
Output Interface: SuperSpeed USB3.0
HDD Interface: SATA I,II,III
Data Cable: 0.6M USB3.0 Cord
Driver Driver: Not Required
Supported System: Windows 10 / 8 / 7 / Vista / XP or Mac OS 9.1 and above
Dimension: 129.6 x 83.9 x 12.8mm
Support: UASP
Support Capacity 2TB
Experience the Unlimited Range
Bluetooth 5.0 Adapter
Connect to Bluetooth-enabled Devices
Makes Non-Bluetooth PCs and Laptops Bluetooth capable
Connect to Bluetooth speaker/headset
It supports Bluetooth headset and speaker; you can enjoy lossless music without hovering around the device
Connect to Cellphone
It supports offline data transfer, achieve file transmission easily
SPECIFICATIONS
Product Model:
ORICO-BTA-508
Material:
Black Plastic
Function:
Bluetooth Expansion
Bluetooth Version:
5.0+BR/EDR
Transfer rate:
5Mbps
Transmission Range:
20m, without hindrance
Dimensions:
24.6*16.2*7.0mm
Application:
Bluetooth headset, Keyboard, Mouse, Speaker, Phone, Printer, PC, Game Console
Systems:
Windows 7/8/10
