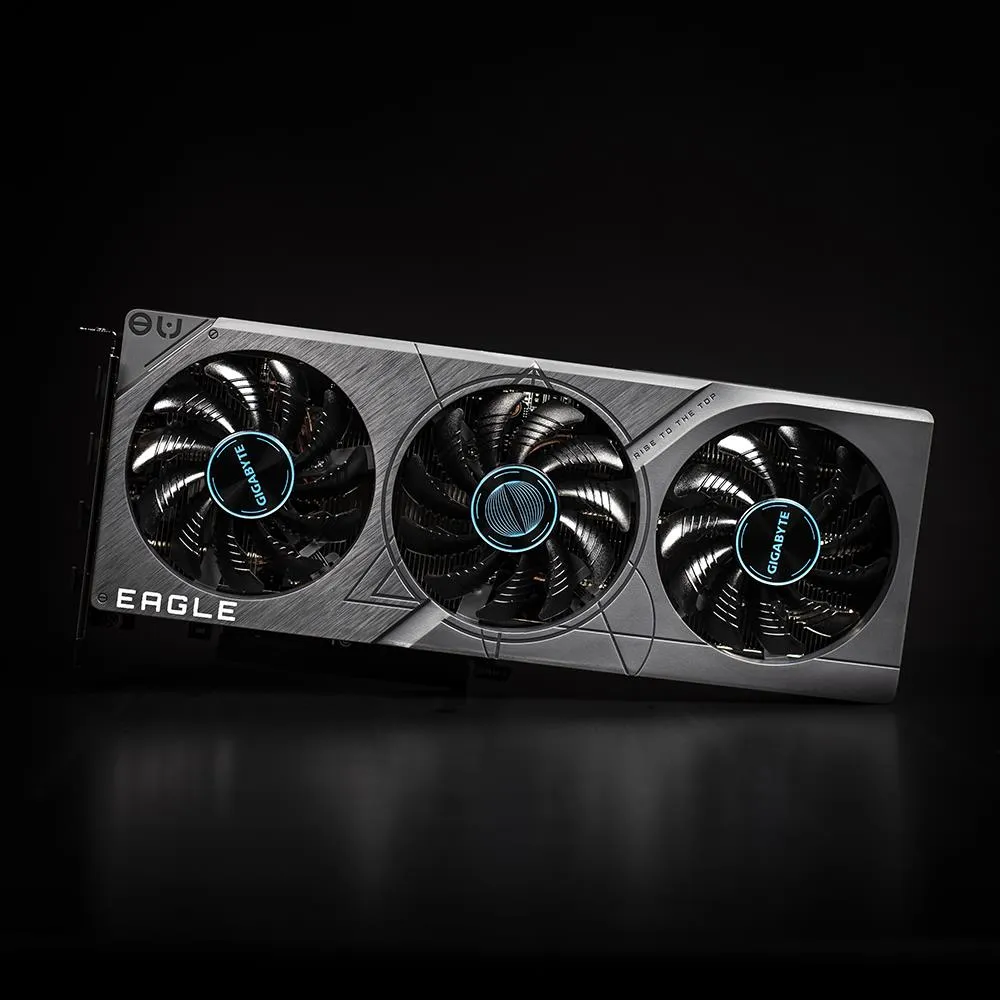

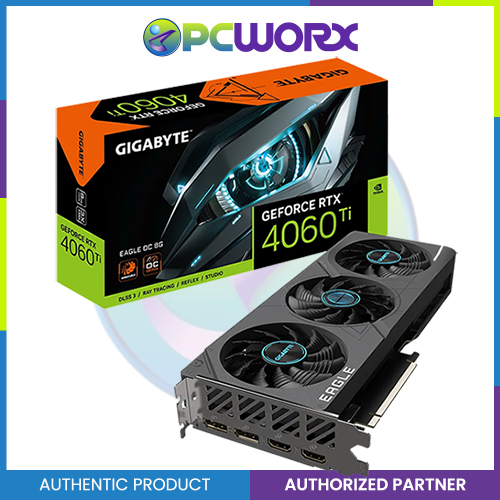

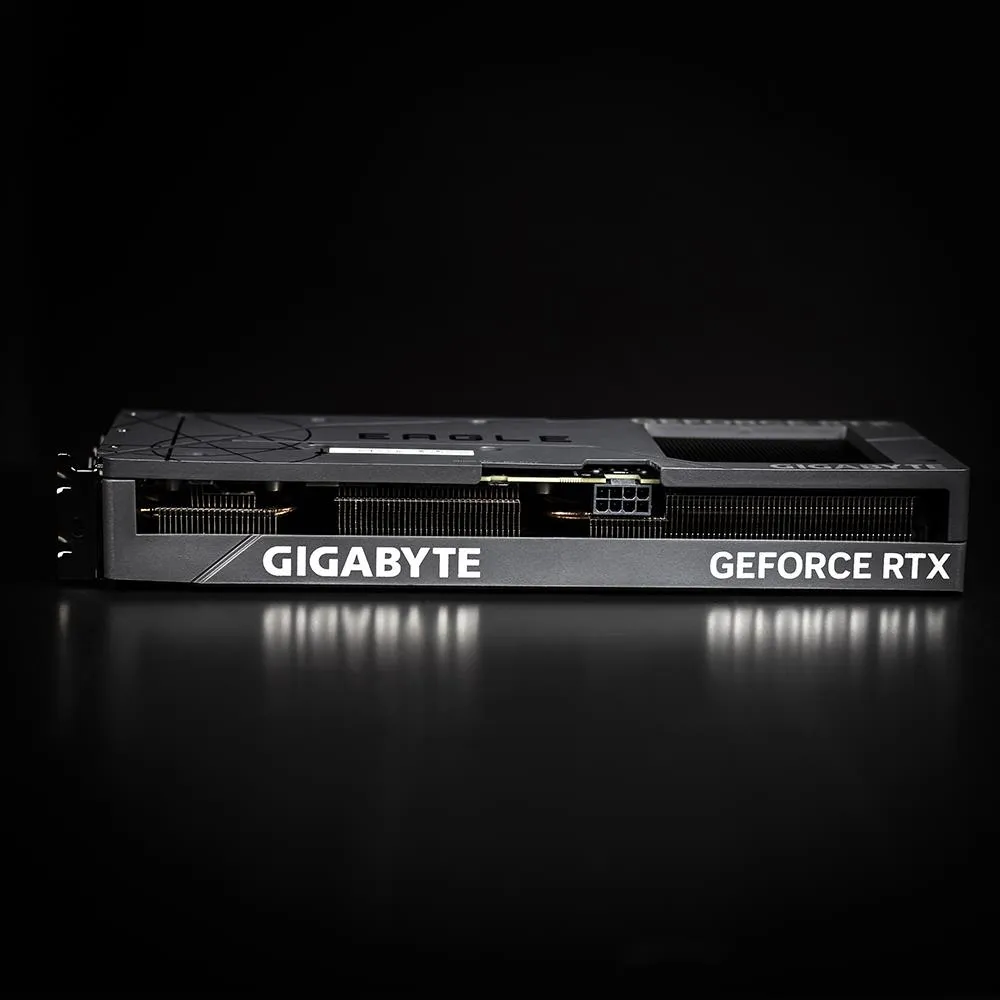

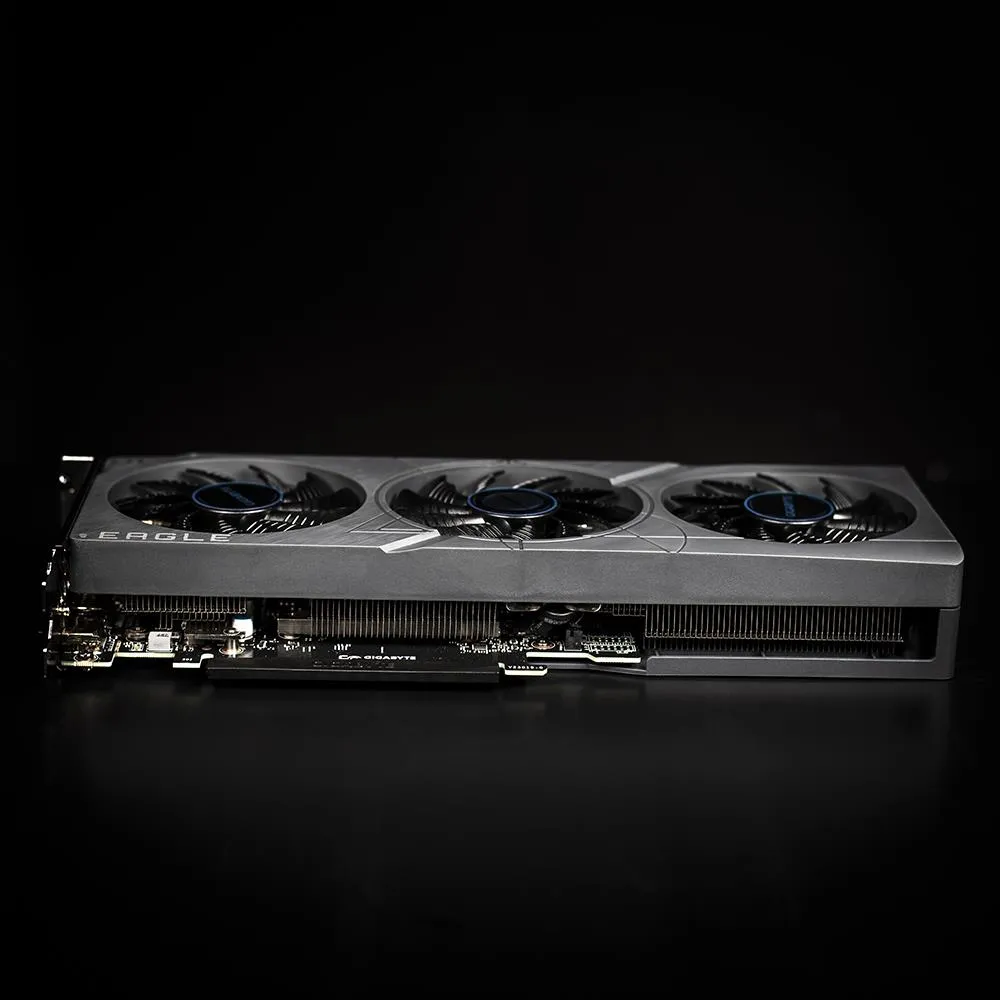

Gigabyte GV-N406TEAGLE-OC-8GD RTX4060TI Eagle OC 8GB GDDR6 128-bit DP*2/HDMI*2 GPU Viceo Card

Description

Description

GeForce RTX™ 4060 Ti EAGLE OC 8G

KEY FEATURE

  • Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX™ 4060 Ti (8GB)
  • Integrated with 8GB GDDR6 128bit memory interface
  • WINDFORCE cooling system
  • Dual BIOS
  • Protection back plate

CORE CLOCK

2550 MHz (Reference card: 2535 MHz)

WINDFORCE
COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENT IN ESSENTIAL

PROTECTION BACK PLATE

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.



BUILT STRONG


ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.


FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

 Specification



  • Graphics Processing
    GeForce RTX™ 4060 Ti (8GB)
  • Core Clock
    2550 MHz (Reference card: 2535 MHz)
  • CUDA® Cores
    4352
  • Memory Clock
    18 Gbps
  • Memory Size
    8GB
  • Memory Type
    GDDR6
  • Memory Bus
    128 bit
  • Card Bus
    PCI-E 4.0
  • Digital max resolution
    7680 x 4320
  • Multi-view
    4
  • Card size
    L=272 W=115 H=41 mm
  • PCB Form
    ATX
  • DirectX
    1‎2 Ultimate
  • OpenGL
    4.6
  • Recommended PSU
    500W
  • Power Connectors
    8 pin*1
  • Output
    DisplayPort 1.4a*2
    HDMI 2.1a*2
  • Accessories
    Quick guide






































Gigabyte GV-N406TEAGLE-OC-8GD RTX4060TI Eagle OC 8GB GDDR6 128-bit DP*2/HDMI*2 GPU Viceo Card

Product form

GeForce RTX™ 4060 Ti EAGLE OC 8G KEY FEATURE Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full... Read more

Free pickup in our shop(s)

SKU: 0000058870

1 in stock

₱26,910.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.
