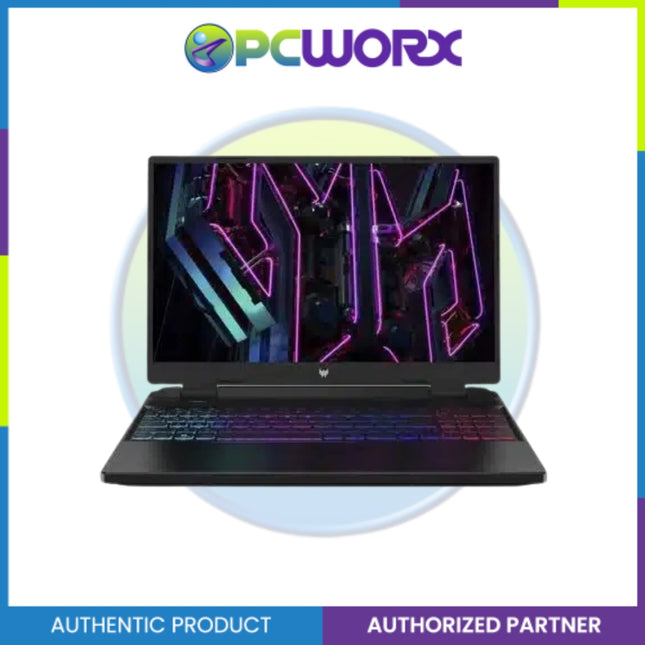

Marketing Name
Helios Neo
Size
16"
Color
Black
Category
Gaming
Model
PHN16-71-59FC OPI
Part Number
NH.QLUSP.004
Processor
• Intel® Core™ i5-13500HX processor (24 MB Smart Cache, 2.5 GHz Performance-core with Intel® Turbo Boost Technology 2.0 up to 4.7 GHz, overclock capable), supporting hybrid core architecture with Performance-coreand Efficient-core
Memory
• 1x 8GB of DDR5 4800Mhz system memory, upgradable to 32 GB using two soDIMM modules
Memory Slots
2 (1)
Storage
512GB PCIe Gen4, 16 Gb/s, NVMe
M.2 Slots
2 (1)
Display Panel/ Resolution
• 16.0" display with IPS (In-Plane Switching) technology, Full HD 1920 x1080, high-brightness (300 nits) Acer ComfyViewTM LED-backlit TFT LCD, supporting 165 Hz and 3 ms Overdrive• 16:9 aspect ratio, 72% NTSC color gamut• Wide viewing angle up to 170 degrees• Ultra-slim design• Mercury free, environment friendly
Graphics
NVIDIA® GeForce RTX™ 4060 with 8GB of dedicated GDDR6 VRAM
Network Connection
WLAN• Killer Wireless Wi-Fi 6 1650i• 802.11 a/b/g/n/ac/ax wireless LAN• Band: 2.4 GHz ,5 GHz• 2x2 MU-MIMO technology• Support Bluetooth® 5.2 and aboveLAN• KillerTM Ethernet E2600• 10/100/1000 Mbps• Hibernation mode support• Wake On Lan support• IPv4 and IPv6 support
Operating System
• Windows 11 Home
Audio
• DTS® X:Ultra Audio, featuring optimized Bass, Loudness, Speaker Protection with up to 6 custom content modes by smart amplifier• Supported in Windows Spatial Sound for PC Gaming with DTS license integrated• Immersive audio rendering over headphones and internal speakers• Acer Purified.Voice technology with dual built-in microphones. Features include far-field pickup, keystroke suppression, adaptive beam forming, and pre-defined personal and conference call modes.• Compatible with Cortana with Voice• Acer TrueHarmony technology for lower distortion, wider frequency range, headphone-like audio and powerful sound
Adapter
3-pin 330 W 5.5 PHY AC adapter
Battery Type
90 Wh 4-cell Li-ion battery
Camera
Video conferencing• Narrow USB FHD camera with blue glass• Compatible with Windows• 1920 x 1080 resolution• 1080p HD video at 60 fps with Temporal Noise Reduction• Dual Mic (33 mm + 33 mm)
Input/Output Ports
USB Type-C port:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• ThunderboltTM 4• USB charging 5 V; 3 A• DC-in port 20 V; 100 W• One USB 3.2 Gen 2 port featuring power-off USB charging• USB 3.2 Gen 2 port• USB 3.2 Gen 1 port• HDMI® 2.1 port with HDCP support• Mini DisplayPortTM 1.4• 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone• Ethernet (RJ-45) port• DC-in jack for AC adapter
Keyboard & Touchpad
Keyboard• 103-/104-/107-key FineTip RGB-backlit keyboard with independent standard numeric keypad, international language supportTouchPad• Multi-gesture touchpad, supporting two-finger scroll; pinch; gestures to open Cortana, Action Center, multitasking; application commands• Microsoft Precision Touchpad certification• Moisture resistantControl Keys• Mode Key
Bundled Accessory
Microsoft Office 2021 Home and Student
Warranty
2 Years Warranty
EAN
Dimensions
• 360.1 (W) x 279.9 (D) x 26.55/28.25 (H) mm (14.18 x 11.02 x 1.05/1.11 inches) with Metal A Cover
Weight
• 2.6 kg (5.73 lbs.) with 4-cell battery pack
Technical Specs:PROCESSOR Intel Core i5-12500H 2.5 GHz (18M Cache, up to 4.5 GHz, 12 cores: 4 P-cores and 8 E-cores)-----------------------------------------------------------------------------MEMORY8GB DDR4-3200 SO-DIMM1x SO-DIMM Slot for upgrade-----------------------------------------------------------------------------STORAGE512GB M.2 PCIe SSD-----------------------------------------------------------------------------DISPLAY15.6" FHD (1920 x 1080) 16:9 144Hz Refresh Rate IPS-----------------------------------------------------------------------------GRAPHIC CARDNVIDIA GeForce RTX 3050 4GB GDDR6 VRAM Laptop GPU-----------------------------------------------------------------------------NETWORK AND COMMUNICATIONWi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card(*Bluetooth® version may change with OS version different.)-----------------------------------------------------------------------------I/O PORTS1x RJ45 LAN port1x Thunderbolt? 4 support DisplayPort?1x USB 3.2 Gen 2 Type-C support DisplayPort? / G-SYNC2x USB 3.2 Gen 1 Type-A-----------------------------------------------------------------------------WEBCAM720P HD camera-----------------------------------------------------------------------------AUDIODolby AtmosAI noise-canceling technologyHi-Res certificationBuilt-in array microphone2-speaker system-----------------------------------------------------------------------------OPERATING SYSTEMWindows 11 Home
Part No
90NR05I1-M03800
Model Name
G513QE-HN157T
EAN Code
4711081356264
UPC Code
195553356268
Marketing Name
ROG Strix G15
Color
Original Black
Dimension (W x D x H)
35.4 x 25.9 x 2.07 ~ 2.60 cm (13.94" x 10.20" x 0.81" ~ 1.02")
Weight
2.10 Kg (4.63 lbs)
Processor
AMD Ryzen™ 9 5900HX Mobile Processor (8-core/16-thread, 20MB cache, up to 4.6 GHz max boost)
Chipset
N/A
Discrete/Optimus
Optimus
Graphic
NVIDIA® GeForce RTX™ 3050 Ti Laptop GPU
Graphic Wattage
With ROG Boost up to 1795MHz at 80W (95W with Dynamic Boost)
Graphic Memory
4GB GDDR6
IGPU
AMD Radeon™ Graphics
Panel Size
15.6-inch
Resolution
FHD (1920 x 1080) 16:9
Refresh Rate
144Hz
Viewing Angle
170
Panel Tech
Value IPS-level
Brightness
250nits
Contrast
1:1000
NTSC %
45%
SRGB %
62.5%
Adobe %
47.34%
Anti glare
Anti-glare display
Adaptive-Sync technology
Adaptive-Sync
Pantone
N/A
Support Dolby Vision HDR
N/A
On board memory
N/A
DIMM Memory
8GB DDR4-3200 SO-DIMM
Total System Memory
DDR4 8GB
Memory Slot
2x SO-DIMM slots
Memory Max.
32GB
System Storage Installed
1TB PCIe® 3.0 NVMe™ M.2 SSD
M.2 slots support either SATA or NVMe
2
M.2 SSD Support List
M.2 512GB PCIeM.2 1TB PCIe
Expansion Slot (includes used)
2x DDR4 SO-DIMM slots2x PCIe
LAN
10/100/1000 Mbps
Wi-Fi/Bluetooth
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS version different.) -RangeBoost
I/O Ports
1x RJ45 LAN port1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC3x USB 3.2 Gen 1 Type-A
Display output
1x HDMI 2.0b
Audio
1x 3.5mm Combo Audio Jack
Webcam
N/A
Mic
Built-in array microphone
Keyboard Type
Backlit Chiclet Keyboard 4-Zone RGB
NumberPad
N/A
Aura Sync
Yes
Speakers
2x 1.5W speaker
Audio Tech
AI noise-canceling technologyDolby Atmos
Operating System
Windows 10 Home - ASUS recommends Windows 11 Pro for business
Office
1-month trial for new Microsoft 365 customers. Credit card required.
Xbox Game Pass
Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security
BIOS Administrator Password and User Password ProtectionTrusted Platform Module (Firmware TPM)
Battery
56WHrs, 4S1P, 4-cell Li-ion
Power
ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal
Bundled Peripherals
ROG backpack
Additional Accessories
ROG Impact Gaming MouseTYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal
Reparability Index (for FR)
6.7
LOQ 15IRH8
Model : 82XV00BWPH
PERFORMANCE
Processor
Intel Core i5-12450H, 8C (4P + 4E) / 12T, P-core 2.0 / 4.4GHz, E-core 1.5 / 3.3GHz, 12MB
Graphics
NVIDIA GeForce RTX 3050 6GB GDDR6, Boost Clock 1732MHz, TGP 95W
Chipset
Intel SoC Platform
Memory
1x 8GB SO-DIMM DDR5-4800
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-4800
Storage
512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Support
Up to two drives, 2x M.2 SSD• M.2 2242 SSD up to 1TB
Storage Slot
Two M.2 slots• One M.2 2242 PCIe 4.0 x4 slot• One M.2 2280 PCIe 4.0 x4 slot
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, optimized with Nahimic Gaming Audio
Camera
FHD 1080p with E-shutter
Microphone
2x, Array
Battery
Integrated 60Wh
Power Adapter
170W Slim Tip (3-pin)
Special Features
AI Chip: LA1
DESIGN
Display[1]
15.6" FHD (1920x1080) IPS 350nits Anti-glare, 45% NTSC, 144Hz, G-SYNC
Touchscreen
None
Color Calibration
None
Keyboard
White Backlit, English
Case Color
Storm Grey
Surface Treatment
Painting
Case Material
PC-ABS (Top), PC-ABS (Bottom)
Dimensions (WxDxH)
359.6 x 264.8 x 22.1-25.2 mm (14.16 x 10.43 x 0.87-0.99 inches)
Weight
Starting at 2.4 kg (5.29 lbs)
SOFTWARE
Operating System
Windows 11 Home Single Language, English
Bundled Software
Office Home & Student 2021
CONNECTIVITY
Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth
Wi-Fi 6, 11ax 2x2 + BT5.1
Standard Ports
1x USB 3.2 Gen 12x USB 3.2 Gen 21x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 140W and DisplayPort 1.4)1x HDMI 2.1, up to 8K/60Hz1x Headphone / microphone combo jack (3.5mm)1x Ethernet (RJ-45)1x Power connector
Docking
Various docking solutions supported via USB-C.For more compatible docking solutions, please visit <a href="https://smartfind.lenovo.com/accessories/#/search?categoryL1Name=Docking&categoryL2Names&pageIndex=1&pageSize=40&query=82XV" target="_blank"><u>Docking for LOQ 15IRH8</u></a>
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
MANAGEABILITY
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
Lenovo LOQ M100 RGB Mouse
CERTIFICATIONS
Green Certifications
ErP Lot 3RoHS compliant
Marketing Name
Helios 300
Size
15.6"
Color
Black
Category
Gaming
Model
PH315-55-54RF
Part Number
NH.QGPSP.002
Processor
• Intel® Core i5-12500H processor (18 MB Smart Cache, 2.5 GHz Performance-core with Intel® Turbo Boost Technology 2.0 up to 4.5 GHz), supporting hybrid core architecture with Performance-core and Efficient-core
Memory
• 8 GB of DDR5 4800Mhz system memory, upgradable to 32 GB using two soDIMM modules
Memory Slots
2
Storage
512GB PCIe Gen4, 16 Gb/s, NVMe
M.2 Slots
2
Display Panel/ Resolution
• 15.6" display with IPS (In-Plane Switching) technology, Full HD 1920 x 1080, high-brightness (300 nits) Acer ComfyViewTM LED-backlit TFT LCD, supporting 165 Hz, 3 ms Overdrive, and G-Sync function• 16:9 aspect ratio, sRGB 100%• Wide viewing angle up to 170 degrees• Ultra-slim design• Mercury free, environment friendly
NVIDIA® GeForce RTX™
NVIDIA® GeForce RTX™ 3060 with 6GB of dedicated GDDR6 VRAM, supporting 6144 NVIDIA® CUDA® Cores
• 1245 - 1710 MHz Boost Clock• NVIDIA® GeForce® Experience• 2nd Gen Ray Tracing Cores• 3rd Gen Tensor Cores• PCI Express® Gen 4• Microsoft DirectX® 12 Ultimate• NVIDIA® Dynamic Boost 2.0• NVIDIA® Whisper Mode 2.0• NVIDIA® Resizable BAR• NVIDIA® DLSS• NVIDIA® Advanced Optimus• NVIDIA® G-SYNC®• NVIDIA® GPU BoostTM• Game Ready Drivers• Vulkan RT API• OpenGL 4.6• DisplayPort 1.4a, HDMI 2.1• 7th Gen NVIDIA® Encode• 5th Gen NVIDIA® Decoder• HDCP 2.3• VR Ready
Network Connection
WLAN• Killer Wireless Wi-Fi 6E 1675• 802.11 a/b/g/n/ac/ax wireless LAN• Band: 2.4 GHz ,5 GHz, and 6 GHz• 2x2 MU-MIMO technology• Support Bluetooth® 5.2 and aboveLAN• KillerTM Ethernet E2600• 10/100/1000 Mbps• Hibernation mode support• Wake On Lan support• IPv4 and IPv6 support
Operating System
• Windows 11 Home
Audio
• DTS® X:Ultra Audio, featuring optimized Bass, Loudness, SpeakerProtection with up to 6 custom content modes by smart amplifier• Supported in Windows Spatial Sound for PC Gaming with DTSlicense integrated• Immersive audio rendering over headphones and internal speakers• Acer Purified.Voice technology with dual built-in microphones.Features include far-field pickup, keystroke suppression, adaptivebeam forming, and pre-defined personal and conference call modes.• Compatible with Cortana with Voice• Acer TrueHarmony technology for lower distortion, wider frequencyrange, headphone-like audio and powerful sound
Adapter
3-pin 280W AC adapter
Battery Type
90 Wh 4-cell Li-ion battery
Camera
Video conferencing• Narrow USB FHD camera with blue glass• Compatible with Windows• 1920 x 1080 resolution• 1080p HD video at 60 fps with Temporal Noise Reduction• Dual Mic (33 mm + 33 mm)
Input/Output Ports
USB Type-C port:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• ThunderboltTM 4• USB charging 5 V; 3 A• DC-in port 20 V; 100 W• One USB 3.2 Gen 2 port featuring power-off USB charging• USB 3.2 Gen 2 port• USB 3.2 Gen 1 port• HDMI® 2.1 port with HDCP support• Mini DisplayPortTM 1.4• 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone• Ethernet (RJ-45) port• DC-in jack for AC adapter
Keyboard & Touchpad
Keyboard• 103-/104-/107-key FineTip RGB-backlit keyboard with independent standard numeric keypad, international language supportTouchPad• Multi-gesture touchpad, supporting two-finger scroll; pinch; gestures to open Cortana, Action Center, multitasking; application commands• Microsoft Precision Touchpad certification• Moisture resistantControl Keys• Turbo Key
Bundled Accessory
LZ.BPKM6.B11 (BAG)
Warranty
2 Years Warranty
EAN
4711121243295
Dimensions
• 359.4 (W) x 276.4 (D) x 25.55/26.15 (H) mm (14.15 x 10.88 x 1.01/1.03 inches)
Weight
• 2.4 kg (5.29 lbs.) with 4-cell battery pack, Full HD display
