GeForce RTX™ 4060 VENTUS 2X BLACK 8G OC
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
2490 MHz / 17 Gbps
8GB GDDR6
DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Dual Fan Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
SPECIFICATIONS
Model Name
NVIDIA® GeForce RTX™ 4060
Graphics Processing Unit
PCI Express® Gen 4 x 8
Interface
Extreme Performance: 2505 MHz (MSI Center)
Core Clocks
Boost: 2490 MHz
CUDA® CORES
3072 Units
Memory Speed
17 Gbps
Memory
8GB GDDR6
Memory Bus
128-bit
DisplayPort x 3 (v1.4a)
Output
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
HDCP Support
Y
Power consumption
115 W or 120 W
Power connectors
8-pin x 1
Recommended PSU
550 W
Card Dimension (mm)
199 x 120 x 41 mm
Weight (Card / Package)
546 g / 783 g
DirectX Version Support
12 Ultimate
OpenGL Version Support
4.6
Maximum Displays
4
G-SYNC® technology
Y
Digital Maximum Resolution
7680 x 4320
Model
GeForce RTX™ 5060 Ti 8G GAMING OC
Model Name
G506T-8GC
Graphics Processing Unit
NVIDIA® GeForce RTX™ 5060 Ti
Interface
PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2662 MHz (MSI Center)
CUDA® CORES
Boost: 2647 MHz
Memory Speed
4608 Units
Memory
28 Gbps
Memory Bus
8GB GDDR7
Output
128-bit
HDCP Support
DisplayPort x 3 (v2.1b)
Power consumption
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Power connectors
Y
Recommended PSU
180 W
Card Dimension (mm)
16-pin x 1
Weight (Card / Package)
600 W
DirectX Version Support
247 x 135 x 51 mm
OpenGL Version Support
768 g / 1219 g
Maximum Displays
12 Ultimate
G-SYNC® technology
4.6
Digital Maximum Resolution
4
Y
7680 x 4320
Model
GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS
Model Name
G506T-16V2CP
Graphics Processing Unit
NVIDIA® GeForce RTX™ 5060 Ti
Interface
PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2617 MHz (MSI Center)
CUDA® CORES
Boost: 2602 MHz
Memory Speed
4608 Units
Memory
28 Gbps
Memory Bus
16GB GDDR7
Output
128-bit
HDCP Support
DisplayPort x 3 (v2.1b)
Power consumption
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Power connectors
Y
Recommended PSU
180 W
Card Dimension (mm)
8-pin x1
Weight (Card / Package)
600 W
DirectX Version Support
227 x 127 x 41 mm
OpenGL Version Support
600 g / 862 g
Maximum Displays
12 Ultimate
G-SYNC® technology
4.6
Digital Maximum Resolution
4
Y
7680 x 4320
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
SPECIFICATIONS
Model Name

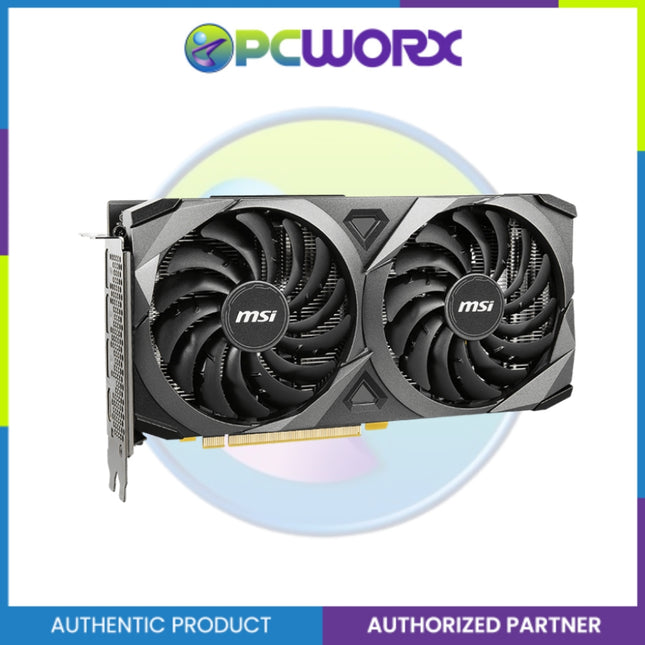

GeForce RTX™ 3060 VENTUS 2X 12G OC
Graphics Processing Unit
NVIDIA® GeForce RTX™ 3060
Interface
PCI Express® Gen 4
Core Clocks
Boost: 1807 MHz
CUDA® CORES
3584
Memory Speed
15 Gbps
Memory
12GB GDDR6
Memory Bus
192-bit
Output
DisplayPort x 3 (v1.4) / HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support
Y
Power consumption
170W
Power connectors
8-pin x 1
Recommended PSU
550W
Card Dimension (mm)
235 x 124 x 42 mm
Weight (Card / Package)
675 g / 1030 g
DirectX Version Support
12 API
OpenGL Version Support
4.6
Maximum Displays
4
VR Ready
Y
G-SYNC®
Y
Adaptive Vertical Sync
Y
Digital Maximum Resolution
7680 x 4320
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking
Reinforcing Backplate
A clean-looking brushed-finish backplate reinforces the length of the card.
graphics card fit into any build.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed-up power circuitry for pushing the card to its limits.
Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
SPECIFICATIONS:
Model Name:
GeForce RTX™ 3050 VENTUS 2X 8G OC
Graphics Processing Unit:
NVIDIA® GeForce RTX™ 3050
Interface:
PCI Express® Gen 4.0 x8
Core Clocks:
Boost: 1807 MHz
CUDA® CORES:
2560 Units
Memory Speed:
14 Gbps
Memory:
8GB GDDR6
Memory Bus:
128-bit
Output:
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support:
Y
Power consumption:
130W
Power connectors:
8-pin x 1
Recommended PSU:
550 W
Card Dimension (mm):
235 x 124 x 42 mm
Weight (Card / Package):
661 g / 1070 g
DirectX Version Support:
12 API
OpenGL Version Support:
4.6
Maximum Displays:
4
G-SYNC® technology:
Y
Adaptive Vertical Sync:
Y
Digital Maximum Resolution:
7680 x 4320
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
DESIGNED FOR BETTER DISSIPATION
Compared to generic fan designs, VENTUS series fans utilize custom fan design with a unique curve to enhance heat dissipation by generating more airflow and air pressure.
Traces of Brilliance
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed-up power circuitry for pushing the card to its limits.

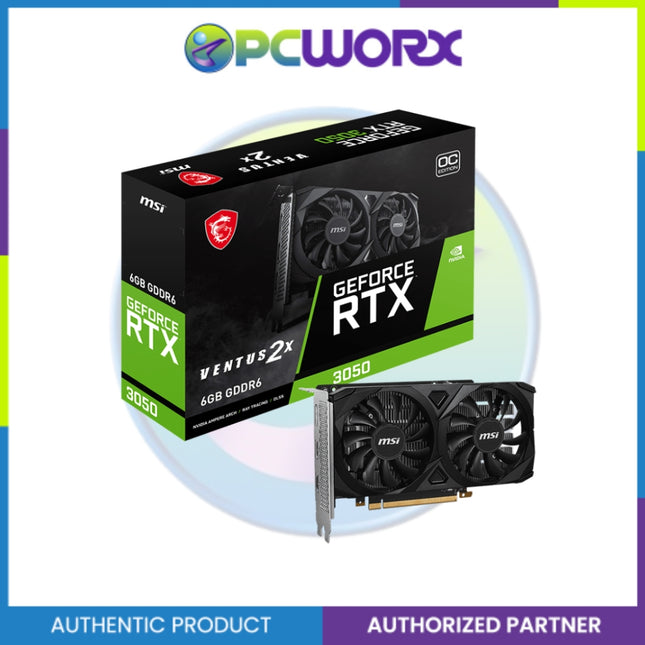

GeForce RTX™ 3050 VENTUS 2X 6G OC
The GeForce RTX™ 3050 6GB is built with the NVIDIA Ampere architecture, featuring dedicated Ray Tracing Cores, AI Tensor Cores, and high-speed G6 memory. Step up to GeForce RTX.
Boost Clock / Memory Speed
1492 MHz / 14 Gbps
6GB GDDR6
DisplayPort x 1 (v1.4a)HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
Dual Fan Thermal Design
Two fans and a huge heatsink ensure a cool and quiet experience for you.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Afterburner Overclocking Utility
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
SPECIFICATIONS:
Model Name:
GeForce RTX™ 3050 VENTUS 2X 6G OC
Graphics Processing Unit:
NVIDIA® GeForce RTX™ 3050
Interface:
PCI Express® Gen 4 x16 (uses x8)
Core Clocks:
Boost: 1492 MHz
CUDA® CORES:
2304 Units
Memory Speed:
14 Gbps
Memory:
6GB GDDR6
Memory Bus:
96-bit
Output:
DisplayPort x 1 (v1.4a)
HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support:
Y
Power consumption:
70 W
Recommended PSU:
300 W
Card Dimension (mm):
189 x 109 x 42 mm
Weight (Card / Package):
381 g / 610 g
DirectX Version Support:
12 Ultimate
OpenGL Version Support:
4.6
Maximum Displays:
3
G-SYNC® technology:
Y
Digital Maximum Resolution:
7680 x 4320

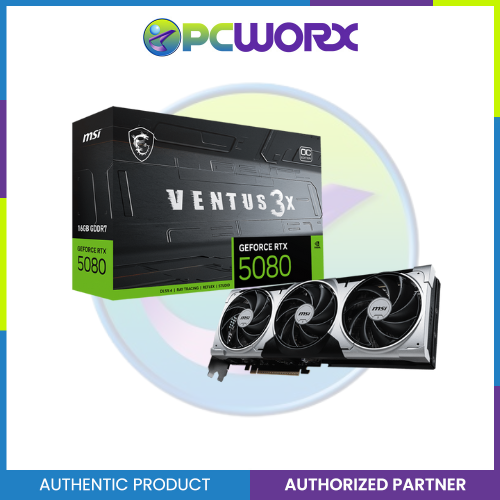

Marketing Name: GeForce RTX™ 5080 16G VENTUS 3X OC PLUS
Model Name: G5080-16V3CP
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080
Interface: PCI Express® Gen 5
Core Clocks: Extreme Performance: 2655 MHz (MSI Center)Boost: 2640 MHz
CUDA® CORES: 10752 Units
Memory Speed: 30 Gbps
Memory: 16GB GDDR7
Memory Bus: 256-bit
Output: DisplayPort x 3 (v2.1b)
HDCP Support: Y
Power consumption: 360 W
Power connectors: 16-pin x 1
Recommended PSU: 850 W
Card Dimension (mm): 303 x 121 x 49 mm
Weight (Card / Package): 1105 g / 1618 g
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® technology: Y
Digital Maximum Resolution: 7680 x 4320
