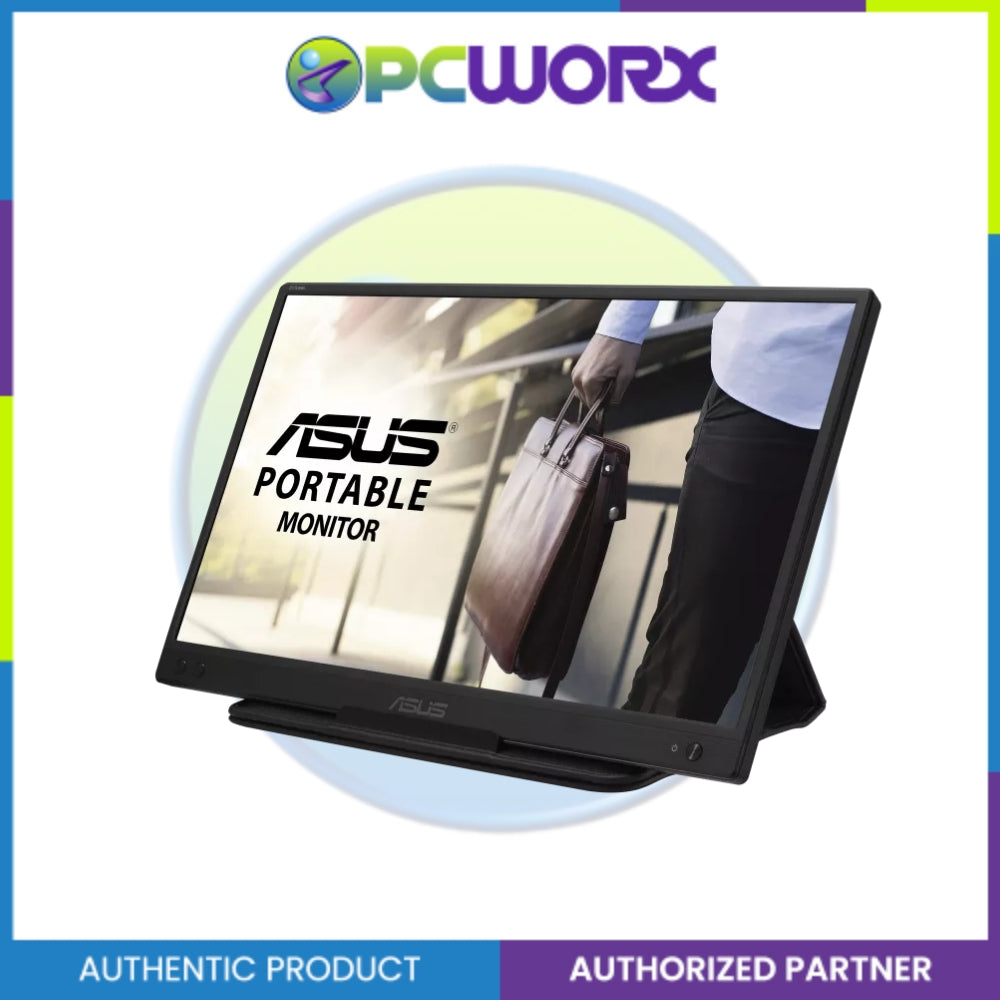

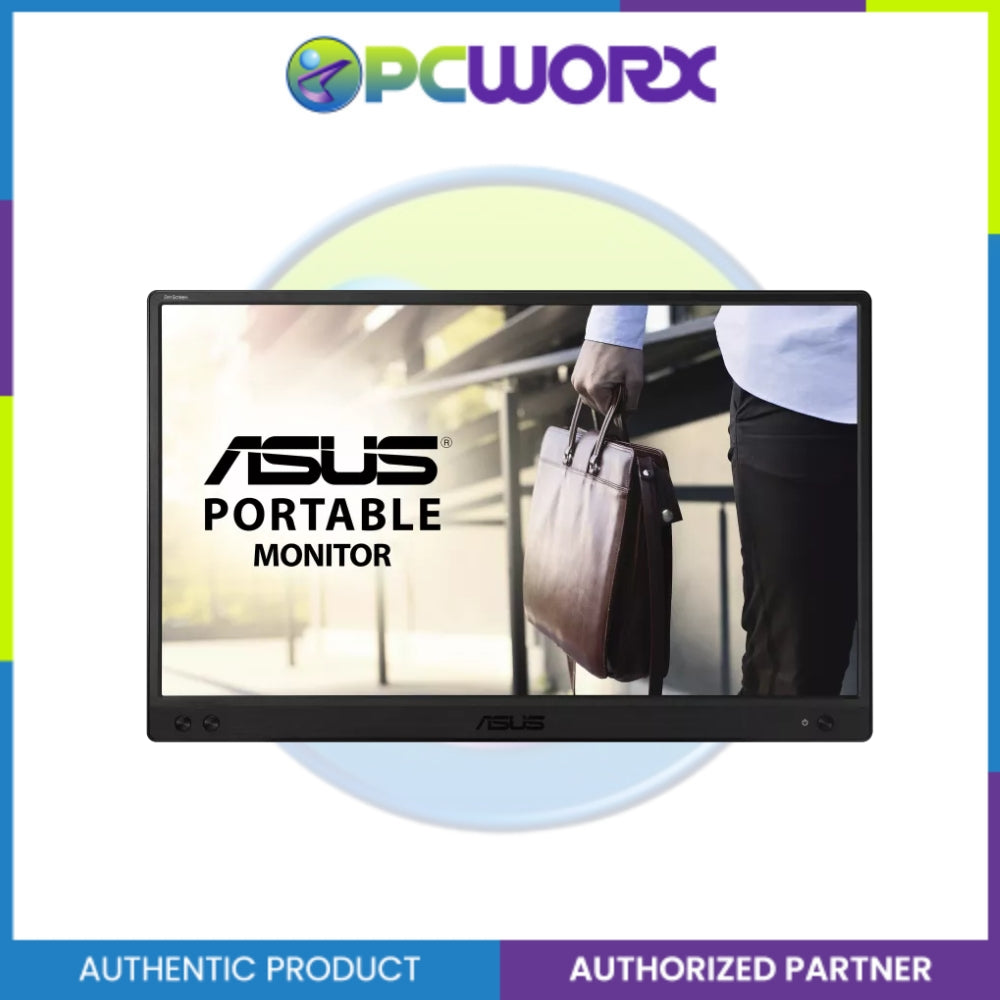

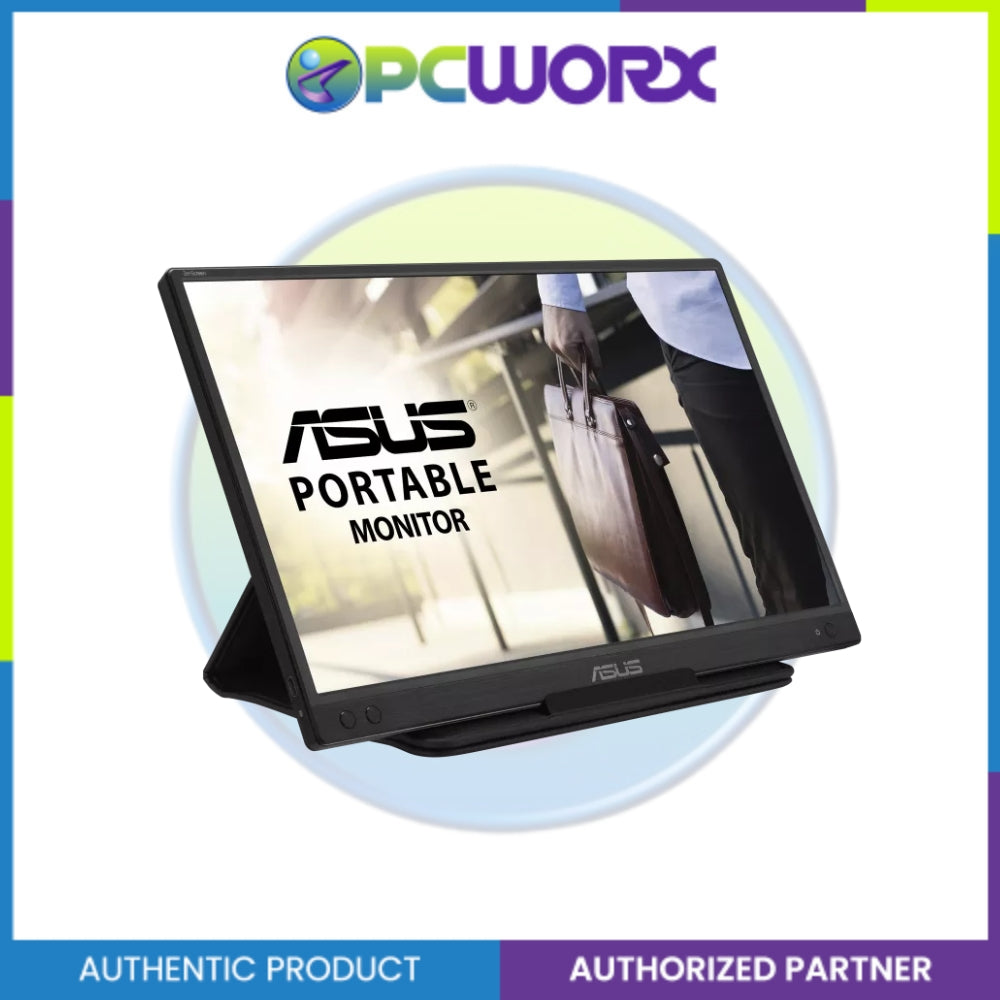

- 15.6-inch Full HD portable anti-glare IPS display with an ultraslim and thin design helps you get things done more efficiently when you’re on the go
- USB Type-C connector (DP Alt mode) for user convenience and compatibility with compatible devices
- ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience.
- Automatically sense its orientation and switch the monitor between landscape and portrait modes via DisplayWidget software.

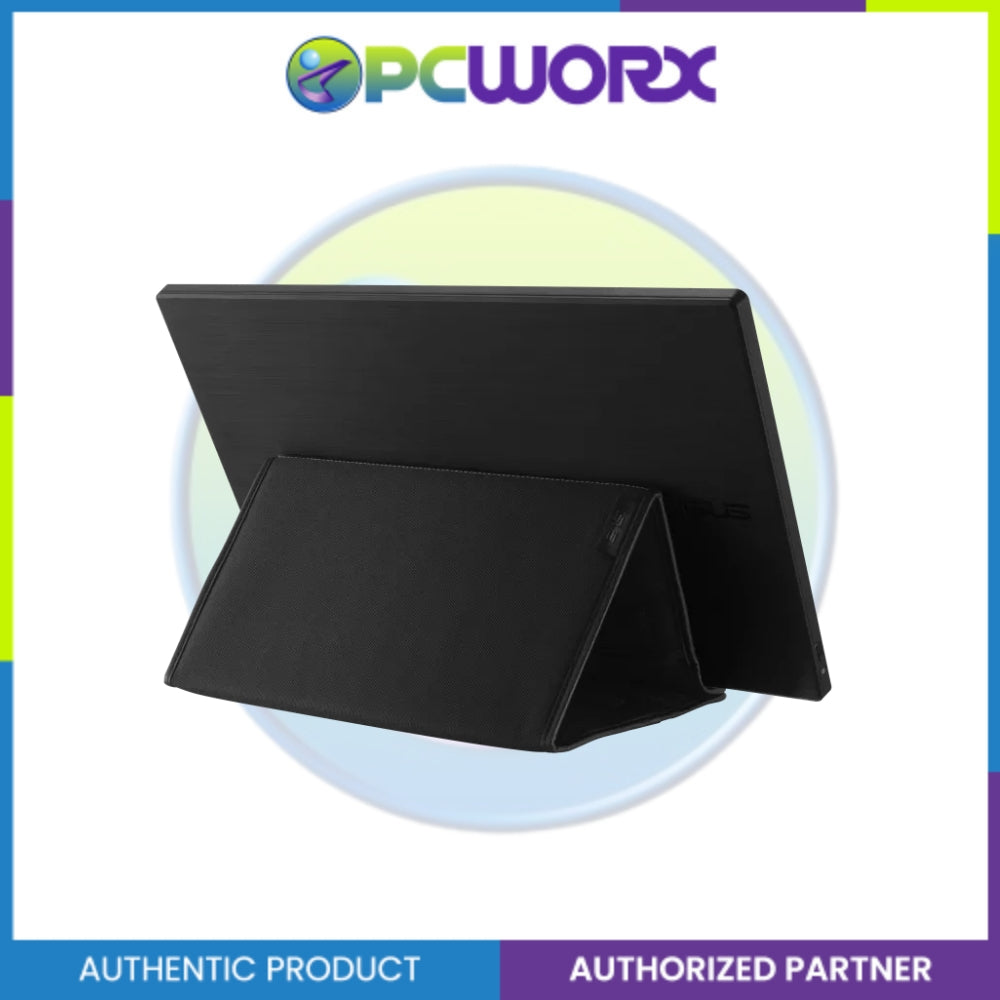

- User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility.
One cable is all you need
ZenScreen MB166C uses a single USB Type-C* connection for both power and video transmission from your host device. This means you have less cables to work with, so you get a neater work area.
Work in comfort

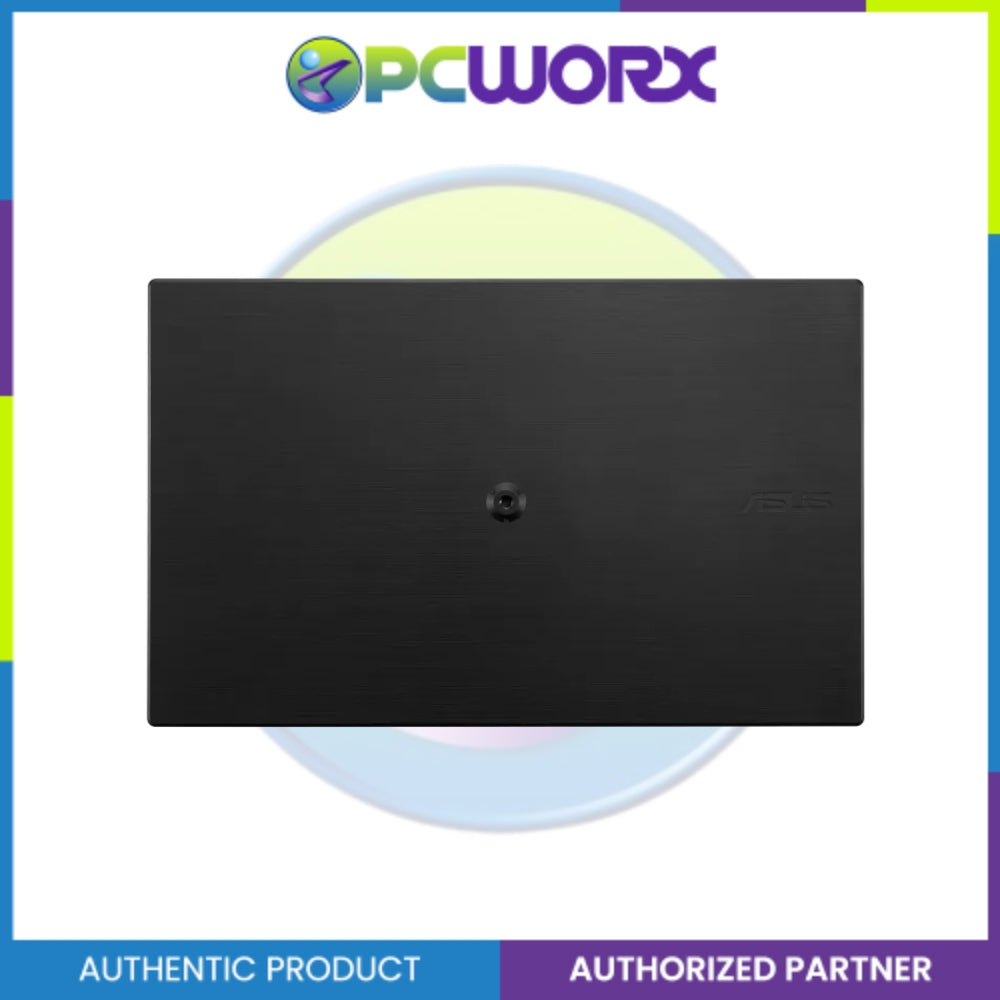

A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166C to a conventional tripod1 or table-mount easily.

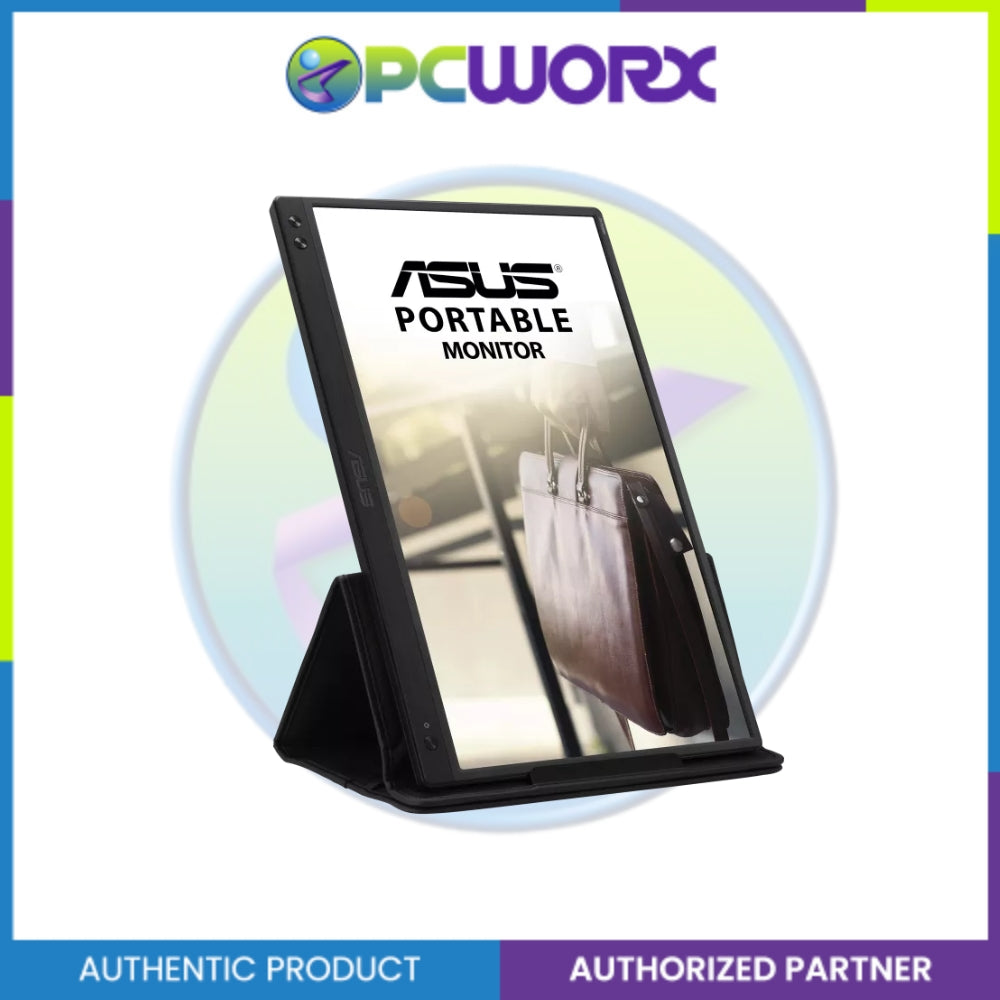

Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software2, ZenScreen MB166C can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
ASUS blue light filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from potentially harmful blue light. It offers four filter settings that are easily accessed through the onscreen display menu via the hotkey.
SPECIFICATIONS
|
Model
|
ASUS ZenScreen MB166C
|
|
Display
|
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59mm
Display Surface : Anti-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes
|
|
Features
|
Trace Free Technology: Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes
DisplayWidget : Yes
Low Blue Light : Yes
|
|
Audio
|
Speaker : No
|
|
I/O Ports
|
USB-C x 1 (DP Alt Mode)
|
|
Signal Frequency
|
Digital Signal Frequency : USB-C: 24-83KHZ (H) / 60Hz(V)
|
|
Power Consumption
|
Power Consumption : 5.24 W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
|
|
Mechanical Design
|
Height Adjustment : No
1/4" Tripod Socket : Yes
|
|
Dimensions (Esti.)
|
Phys. Dimension without Stand (W x H x D) : 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")
|
|
Weight (Esti.)
|
Net Weight without Stand : 0.78 kg (1.72 lbs)
Gross Weight : 1.7 kg (3.75 lbs)
|
|
Accessories (vary by regions)
|
Quick start guide
USB-C cable
Warranty Card
ZenScreen sleeve
|
|
Certificate
|
TÜV Flicker-free
TÜV Low Blue Light
|
