Brand
ASUS
Processor Type
Quad-core
Display Size
15.6 inches
Graphics Memory
8GB & Up
Graphic Card Series
AMD Radeon Graphics
System Memory
8GB
Condition
NEW
Model
E1504FA-NJ389WS
processor_type_series
AMD Ryzen 3 7320U
Warranty Type
Local Supplier Warranty
Warranty Period
1 Year
DESCRIPTIONS
Make your world shine with ASUS Vivobook 15X OLED, the feature-packed laptop with a brilliant OLED HDR display with a cinema-grade DCI-P3 gamut. Vivobook 15X OLED makes it easy to get things done, anywhere: everything about it has been improved, from its powerful AMD Ryzen™ 7 mobile processor to its 180° lay-flat hinge, modern colors and sleek geometric design. Make a bright new start today with Vivobook 15X OLED!
TECHNICAL SPECIFICATIONS:
Operating System
Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office
Office Home and Student 2021 included
LCD cover-material
Plastic
LCD cover-color
Quiet Blue
Top case-material
Plastic
Top case-color
Quiet Blue
Bottom case-material
Plastic
Bottom case-color
Quiet Blue
Military grade
US MIL-STD 810H military-grade standard
Touch Panel
N/A
Panel Size
15.6-inch
Resolution
FHD (1920 x 1080) OLED 16:9 aspect ratio
Response time
0.2ms response time
Refresh rate
60Hz refresh rate
Peak Brightness
600nits HDR peak brightness
Color gamut
100% DCI-P3 color gamut
Contrast ratio
1,000,000:1
VESA CERTIFIED Display HDR
VESA CERTIFIED Display HDR True Black 600
Color depth
1.07 billion colors
Pantone
PANTONE Validated
Glare
Glossy display
Low blue light
70% less harmful blue light
SGS Eye Care Display
SGS Eye Care Display
Screen-to-body ratio
86 %
Processor
AMD Ryzen™ 5 4600H Mobile Processor (6C/12T, 11MB Cache, 4.0 GHz Max Boost)
Chipset
N/A
Discrete/Share
Share
Intergrated GPU
AMD Radeon™ Graphics
VRAM
N/A
Expansion Slot(includes used)
1x DDR4 SO-DIMM slot1x M.2 2280 PCIe 3.0x4
Total System Memory
8GB DDR4 on board
On board memory
8GB DDR4 on board
Storage
512GB M.2 NVMe™ PCIe® 3.0 SSD
Front-facing camera
720p HD cameraWith privacy shutter
Wireless
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5
ScreenPad™
N/A
FingerPrint
FingerPrint
I/O ports
1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-in1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-C2x USB 3.2 Gen 1 Type-A
Audio
SonicMasterBuilt-in speakerBuilt-in array microphone
Voice control
with Cortana and Alexa voice-recognition support
AC Adapter
ø4.5, 90W AC Adapter, Output: 19V DC, 4.74A, 90W, Input: 100~240V AC 50/60Hz universal
Battery
70WHrs, 3S1P, 3-cell Li-ion
Replaceable Battery
No
Keyboard type
Backlit Chiclet Keyboard with Num-key
Dimension (WxHxD)
35.68 x 22.76 x 1.99 ~ 1.99 cm
Weight (with Battery)
1.70 kg
Weight (without Battery)
1.70 kg
Security
BIOS Booting User Password ProtectionBIOS setup user passwordTrusted Platform Module (Firmware TPM)Fingerprint sensor intergrated with TouchpadMcAfee® LiveSafe™
MyASUS feature
System diagnosisBattery health chargingFan ProfileSplendidFunction key lockWiFi SmartConnectLink to MyASUSTaskFirstLive updateASUS OLED CareAI Noise Canceling
Built-in Apps
MyASUS
Technical Specification
Model: Asus Vivobook GO 15 E1504FA-NJ397WS
Color: Mixed Black
Operating System: Windows 11 Home - ASUS recommends Windows 11 Pro for business
Processor: AMD Ryzen 3 7320U Mobile Processor (4-core/8-thread, 4MB cache, up to 4.1 GHz max boost)
Display: 15.6-inch FHD (1920 x 1080) 16:9 aspect ratio LED Backlit 60Hz refresh rate 250nits Anti-glare display
Graphics: AMD Radeon Graphics
Memory: 8GB LPDDR5 on board
Storage: 256GB M.2 NVMe PCIe 3.0 SSD
Camera: 720p HD camera; With privacy shutter
Wireless: Wi-Fi 6E (802.11ax) (Dual band) 1*1 + Bluetooth 5.3 Wireless Card
Fingerprint: Yes
I/O Ports1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-A1x USB 3.2 Gen 1 Type-C1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-in
AudioSonicMasterBuilt-in speakerBuilt-in array microphone
AC Adapter: 04.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universal
Battery: 42WHrs, 3S1P, 3-cell Li-ion
Keyboard: Backlit Chiclet Keyboard
Dimension (WXHXD): 36.03 x 23.25 x 1.79 ~ 1.79 cm (14.19" x 9.15" x 0.70" ~ 0.70")
Weight: 1.63 kg (3.59 lbs)
Military grade: US MIL-STD 810H military-grade standard
Technical SpecificationModel: Asus Vivobook 16 M1605YA-MB155WSColor: Indie BlackOperating System: Windows 11 Home - ASUS recommends Windows 11 Pro for businessProcessor: AMD Ryzen 5 7530U Mobile Processor (6-core/12-thread, 16MB cache, up to 4.3 GHz max boost)Display: 16.0-inch WUXGA (1920 x 1200) 16:10 aspect ratio 60Hz refresh rate 300nits Anti-glare display TÜV Rheinland-certifiedGraphics: AMD Radeon GraphicsMemory: 8GB DDR4 on boardStorage: 512GB M.2 NVMe PCIe 3.0 SSDCamera: 720p HD camera ; With privacy shutterWireless: Wi-Fi 6E (802.11ax) (Dual band) 1*1 + Bluetooth 5Fingerprint: yesI/O Ports1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-C2x USB 3.2 Gen 1 Type-A1x micro HDMI 1.41x 3.5mm Combo Audio Jack1x DC-inAudioSonicMasterBuilt-in speakerBuilt-in array microphoneAC Adapter: ø4.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universalBattery: 42WHrs, 3S1P, 3-cell Li-ionKeyboard: Backlit Chiclet Keyboard with Num-keyDimension (WXHXD): 35.87 x 24.95 x 1.99 ~ 1.99 cmWeight: 1.88 kgMilitary grade: US MIL-STD 810H military-grade standard
Technical Specification
Model: Asus Vivobook 16 M1605YA- MB249WSColor: Indie BlackOperating System: Windows 11 Home - ASUS recommends Windows 11 Pro for businessProcessor: AMD Ryzen 7 7730U Mobile Processor (8-core/16-thread, 16MB cache, up to 4.5 GHz max boost)Display: 16.0-inch WUXGA (1920 x 1200) 16:10 aspect ratio LED Backlit 60Hz refresh rate 300nits Anti-glare display TÜV Rheinland-certifiedGraphics: AMD Radeon Graphics.Memory: 8GB DDR4 on boardStorage: 512GB M.2 NVMe PCIe 3.0 SSDCamera: 720p HD camera ; With privacy shutterWireless: Wi-Fi 6E(802.11ax) (Dual band) 1*1 + Bluetooth 5.3 Wireless CardFingerprint: YesI/O Ports1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-C support power delivery2x USB 3.2 Gen 1 Type-A1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-inAudioSonic MasterBuilt-in speakerBuilt-in array microphoneAC Adapter: ø4.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universalBattery: 42WHrs, 3S1P, 3-cell Li-ionKeyboard: Backlit Chiclet Keyboard with Num-keyDimension (WXHXD): 35.87 x 24.95 x 1.99 ~ 1.99 cm (14.12" x 9.82" x 0.78" ~ 0.78")Weight: 1.88 kg (4.14 lbs)Military grade: US MIL-STD 810H military-grade standard

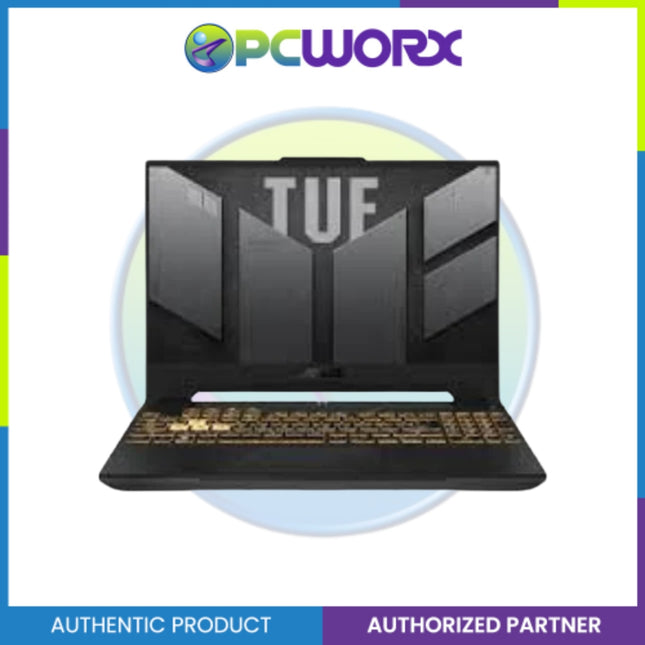

Part No
90NR0EP2-M00A30
Model Name
FA617NS-N3087W
EAN Code
4711387358030
UPC Code
197105358034
Marketing Name
ASUS TUF Gaming A16 Advantage Edition
Color
Off Black
Dimension (W x D x H)
35.5 x 25.2 x 2.21 ~ 2.68 cm (13.98" x 9.92" x 0.87" ~ 1.06")
Weight
2.20 Kg (4.85 lbs)
Processor
AMD Ryzen™ 7 7735HS Mobile Processor (8-core/16-thread, 16MB L3 cache, up to 4.7 GHz max boost)
Chipset
N/A
Discrete/Optimus
MUX Switch + AMD Smart Access Graphics
Graphic
AMD Radeon™ RX 7600S
Graphic Wattage
up to 95W(SmartShift)
Graphic Memory
8GB GDDR6
Intergrated GPU
AMD Radeon™ Graphics
Panel Size
16-inch
Resolution
FHD+ 16:10 (1920 x 1200, WUXGA)
Refresh Rate
165Hz
Response Time (G2G)
7ms
Viewing Angle
85/85/85/85
Panel Tech
IPS-level
Brightness
250
Contrast
1000:1
NTSC %
72%
SRGB %
100%
Adobe %
75.35%
Anti glare
Anti-glare display
Adaptive-Sync technology
FreeSync Premium
Pantone
N/A
Support Dolby Vision HDR
N/A
On board memory
N/A
DIMM Memory
8GB DDR5-4800 SO-DIMM
Total System Memory
DDR5 8GB
Memory Slot
2x SO-DIMM slots
Memory Max.
32GB
System Storage Installed
512GB PCIe® 4.0 NVMe™ M.2 SSD
M.2 slots support either SATA or NVMe
2
M.2 SSD Support List
support PCIE Gen4x4
Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
LAN
10/100/1000 Mbps
Wi-Fi/Bluetooth
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS upgrades.)
I/O Ports
1x RJ45 LAN port1x Type C USB 4 support DisplayPort™1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery2x USB 3.2 Gen 1 Type-A
Display output
1x HDMI 2.1 FRL
Audio
1x 3.5mm Combo Audio Jack
Webcam
720P HD camera
Mic
Built-in array microphone
Keyboard Type
Backlit Chiclet Keyboard Single Light
NumberPad
N/A
Aura Sync
N/A
Speakers
2-speaker system
Audio Tech
AI noise-canceling technologyDolby AtmosHi-Res certification (for headphone)
Operating System
Windows 11 Home
Office
1-month trial for new Microsoft 365 customers. Credit card required.
Antivirus
McAfee® 30 days free trial
Xbox Game Pass
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security
Kensington Security Slot™
Battery
90WHrs, 4S1P, 4-cell Li-ion
Fast charging
Recharge from 0-50% in 30 minutes
Power
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
Ecolabels & Compliances
ENERGY STAR®
Reparability Index (for FR)
8.2
