Form factor
2.5"
Interface
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities2
120GB, 240GB, 480GB, 960GB
NAND
3D
Baseline Performance1
Data Transfer (ATTO)120GB — up to 500MB/s Read and 320MB/s Write240GB — up to 500MB/s Read and 350MB/s Write480GB — up to 500MB/s Read and 450MB/s Write960GB — up to 500MB/s Read and 450MB/s Write
Power Consumption
0.195W Idle / 0.279W Avg / 0.642W (MAX) Read / 1.535W (MAX) Write
Storage temperature
-40°C~85°C
Operating temperature
0°C~70°C
Dimensions
100.0mm x 69.9mm x 7.0mm (2.5”)
Weight
39g (120GB – 2.5”)41g (240-480GB – 2.5”)41.9g (960GB – 2.5”)
Vibration operating
2.17G Peak (7–800Hz)
Vibration non-operating
20G Peak (10–2000Hz)
Life expectancy
2 million hours MTBF
Warranty/support3
Limited 3-year warranty with free technical support
Total Bytes Written (TBW)4
120GB — 40TB240GB — 80TB480GB — 160TB960GB — 300TB
Form Factor
2.5"
Interface
SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s)
Capacities2
256GB, 512GB, 1024GB, 2048GB
Controller
SM2259
NAND
3D TLC
Encrypted
XTS-AES 256-bit encryption
Sequential Read/Write1
256GB — up to 550/500MB/s512GB–2048GB — up to 550/520MB/s
Maximum 4K Read/Write1
up to 90,000/80,000 IOPS
Power Consumption
0.06W Idle / 0.2W Avg / 1.3W (MAX) Read / 3.2W (MAX) Write
Dimensions
100.1mm x 69.85mm x 7mm
Weight
40g
Operating temperature
0°C~70°C
Storage temperature
-40°C~85°C
Vibration operating
2.17G Peak (7-800Hz)
Vibration non-operating
20G Peak (10-2000Hz)
Life expectancy
2 millions hours MTBF
Warranty/support3
Limited 5-year warranty with free technical support
Total Bytes Written (TBW)4
256GB — 150TB512GB — 300TB1024GB — 600TB2048GB — 1200TB

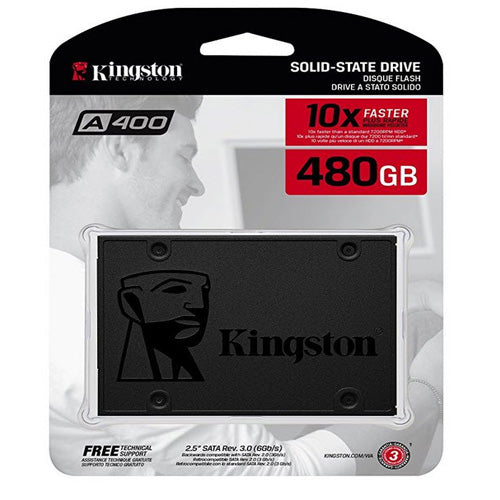

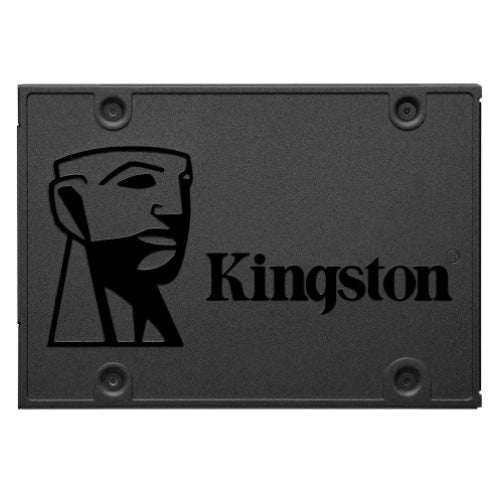

Form factor
2.5"
Interface
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities2
120GB, 240GB, 480GB, 960GB
NAND
3D
Baseline Performance1
Data Transfer (ATTO)120GB — up to 500MB/s Read and 320MB/s Write240GB — up to 500MB/s Read and 350MB/s Write480GB — up to 500MB/s Read and 450MB/s Write960GB — up to 500MB/s Read and 450MB/s Write
Power Consumption
0.195W Idle / 0.279W Avg / 0.642W (MAX) Read / 1.535W (MAX) Write
Storage temperature
-40°C~85°C
Operating temperature
0°C~70°C
Dimensions
100.0mm x 69.9mm x 7.0mm (2.5”)
Weight
39g (120GB – 2.5”)41g (240-480GB – 2.5”)41.9g (960GB – 2.5”)
Vibration operating
2.17G Peak (7–800Hz)
Vibration non-operating
20G Peak (10–2000Hz)
Life expectancy
2 million hours MTBF
Warranty/support3
Limited 3-year warranty with free technical support
Total Bytes Written (TBW)4
120GB — 40TB240GB — 80TB480GB — 160TB960GB — 300TB
