KF432C16BB/88GB 1G x 64-BitDDR4-3200 CL16 288-Pin DIMM FEATURES • Power Supply: VDD = 1.2V Typical• VDDQ = 1.2V Typical• VPP = 2.5V Typical• VDDSPD = 2.2V to 3.6V• On-Die termination (ODT)• 16 internal banks; 4 groups of 4 banks each• Bi-Directional Differential Data Strobe• 8 bit pre-fetch• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)• Height 1.34” (34mm), w/heatsink

Read more less

  Fast start up, loading and file transfers

Read more less

SpecificationsCapacities : 128GBPerformance : 100MB/s Read, UHS-I Speed Class, U1, V10 (32GB-128GB)Dimensions : 11mm x 15mm x 1mm (microSD)Format : exFAT (64GB-512GB)Operating temperature : -25°C~85°CStorage temperature : -40°C~85°CVoltage : 3.3V_____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)

Read more less

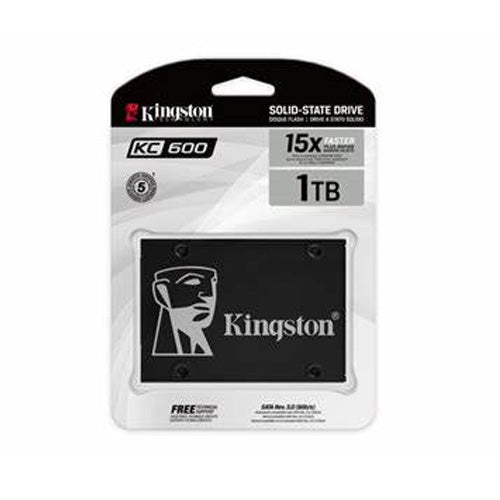

Form Factor 2.5" Interface SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s) Capacities2 256GB, 512GB, 1024GB, 2048GB Controller SM2259 NAND 3D TLC Encrypted XTS-AES 256-bit encryption Sequential Read/Write1 256GB — up to 550/500MB/s512GB–2048GB — up to 550/520MB/s Maximum 4K Read/Write1 up to 90,000/80,000 IOPS Power Consumption 0.06W Idle / 0.2W Avg / 1.3W (MAX) Read / 3.2W (MAX) Write Dimensions 100.1mm x 69.85mm x 7mm Weight 40g Operating temperature 0°C~70°C Storage temperature -40°C~85°C Vibration operating 2.17G Peak (7-800Hz) Vibration non-operating 20G Peak (10-2000Hz) Life expectancy 2 millions hours MTBF Warranty/support3 Limited 5-year warranty with free technical support Total Bytes Written (TBW)4 256GB — 150TB512GB — 300TB1024GB — 600TB2048GB — 1200TB

Read more less

KVR32N22S8/1616GB 1Rx8 2G x 64-Bit PC4-3200CL22 288-Pin DIMM FEATURES • Power Supply: VDD = 1.2V Typical• VDDQ = 1.2V Typical• VPP = 2.5V Typical• VDDSPD = 2.2V to 3.6V• Nominal and dynamic on-die termination (ODT) fordata, strobe, and mask signals• Low-power auto self refresh (LPASR)• Data bus inversion (DBI) for data bus• On-die VREFDQ generation and calibration• Single-rank• On-board I2 serial presence-detect (SPD) EEPROM• 16 internal banks; 4 groups of 4 banks each• Fixed burst chop (BC) of 4 and burst length (BL) of 8via the mode register set (MRS)• Selectable BC4 or BL8 on-the-fly (OTF)• Fly-by topology• Terminated control command and address bus• PCB: Height 1.23” (31.25mm)• RoHS Compliant and Halogen-Free

Read more less

Brand KingstonComputer Memory Size 16 GBRAM Memory Technology SO-DIMMMemory Speed 3200 MHzCompatible Devices Laptop

Read more less

FEATURES• Power Supply: VDD = 1.2V Typical• VDDQ = 1.2V Typical• VPP = 2.5V Typical• VDDSPD = 2.2V to 3.6V• Nominal and dynamic on-die termination (ODT) fordata, strobe, and mask signals• Low-power auto self refresh (LPASR)• Data bus inversion (DBI) for data bus• On-die VREFDQ generation and calibration• Single-rank• On-board I2 serial presence-detect (SPD) EEPROM• 16 internal banks; 4 groups of 4 banks each• Fixed burst chop (BC) of 4 and burst length (BL) of 8via the mode register set (MRS)• Selectable BC4 or BL8 on-the-fly (OTF)• Fly-by topology• Terminated control command and address bus• PCB: Height 1.18” (30.00mm)• RoHS Compliant and Halogen-Free

Read more less

KVR16N11S8/4 4GB 1Rx8 512M x 64-Bit PC3-12800 CL11 240-Pin DIMM   Brand: Kingston Part No. : KVR16N11S8/4 Memory Size: 4GB Type: DDR3-1600MHz / PC3-12800 Cas Latency Timing: CL11 Volt: 1.5V Form Factor: 240-PIN DIMM

Read more less

DESCRIPTIONS:  Gen 4x4 NVMe PCIe performance Upgrade your system with read/write speeds up to 6,000/5,000MB/s. Ideal for systems with limited space Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs. Increased storage space Available in a variety of high capacities up to 4TB providing ample space to store files, videos, documents, and games with room to spare. Brand ‎Kingston Series ‎SNV3S500G SNV3S1000G SNV3S2000G Item model number ‎SNV3S/500G SNV3S1000G SNV3S2000G Item Weight ‎0.232 ounces Product Dimensions ‎3.15 x 0.15 x 0.89 inches Item Dimensions LxWxH ‎3.15 x 0.15 x 0.89 inches Color ‎blue Computer Memory Type ‎DIMM Flash Memory Size ‎500 GB Hard Drive Interface ‎NVMe

Read more less

DESCRIPTIONS:  Gen 4x4 NVMe PCIe performance Upgrade your system with read/write speeds up to 6,000/5,000MB/s. Ideal for systems with limited space Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs. Increased storage space Available in a variety of high capacities up to 4TB providing ample space to store files, videos, documents, and games with room to spare. Brand ‎Kingston Series ‎SNV3S500G SNV3S1000G SNV3S2000G Item model number ‎SNV3S/500G SNV3S1000G SNV3S2000G Item Weight ‎0.232 ounces Product Dimensions ‎3.15 x 0.15 x 0.89 inches Item Dimensions LxWxH ‎3.15 x 0.15 x 0.89 inches Color ‎blue Computer Memory Type ‎DIMM Flash Memory Size ‎500 GB Hard Drive Interface ‎NVMe
