Description
KEY FEATURE
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact design
Support PCIe Gen 5.0 graphics cards
The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

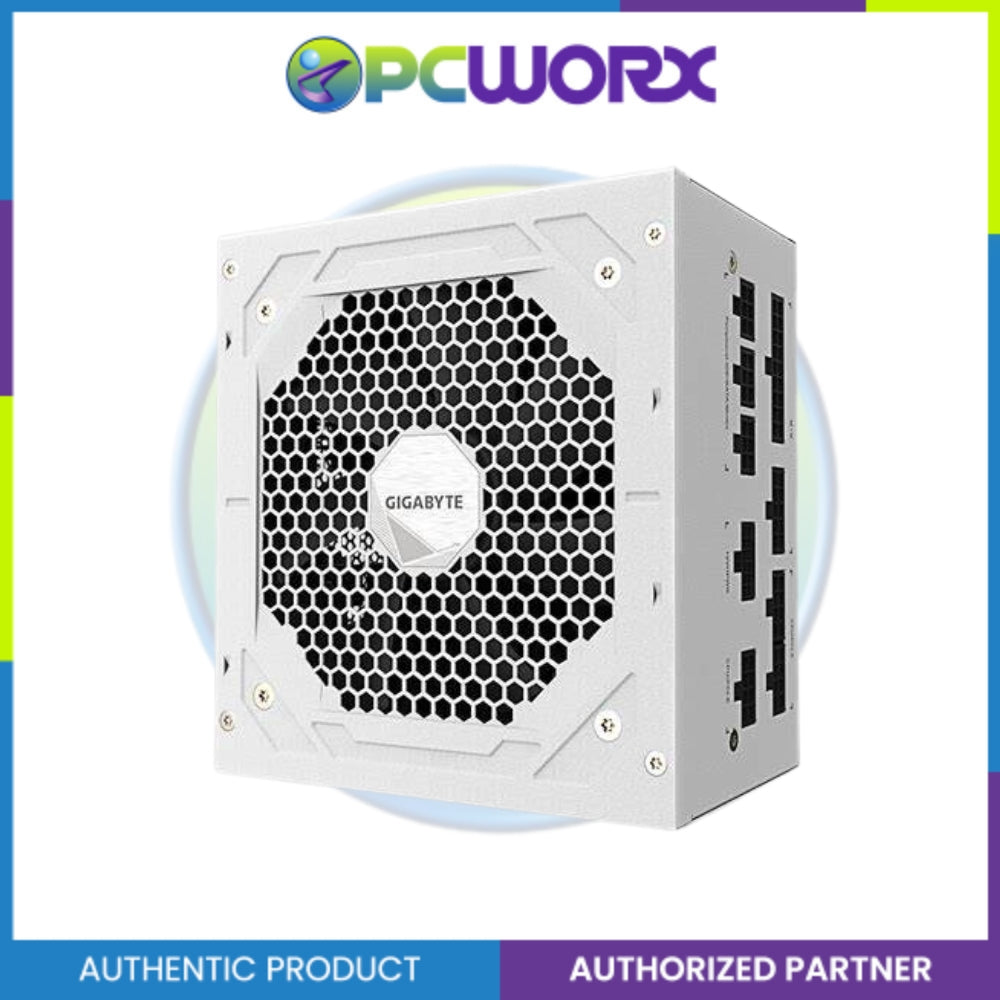

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

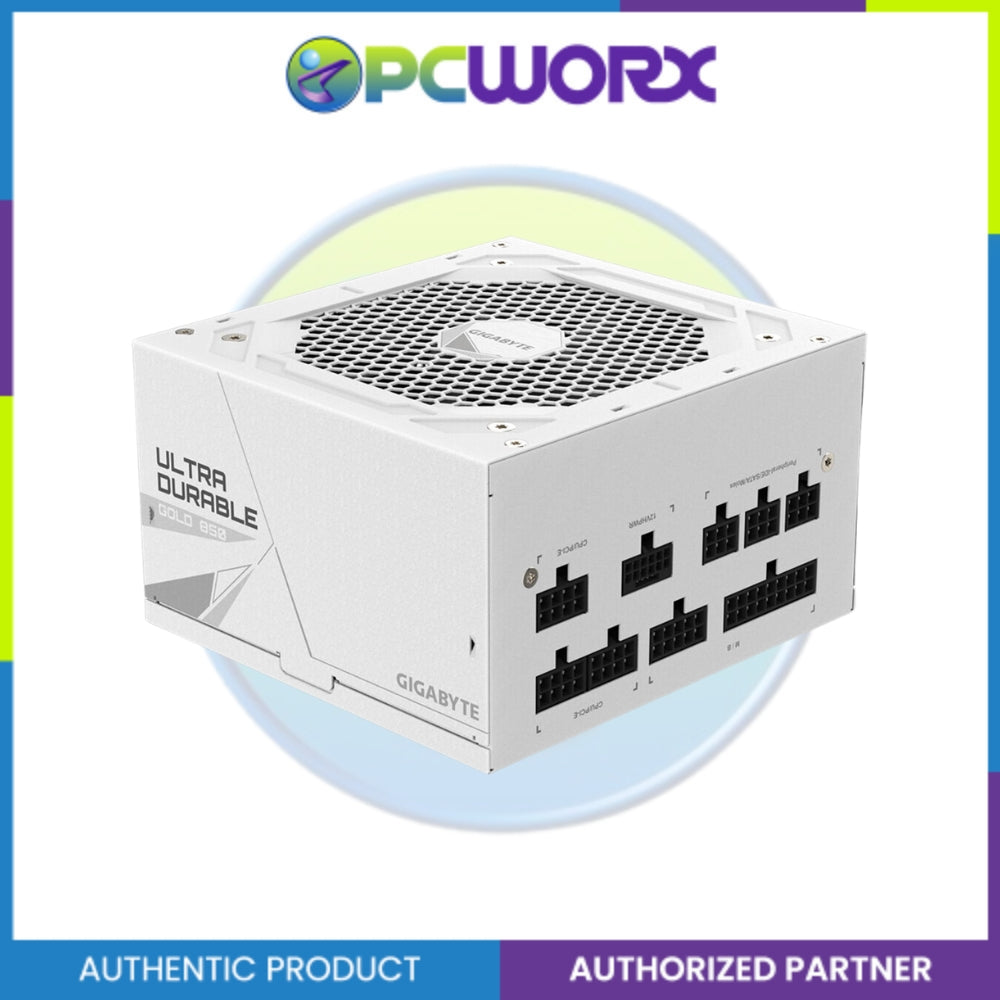

FULLY MODULAR DESIGN
All the white flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 850W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
SPECIFICATIONS:
| Model: |
GP-UD850GM PG5W |
| Type: |
Intel Form Factor ATX 12V v3.0 |
| PFC: |
Active PFC (>0.9 typical) |
| Input Voltage: |
100-240 Vac (full range) |
| Input Current: |
12-6A |
| Input Frequency: |
60-50 Hz |
| Output Capacity: |
850W |
| Dimension: |
150 x 140 x 86 mm |
| Fan Type: |
120mm Hydraulic Bearing (HYB)fan |
| 80 PLUS: |
Gold |
| Efficiency: |
90% at typical load |
| Output Capacity: |
850W |
| Dimension: |
150 x 140 x 86 mm |
| Fan Type: |
120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS: |
Gold |
| Efficiency: |
90% at typical load |
| MTBF: |
>100,000 hours |
| Protection: |
OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal: |
100-150ms |
| Hold Up Time: |
>16ms |
| Cable Type: |
Flat, All white |
| Connectors: |
ATX/MB 20+4 Pin x 1: 610mm*1 |
|
CPU/EPS 4+4 Pin x 2: 600mm+200mm*1 |
|
PCI-e 16 Pin x 1: 700mm*1 |
|
PCI-e 6+2 Pin x 4: 600mm+150mm*2 |
|
SATA x 8 : |
|
600mm+150mm+150mm+150mm*2 |
|
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
