Product Descriptions:

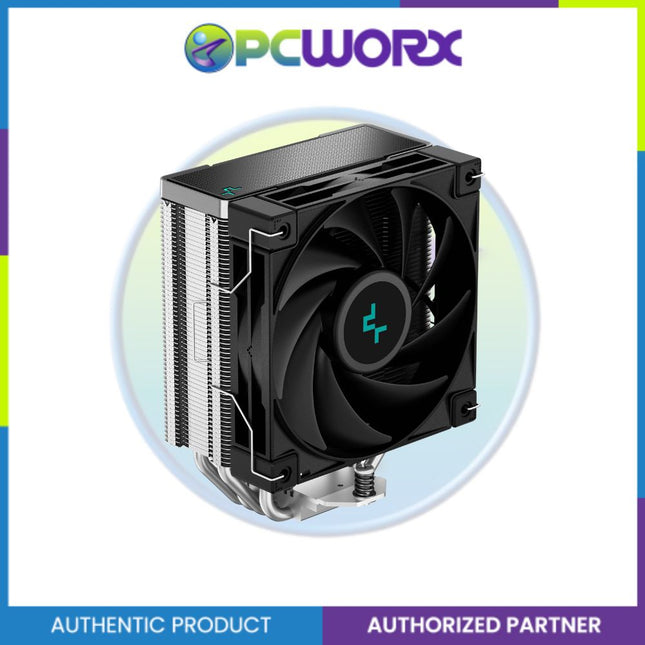

AK400 DIGITAL
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK400 DIGITAL. Everything you loved about the AK400 ZERO DARK, but with a sleek low-profile status display and ARGB LED strips.
AK400 DIGITAL
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK ZERO DARK DESIGN
An all-black variant of our highly compatible AK400 CPU cooler featuring a direct touch, four heat pipe tower layout with a unique black matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
PREMIUM COMPATIBILITY
The exceptional cooling performance of the AK400 DIGITAL on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Application For:
Intel:
LGA1700/1200/1151/1150/1155
AMD:
AM5/AM4
Technical Specifications:
Product Dimensions:
126×97×156 mm(L×W×H)
Heatsink Dimensions:
120×60×152 mm(L×W×H)
Net Weight:
695 g
Heat pipe:
Ø6 mm×4 pcs
Fan Dimensions:
120×120×25 mm(L×W×H)
Fan Speed:
500~1850 RPM±10%
Fan Airflow:
68.99 CFM
Fan Air Pressure:
2.19 mmAq
Fan Noise:
≤28 dB(A)
Fan Connector:
4-pin PWM
Bearing Type:
Fluid Dynamic Bearing
Fan Rated Voltage:
12 VDC
Fan Rated Current:
0.12 A
Fan Power Consumption:
1.44 W
LED Type:
Addressable RGB LED
LED Connector:
3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage:
5 VDC
LED Power Consumption:
3 W
EAN:
6.93341E+12
P/N:
R-AK400-BKADMN-G
COOLERMASTER Hyper 212 Halo CPU Air Cooler Black (RR-S4KK-20PA-R1)Product DescriptionMaximize your CPU cooling with the COOLERMASTER Hyper 212 Halo Air Cooler in sleek black (RR-S4KK-20PA-R1). Experience top-tier performance and a sleek design, keeping your system cool and efficient. Upgrade your cooling solution for peak CPU performance.
Product Specifications:
Product Number RR-S4KK-20PA-R1
Exterior Color Black
CPU Socket LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4
Dimensions (L x W x H) 124 x 73 x 154 mm / 4.8 x 2.8 x 6.0 inch
Heat Sink Material 4 Heat Pipes, Aluminum Fins
Fan Dimensions (L x W x H) 120 x 120 x 25mm
Fan Profiles Addressable RGB
Fan Quantity 1 PC
Fan Speed 650-2050 RPM ± 10%
Fan Airflow 88 CFM (Max)
Fan Air Pressure 89 mmH₂O (Max)
Fan MTTF >160,000 Hours
Fan Noise Level 27 dBA (Max)
Fan Bearing Type Rifle Bearing
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 28A
Fan Safety Current 54A
Fan Power Consumption 36W
Warranty 2 years
Series Hyper
Cooler Type Air Cooler
Heat pipes 4
Nebula DN 360 Liquid CPU Cooler
Non-directional symbol pattern designed
3-stage motor water pump for performance and quietness
All-in-one cable for fans on radiator
Radiator made of Aluminum
High-temperature resistance and pressure-resistance synthetic tubes
Nebula DN 240 Liquid CPU Cooler
Non-directional symbol pattern designed
3-stage motor water pump for performance and quietness
All-in-one cable for fans on radiator
Radiator made of Aluminum
High-temperature resistance and pressure-resistance synthetic tubes
Main Spec
Water Block Size ：86 x 72 x 59mm
Radiator Size：275 x 120 x 27mm
Pipe Length：ø12 x 400mm
Block Speed：2400±10%RPM
Rate Voltage：12V
Fan Spec
Fan Size：120 x 120 x 25mm
Fan Speed：800~1800±10%RPM
Air Flow：61.7CFM
Air Pressure：1.26mm H2O
Noise Level：30dBA
Socket
Intel：1200115x1700
AMD：AM5AM4AM3AM3(+)AM2AM2(+)FM2FM1
MIRAGE RGB LIQUID COOLER
The MIRAGE AIO delivers optimal cooling performance paired with a beautiful aesthetic.
Immersive Aesthetics
Enhance your system with this mesmerizing Infinity mirror LED ring effect. Re-orientate the logo with the adjustable 4-position cap.
Low-resistance Radiator
Pure aluminum, high-density fins increase heat dissipation, effectively reducing CPU temperature quicker.
Pure Copper Base
Maximized contact surface area and improved heat exchange rate accelerates the overall CPU cooling efficiency.
Sleeved FEP Tubing
Flexible, corrosion resistant and reduced coolant evaporation rate.
SPECIFICATIONS
FAN
Rated Voltage:
12V DC
Fan Size:
120 x 120 x 25 mm
Speed:
800~1800RPM±10%
Max Airflow:
60.3CFM Max
Max Static Pressure:
2.05 mmH20
Max Noise Level:
≤35.2dB(A)
Fan Connector:
4-pin (PWM)
PUMP
Speed:
2300RPM±10%
Pump Size:
ø 70x32mm
Max Noise:
≤26.9dB(A)
Power Consumption:
2.1W
Pump Connector:
3-pin (5V ARGB)
CPU SOCKET COMPATIBILITY
Rated Voltage:
12V DC
AMD:
AM4 / AM5
PACKAGE CONTENTS
Mounting Brackets for CPU Sockets
OMNI P1 PWM 120mm Fan x 1 / 2 / 3
Fan & Radiator Mounting Screws
Thermal Compound (0.5g tube, 8.5 w/mk)
6-Port Controller (PWM + ARGB)
Twister DXV2.6 240 Liquid CPU Cooler
Redesign water pump infinity mirror with 360-degree rotation
Cooling fans synchronizable with most motherboards.
Dense liquid channels for a better cooling effect.
Supports both Intel and AMD
TDP: 275W
SPECIFICATIONS:
MAIN SPECIFICATIONS
Water Block Size:
78.5 x 70 x 54mm
Radiator Size:
274 x 120 x 27mm
Pipe Length:
400mm
Block Speed:
2700±10%RPM
Rate Voltage:
12V
Start Voltage:
6V
Rate Current:
0.35A
Power Consumption:
4.20W
FAN SPECIFICATION
Fan Size:
120 x 120 x 25mm
Fan Rated Voltage:
12V
Fan Start Voltage:
6V
Fan Speed:
800~1800RPM
Fan Rated Current:
0.65A
Air Flow:
51CFM±10%
Air Pressure:
1.5mm H2O
Noise Level：
32dBA±10%
SOCKET
Intel:
LGA 20xx(v3)
1200
115x
17xx
AMD：
AM5
AM4
AM3(+)
AM2(+)
FM2(+)
MIRAGE RGB LIQUID COOLER
The MIRAGE AIO delivers optimal cooling performance paired with a beautiful aesthetic.
Immersive Aesthetics
Enhance your system with this mesmerizing Infinity mirror LED ring effect. Re-orientate the logo with the adjustable 4-position cap.
Low-resistance Radiator
Pure aluminum, high-density fins increase heat dissipation, effectively reducing CPU temperature quicker.
Pure Copper Base
Maximized contact surface area and improved heat exchange rate accelerates the overall CPU cooling efficiency.
Sleeved FEP Tubing
Flexible, corrosion resistant and reduced coolant evaporation rate.
SPECIFICATIONS
FAN
Rated Voltage:
12V DC
Fan Size:
120 x 120 x 25 mm
Speed:
800~1800RPM±10%
Max Airflow:
60.3CFM Max
Max Static Pressure:
2.05 mmH20
Max Noise Level:
≤35.2dB(A)
Fan Connector:
4-pin (PWM)
PUMP
Speed:
2300RPM±10%
Pump Size:
ø 70x32mm
Max Noise:
≤26.9dB(A)
Power Consumption:
2.1W
Pump Connector:
3-pin (5V ARGB)
CPU SOCKET COMPATIBILITY
Rated Voltage:
12V DC
AMD:
AM4 / AM5
PACKAGE CONTENTS
Mounting Brackets for CPU Sockets
OMNI P1 PWM 120mm Fan x 1 / 2 / 3
Fan & Radiator Mounting Screws
Thermal Compound (0.5g tube, 8.5 w/mk)
6-Port Controller (PWM + ARGB)
UPGRADED & MORE!
Upgraded pump motor provides bigger push power or the water flow and hence cools better than the previous generation of pump. Equipped with a 4pin power header, the new pump can run a balance between performance and silence.
FLUID DYNAMIC BEARING
Featuring faster lubricating than traditional bearings, fluid dynamic bearing fans can operate more quietly and enjoys a longer lifespan.
SMARTER & SUPERIOR
Equipped with a Daisy Chain connector, it can be assembled at will, and it is more convenient for fans to be connected in series.
STRAIGHT & SIMPLEX
The new AF series fans are designed with a flat and simplex manner to offer solid structure for the blades movement to get less vibration. On SPACE LCD series, AF-127-ARGB fans are used to provide performance and aesthetics at the same time.
SPECIFICATIONS
LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
2.1 inch
Resolution
480x480
Backlight
600cd/m²
Color
24-bit, 16.7 million
Compatibility
Intel LGA2066/2011/1851/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
350W
Radiator Dimension
397×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
465mm
Water block Dimension
76x76x58mm
Cold Plate Material
Copper
Pump Current
0.36A Max.
Pump Speed
2500RPM±10%
Pump Bearing
Ceramic Bearing
Pump Noise Level
25dB(A)
Pump Life Expectancy
50,000 Hrs
Fan Dimension
120×120×27mm
Included Fans
3pcs
Fan Speed
500～2000±10%RPM
Max. Air Flow
78CFM
Max. Static Pressure
2.68mmH2O
Noise
29.9dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8～13.2VDC
Started Voltage
7VDC
Rated Current
0.25A
Power Input
3W
Bearing Type
Fluid Dynamic Bearing
Connector
4Pin PWM
