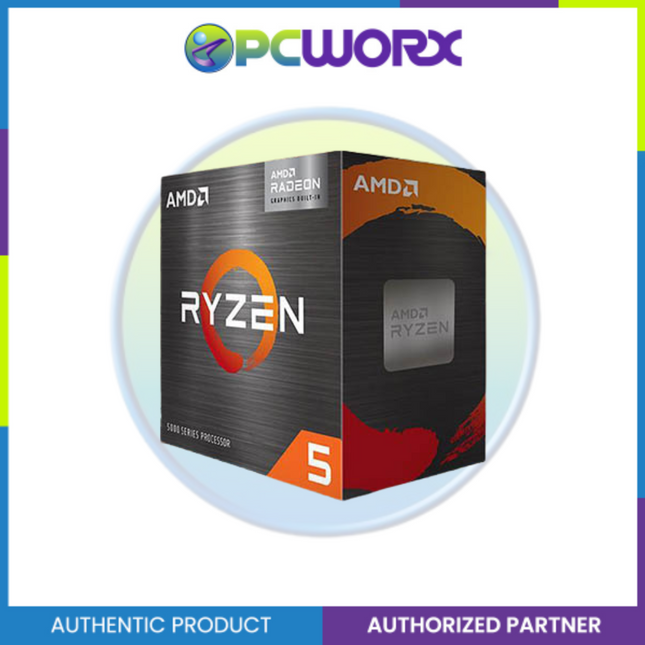

6-Core, 12-Thread architecture for exceptional multitasking
Base clock speed of 3.6 GHz with Max Boost Clock of up to 4.2 GHz
65W TDP, offering energy-efficient performance
Compatible with AM4 socket motherboards
Supports DDR4 Memory for faster data processing
Advanced cooling options with included cooler
A314-36P-P6WW
Model/Part Number
NX.KDJSP.004 (Pure Silver)
Operating System
Win 11 Home
Processor
Intel Processor N200 (6MB Smart Cache, 1.0 GHz with Intel Turbo Boost Technology 2.0 up to 3.7 GHz)
Memory
8GB of LPDDR5 5200 MHz system memory (1 memory Slot)
Hard Disk
512GB NVMe SSD
Display Screen
14" HD 1366 x 768 Acer ComfyView LED-backlit TFT LCD, 16:9 aspect ratio, Ultra-slim design, Mercury free, Environment friendly
Video Type
Intel UHD Graphics supporting OpenGL 4.6, OpenCL 3.0, Microsoft DirectX 12 Vulkan 1.2
Audio
• Acer Purified.Voice technology with AI noise reduction in dual built-in microphones. Features include far-field pickup, dynamic noise reduction through neural network, adaptive beam forming, and predefined personal and conference call modes.• Compatible with Cortana with Voice• Two built-in stereo speakers
Dimension
328.3 (W) x 217.15 (D) x 18.9 (H) mm (12.93 x 8.55 x 0.74 inches)
Weight
1.4 kg (3.09 lbs.) with 3-cell battery pack
Battery Type
40 Wh 3-cell Li-ion battery
Battery Life
Up to 11 hours (based on video playback test results)
Network Interface
WLAN• 802.11a/b/g/n/ac+ax wireless LAN• Dual Band (2.4 GHz and 5 GHz)• MU-MIMO technology• Supports Bluetooth® 5.1 or aboveLAN• Gigabit Ethernet, Wake-on-LAN ready
Camera
Video conferencingUFC with• T-Type HD camera• Compatible with Windows only• 1280 x 720 resolution• 720p HD video at 30 fps with Temporal Noise Reduction• Blue Glass lens• Knowles Dual Mic (33 mm + 33 mm)• 78 x 3.2 (5.2) x 3 mm
Standard I/O Ports
USB Type-C port supporting:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• USB charging 5 V; 3 A• DC-in port 19 V; 45 WUSB Standard ATwo USB Standard-A ports, supporting:• Two ports for USB 3.2 Gen 1HDMI® 2.1 port with HDCP supportDC-in jack for AC adapter3.5 mm headphone/speaker jack, supporting headsets with built-in microphone
Bundled Software
Accessories
Acer Carrying Bag
Warranty
2 Years Warranty
Color
Pure Silver

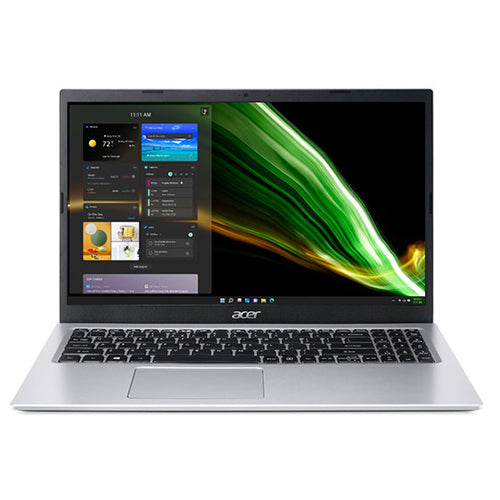

Model
A315-24P-R5W0
Part Number
NX.KDESP.00E
Processor
• AMD Ryzen™ 5 7520U quad-core processor (up to 2 MB L2 cache, up to 4MB L3 cache, 2.8 GHz with boost up to 4.3 GHz)
Memory
• Single-channel LPDDR5 SDRAM support; 1x 8 GB of onboard LPDDR5 system memory
Memory Slots (Available)
1 (0)
Memory Frequency
5200Mhz LPDDR5
Storage
512GB NVMe SSD
M.2 Slot/s (Available)
1 (0)
Display Panel/ Resolution
• 15.6" display with IPS (In-Plane Switching) technology, Full HD 1920 x 1080, Acer ComfyView™ LED-backlit TFT LCD• 16:9 aspect ratio; 45% NTSC color gamut• Wide viewing angle up to 170 degrees• Ultra-slim design• Mercury free, environment friendly
Graphics
AMD Radeon™ GraphicsGraphics Special Technology#• VP9, H.264, H.265 8bit/10bit decode• H.264, H.265 8bit video encode
Network Connection
WLAN• 802.11a/b/g/n/ac wireless LAN• Dual Band (2.4 GHz and 5 GHz)• 2x2 MU-MIMO technology• Supports Bluetooth® 5.0 and later
Operating System
• Windows 11 Home
Audio
• Two built-in stereo speakers • Built-in digital microphone
Dimensions
• 362.9 (W) x 237.5 (D) x 18.9 (H) mm (14.29 x 9.35 x 0.74 inches) with Plastic A Cover
Weight
• 1.8 kg (3.97 lbs.) with 3-cell battery pack
Adapter
• 3-pin 45 W AC adapter
Battery Type
• 40 Wh 3-cell Li-ion battery / 50 Wh 3-cell Li-ion battery
Battery Life
Camera
Video conferencingUFC with• T-Type HD camera• Compatible with Windows only• 1280 x 720 resolution• 720p HD video at 30 fps with Temporal Noise Reduction• Blue Glass lens• Dual Mic (33 mm + 33 mm)• 78 x 3.2 (5.2) x 3 mm
Input/Output Ports
USB Type-C port supporting:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• USB charging 5 V; 3 A• DC-in port 19 V; 45 WUSB Standard ATwo USB Standard-A ports, supporting:• Two ports for USB 3.2 Gen 1HDMI® 2.1 port with HDCP supportDC-in jack for AC adapter3.5 mm headphone/speaker jack, supporting headsets with built-in microphone
Bundled Software
Microsoft Office for Home and Student 2021
Warranty
2 Years Warranty

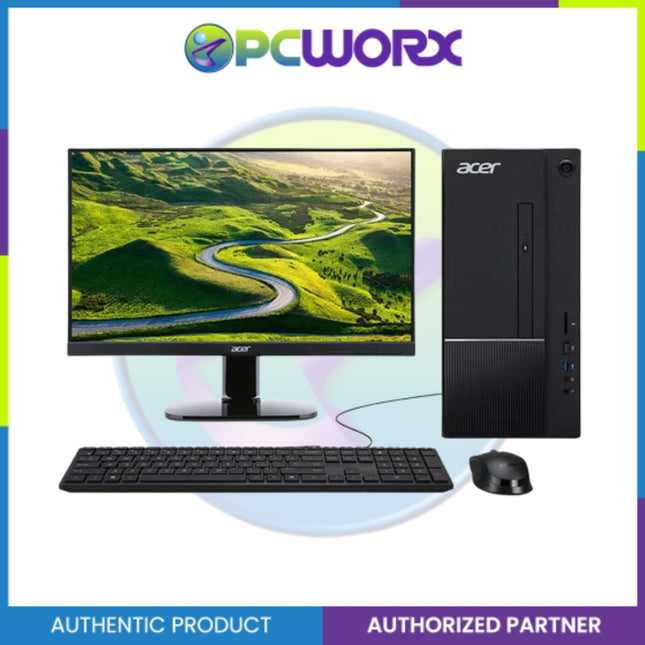

Model Name
Aspire TC-177013th Gen Core i38GB 256GB SSD+1TB HDD Intel® UHD Graphics
Part Number
DT.BK7SP.001
Operating System
Windows ® 11 Home SL with MS Office for Home & Student
Processor
Intel® Core™ i3-13100 processor (4 Cores 8 Threads 3.4GHz up to 4.5GHz, 12MB Intel® Smart Cache)
Motherboard
Intel® H610 Chipset
Memory
8 GB DDR4 3200MHz UDIMMUp to 32 GB of Dual-channel DDR4
Hard Disk Drive
256 GB M.2 2280 PCI-E SSD1 TB 3.5-inch 7200 RPM
Graphics
Intel® UHD 730 Graphics for 13th Generation(better performance than NVIDIA GT730 2GB)
Optical Drive
WITHOUT
Webcam
N/A
Audio
Integrated high-definition, 5.1-channel surround sound
Networking
WLAN802.11ac/a/b/g/n wireless LAN and Bluetooth® 5.0LANGigabit Ethernet
Standard I/O Ports
Front/Side I/O connectors• Card reader: Yes• Audio jack(s): 2• USB 3.2 Gen1 Type A port(s): 1• USB 3.2 Gen1 Type C port(s): 1Rear I/O connectors• HDMI port(s) Port 1 HDMI-out 2.0 Port 2 HDMI-out 1.4b• LAN port(s): 1• Audio jack(s): 3• USB 2.0 Type A port(s): 4• USB 3.2 Gen1 Type A port(s): 1
Expansion Slot (s)
• Number of PCIe x16 slot(s): 1• Number of PCIe x1 slot(s): 1• M.2 slot (for SSD): 1• M.2 slot (for WLAN): 1
Power Supply and Adapter
300W
Keyboard & Mouse
USB Wired Keyboard & Wired Mouse
Speakers
NONE
Accessory
N/A
Monitor / Screen
KA222Q HbiSize: 21.5"Input: VGA + HDMIMax Res.: 1920x1080 @100HzTechnology: VAColors: 16.7 MillionGlare: NoneResponse Time: 1ms VRBWith VGA+HDMI Cable
Warranty
2 Year Parts - 2 Year Labor Only (2 -2 - 0 )
DESKTOP Gross Weight (KG)
9.3 KG
DESKTOP Box Dimensions (L x W x H in cm)
49.4 x 23.4 x 41.7
SPECIFICATION
Operating System
Operating System
Windows 11 Home Single Language
Processor
Processor Manufacturer
Intel®
Processor Type
Core™ 5
Processor Model
120U
Processor Speed
1.40 GHz
Processor Core
Deca-core (10 Core™)
Display & Graphics
Graphics Controller Manufacturer
Intel®
Graphics Memory Accessibility
Shared
Screen Size
39.6 cm (15.6")
Display Screen Type
LCD
Display Screen Technology
ComfyView (Matte)
In-plane Switching (IPS) Technology
Touchscreen
No
Screen Resolution
1920 x 1080
Standard Refresh Rate
60 Hz
Display Features
45% NTSC Color Gamut
Aspect Ratio
16:09
Memory
Total Installed System Memory
8 GB
System Memory Technology
LPDDR5
Storage
Total Solid State Drive Capacity
512 GB
Solid State Drive Interface
PCIe NVMe
SSD Form Factor
M.2
Network & Communication
Wireless LAN Standard
IEEE 802.11ax
Ethernet Technology
Gigabit Ethernet
Built-in Devices
Microphone
Yes
Finger Print Reader
Yes
Number of Speakers
2
Interfaces/Ports
HDMI
Yes
Number of HDMI Outputs
1
Number of USB 3.2 Gen 1 Type-A Ports
2
Total Number of USB Ports
3
Network (RJ-45)
No
Number of USB4 Ports
1
Input Devices
Pointing Device Type
TouchPad
Keyboard
Yes
Keyboard Backlight
Yes
TouchPad Features
Microsoft Precision Touchpad Certification
Keyboard Features
White Backlight
AcerSense Key
Caps Lock Indicator
Microphone Mute Indicator
Copilot Key
Battery Information
Battery Chemistry
Lithium Ion (Li-Ion)
Maximum Battery Run Time
14.50 Hours
Battery Energy
53 Wh
Color
Pure Silver

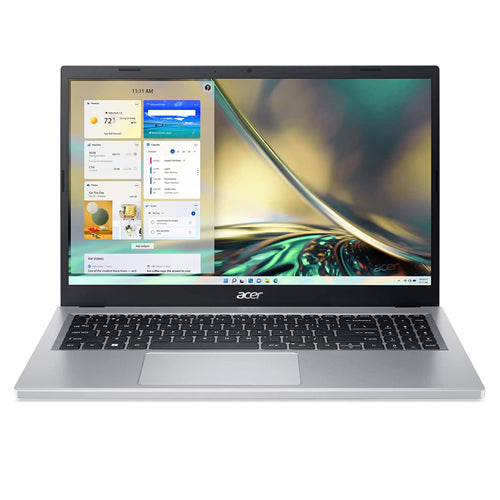

Model
A315-24P-R02L / A315-24P-R5GC
Part Number
NX.KDESP.00B / NX.KDESP.00D
Processor
• AMD Ryzen™ 5 7520U quad-core processor (up to 2 MB L2 cache, up to 4MB L3 cache, 2.8 GHz with boost up to 4.3 GHz)
Memory
• 1x 16GB of onboard LPDDR5 system memory using single-channel LPDDR5 SDRAM
Memory Slots (Available)
1 (0)
Memory Frequency
5200Mhz LPDDR5
Storage
512GB NVMe SSD
M.2 Slot/s (Available)
1 (0)
Display Panel/ Resolution
• 15.6" display with IPS (In-Plane Switching) technology, Full HD 1920 x 1080, Acer ComfyView™ LED-backlit TFT LCD• 16:9 aspect ratio; 45% NTSC color gamut• Wide viewing angle up to 170 degrees• Ultra-slim design• Mercury free, environment friendly
Graphics
AMD Radeon™ GraphicsGraphics Special Technology#• VP9, H.264, H.265 8bit/10bit decode• H.264, H.265 8bit video encode
Network Connection
WLAN• 802.11a/b/g/n/ac+ax wireless LAN• Dual Band (2.4 GHz and 5 GHz)• MU-MIMO technology• Supports Bluetooth® 5.1 or above
Operating System
• Windows 11 Home
Audio
• Two built-in stereo speakers • Built-in digital microphone
Dimensions
• 362.9 (W) x 237.5 (D) x 18.9 (H) mm (14.29 x 9.35 x 0.74 inches) with Plastic A Cover
Weight
• 1.8 kg (3.97 lbs.) with 3-cell battery pack
Adapter
• 3-pin 45 W AC adapter
Battery Type
• 40 Wh 3-cell Li-ion battery / 50 Wh 3-cell Li-ion battery
Battery Life
• Up to 13.5 hours (based on video playback test results)
Camera
Video conferencingUFC with• T-Type HD camera• Compatible with Windows only• 1280 x 720 resolution• 720p HD video at 30 fps with Temporal Noise Reduction• Blue Glass lens• Dual Mic (33 mm + 33 mm)• 78 x 3.2 (5.2) x 3 mm
Input/Output Ports
USB Type-C port supporting:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• USB charging 5 V; 3 A• DC-in port 19 V; 45 WUSB Standard ATwo USB Standard-A ports, supporting:• Two ports for USB 3.2 Gen 1HDMI® 2.1 port with HDCP supportDC-in jack for AC adapter3.5 mm headphone/speaker jack, supporting headsets with built-in microphone
Bundled Software
Microsoft Office for Home and Student 2021
Warranty
2 Years Warranty
SPECIFICATION
Operating System
Operating System
Windows 11 Home
Processor & Chipset
Processor Type
Core™ i5
Processor Model
Intel® Core™ i5-1135G7
Processor Speed
2.4 GHz
Processor Speed (turbo)
4.2 GHz
Memory
Standard Memory
8 GB
Number of Total Memory Slots
2
Storage
Total Solid State Drive Capacity
512 GB
Solid State Drive Interface
NVMe SSD upgradeable to maximum of 1TB.
Display & Graphics
Screen Size
39.6 cm (15.6")
Display Screen Technology
LED-backlit TFT LCD
Screen Resolution
1920 x 1080
Graphics Controller Manufacturer
Intel®
Graphics Controller Model
Intel® UHD Graphics
Audio
HD Audio
Yes
Speakers
Yes
Number of Speakers
2
Network & Communication
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11 a/b/g/n+ac+ax
Bluetooth
Yes
Bluetooth Standard
Supports Bluetooth® 5.1 or above
Built-in Devices
Webcam
Yes
Webcam Resolution (front)
1280 x 720
Microphone
Yes
Interfaces/Ports
HDMI
Yes
Number of USB 2.0 Ports
2
Number of USB 3.2 Gen 2 Port
1
Number of USB 3.2(Type-C) Ports
1
Headphone
Yes
Battery Information
Number of Cells
3-cell
Battery Chemistry
Lithium Ion (Li-Ion)
Battery Capacity
36 Wh
Power Description
Power Supply
3-pin 45W AC adapter
Physical Characteristics
Color
Titanium Gray
