The Asus XG27WCS 27" ROG Strix is a high-performance gaming monitor designed for immersive gameplay.
SPECIFICATIONS
Panel Size (inch):
27
Curvature:
1500R
Aspect Ratio:
16:9
Color Space (DCI-P3):
95%
Color Space (sRGB):
125%
Panel Type:
Fast VA
True Resolution:
2560x1440
Display Viewing Area (HxV):
596.74 (H) x 335.66 (V)
Display Surface:
Non-Glare
Pixel Pitch:
0.233mm
Brightness (Typ.):
400cd/㎡
Brightness (HDR, Peak):
400 cd/㎡
Contrast Ratio (Typ.):
3000:1
Viewing Angle (CR≧10):
178°/ 178°
Response Time:
1ms(GTG)
Display Colors:
16.7M
Flicker free:
Yes
HDR (High Dynamic Range) Support:
HDR10
Refresh Rate (max):
180Hz
Video Feature
Trace Free Technology:
Yes
GamePlus:
Yes
Low Blue Light:
Yes
HDCP Support:
Yes, 2.2
Game Visual:
Yes
VRR Technology:
Yes (Adaptive-Sync)
Extreme Low Motion Blur:
Yes
ELMB Sync:
Yes
Shadow Boost:
Yes
Display Widget:
Yes, DisplayWidget Center
Aspect Control:
Yes
I/O Ports
DisplayPort 1.4x 1 (HBR3)
HDMI (v2.0)x 1
USB-Cx 1 (DP Alt Mode)
Earphone jack:
Yes
USB-C Power Delivery:
7.5W
Audio Features
Speaker:
No
Signal Frequency
Digital Signal Frequency :
DisplayPort:
USB-C, 265~265 KHz (H) / 48~180Hz (V)
HDMI:
30~223 KHz (H) / 48~144Hz (V)
Power Consumption
Power Consumption:
<22.5W
Power Saving Mode:
<0.5W
Power Off Mode:
<0.3W
Voltage:
100-240V, 50/60Hz
Mechanical Design
1/4" Tripod Socket:
Yes
Tilt:
Yes (+20° ~ -5°)
Swivel:
Yes (+35° ~ -35°)
Height Adjustment:
0~120mm
VESA Wall Mounting:
100x100mm
Kensington Lock:
Yes
Dimensions (Esti.)
Phys. Dimension with stand (W x H x D):
61.1 x 39.0 x 21.9 cm (24.06" x 15.35" x 8.62")
Phys. Dimension without Stand (W x H x D):
61.1 x 37.0 x 9.2 cm (24.06" x 14.57" x 3.62")
Box Dimension (W x H x D):
84.3 x 48.0 x 20.0 cm (33.19" x 18.90" x 7.87")
Weight (Esti.)
Net Weight with Stand:
7.1 kg (15.65 lbs)
Net Weight without Stand:
4.4 kg (9.70 lbs)
Gross Weight:
9.7 kg (21.38 lbs)
AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system
New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.
Connect in your way – You can share the internet from 3G/4G dongle to the router by plug the dongle in a USB port.
Ultra-fast WiFi Speed – RT-AX53U supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
Better Partner with Mesh System – Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage.
Get Your Home Ready for WiFi 6 (802.11ax)
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
Next-Gen WiFi Speed
RT-AX53U is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX53U is 1.5X faster than 802.11ac 2x2 dual-band routers.
Built for Multi-device Households
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.
Protection for your Home Network
RT-AX53U incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.
Powerful Whole-home WiFi System.The Way You Want.
In most cases, your RT-AX53U can deliver smooth, reliable WiFi to every part of your home. But WiFi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home WiFi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is WiFi you can rely on — for all your devices, all the time!
SPECIFICATIONS
Model Name
RT-AX1800HP
Network Standard
IPv6IPv4WiFi 6 (802.11ax)WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a
WIFI DATA RATE
WiFi 6 (802.11ax) (5GHz) : up to 1201 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 5 (802.11ac) : up to 867 MbpsWiFi 4 (802.11n) : up to 300 Mbps802.11g : up to 54 Mbps802.11b : up to 11 Mbps802.11a : up to 54 Mbps
Antenna
Ex-antennas*4
Transmit/ Receive
5GHz 2x22.4GHz 2x2
Processor
Dual-core (4 VPE)
Memory
128 MB Flash256 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Operating Mode
Access Point, Media Bridge, Repeater, Router
I/0 PORTS
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 12.4G x 15G x 1LAN x 3WAN x 1USBX1
Product Weight (G)
346g
AC2900 Dual Band Gigabit WiFi Gaming Router with MU-MIMO, AiMesh for mesh wifi system, AiProtection network security by Trend Micro, Mobile Game Mode and Adaptive QoS
Ultimate gaming experience - Built-in Mobile Game Mode and Adaptive QoS deliver lag-free online gaming and smooth 4K UHD streaming
Ultrafast Wi-Fi - AC2900 W-Fi speeds boosted with NitroQAM™ and 5GHz quad-stream technology to handle even the busiest home networks with ease
Ultrawide Coverage – High-performance antennas, ASUS AiRadar and Range Boost eliminate dead spots, and MU-MIMO maximizes Multi-device performance
Ultrapowerful Processor – Enjoy smoother networking and faster data transfers with the PC-grade 1.8GHz 64bit dual-core processor
Commercial-grade Security – AiProtection, powered by Trend Micro™, blocks and neutralizes internet security threats for all your connected smart devices
AiMesh Supported - Connect your RT-AC86U to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network.
Furiously Fast. Powerfully Equipped.
ASUS RT-AC86U is the ultimate choice for gaming, with blistering 2917Mbps WiFi speeds, MU-MIMO technology and powerful game-boosting features including the Mobile Game Mode and Adaptive QoS.
Ultrafast Wi-Fi with NitroQAM™ and 5GHz Quad-Stream Technology
Whether you're gaming online in a heated competition or streaming a live event in 4K UHD, lag and buffering are simply not an option. NitroQAM™ (1024-QAM) technology delivers the ultimate 5GHz quad-stream (4x4) speeds of up to 2167Mbps, giving RT-AC86U combined total speed of 2917Mbps. So, everyone on your network can enjoy smooth streaming and low-latency online gaming!
Powerful Hardware, Ultimate Performance
With the increasing popularity of 5GHz Wi-Fi devices, a router needs to deliver the maximum 5GHz bandwidth possible, with reliable long-range performance. RT-AC86U has an extra internal 5GHz antenna to provide the ultimate 5GHz quad-stream performance, while RangeBoost significantly improves mid- to long-distance Wi-Fi coverage. Additionally, RT-AC86U's top-of-the-line 1.8GHz 64bit dual-core processor brings its computational capability to the next level, enabling USB data transfers of up to 110MB/s and router download/upload speeds (WAN-LAN throughput) of up to 1600Mbps2.
Double Gaming Boost
Enjoy low-latency online gaming with boosted internet and home network performance!
Adaptive QoS – Prioritize Your Game
Boost your gaming bandwidth with Adaptive QoS (Quality of Service), which allows you to easily prioritize gaming packets and activities. You can even assign full dedicated bandwidth while gaming under gamer solo mode, making RT-AC86U the perfect ally for low latency gaming anywhere in your home. It supports major consoles including PlayStation®3, PlayStation®4, PS4™ Pro, PlayStation®Vita, Wii U, 3DS and Xbox One.
Multiple Capacity Wi-Fi with Revolutionary MU-MIMO Technology
MU-MIMO gives every compatible device3 its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.In fact, RT-AC86U is able to connect to multiple MU-MIMO-compatible clients at each device's maximum speed simultaneously, unlike standard single-user MIMO where individual devices have to wait for sequential transmissions.
Unbeatable Coverage
With ASUS innovative antenna design and the new Range Boost technology, both Wi-Fi range and signal stability improve dramatically. AiRadar further focuses Wi-Fi signal on your devices, making your Wi-Fi faster, clearer and stronger.
AiProtection ProCommercial-Grade Security for Family
All your family members, young or old, are exposed to the dangers of internet every single moment they're online. Disguised cyber threats can sneak in to steal your private data, or your kids may accidentally encounter inappropriate content during their ever-growing screen time. RT-AC86U includes Advanced Parental Controls to give you total peace of mind, with AiProtection Pro - commercial grade security for your home network and comprehensive, easy control of the online experience for each family member and each device, all via the mobile app.
SPECIFICATIONS
Model Name
RT-AC86U
Network Standard
IPv6IPv4WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a
Product Segment
AC2900 ultimate AC performance: 750+2167 Mbps
WIFI DATA RATE
1024QAM (5GHz): up to 2167 Mbps1024QAM (2.4GHz): up to 750 MbpsWiFi 5 (802.11ac): up to 1734 MbpsWiFi 4 (802.11n): up to 450 Mbps802.11g : up to 54 Mbps802.11b : up to 11 Mbps802.11a : up to 54 Mbps
Antenna
External detachable antenna x 3Internal antenna x 1
Transmit/ Receive
5GHz 4x42.4GHz 3x3MIMO technology
Processor
256 MB Flash, 512 MB RAM
Memory
256 MB Flash, 1 GB RAM
Boosts Speed
Beamforming: standard-based and universal1024-QAM high data rate20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 Hz
Operating Mode
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
I/0 PORTS
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4USB 2.0 x 1USB 3.0 x 1
Buttons
WPS Button, Reset Button, Power Button, Wireless on/off Button
LED Indicator
Power x 1Wi-Fi x 2WAN x 1WPS x 1LAN x 4
Power Supply
AC Input: 110V~240V (50~60Hz)DC Output : 19 V with max. 1.75 A current
Product Weight (G)
872 g
Product Dimensions
220 x 157 x 89 ~ mm (WxDxH)
AiMesh
• AiMesh Node• Primary AiMesh RouterAiMesh
Game
Game Boost / Acceleration
Parental Control
Customized Internet Schedule"Allow you to block access to unwanted websites and apps."
Guest Network
Guest Network Connection Time Limit"The Guest Network provides Internet connection for guests but restricts access to your local network."• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3Guest Network Encryption : Open system, WPA/WPA2-Personal
Security
SSHFirewallWPSAiProtectionOpen system, WPA/WPA2-Personal, WPA/WPA2-Enterprise• Maximum Firewall Keyword Filter : 64• Maximum Firewall Network Service Filter : 32• Maximum Firewall URL Filter : 64
Model
PRIME A520M-K
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors ** Refer to www.asus.com for CPU support list.
Chipset
AMD A520
Memory
2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphic
1 x D-Sub1 x HDMI 2.1(4K@60HZ)
Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors1 x PCIe 3.0 x16 (x16 mode)AMD A520 Chipset2 x PCIe 3.0 x1
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD A520 Chipset :4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb EthernetASUS LANGuard
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Audio Shielding- Dedicated audio PCB layers* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 6 )4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)
Software Features
ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance and Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink design
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.03 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector
Accessories
User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x M.2 SSD screw package(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Model
GT730-SL-2GD5-BRK
Graphic Engine
NVIDIA® GeForce GT 730
Bus Standard
PCI Express 2.0
OpenGL
OpenGL®4.4
Video Memory
2GB GDDR5
Engine Clock
902 MHz
CUDA Core
384
Memory Speed
5010 MHz
Memory Interface
64-bit
Resolution
Digital Max Resolution 3840 x 2160
Interface
Yes x 1 (Native DVI-D)Yes x 1 (D-Sub)Yes x 1 (Native HDMI 1.4a)HDCP Support Yes (1.4)
Maximum Display Support
3
NVlink/ Crossfire Support
No
Accessories
Yes x 1
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
6.5 " x 2.72 " x 1.54 " Inch16.5 x 6.9 x3.9 Centimeter
Recommended PSU
300W
Power Connectors
No
Slot
2 Slot
ROG Astral LC GeForce RTX™ 5090
Fluid Force
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler, full-coverage copper plate and integrated fan. Meanwhile, powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation.
Model
ROG Astral LC GeForce RTX™ 5090 32GB GDDR7 OC Edition
Graphic EngineNVIDIA® GeForce RTX™ 5090AI Performance3593 TOPsBus StandardPCI Express 5.0OpenGLOpenGL®4.6Video Memory32GB GDDR7Engine ClockOC mode: 2610 MHzDefault mode: 2580 MHz(Boost clock)CUDA Core21760Memory Speed28 GbpsMemory Interface512-bitResolutionDigital Max Resolution 7680 x 4320InterfaceYes x 2 (Native HDMI 2.1b)Yes x 3 (Native DisplayPort 2.1b)HDCP Support Yes (2.3)Maximum Display Support4NVlink/ Crossfire SupportNoAccessories1 x Speedsetup Manual1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x ROG Magnet1 x ROG PCB Ruler1 x Thank You Card1 x Adapter Cable (1 to 4)SoftwareASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.DimensionsCard 288.46 x 153.7 x 48 mmRadiator: 400 x 120 x 65mmRecommended PSU1000WPower Connectors1 x 16-pinSlot2.5 SlotAURA SYNCARGB

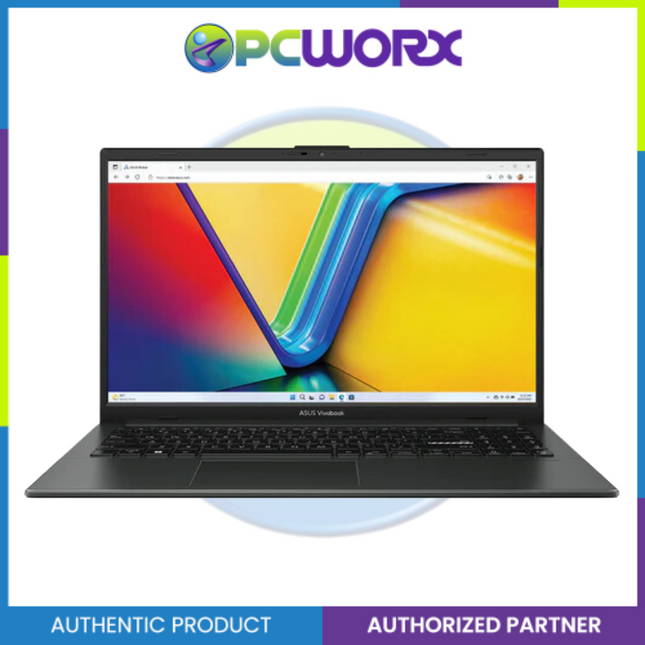

ASUS Vivobook Go 15
Be productive as you Go
Vivobook Go 15 is powered by up to an AMD Ryzen™ 5 processor, 16 GB of speedy LDDR5 memory and 512 GB of storage to help you complete all your productivity missions.
Specifications:
Marketing Name
ASUS Vivobook Go 15
Operating System
Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office
Microsoft Office Home 2021 + Microsoft 365 Basic
LCD cover-material
Plastic
LCD cover-color
Mixed Black
Top case-material
Plastic
Top case-color
Mixed Black
Keyboard color
Black
Bottom case-material
Plastic
Bottom case-color
Mixed Black
Military grade
US MIL-STD 810H military-grade standard
Touch Panel
Non-touch screen
Panel Size
15.6-inch
Resolution
FHD (1920 x 1080) 16:9 aspect ratio
LED Backlit Unit
LED Backlit
Refresh rate
60Hz refresh rate
Brightness
250nits
Color gamut
45% NTSC color gamut
Glare
Anti-glare display
TÜV Rheinland-certified
TÜV Rheinland-certified
Screen-to-body ratio
84%
Processor
AMD RyzenTM 5 7520U Processor 2.8GHz (6MB Cache, up to 4.3GHz, 4 cores, 8 Threads)
Chipset
N/A
Discrete/Share
Share
Intergrated GPU
AMD RadeonTM Graphics
Expansion Slot(includes used)
1x M.2 2280 PCIe 3.0x2
On board memory
16GB LPDDR5 on board
Total System Memory
LPDDR5 16GB
Storage
512GB M.2 NVMe™ PCIe® 3.0 SSD
Front-facing camera
720p HD camera ; With privacy shutter
Wireless
Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth® 5.1 Wireless Card(*Bluetooth® version may change with OS version different.
Keyboard type
Backlit Chiclet Keyboard
Touchpad
Precision touchpad
FingerPrint
N/A
1/0 ports
1x USB 2.0 Type-A (data speed up to 480Mbps)1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-in
Audio
SonicMasterBuilt-in speakerBuilt-in array microphone
Voice control
with Cortana voice-recognition support
Power
ø4.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC50/60Hz universal
Battery
42WHrs, 3S1P, 3-cell Li-ion
Replaceable Battery
No
Dimension (W x H x D)
36.03 x 23.25 x 1.79 ~ 1.79 cm (14.19" x 9.15" x 0.70" ~ 0.70")
Weight (with Battery)
1.63 kg (3.59 lbs)
Weight (without Battery)
1.47 kg (3.24 lbs)
Antivirus
McAfee® 30 days free trial
Security
McAfee® BIOS Booting User Password Protection Trusted Platform Module (Firmware TPM)
MYASUS feature
System diagnosisBattery health chargingFan ProfileSplendidFunction key lockWiFi SmartConnectLink to MyASUSTaskFirstLive updateAI Noise Canceling

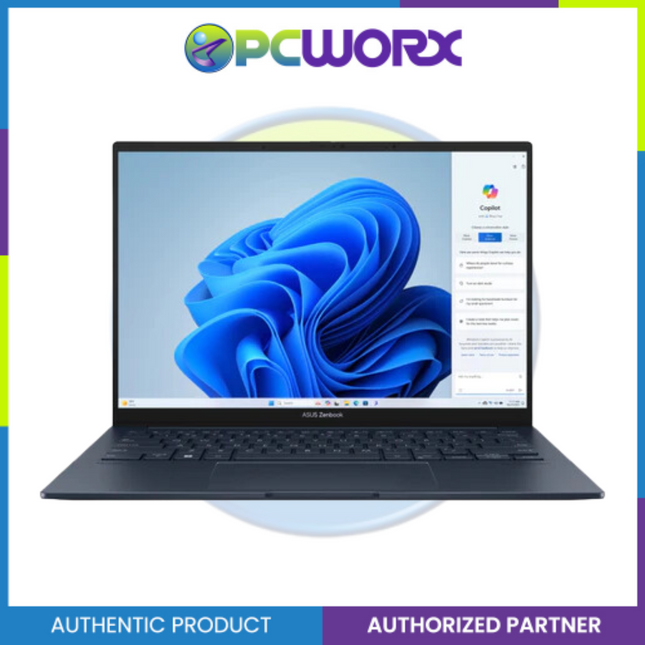

The ASUS Zenbook 14 OLED (UX3405MA-PP678WSM) is a sleek and powerful laptop designed for productivity and entertainment.
Key Features:
Processor: Intel Core Ultra 5 125H
Display: 14-inch 3K OLED 16:10 120Hz display
Memory: 16GB LPDDR5X RAM
Storage: 1TB PCIe 4.0 SSD
Graphics: Intel Arc Graphics
Operating System: Windows 11 Home
Design: Sleek and stylish design with a durable chassis
Battery Life: Long-lasting battery for all-day productivity
Connectivity: Wi-Fi 6E, Bluetooth 5.3, USB Type-C, HDMI
This laptop is suitable for students, professionals, and creative individuals who demand high performance and a visually stunning display. It offers a great balance of power, portability, and style. Additionally, it comes with Microsoft Office Home & Student 2021 and Microsoft 365 Basic, making it a great value for productivity
Specifications:
Operating System
Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office
Microsoft Office Home & Student 2021 + Microsoft 365 Basic
LCD cover-material
Aluminum
LCD cover-color
Ponder Blue
Top case-material
Aluminum
Top case-color
Ponder Blue
Keyboard color
Blue
Bottom case-material
Aluminum
Bottom case-color
Ponder Blue
Military grade
US MIL-STD 810H military-grade standard
Touch Panel
Non-touch screen
Panel Size
14.0-inch
Resolution
3K (2880 x 1800) OLED 16:10 aspect ratio
Response time
0.2ms response time
Refresh rate
120Hz refresh rate
Brightness
400nits
Peak Brightness
600nits HDR peak brightness
Color gamut
100% DCI-P3 color gamut
Gamut mapping
Yes
Contrast ratio
1,000,000:1
VESA CERTIFIED Display HDR
VESA CERTIFIED Display HDR True Black 600
Color depth
1.07 billion colors
Glare
Glossy display
Low blue light
70% less harmful blue light
TÜV Rheinland-certified
TÜV Rheinland-certified
SGS Eye Care Display
SGS Eye Care Display
Screen-to-body ratio
87%
Intel Athena Program
Intel® Evo™ Platform
Processor
Intel® Core™ Ultra 5 Processor 125H 1.2 GHz (18MB Cache, up to 4.5 GHz, 14 cores, 18 Threads); Intel® AI Boost NPU
Chipset
N/A
Discrete/Share
Share
Intergrated GPU
Intel® Arc™ Graphics
Disclaimer for Intel Iris Xe
*Intel® Arc™ Graphics is only available in models with Intel® Core™ Ultra 9-185H/ Ultra 7-155H/ Ultra 5-125H processors and at least 16 GB of dual-channel memory.
Graphic Memory
N/A
Neural Processor
Intel® AI Boost NPU
Expansion Slot(includes used)
N/A
On board memory
16GB LPDDR5X on board
Total System Memory
LPDDR5X 16GB
Disclaimer for memory
*Supports dual-channel memory.
Storage
1TB M.2 NVMe™ PCIe® 4.0 SSD
Front-facing camera
FHD camera with IR function to support Windows Hello ; With privacy shutter
on board Wireless
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)
Keyboard type
Backlit Chiclet Keyboard
Touchpad
Precision touchpad
FingerPrint
N/A
I/O ports
1x USB 3.2 Gen 1 Type-A
2x Thunderbolt™ 4 supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack
Audio
Smart Amp Technology
Built-in speaker
Built-in array microphone
harman/kardon (Premium)
Voice control
N/A
Power
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal
Battery
75WHrs, 2S2P, 4-cell Li-ion
Replaceable Battery
No
Dimension (W x H x D)
31.24 x 22.01 x 1.49 ~ 1.49 cm (12.30" x 8.67" x 0.59" ~ 0.59")
Weight (with Battery)
1.20 kg (2.65 lbs)
Weight (without Battery)
0.91 kg (2.01 lbs)
Antivirus
McAfee® 30 days free trial
Security
IR webcam with Windows Hello support
McAfee®
Trusted Platform Module (TPM) 2.0
MyASUS feature
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling
Built-in Apps
MyASUS
ScreenXpert
GlideX
Ecolabels & Compliances
EPEAT Gold
Energy star 8.0
RoHS
REACH
Reparability Index (for France)
8.3

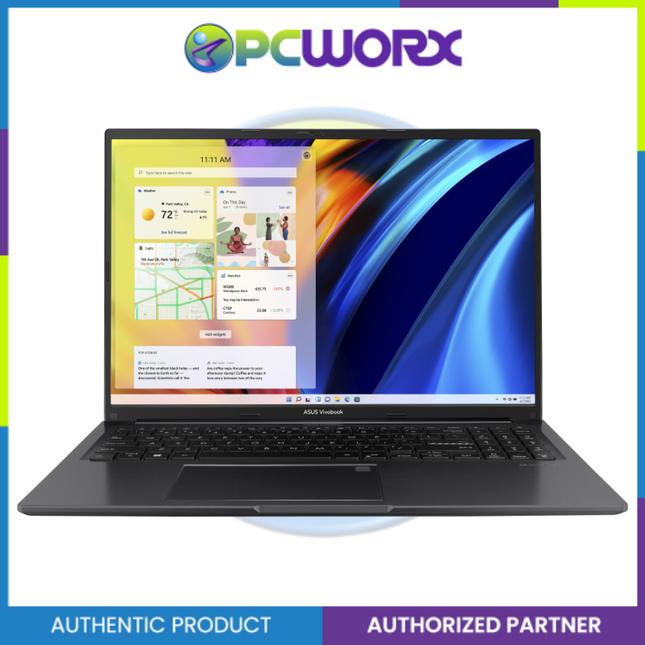

Specification:
Operating System
Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office
Microsoft Office Home & Student 2021
LCD cover-material
Plastic
LCD cover-color
Indie Black
Top case-material
Plastic
Top case-color
Indie Black
Keyboard color
Black
Bottom case-material
Plastic
Bottom case-color
Indie Black
Military grade
US MIL-STD 810H military-grade standard
Touch Panel
Non-touch screen
Panel Size
16.0-inch
Resolution
WUXGA (1920 x 1200) 16:10 aspect ratio
IPS-level
IPS-level Panel
Refresh rate
60Hz refresh rate
Brightness
300nits
Color gamut
45% NTSC color gamut
Glare
Anti-glare display
TÜV Rheinland-certified
TÜV Rheinland-certified
Screen-to-body ratio
86%
Processor
Intel® Core™ i5-1335U Processor 1.3 GHz (12MB Cache, up to 4.6 GHz, 10 cores, 12 Threads)
Chipset
N/A
Discrete/Share
Share
Intergrated GPU
Intel Iris Xᵉ Graphics
Disclaimer for Intel Iris Xe
*Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.
VRAM
N/A
How to upgrade memory
Upgradable; Need to remove bottom/top case
Expansion Slot(includes used)
1x DDR4 SO-DIMM slot1x M.2 2280 PCIe 3.0x4
On board memory
8GB DDR4 on board
DIMM Memory
8GB DDR4 SO-DIMM
Total System Memory
DDR4 16GB
Disclaimer for memory
*Dual-channel memory support requires at least one SO-DIMM module.
Storage
512GB M.2 NVMe™ PCIe® 3.0 SSD
Front-facing camera
720p HD camera ; With privacy shutter
Wireless
Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth® 5.1 Wireless Card (*Bluetooth® version may change with OS version different.)
Touchpad
Precision touchpad
FingerPrint
FingerPrint
I/O ports
1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-C support power delivery2x USB 3.2 Gen 1 Type-A1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-in
Audio
SonicMasterBuilt-in speakerBuilt-in array microphone
Voice control
with Cortana voice-recognition support
AC Adapter
ø4.5, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universal
Battery
42WHrs, 3S1P, 3-cell Li-ion
Replaceable Battery
No
Keyboard type
Backlit Chiclet Keyboard with Num-key
Dimension (WxHxD)
35.87 x 24.95 x 1.99 ~ 1.99 cm (14.12" x 9.82" x 0.78" ~ 0.78")
Weight (with Battery)
1.88 kg (4.14 lbs)
Weight (without Battery)
1.68 kg (3.70 lbs)
Antivirus
McAfee® 30 days free trial
Security
McAfee® 30 days free trialFingerprint sensor integrated with TouchpadMcAfee®BIOS Booting User Password ProtectionTrusted Platform Module (Firmware TPM)
MyASUS feature
System diagnosisBattery health chargingFan ProfileSplendidTru2LifeFunction key lockWiFi SmartConnectLink to MyASUSTaskFirstLive updateAI Noise Canceling
Built-in Apps
MyASUSScreenXpertGlideX
Reparability Index (for France)
6.1

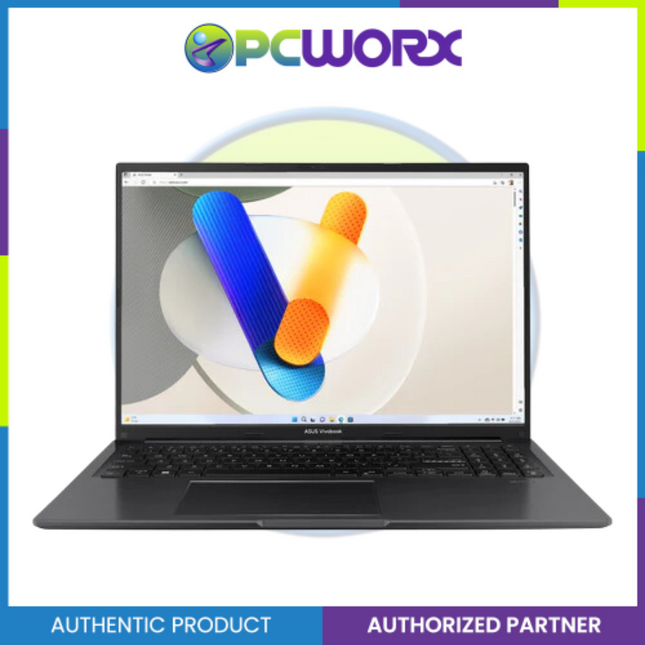

Asus X1605VA-MB737WS i5-13500H 16GB 512GB SSD 16" Shared Win11 H&S
Specification:
Color
Indie Black
Operating System
Windows 11 Home - ASUS recommends Windows 11 Pro for business
Processor
Intel® Core™ i5-13500H Processor 2.6 GHz (18MB Cache, up to 4.7 GHz, 12 cores, 16 Threads)
Graphics
Intel Iris Xᵉ Graphics (available for Intel® Core™ i5/i7 with dual channel memory)Intel UHD Graphics Intel Iris Xe Graphics *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.
Display
16.0-inch, WUXGA (1920 x 1200) 16:10 aspect ratio, IPS-level Panel, 60Hz refresh rate, 300nits, 45% NTSC color gamut, Anti-glare display, TÜV Rheinland-certified, (Screen-to-body ratio)86%
Memory
16GB DDR4 SO-DIMM*Dual-channel memory support requires at least one SO-DIMM module.
Storage
512GB M.2 NVMe™ PCIe® 3.0 SSD
Expansion Slots (includes used)
1x DDR4 SO-DIMM slot1x M.2 2280 PCIe 3.0x4
I/O Ports
1x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-C support power delivery2x USB 3.2 Gen 1 Type-A1x HDMI 1.41x 3.5mm Combo Audio Jack1x DC-in
Keyboard & Touchpad
Backlit Chiclet Keyboard with Num-key, 1.4mm Key-travel, Precision touchpad
Camera
720p HD camera, With privacy shutter
Audio
SonicMasterBuilt-in speakerBuilt-in array microphonewith Cortana voice-recognition support
Network and Communication
Wi-Fi 6E(802.11ax) (Dual band) 1*1 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)
Battery
42WHrs, 3S1P, 3-cell Li-ion
Power Supply
ø4.5, 65W AC Adapter, Output: 19V DC, 3.42A, 65W, Input: 100~240V AC 50/60Hz universal
Weight
1.88 kg (4.14 lbs)
Dimensions (W x D x H)
35.87 x 24.95 x 1.99 ~ 1.99 cm (14.12" x 9.82" x 0.78" ~ 0.78")
Built-in Apps
MyASUSScreenXpertGlideX
MyASUS Features
System diagnosisBattery health chargingFan ProfileSplendidFunction key lockWiFi SmartConnectLink to MyASUSTaskFirstLive updateAI Noise Canceling
ASUS Exclusive technology
ASUS Antimicrobial Guard Plus
Microsoft Office
Microsoft Office Home & Student 2021
Military Grade
US MIL-STD 810H military-grade standard
Ecolabels & Compliances
EPEAT SilverEnergy star 8.0RoHSREACH
Security
BIOS Booting User Password ProtectionTrusted Platform Module (Firmware TPM)McAfee®Fingerprint sensor integrated with Touchpad
