DDR5 5600 U-DIMM Memory Module(Global)
ADVANCING FORWARD
● Higher Frequencies● Built-in Power Management IC● Higher Capacities● On-Die Error Correcting Code● Works with the latest AMD and Intel platforms
Higher Frequencies
The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).
More Energy-Efficient
This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.
Capacity Doubled
This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.
Improved Stability
With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.
QuikTips: DDR5 vs DDR4 - Appearance
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.
QuikTips: DDR5 vs DDR4 - Chip Architecture
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.
QuikTips: DDR5 vs DDR4 - Performance
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.
QuikTips: DDR5 vs DDR4 - Comparison Table
This specification comparison table shows the advantages of DDR5.
Specifications:
Memory Type
DDR5
Form Factor
SO-DIMM
Capacity
16GB
Speeds
5600
CAS Latencies
46
Operating Voltage
1.1V
Operating temperature
0°C to 85°C
Specifications:
Capacity
1TB
Form factor
M.2 2280
NAND Flash
3D NAND
Controller
RTS5766DL
Dimensions (L x W x H)
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)
Weight
9g / 0.32oz (with heat sink)6.2g / 0.22oz (without heat sink)
Interface
PCIe Gen3 x4
Sequential Read (Max)
Up to 2,400MB/s*
Sequential Write (Max)
Up to 1,800MB/s*
4KB Random Read IOPS(Max)
Up to 200K*
4KB Random Write IOPS(Max)
Up to 150K*
Operating temperature
0°C - 70°C
Storage temperature
-40°C - 85°C
Shock resistance
1500G/0.5ms
MTBF
1,500,000 hours
Model: Adata AD-ALEG-710-512GCS Legend 710 512GB PCIe GEN3 x4 M.2 NVME 2280 SSD
Capacity
512GB
Form factor
M.2 2280
NAND Flash
3D NAND
Controller
RTS5766DL
Dimensions (L x W x H)
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)
Weight
9g / 0.32oz (with heat sink)6.2g / 0.22oz (without heat sink)
Interface
PCIe Gen3 x4
Sequential Read (Max)
Up to 2,400MB/s*
Sequential Write (Max)
Up to 1,800MB/s*
4KB Random Read IOPS(Max)
Up to 200K*
4KB Random Write IOPS(Max)
Up to 150K*
Operating temperature
0°C - 70°C
Storage temperature
-40°C - 85°C
Shock resistance
1500G/0.5ms
MTBF
1,500,000 hours
Terabytes Written (TBW)
520TB**
SPECIFICATIONSCapacity: 1TBForm factor: M.2 2280NAND Flash: 3D NANDController: SMI SM2264Dimensions: (L x W x H) 80.6 x 23.2 x 10.65mm / 3.17 x 0.91 x 0.42inch(with heat sink)80 x 22 x 3.3mm / 3.15 x 0.87 x 0.13inch (without heat sink)Weight: 36.6g /1.3oz (with heat sink)7.3g /0.26oz (without heat sink)Interface: PCIe Gen4 x4Sequential Read (Max): Up to 7,400MB/s (PC/Laptop)*, Up to 6,400MB/s (PS5)Sequential Write (Max): Up to 6,800MB/s*4KB Random Read IOPS(Max): Up to 750K*4KB Random Write IOPS(Max): Up to 630K*Operating temperature: 0°C - 70°CStorage temperature: -40°C-85°CShock resistance: 1,500G/0.5msMTBF: 1,500,000 hoursTerabytes Written (TBW): 3,120TB**_____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)

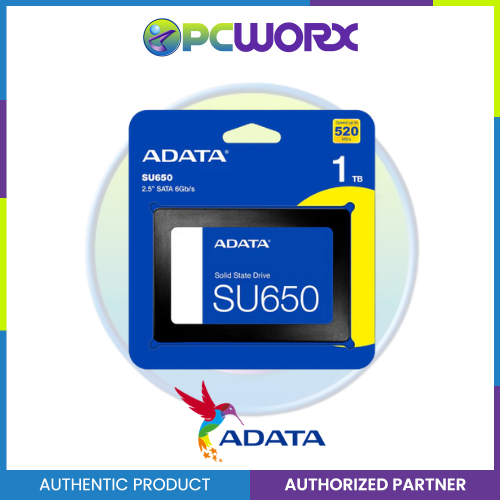

Digital Storage Capacity
1TB
Hard Disk Interface
Solid State
Connectivity Technology
SATA
Brand
ADATA
Special Feature
Backward Compatible
Hard Disk Form Factor
2.5 Inches
Hard Disk Description
Solid State Drive
Compatible Devices
Desktop
Installation Type
External Hard Drive
Product SpecificationsBrand: AdataModel: SU630Form Factor: 2.5"NAND Flash: 3D QLCDimensions (L x W x H): 100.45 x 69.85 x 7mmWeight: 47.5gInterface: SATA 6Gb/sSequential R/W performance (max): Up to 520/450MB/s* Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.Operating temperature: 0°C - 70°CStorage temperature: -40°C - 85°CShock resistance: 1500G/0.5msMTBF: 1,500,000 hours
Product SpecificationsBrand: AdataModel: SU630Form Factor: 2.5"NAND Flash: 3D QLCDimensions (L x W x H): 100.45 x 69.85 x 7mmWeight: 47.5gInterface: SATA 6Gb/sSequential R/W performance (max): Up to 520/450MB/s* Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.Operating temperature: 0°C - 70°CStorage temperature: -40°C - 85°CShock resistance: 1500G/0.5msMTBF: 1,500,000 hours
Product SpecificationsBrand: AdataModel: SU630Form Factor: 2.5"NAND Flash: 3D QLCDimensions (L x W x H): 100.45 x 69.85 x 7mmWeight: 47.5gInterface: SATA 6Gb/sSequential R/W performance (max): Up to 520/450MB/s* Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.Operating temperature: 0°C - 70°CStorage temperature: -40°C - 85°CShock resistance: 1500G/0.5msMTBF: 1,500,000 hours

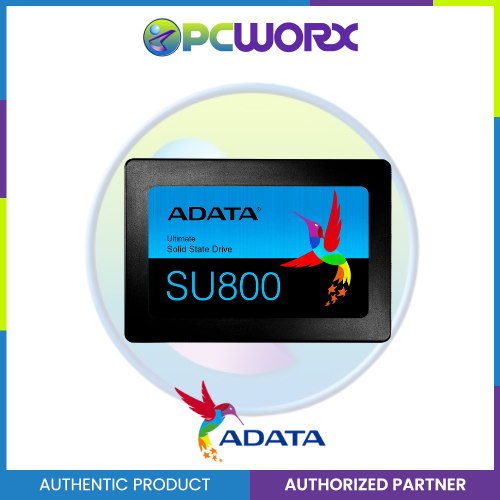

Capacity: 256GB
Form Factor: 2.5″
NAND Flash: 3D TLC
Controller: SM2258
Dimensions (L x W x H): 100.45 x 69.85 x 7mm / 3.95 x 2.75 x 0.27inch
Weight: 59.5g / 2.1oz
Interface: SATA 6Gb/s
Sequential Read (Max): Up to 560MB/s
Sequential Write (Max): Up to 520MB/s
4KB Random Read IOPS(Max): Up to 85K
4KB Random Write IOPS(Max): Up to 85K
Operating Temperature: 0°C – 70°C
Storage Temperature: -40°C – 85°C
Shock Resistance: 1500G / 0.5ms
MTBF: 2,000,000 hours
Terabytes Written (TBW)(Max Capacity): 800TB
