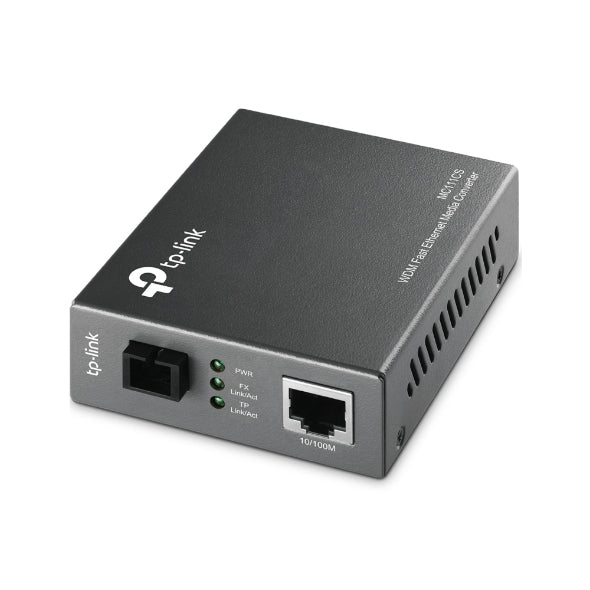

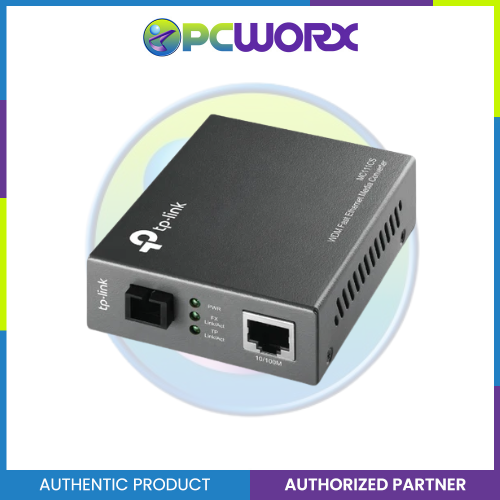

TP-Link MC111CS 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional
TP-Link MC111CS 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional
Regular price
₱1,144.60 PHP
Regular price
₱1,144.60 PHP
Sale price
₱1,144.60 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| MEDIA CONVERTER & MODULE - MC111CS | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u |
| Basic Function | Adopts WDM technology Half/Full-Duplex transfer mode for FX port minimize the loss caused by link failure timely Extends fiber distance up to 20km (12.5 miles) |
| Ports | 1 x 100M SC/UPC port 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1550nm Tx/1310nm Rx |
| WDM TX | 1550nm |
| WDM RX | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in. (95 x 73 x 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 2.49W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC111CS • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
