Gigabyte GV-N3050WF2OC-6GD RTX3050 WindForce OC 6GB GDDR6 DP*1/HDMI*2
KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 6GB GDDR6 96-bit memory interface
WINDFORCE cooling system
CORE CLOCK
1477 MHz (Reference Card: 1470 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

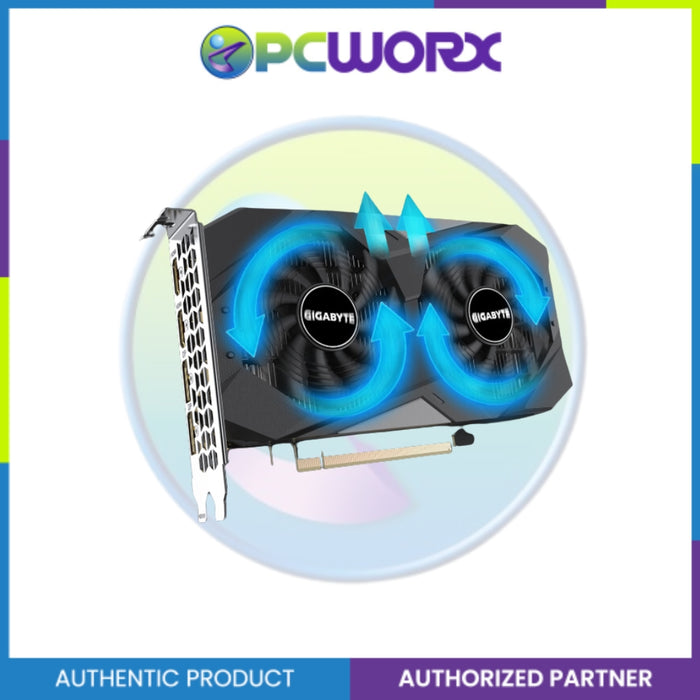

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SPECIFICATIONS:
|
Graphics Processing:
|
GeForce RTX™ 3050
|
|
Core Clock:
|
1477 MHz (Reference Card: 1470 MHz)
|
|
CUDA® Cores:
|
2304
|
|
Memory Clock:
|
14000 MHz
|
|
Memory Size:
|
6 GB
|
|
Memory Type:
|
GDDR6
|
|
Memory Bus:
|
96 bit
|
|
Card Bus:
|
PCI-E 4.0
|
|
Digital max resolution:
|
7680x4320
|
|
Multi-view:
|
4
|
|
Card size:
|
L=191 W=111 H=36 mm
|
|
PCB Form:
|
ATX
|
|
DirectX:
|
12 Ultimate
|
|
OpenGL:
|
4.6
|
|
Recommended PSU:
|
300W
|
|
Power Connectors:
|
N/A
|
|
Output:
|
DP1.4a*2
|
| HDMI 2.1*2 | |
|
Accessories:
|
Quick guide
|
