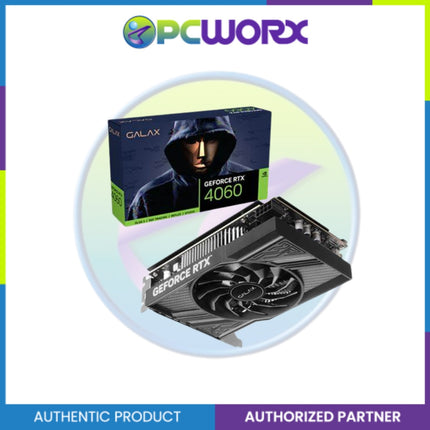

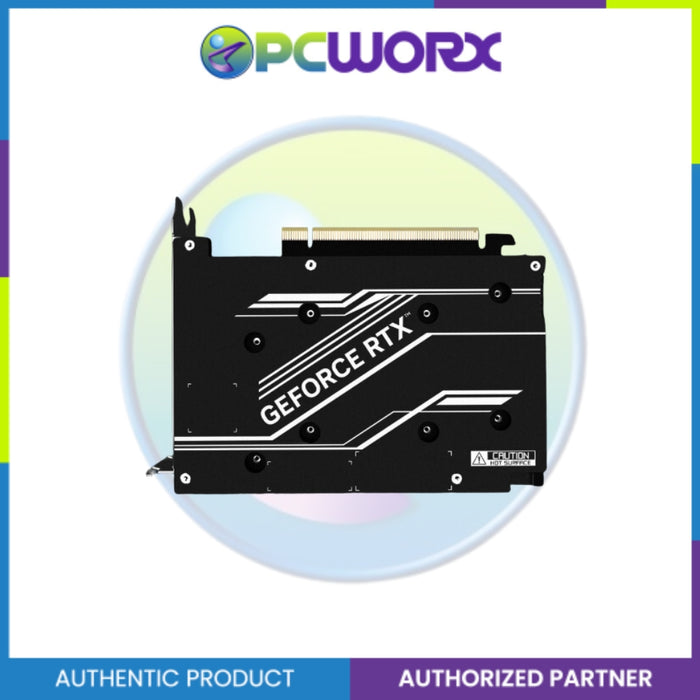

Galax 46NSL8MD8ZOC Galax RTX4060 1 Click OC 1x 8GB GDDR6 128Bit Graphics Card

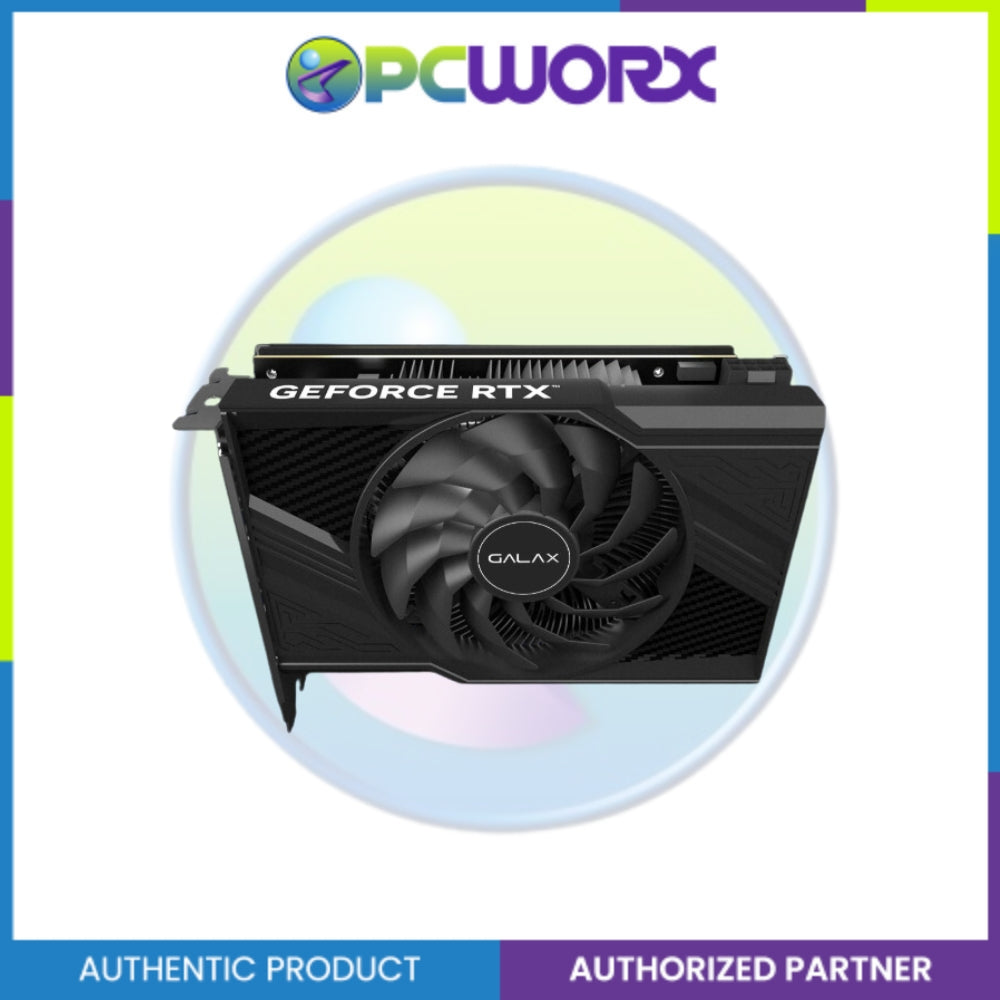

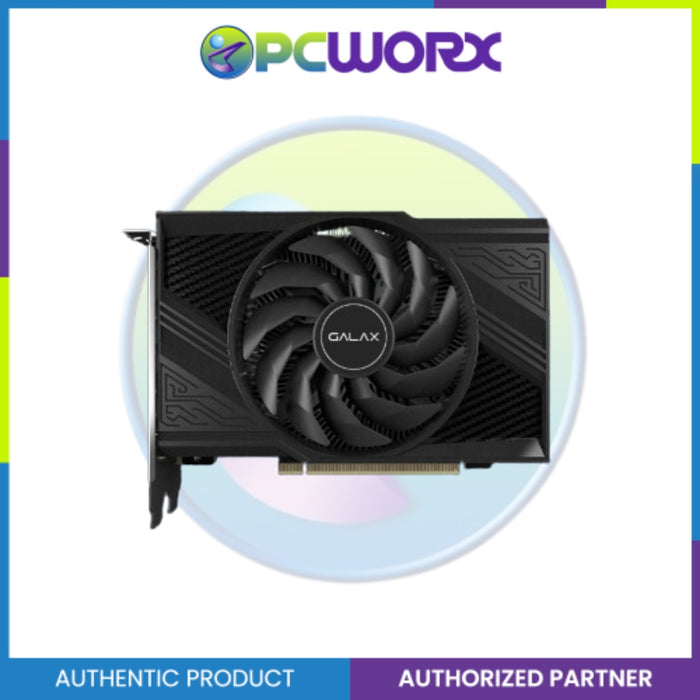

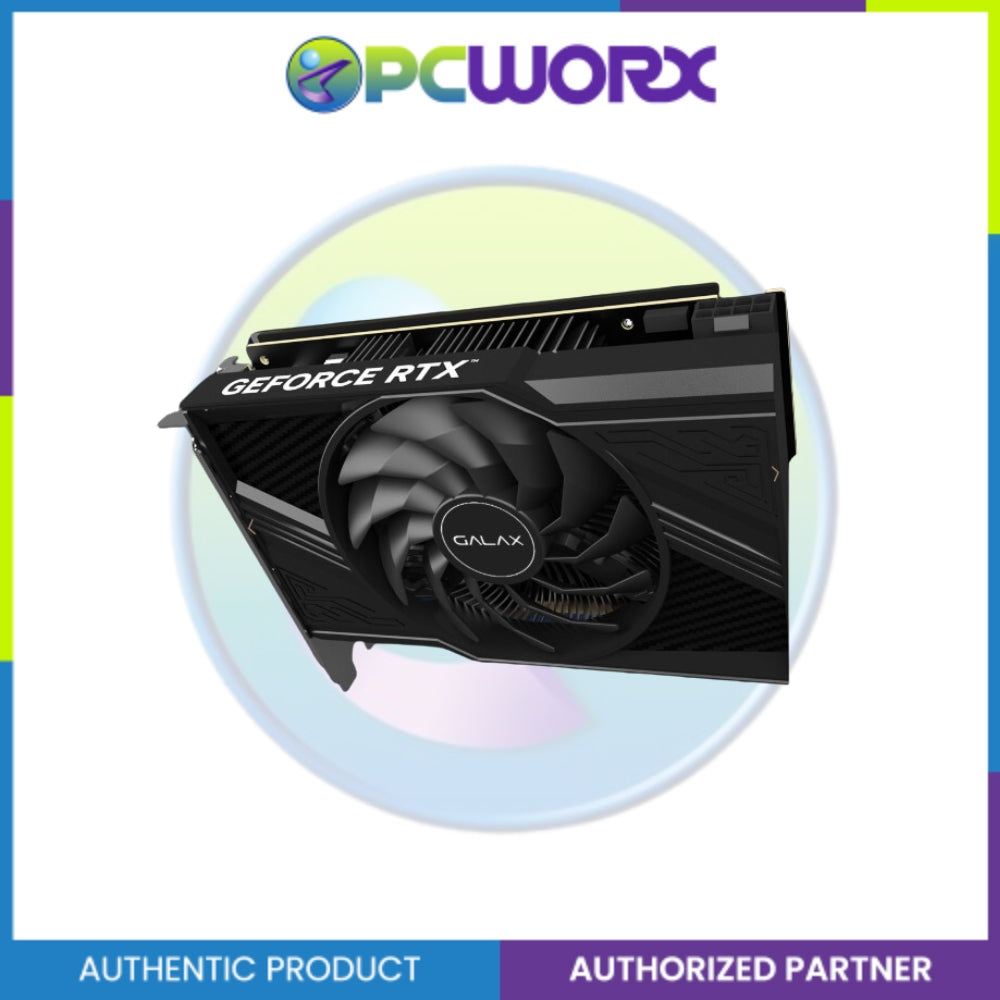

Rocking the ultra-compact single WINGS fan, dual-slot cooler design plus a single PCI-E 8-pin power connector, the 157mm GALAX GeForce RTX 4060 1-Click OC which features a 17Gbps 8GB 128-bit GDDR6 memory, offers a seamless upgrade for those who favour of an ITX build. As the graphics card is equipped with the advanced cooling system that includes GALAX exclusive WINGS fan blades, it keeps your small form factor PCs running at optimal temperature under load while uplifting your gaming experience with exceptional performance at the same time. Supported by Xtreme Tuner App for mobile 1-Click OC, GPU info on-screen display, ARGB customization and advanced OC settings.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Microsoft DirectX® 12 Ultimate
- GDDR6 Graphics Memory
- NVIDIA DLSS
- NVIDIA® GeForce Experience™
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready Drivers
- Vulkan RT API, OpenGL 4.6
- DisplayPort 1.4a, HDMI 2.1
- HDCP 2.3
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
- Circuit board connected to the motherboard of a data processing machine through connections.
- PCI or PCI-Express with Video Graphics Adapter (VGA) function.
SPECIFICATIONS
GPU Engine Specs: | |
CUDA Cores: | 3072 |
Boost Clock: 2460MHz | 2460MHz |
1-Click OC Clock: | 2475MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC) |
Memory Specs: | |
Memory Speed: 17 Gbps | 17 Gbps |
Standard Memory Config: | 8GB |
Memory Interface Width | 128-bit GDDR6 |
Memory Bandwidth: | 272 GB/sec |
Feature Support: | PCI-E 4.0 |
Windows: | 10/11 64-bit |
Fan Feature: | 1 * 92mm |
WINGS with Fan stop @ Idle (All Fans) | |

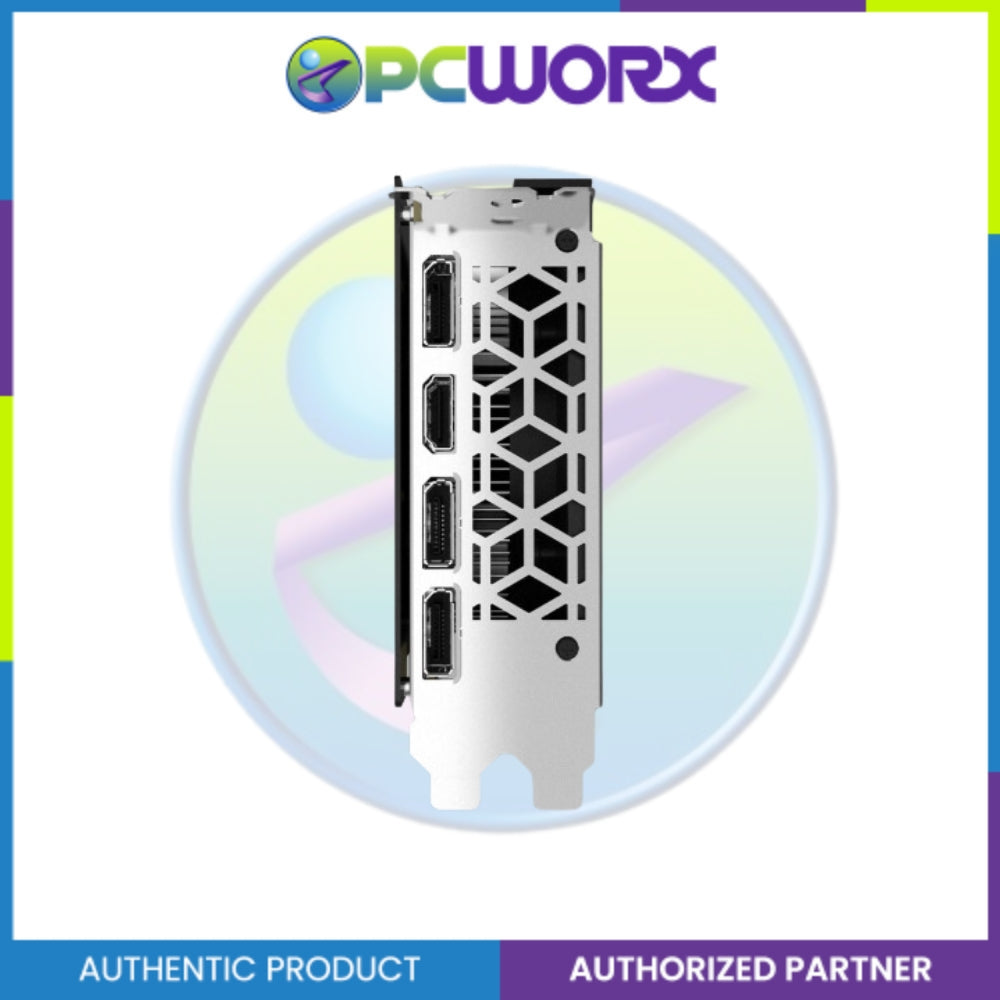

Display Support: | DisplayPort 1.4a x 3, HDMI 2.1a x 1 |
Dimensions: | Dimensions(with Bracket): 171 * 126 * 41mm |
Dimensions(without Bracket): 157 * 111 * 41mm |
