- AI Performance: 578 AI TOPS
-
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
-
3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: Boost Clock 2550 MHz (OC Mode)/ 2520 MHz (Default Mode)
-
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
-
A 2.56-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
-
0dB technology lets you enjoy light gaming in relative silence
-
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
-
Auto-Extreme precision automated manufacturing for higher reliability
2x Fans. 2x Fun.

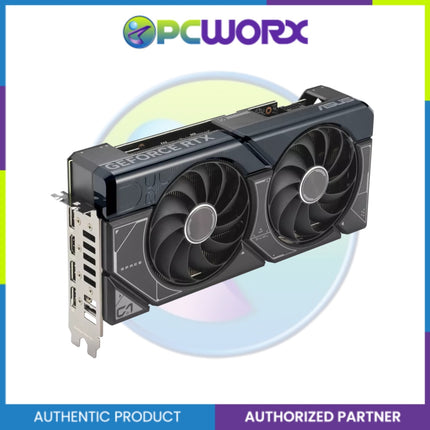

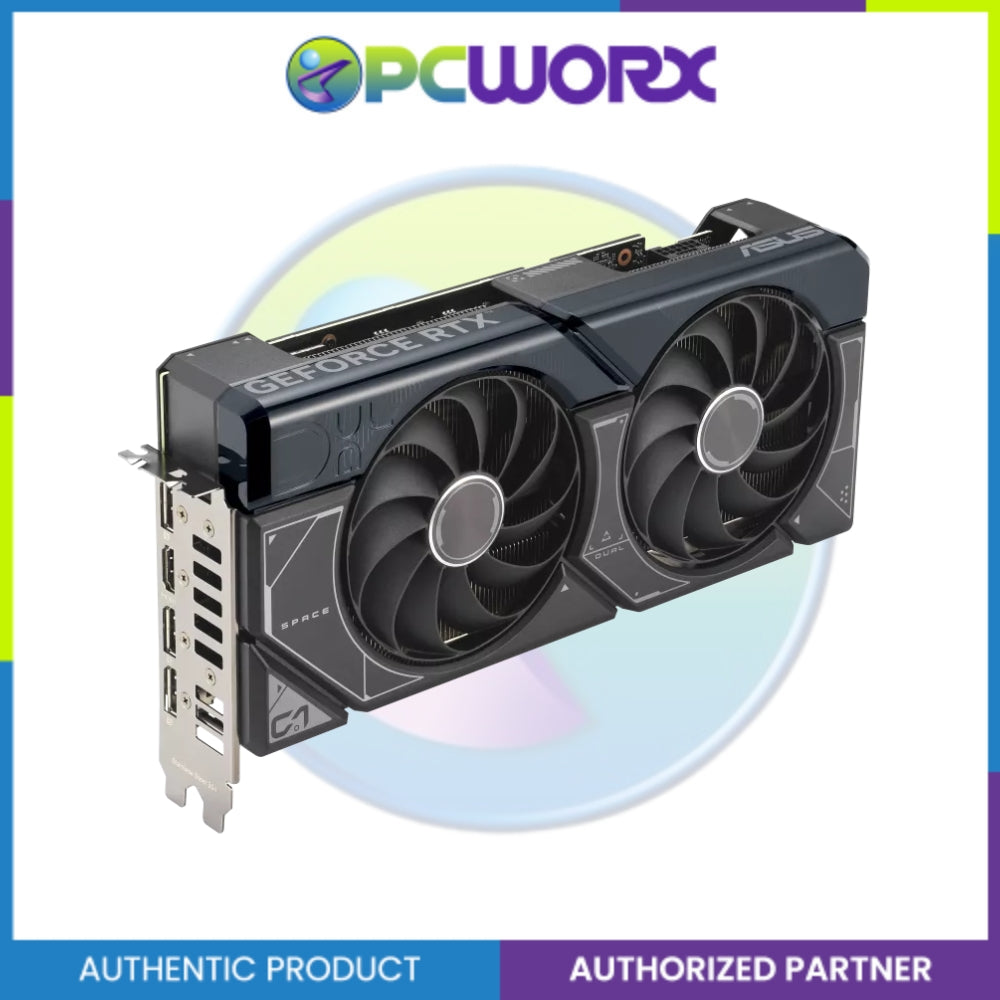

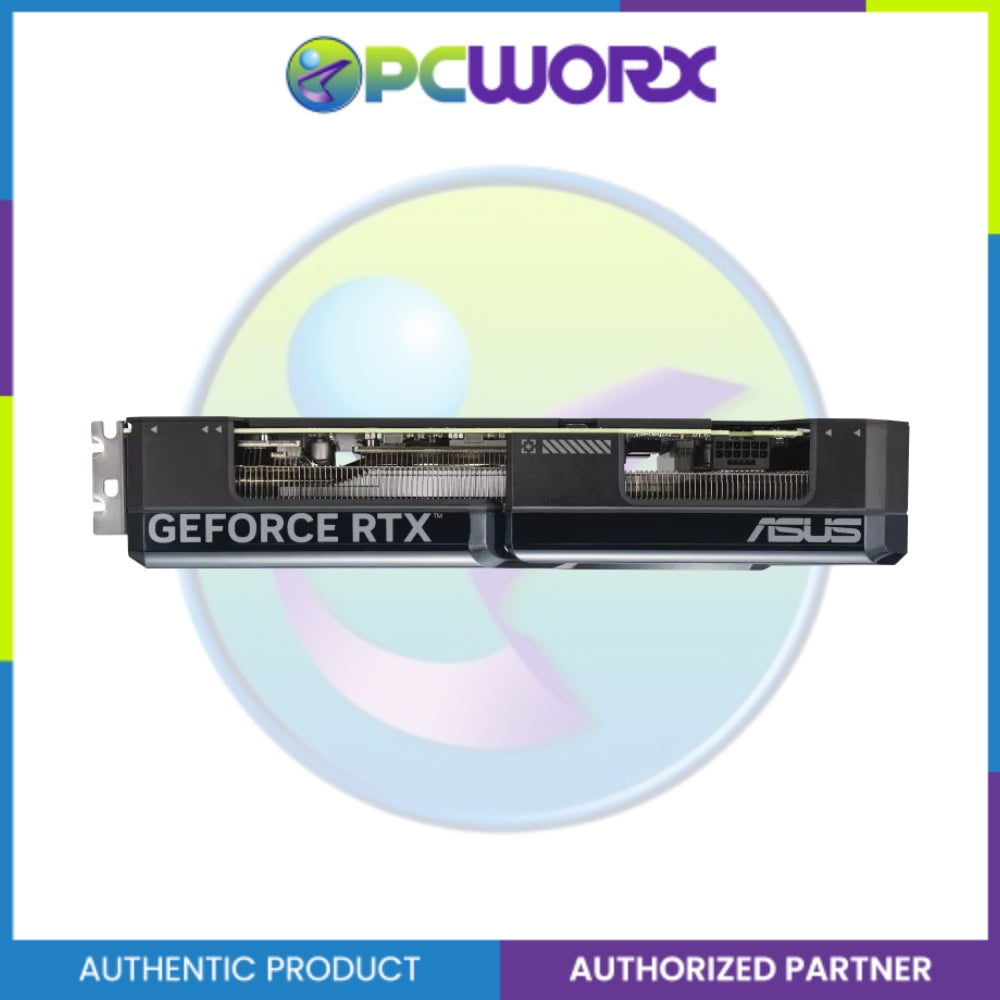

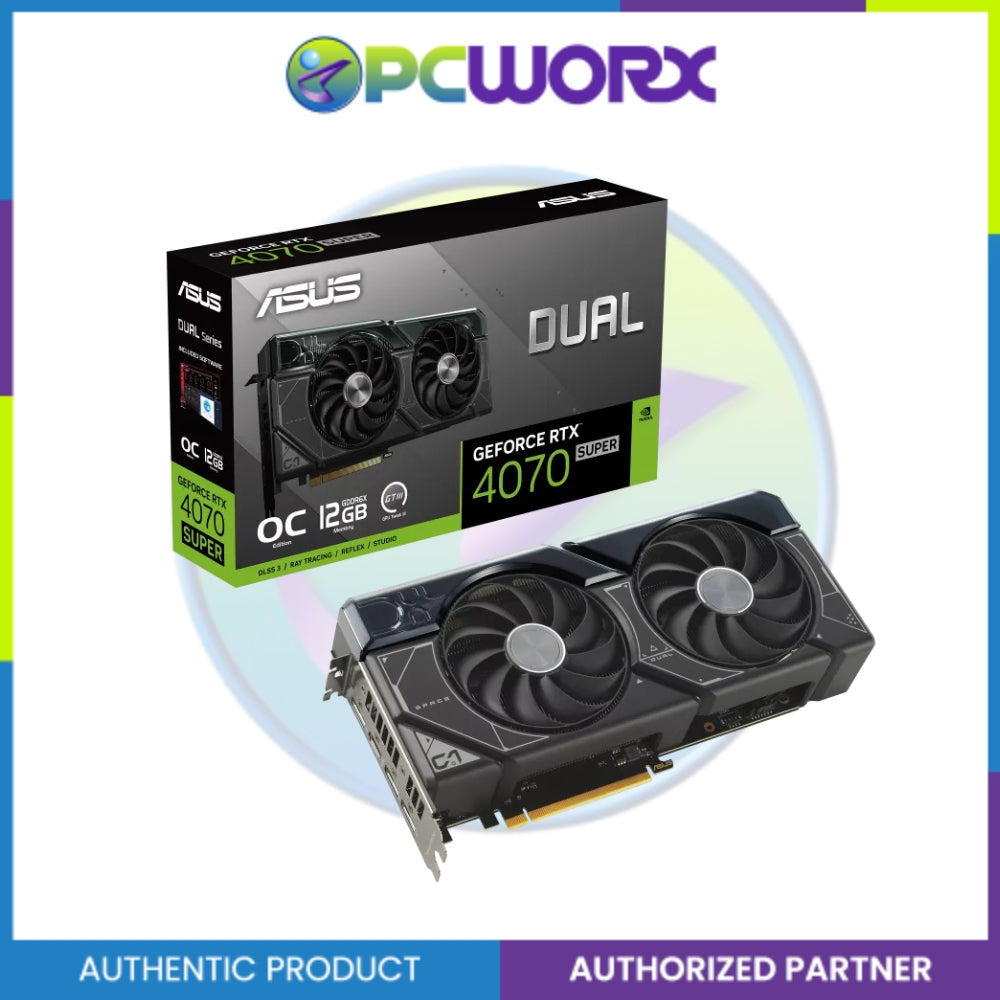

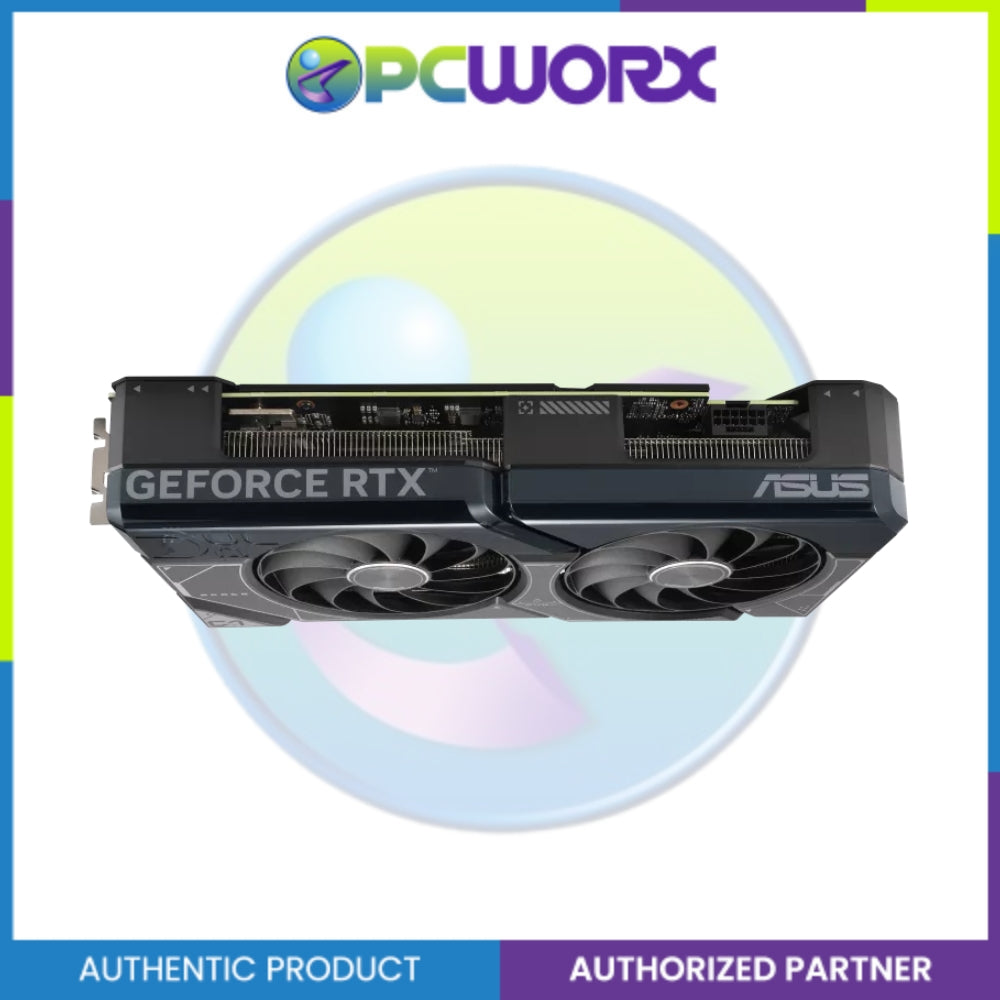

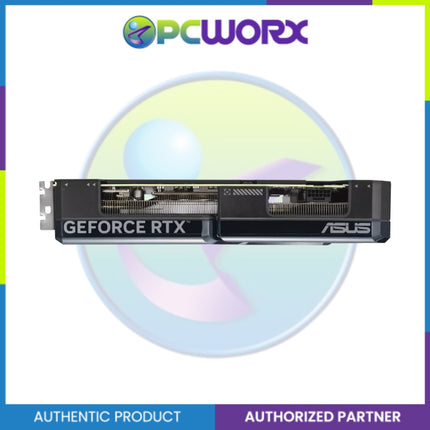

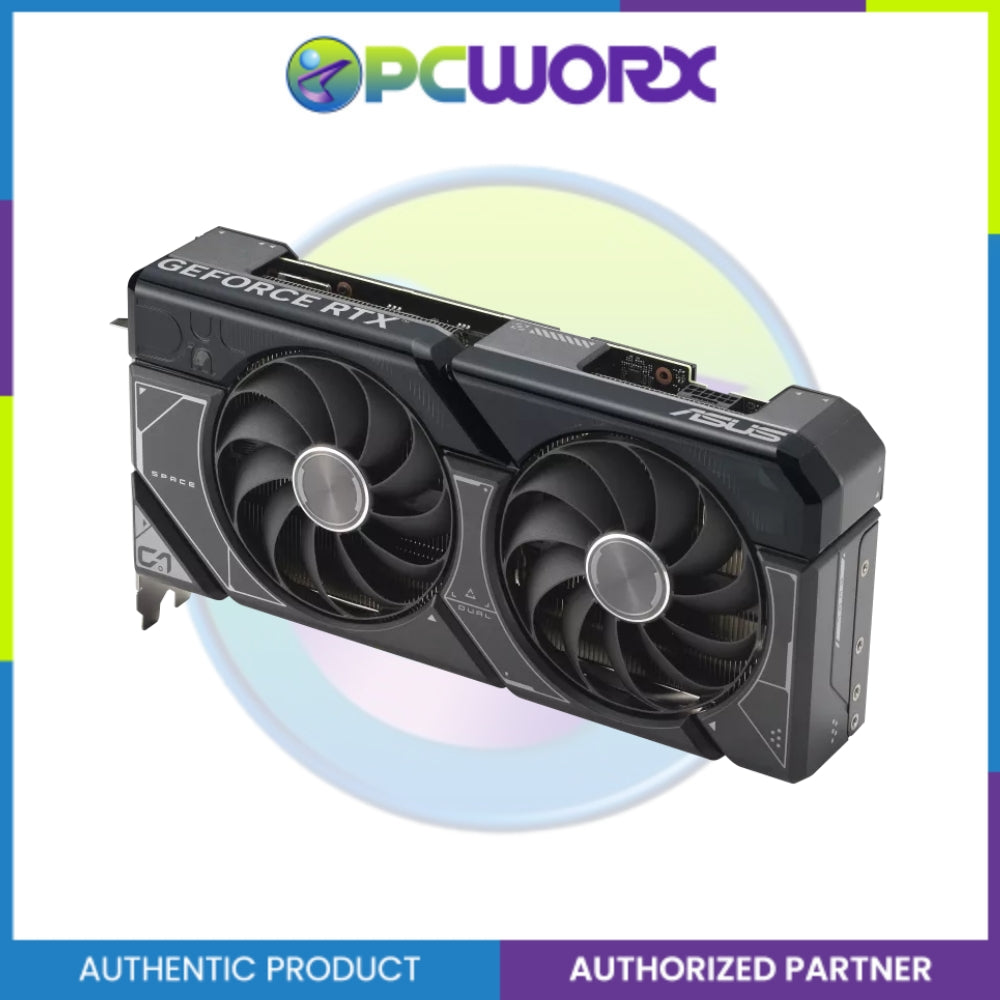

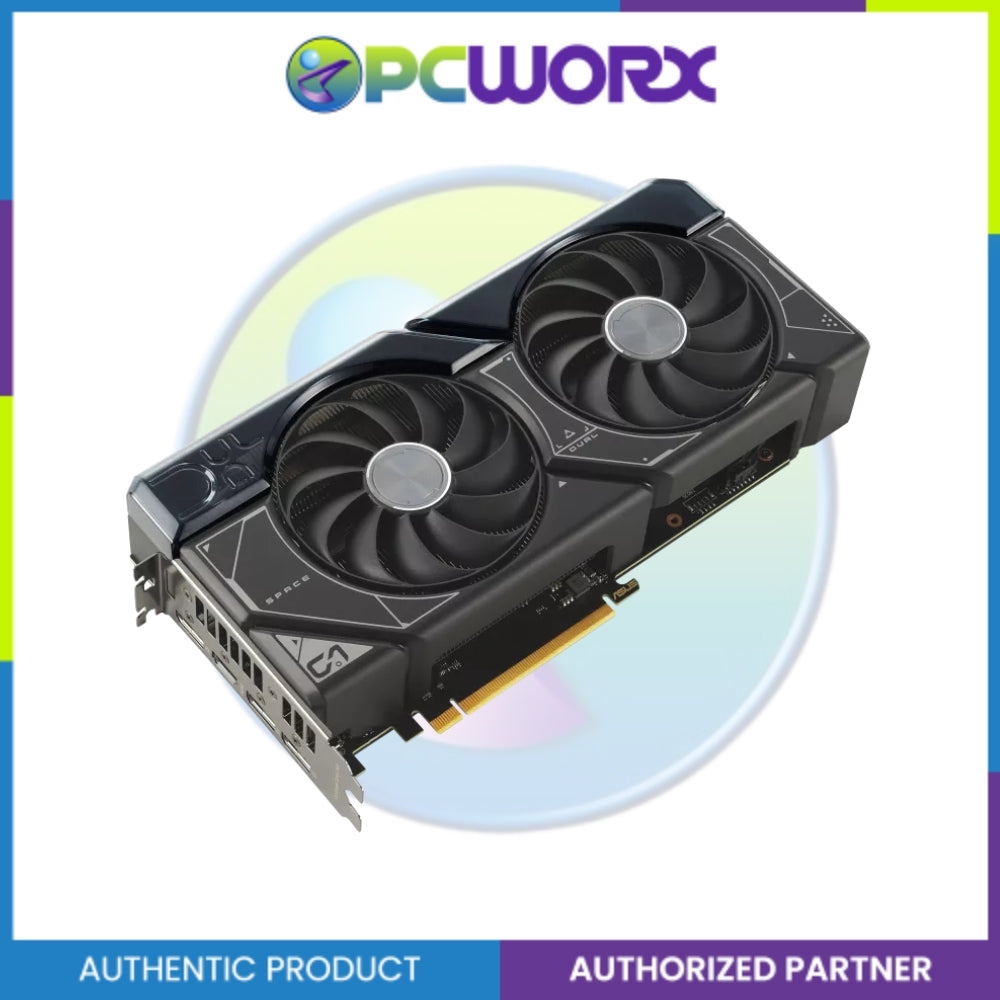

ASUS Dual GeForce RTX™ 4070 SUPER fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 26.7 cm long, 2.56-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, stronger

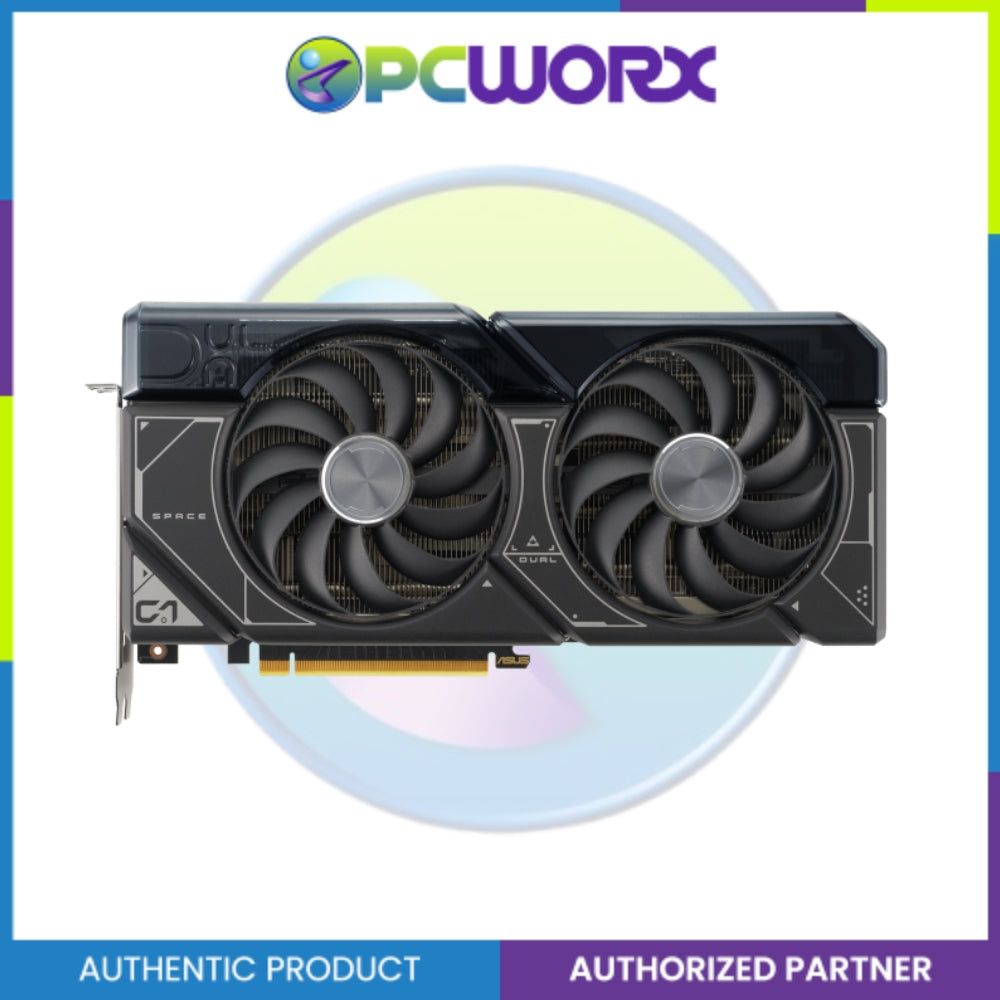

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
SPECIFICATIONS:
| Model: |
DUAL-RTX4070S-O12G |
| Graphic Engine: |
NVIDIA® GeForce RTX™ 4070 SUPER |
| AI Performance: |
578 |
| Bus Standard: |
PCI Express 4.0 |
| OpenGL: |
OpenGL®4.6 |
| Video Memory: |
12GB GDDR6X |
| Engine Clock: |
OC mode: 2550 MHz (Boost Clock) |
|
Default mode: 2520 MHz (Boost Clock) |
| CUDA Core: |
7168 |
| Memory Speed: |
21 Gbps |
| Memory Interface: |
192-bit |
| Resolution: |
Digital Max Resolution 7680 x 4320 |

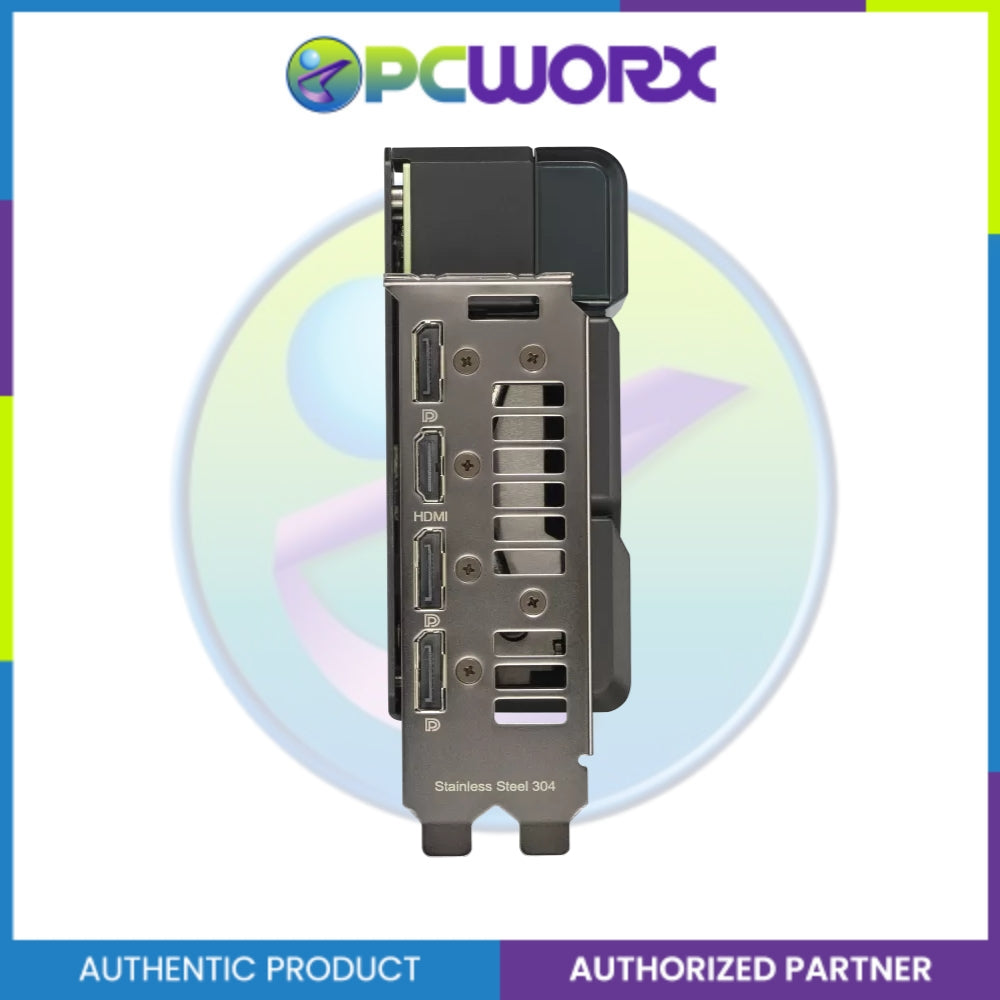

| Interface: |
Yes x 1 (Native HDMI 2.1a) |
|
Yes x 3 (Native DisplayPort 1.4a) |
|
HDCP Support Yes (2.3) |
| Maximum Display Support: |
4 |
| NVlink/ Crossfire Support: |
No |
| Accessories: |
1 x Collection Card |
|
1 x Speedsetup Manual |
|
1 x Thank you card |
|
1 x Adapter cable (1 to 2) |
| Software: |
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions: |
267.01 x 133.94 x 51.13 mm |
|
10.51 x 5.27 x 2.01 inch |
| Recommended PSU: |
750W |
| Power Connectors: |
1 x 16-pin |
| Recommended PSU: |
750W |
| Power Connectors: |
1 x 16-pin |
| Slot: |
2.56 Slot |
