OC200
Omada Hardware Controller
Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
HARDWARE FEATURES
Interface
2 × 10/100Mbps Ethernet Port1 × USB 2.0 Port for configuration backup1 × Micro USB Port for power
Power Supply
802.3af/at PoE or Micro USB(DC 5V/1A)
Dimensions
3.9 × 3.9 × 1.0in.(100 × 98 × 25mm)
MANAGEMENT
Omada App
Yes
Centralized Management
• Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers• Up to 1,000 ClientsNote: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200
Cloud Access
Yes
L3 Management
Yes
Multi-site Management
Yes
Management Features
• Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• Omada Hardware Controller OC200• Quick Installation Guide• Ethernet Cable
System Requirements
Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
Tapo P100 Mini Smart Wi-Fi Socket
Remote Control – Instantly turn connected devices on/off wherever you are through the Tapo app
Schedule – Preset a schedule to automatically manage devices
Timer - Create countdown timer lists for connected electronics
Voice Control – Manage your smart plug with voice commands via Amazon Alexa or the Google Assistant
Away Mode – Simulates someone being at home by automatically turning the connected devices on/off randomly
Compact Design - Mini-sized to avoid blocking adjacent sockets
Easy Setup and Use - No hub required, set up quickly and manage easily via the free app
NETWORK
Protocol:
IEEE 802.11b/g/n, Bluetooth 4.2 (for onboarding only)
System Requirements:
Android 4.3 or higher, iOS 9.0 or higher
Wireless Type:
2.4 GHz
GENERAL
Dimensions (H X W X D):
2.2* 2.2* 1.3 in (55*55*32.5 mm)
Materia:
PC
Material:
PC (V-0, UL 94), Flame-retardant
Buttons:
Power Button
Status LED
Power Requirements:
AC 100-240V~50/60 Hz 10 A
WORKING STATUS
Input
AC 100-240V~, 50/60 Hz
Rated
220-240 V~, 50/60 Hz
Maximum Load
2400W, 10A
COMPATIBILITY
Third-Party Platform:
• Alexa
• Google Assistant
• Samsung SmartThings
OTHERS
Package Content:
Mini Smart Wi-Fi Socket Tapo P100
Quick Start Guide
Certifications:
FCC, RoHS, ETL
Environment:
Operating Temperature: 0 ºC– 40 ºC (32°F–104°F)
Operating Humidity: 10%–90%RH, Non-condensing
Environment:
Operating Temperature: 0 ºC–35 ºC
Operating Humidity: 10%~90%RH, Non-condensing
• Indoor AC1200 (2×2)• Dual Band 2.4GHz + 5Ghz ( 300Mbps + 867Mbps)• Up to 1200Mbps• 3 GE LAN + 1 GE WAN• Support WPA3• 5dBi External Antenna• WPS/Mesh Button• Reset Button• Power ADP (12V/1A)
Tapo Indoor/Outdoor Wi-Fi Home Security Camera
Indoor & Outdoor 24/7 Monitoring - Place it in your living room, bedroom, baby's room, backyard, or front door for round-the-clock coverage and IP66 weatherproof construction: day, night, rain, or shine
2K QHD During the Day & Night - Upgrade home security to 2K QHD clarity, surpassing 1080p for impeccable detail. The starlight sensor captures vibrant high-definition moments even in low light.
Built-In Dual Spotlights - In low-light conditions, the dual spotlights provide vivid full-color night vision, capturing every detail.
Invisible IR Mode - To avoid distractions caused by the red IR LEDs for your kids, or pets, switch to the invisible IR mode for uninterrupted night monitoring without the red IR indicator.
Effortless Installation - Effortless setup with C120's sturdy magnetic base and a generous 9.8 ft. power cord for flexible placement.
Crisp Two-Way Audio - Engage in clear conversations with your loved little ones, guests, and delivery drivers through the high-quality microphone and speakers.
Secured Local & Cloud Storage - Save up to 512 GB on a microSD card or choose Tapo Care Cloud for a 30-day video history and more benefits, including activity notifications with snapshots.
Free AI Detection - Smart AI tech detects and identifies people, pets, and vehicles, sending only relevant notifications, minimizing unnecessary alerts
Indoor/Outdoor Versatility. Almost anywhere
Exquisite Design
Exquisite design suitable for diversified indoor scenarios.
IP66 Weatherproof
Mounted even in extreme external weather conditions to keep an eye on your home.
Secure Installation with Weatherproof
Mounts securely in your desired placement under different weather condition with IP66 Weatherproofing.
Magnetic Mount for Easy Installation
A magnetic mount and a long 9.8ft. power cord provides flexible mounting options.
Free Smart AI Detection
With smart AI detection, choose to detect vehicles, pets, people, or all three.
IR Toggle (Red Lights) For Night Vision
IR LED On
The IR light assists in providing night vision visibility up to 30 ft. It is also a great deterrent to let passersby know that your home is being monitored.
Invisible IR On
If the red IR LEDs are a distraction, you can switch to invisible IR mode to monitor during the night without having the red IR indicator. Ideal for indoor scenarios with children and pets.
Dual-Spotlights for Improved Discovery
Better Visibility in Any Condition
With dual-spotlights the Tapo C120 provides a better viewing experience especially in low light conditions.
Light and Custom Sound Triggers
The camera can be set to have the spotlights turn on when motion is detected. You can also customize sound to play in the event of a motion trigger.
Specification
CAMERA
Image Sensor
1/2.9” Progressive Scan CMOS Starlight Sensor
Lens
Focal Length: 3.17mmAperture: 1.65Field of View: 120°(Diagonal), 103°(Horizontal), 55°(Vertical)
Motion Range
/
Night Vision
850 nm IR LED (30 ft / 9 m)940 nm IR LED (30 ft / 9 m)Full-Color Night Vision
Lighting
/
Interface & Button
1× RESET Button1× MicroSD Card Slot (Up to 512 GB)
Hub Compatibility
/
Resolution
2K QHD 4MP (2560 * 1440 px)
LENS
Focal Length
3.17mm
Aperture
1.65
FOV
120°(Diagonal), 103°(Horizontal), 55°(Vertical)
HUB
Device Compatibility
/
Connection Capacity
/
Interface & Button
/
VIDEO & AUDIO
Maximum Resolution
2K QHD 4MP (2560 × 1440 px)
Frame Rate
20 fps (Self-adaptive according brightness)
Digital Zoom
12x
Video Compression
H.264
Live View
Yes
Image Enhancement
3D DNRWDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
96dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
Sensor
/
AI Detection
Motion DetectionPerson DetectionLine-Crossing DetectionBabyCry DetectionVehicle DetectionPet DetectionMeow DetectionBark DetectionGlass-Breaking Detection
Activity Zones
Yes
Output Notification
System NotificationSystem Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication
Two-Way Audio
Audio Input & Output:
Microphone and Speaker
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol
2.4 GHz Wi-Fi, 802.11b/g/n
Wireless Rate
11 Mbps (802.11 b)54 Mbps (802.11 g)72.2Mbps (802.11n)
Ethernet Port
/
Wireless Security
WPA, WPA2-PSK
RTSP
/
ONVIF
/
Security
128 Bit AES Encryption with SSL/TLS
Frequency
2.4 GHz Wi-Fi
SECURITY
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
POWER
Power Source
5V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
5.0 V, 1.0 A (DC Power)
ACTIVITY NOTIFICATIONS
Input Trigger
Person/Pet/Vehicle/Motion Detection
Output Notification
Push Notification
ENVIRONMENT
Operating Temperature
0℃~40 ℃ (32 ℉~104℉)
Storage Temperature
-20℃~60 ℃ (-4 ℉~140℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
0%~90% non-condensing
PACKAGE CONTENTS
Package Contents
Tapo C120 Camera ×1Power Adapter ×13m Type-C Wire ×1Mounting Anchors ×4Mounting Screws ×4Cable Organizer ×2Mounting Template ×1Iron Camera Base ×13M Adhesive ×1Quick Start Guide ×1
HARDWARE
Button
Reset Button
Indicator LED
System LED
Adapter Input
100-240V, AC, 50/60 Hz, 0.3 A
Adapter Output
5.0 V / 1.0 A
Product Dimensions (W x D x H)
2.65*2.26*1.74 in67.4*57.4*64 mm
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
/
Operating Temperature
-20℃~45℃
Storage Temperature
-20℃~60℃
Operating Humidity
10%~90% RH
Storage Humidity
5%~90% RH, Non-condensing
Charging Temperature
/
Dimensions
2.65 × 2.26 × 1.74 in (67.4 × 57.4 × 44.1mm)
Package Contents
Tapo C120 CameraUSB Power AdapterQuick Start GuideMounting ScrewsMounting TemplateMetal Plate3M AdhesiveMounting Anchors 3-Meter Type-C WireCable OrganizersDetaching Pin
Device Interfaces
Wireless N 300Four 10/100 LAN ports10/100 WAN (Internet) port
Antenna
Two 5 dBi external antenna
Standards
IEEE 802.11n/g/bIEEE 802.3IEEE 802.3uIEEE 802.3x
LEDs
Power LEDInternet LED
Minimum System Requirements
Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higherMicrosoft Internet Explorer 7, Firefox 12.0, Chrome 20.0,Safari 4.0, or other Java-enabled browserNetwork interface cardCable or DSL modemSubscription with an Internet Service Provider
Security
WPA & WPA2 (Wi-Fi Protected Access)Wi-Fi Protected Setup (WPS) - PIN
Advanced Features
Web setup wizardUPnP supportActive firewall - Network Address Translation (NAT)Repeater mode
Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Designed for Remote Office or Small Office: Supports one of the tunnel type; 20× LAN-to-LAN IPsec, 16× OpenVPN***, 16× L2TP, and 16× PPTP VPN connections.
Reliable and Flexible: Up to 4 WAN connections connecting to 4 different Internet service providers and private links. Bandwidth based, app-based, or automatic line backup allow flexible and reliable use of your wide-area links.**
Gigabit Router: All (5) gigabit connecting ports provide high-speed wired connectivity.
Built-in Firewall: Built-in firewall and ACS filtering for easy penetration and blocking settings
VLAN and VLAN routing: Works with standard 802.1Q switches for multiple subnet separation and communication. Multi-Nets NAT for direct Internet access from any VLAN
Secured Router: Advanced ACS policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Centralized Management**: Work with center control Omada SDN controller enables cloud access for easy management and deployment.
Omada Cloud-based SDN: Zero-Touch Provisioning (ZTP)‡ eliminates the installation and maintenance truckloads.
High-Quality Video Recording: Capture every detail with exceptional clarity in 2K 4MP QHD resolution.
Wide Range of Movement: Enjoy a full 360º horizontal and 114º vertical range for pan and tilt, allowing you to cover more area.
Enhanced Night Vision: See clearly even in low-light conditions with advanced night vision that provides visibility up to 30 ft.
Smart AI Detection and Notifications: Benefit from smart AI technology that detects relevant events and sends you instant notifications.
Sound and Light Alarm: Scare away unwanted visitors using a sound and light alarm that triggers attention-grabbing effects.
Two-Way Audio: Enables communication through a built-in microphone and speaker
Safe Storage: Store footage directly on a microSD card with a capacity of up to 512 GB, ensuring safe and convenient storage.(microSD card purchased separately.)
Hands-Free Operation: Control the device using your voice with compatibility for Google Assistant and Amazon Alexa, freeing up your hands for other tasks. (Availability of Google Assistant and Amazon Alexa may vary based on language and country)

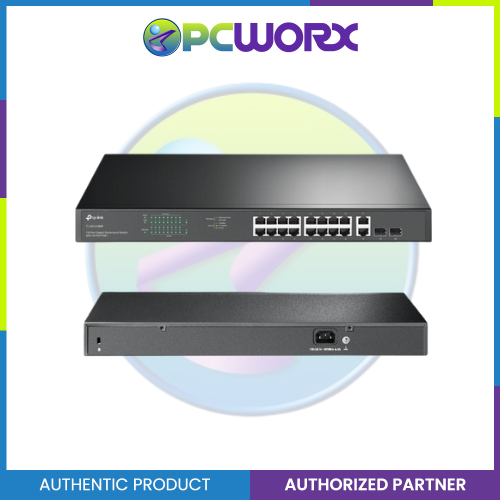

16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
