DGS-1008A
Air Discharge
8kV
Auto MDI/MDIX
Yes
Comply with RoHS 6
Yes
Contact Discharge
4kV
Control
802.3x Flow
Dimensions
130 x 79 x 22mm
Energy Efficiency Ethernet (EEE)
Yes
FAN
Fanless
Flash Memory Size
64KBytes
Head-of-line (HOL) Blocking Prevention
Yes
Interfaces
8 x 1000Base-T
Jumbo Frame
9,720 Bytes
MAC Address Table Size
4,000
Max. Packet Forwarding Rate
11.90 Mps
Maximum Heat Dissipation
16.368 BTU/h
Maximum Power Consumption
4.80 W
MTBF
1,061,267 hours
Operating Altitude
2000m
Operating Humidity
0% ~ 95% RH
Operating Temperature
0 ~ 40 °C
Packet Buffer Size
192KBytes
Power Input
AC:100 ~ 240 V
Power Saving By Cable Length
Yes
Power Saving By Link Status
YES
Standby Power Consumption
0.7 W
Storage Humidity
0% ~ 95% RH
Storage Temperature
- 10 ~ 70 °C
Store & Forwarding Forwading
Yes
Surge/Lightning Protection
AC Power Inet: 1kVAll Ethernet Ports: 1kV
Switch intelligence
Unmanaged
Switching Capacity
16 Gbps
Weight
130 g
HARDWARE FEATURES - TL-WN725N
Interface
USB 2.0
LED
Status
Weight
0.07 ounces / 2.1 grams (Without packaging)
Dimensions ( W x D x H )
0.73x0.59x0.28in.(18.6x15x7.1mm)
Antenna
Internal antenna
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency
2.400-2.4835GHz
Signal Rate
11b: Up to 11Mbps (dynamic)11g: Up to 54Mbps (dynamic)11n: Up to 150Mbps (dynamic)
Reception Sensitivity
130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER
Transmit Power
<20dBm
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification
CE, FCC, IC, RoHS
Package Contents
150Mbps wireless N Nano USB adapter TL-WN725NResource CDQuick Installation Guide
System Requirements
Windows 8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits),Windows XP(32/64bits), Mac OS X 10.7~10.10, Linux
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
CAMERA - C110
Image Sensor
1/2.8’’
Lens
F/NO: 2.0, Focal Length: 3.3 mm
Night Vision
850 nm IR LED (up to 30 ft)
Resolution
3MP(2304 x 1296)
VIDEO
Video Streaming
3MP
Video Compression
H.264
AUDIO
Audio Communication
Two-Way Audio
Audio Input & Output:
Microphone and Speaker
NETWORK
Wireless Rate
11 Mbps (802.11 b)54 Mbps (802.11 g)72.2Mbps (802.11n)
Wireless Security
WPA, WPA2-PSK
Security
128 Bit AES Encryption with SSL/TLS
Frequency
2.4 GHz
POWER
Camera input
3 Meter Power Cable
ACTIVITY NOTIFICATIONS
Input Trigger
Motion Detection
Output Notification
Push Notification
SYSTEM
Regulatory Certification
CE, NCC
System Requirements
iOS 10+, Android 5.0+
ENVIRONMENT
Operating Temperature
0-40 °C (32-104 °F)
Storage Temperature
-40-70 °C (-40-158 °F)
Operating Humidity
10-90% RH Non-Condensing
Storage Humidity
5-90% RH Non-Condensing
PACKAGE CONTENTS
Package Contents
Tapo C110DC Power AdapterQuick Start GuideMounting ScrewsMounting Template
HARDWARE
Button
Reset Button
Indicator LED
System LED
Adapter Input
100-240V, AC, 50/60 Hz, 0.3 A
Adapter Output
9.0 V / 0.6 A
Dimensions (W x D x H)
2.7 x 2.1 x 3.9 in (67.6 x 54.8 x 98.9 mm)
CAMERA - C500
Image Sensor
1/3''
Lens
Focal Length: 3.89 mmAperture: F2.0Field of View: 85.5°(Diagonal), 73.5°(Horizontal), 41°(Vertical)
Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night Vision
850 nm IR LED up to 98 ft/30m
Interface & Button
1× RESET Button1× MicroSD Card Slot
View Range
360° horizontal and 130° vertical
Resolution
1080p Full HD(1920 x 1080 px)
VIDEO & AUDIO
Maximum Resolution
1920 × 1080 px
Frame Rate
15 fps
Video Compression
H.264
Live View
Yes
Image Enhancement
3D DNRWDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
90 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
VIDEO
Frame Rate
15 fps
Video Streaming
1080p
Video Compression
H.264
DETECTION AND NOTIFICATIONS
AI Detection
Motion detectionPerson detectionTamper detection
Activity Zones
Yes
Output Notification
System NotificationSystem Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication
2-way audio
Audio Input & Output
Built-in microphone and speaker
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Wireless Security
WPA/WPA2-PSK
RTSP
Yes
ONVIF
Yes
Standards and Protocols
IEEE 802.11b/g/n, 2.4 GHz
Security
128 bit AES encryption with SSL/TLS
Frequency
2.4 GHz
SECURITY
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
POWER
Power Source
12V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
12V, 1 A (DC Power)
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP65
System Requirements
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options
Ceiling-MountedWall-MountedPole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature
-30℃~60℃
Storage Temperature
-40℃~60℃
Operating Humidity
10%~90% RH, Non-condensing
Storage Humidity
0~90% RH, Non-condensing
Dimensions
4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Package Contents
Tapo C500 CameraPower AdapterMounting AnchorsMounting ScrewsBracket ScrewsMounting TemplateMounting BracketWaterproof SealQuick Start Guide
Certifications
CE, FCC, RoHS, RCM
ACTIVITY NOTIFICATIONS
Input Trigger
Motion detection, Person detection
Output Notification
Notification,Snapshot(Tapo care),Clips(Tapo care).
ENVIRONMENT
Operating Temperature
-30℃~60℃(-22°F ~140 °F )
Storage Temperature
-40℃~60℃ (-40°F~140°F)
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
5%~90%RH, Non-condensing
PACKAGE CONTENTS
Package Contents
Tapo C500 CameraDC Power AdapterAnchors and ScrewsMounting TemplateWaterproof SealQuick Start Guide
HARDWARE
Button
RESET button
Indicator LED
System LED
Adapter Input
100-240V, 50/60Hz
Adapter Output
12.0V/1.0A
Dimensions (W x D x H)
4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
OTHERS
Certification
CE, FCC, RoHS, RCM

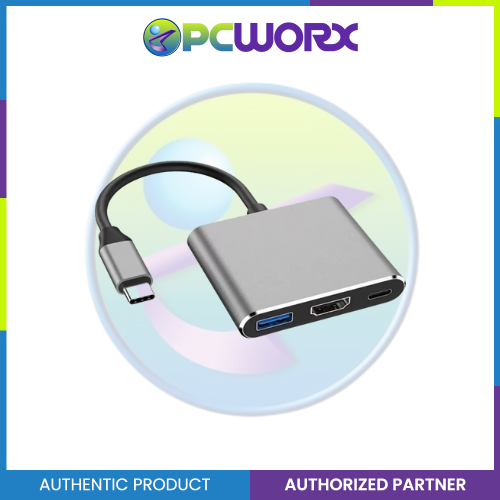

Description
● Input: USB3.1 type C
● Output Terminal: USB3.0+HDMI+Type C/F input
● HDMI Resolution: 3840X2160P(4K*2K)
● USB 3.1 Type-C to HDMI / USB 3.0 / USB-C Multiport Adapter
● Charge your laptop / phone
● Macbook ,Laptop with HDMI port
● Share movie on a larger TV/monitor/projector
● A great sidekick for your Laptop / Tablet with USB-C port
USB 2.0 Hub with 3 Ports and 100m Ethernet Adapter Vention CHPBB 0.15m Black
The Vention CHPBB hub combines stability, performance, and practicality all in one. You gain reliability, flexibility, and convenience. This device will streamline your daily life and allow you to enjoy smooth operation and entertainment.
Stable and Efficient Performance without Interruptions
The CHPBB hub ensures a stable connection without any disruptions. It is an ideal solution for both work and play, allowing for smooth data transmission, watching movies, or gaming. Thanks to improved chips, the performance is top-notch. Moreover, it is equipped with a light indicator that informs you of its activity, ensuring that your devices are operating as expected.
Portable and Durable
Its thoughtful design makes the hub durable and resistant to damage. At the same time, it is compact (with dimensions of just 100 × 30 × 16 mm) and easy to carry, so you can always have it with you. The CHPBB hub is a versatile solution. It is compatible with mice, keyboards, external drives, phones, and many other devices. It’s one device that meets many needs.
Supports Various Operating Systems
The hub is compatible with various operating systems, including Windows 10/8/7/XP, Vista, Mac OS, and Linux. No matter what software you use, the Vention hub will meet your expectations.
Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Economical, Plug-and-play Networking Switch
The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Conserve Energy
The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Specification
Auto MDI/MDIX:
Yes
Control:
802.3x Flow
Dimensions:
88x48x21.45mm
Energy Efficiency Ethernet (EEE):
Yes
FAN:
Fanless
Head-of-line (HOL) Blocking Prevention:
Yes
Interfaces:
5 x 100Base-TX
Jumbo Frame:
2048 Bytes
MAC Address Table Size:
2,000
Max. Packet Forwarding Rate:
0.74 Mpps
Maximum Heat Dissipation:
0.406 BTU/h
Maximum Power Consumption:
0.784 W
MTBF:
1,785,631 hours
Operating Humidity:
10% ~ 90% RH
Operating Temperature:
0 ~ 40 °C
Packet Buffer Size:
96KBytes
Power Input:
DC: 5V, 0.55A
Power Saving by Link Status:
YES
Standby Power Consumption:
0.4 W
Storage Humidity:
5% ~ 95% RH
Storage Temperature:
- 40 ~ 70 °C
Store & Forwarding Forwarding:
Yes
Switching Capacity:
1 Gbps
Weight:
434 g
AX3000 Wi-Fi 6 Smart Mesh Router M30
Dual-Band AX3000 Wi-Fi 6
Ultra-Fast Connectivity – Speeds up to 3 Gbps with an extra antenna on the faster 5 GHz band
Uninterrupted Wi-Fi Everywhere – Advanced antenna design offers 360° spherical coverage plus advanced AI technology
Scale-as-you-need Mesh – Create a robust mesh network with other AQUILA PRO AI routers and extenders
Multi-Gigabit Wired Connections – 1× Gigabit WAN port + 4× Gigabit LAN ports
Help Protect Your Home Network – Advanced parental controls, IoT cybersecurity certification and WPA3 encryption
Easy Setup and Management – The intuitive AQUILA PRO AI app guides you through setup step-by-step
Refined Aesthetics – Boasting an eagle-inspired form and a unique feather-patterned ventilation design
Eco-friendly Design – Made with Post-Consumer Recycled case and packed in recyclable packaging
Specifications:
Antenna:
5 x internal dual band antennas
Certifications:
CE
FCC
IC
Device Management:
AQUILA PRO AI app (iOS and android)
Web UI
Dimensions:
181.6 x 129. 2 x 661.1 mm (7.15 x 5.0 x 2.60 in)
Firewall:
1 x DMZ
Anti- spoofing checking
DoS
IP/MAC Address Filtering
Stateful Packet Inspection
Interfaces:
1 x Gigabit Ethernet WAN port
1 x power connector
1 x power on/off button
1 x WPS button
4 x Gigabit Ethernet LAN port
LED Status Indicators:
Power/Status
Maximum Power Consumption:
14.54W
Memory:
128MB Flash
512MB RAM
Operating Temperature:
0 to 40 °C (32 to 104 °F)
Power Input:
12V
1A
Security Protocol:
WPA/WPA2-Personal
WPA2/WPA3- Personal (WPS Not supported)
WPA2- Personal
WPA3 Only (WPS Not supported)
Voice Assistant:
Amazon Alexa
Google Assistant
Weight:
295g (0.65 lb)
Wireless Standard:
IEEE 802.11ax/ac/n/g/b/k/w/a/h IEEE 802.3U/ab
Wi-Fi Data Rate:
2.4 GHz Up to1200 Mbps
5 GHz Up to 1800 Mbps
Key Features:
Wi-Fi 6 Standard: Leverages the latest Wi-Fi 6 technology for faster speeds, lower latency, and improved network capacity, especially in crowded environments.
High-Gain Antenna: Equipped with an external high-gain antenna that enhances signal strength and range, ensuring a more stable and reliable connection.
Fast Wi-Fi Speeds: Offers a maximum wireless speed of up to 300 Mbps, providing smooth streaming, online gaming, and fast downloads.
Broad Compatibility: Supports a wide range of operating systems, including Windows 7, 10, and 11, as well as Linux, ensuring compatibility with various devices.
Easy Installation: Simple plug-and-play installation, making it easy to set up and use.
